222Y06-M11-22-2300-45 datasheet, PDF

Datasheet> All Categories > The connector> The connector> 222Y06-M11-22-2300-45

222Y06-M11-22-2300-45: DescriptionBoard Connector, 10 Contact(s), Female, Straight, Solder Terminal, M2x0.4, Plug; CategoryThe connector The connector; File Size55KB，1 Pages; ManufacturerNICOMATIC

Download Datasheet Parametric Compare View All

222Y06-M11-22-2300-45 Overview

Board Connector, 10 Contact(s), Female, Straight, Solder Terminal, M2x0.4, Plug

222Y06-M11-22-2300-45 Parametric

Parameter Name	Attribute value
Reach Compliance Code	compli
body width	0.217 inch
subject depth	0.209 inch
body length	1.26 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact arrangement	S6C4
Contact point gender	FEMALE
Contact material	COPPER ALLOY
Contact resistance	10 mΩ
Contact style	RND PIN-SKT
Durability	500 Cycles
maximum insertion force	2.0016 N
Insulation resistance	1000000000 Ω
insulator material	GLASS FILLED THERMOPLASTIC
Manufacturer's serial number	222Y
Mixed contacts	YES
Installation option 1	M2X0.4
Installation option 2	HEX HEAD
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.118 inch
Termination type	SOLDER
Total number of contacts	10
Evacuation force-minimum value	.1946 N
Base Number Matches	1

Preview

Download Datasheet

View All

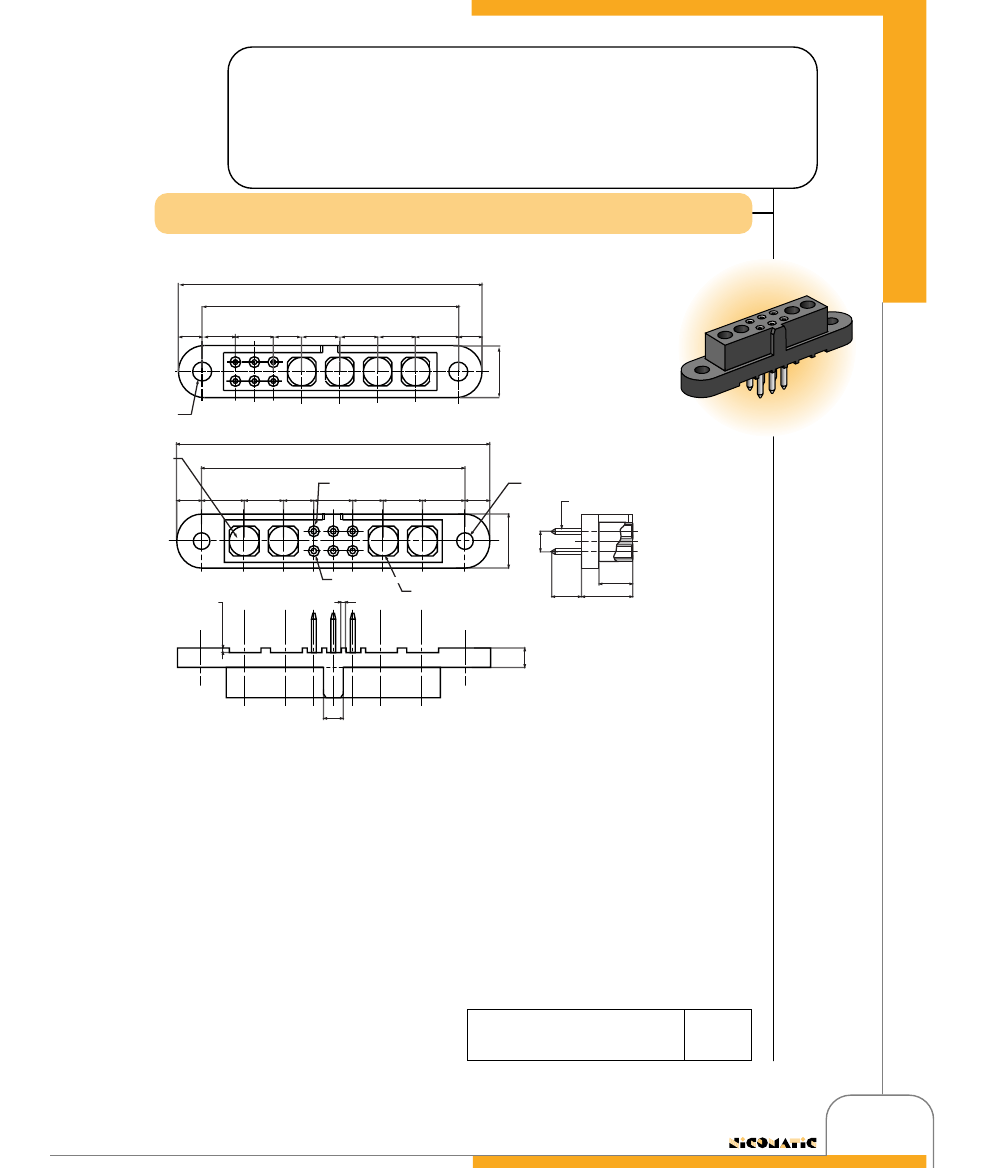

Micro-connector CMM 220

series with cavities for

special contacts

FEMALE STRAIGHT PCB

2.5

3.5

4.5

2.5

5.5

ø 2.1

Cavity n 1

contact n 1

2.5

4.5

2.5

ø 2.1

ø 0.5

5.5

2 signal contacts min.

0.5

From 0 to 12 cavities max.

divided on both extremities

3.5

5.3

1.8

Contact

•

Length L

3 mm

4.5 mm

Dimensions in mm

Part number

222

nn : number of contacts

xx : fixing, refer to page 25.

Number of cavities for special contacts (Pin 1 side of L.F. contacts).

Number of cavities for special contacts (other end).

Special contacts PN˚ when all cavities loaded, please refer to pages 39 and 43.

For special contacts and pcb lay out : please refer to pages 39 and 43.

Concerning items including only cavities for special contacts, please refer to page 22.

Other sizes are available upon request, please consult us.

•

nn Mxx

Dimensions

A = 2 mm x (number of contacts per row - 1)

B = A + (number of cavities x 4) + 7 mm

C = B + 5 mm

A = 2 x (3 - 1)

B = 4 + (4 x 4) + 7

C = 27 + 5 mm

Example

222Y 06 M11 - 22 - 2300 CMM

A=4

B = 27

C = 32

222Y06-M11-22-2300-45 Related Products

	222Y06-M11-22-2300-45	222Y06-M13-22-2300-45	222Y06-M12-22-2300-45	222Y06-M15-22-2300-45	222YL06-M11-22-2300-45	222YL06-M15-22-2300-45	222YL06-M12-22-2300-45	222Y06-M11-22-2300CMM
Description	Board Connector, 10 Contact(s), Female, Straight, Solder Terminal, M2x0.4, Plug	Board Connector, 10 Contact(s), Female, Straight, Solder Terminal, M2x0.4, Plug	Board Connector, 10 Contact(s), Female, Straight, Solder Terminal, Guide Pin, Plug	Board Connector, 10 Contact(s), Female, Straight, Solder Terminal, Guide Pin, Plug	Board Connector, 10 Contact(s), Female, Straight, Solder Terminal, M2x0.4, Plug	Board Connector, 10 Contact(s), Female, Straight, Solder Terminal, Guide Pin, Plug	Board Connector, 10 Contact(s), Female, Straight, Solder Terminal, Guide Pin, Plug	Board Connector, 10 Contact(s), Female, Straight, Solder Terminal, M2x0.4, Plug
Reach Compliance Code	compli	compli	compli	compli	compli	compli	compli	compliant
body width	0.217 inch	0.217 inch	0.217 inch	0.217 inch	0.217 inch	0.217 inch	0.217 inch	0.217 inch
subject depth	0.209 inch	0.209 inch	0.209 inch	0.209 inch	0.209 inch	0.209 inch	0.209 inch	0.209 inch
body length	1.26 inch	1.26 inch	1.26 inch	1.26 inch	1.26 inch	1.26 inch	1.26 inch	1.26 inch
Body/casing type	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact arrangement	S6C4	S6C4	S6C4	S6C4	S6C4	S6C4	S6C4	S6C4
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
Contact material	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY
Contact resistance	10 mΩ	10 mΩ	10 mΩ	10 mΩ	10 mΩ	10 mΩ	10 mΩ	10 mΩ
Contact style	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT
Durability	500 Cycles	500 Cycles	500 Cycles	500 Cycles	500 Cycles	500 Cycles	500 Cycles	500 Cycles
maximum insertion force	2.0016 N	2.0016 N	2.0016 N	2.0016 N	2.0016 N	2.0016 N	2.0016 N	2.0016 N
Insulation resistance	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω
insulator material	GLASS FILLED THERMOPLASTIC	GLASS FILLED THERMOPLASTIC	GLASS FILLED THERMOPLASTIC	GLASS FILLED THERMOPLASTIC	GLASS FILLED THERMOPLASTIC	GLASS FILLED THERMOPLASTIC	GLASS FILLED THERMOPLASTIC	GLASS FILLED THERMOPLASTIC
Manufacturer's serial number	222Y	222Y	222Y	222Y	222YL	222YL	222YL	222Y
Mixed contacts	YES	YES	YES	YES	YES	YES	YES	YES
Installation option 1	M2X0.4	M2X0.4	GUIDE PIN	GUIDE PIN	M2X0.4	GUIDE PIN	GUIDE PIN	M2X0.4
Installation option 2	HEX HEAD	HEX HEAD	LOCKING	LOCKING	HEX HEAD	LOCKING	LOCKING	HEX HEAD
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE	ONE	ONE	ONE	ONE	ONE
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Rated current (signal)	3 A	3 A	3 A	3 A	3 A	3 A	3 A	3 A
Guideline	UL	UL	UL	UL	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal length	0.118 inch	0.118 inch	0.118 inch	0.118 inch	0.177 inch	0.177 inch	0.177 inch	0.118 inch
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	10	10	10	10	10	10	10	10
Evacuation force-minimum value	.1946 N	.1946 N	.1946 N	.1946 N	.1946 N	.1946 N	.1946 N	.1946 N
Base Number Matches	1	1	1	1	1	1	1	-
