LEMO unipole and multipole connectors
This catalogue gives the complete description of LEMO unipole and multipole type connectors. The LEMO manufacturing
programme has been extended to almost 40 series divided into 7 product families with specific mating and environmental
characteristics. Each series includes a wide variety of plug, socket, coupler and bridge plug models, available in contact
configurations adapted to all round cables, including up to 106 conductors, and a maximum diameter of 30 mm.
Watertight and vacuumtight models are also available. Since LEMO connectors are perfectly screened and designed to
guarantee very low resistance to shell electrical continuity, they are particularly adapted to applications where electro-
magnetic compatibility (EMC) is important.
Table of Contents
3 steps to select the right connector
................................................................................................................................................................................3
B Series (indoor, keyed)
Part Numbering system .........................................................................................................................................................................................11
Metal Housing models ............................................................................................................................................................................................12
Elbow socket models..............................................................................................................................................................................................22
Plastic housing models...........................................................................................................................................................................................24
Watertight and vacuumtight models .......................................................................................................................................................................26
Bridge models ........................................................................................................................................................................................................29
Threaded-latching models ......................................................................................................................................................................................30
Alignment Key and Polarized Keying System ........................................................................................................................................................31
K Series (outdoor, keyed)
Part Numbering system ..........................................................................................................................................................................................33
Metal Housing models ............................................................................................................................................................................................34
Watertight and vacuumtight models .......................................................................................................................................................................41
Alignment Key and Polarized Keying System ........................................................................................................................................................43
B and K Series
Insert configuration, Housings, Insulators, Contacts .................................................................................................................................45
S Series (indoor, stepped insert)
Part Numbering system .........................................................................................................................................................................................57
Metal Housing models ............................................................................................................................................................................................58
Elbow socket models..............................................................................................................................................................................................68
Plastic housing models...........................................................................................................................................................................................70
E Series (outdoor, stepped insert)
Part Numbering system ..........................................................................................................................................................................................75
Metal Housing models ............................................................................................................................................................................................76
Watertight and vacuumtight models .......................................................................................................................................................................82
L Series (outdoor, stepped insert)
Part Numbering system ..........................................................................................................................................................................................85
Metal Housing models ............................................................................................................................................................................................86
Vacuumtight models ...............................................................................................................................................................................................89
Alignment Key and Polarized Keying System ........................................................................................................................................................90
S, E and L Series
Insert configuration, Housings, Insulators, Contacts .................................................................................................................................91
2G Series (indoor, keyed)...............................................................................................................................................................................................110
2C Series (indoor, stepped insert).................................................................................................................................................................................116
1D Series (indoor, 4 concentric contacts)
....................................................................................................................................................................124
Spare parts
......................................................................................................................................................................................................................130
Accessories
.....................................................................................................................................................................................................................136
Tooling
.............................................................................................................................................................................................................................146
Panel cut-outs
.................................................................................................................................................................................................................152
PCB drilling pattern
........................................................................................................................................................................................................154
Cable assembly
(B, K, S and E series) ...........................................................................................................................................................................161
Technical characteristics
...............................................................................................................................................................................................171
www.lemo.com
1
®
®
Precision modular connectors to suit your application
Since it’s creation in Switzerland in 1946 the LEMO Group has been recognized as a global leader of circular Push-Pull
connectors and connector solutions. Today LEMO and its affiliated companies, REDEL and COELVER, are active in
more than 80 countries with the help of over 40 subsidiaries and distributors.
Over 75’000 connectors
The modular design of the LEMO range provides over 75’000 connectors from miniature ø 3 mm to ø 50 mm, capable of
handling cable diameters up to 30 mm and for up to 106 contacts.
This vast portfolio enables you to select the ideal connector configuration to suit almost any specific requirement in most
markets, including medical devices, test and measurement instruments, machinery, audio video broadcast, telecommuni-
cations and military.

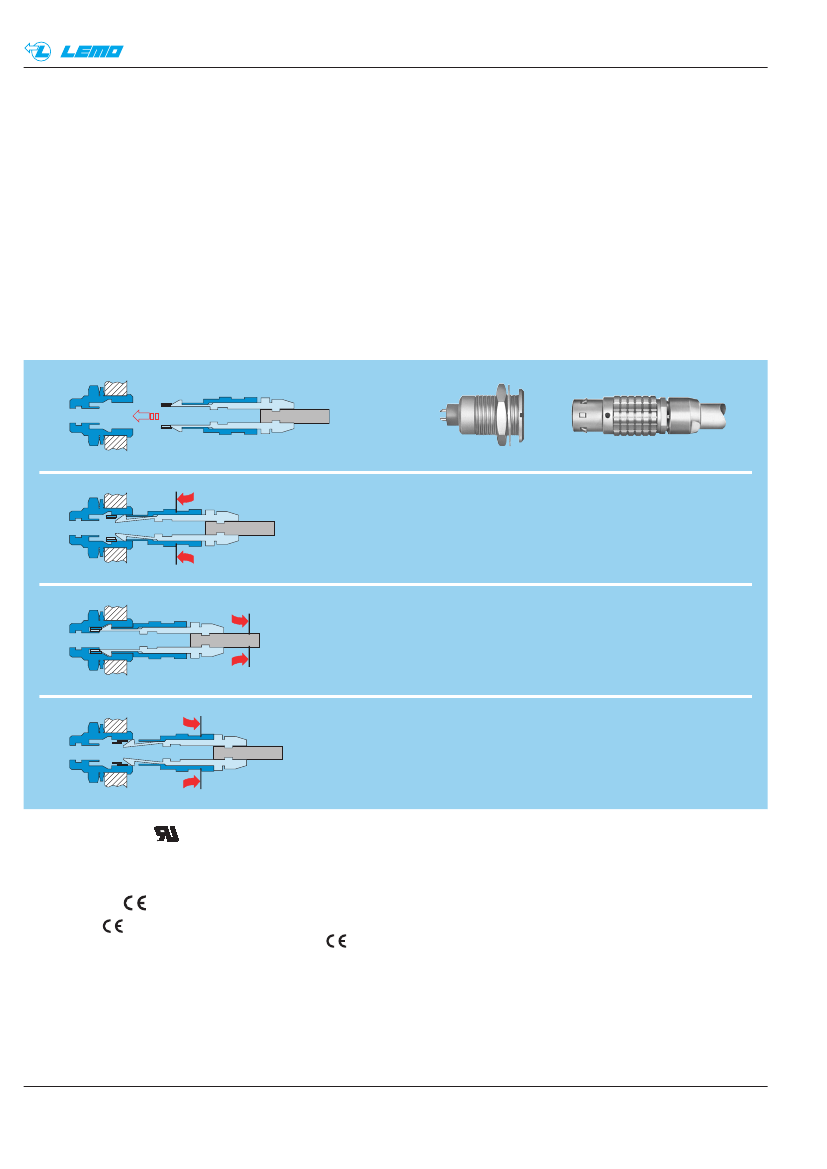

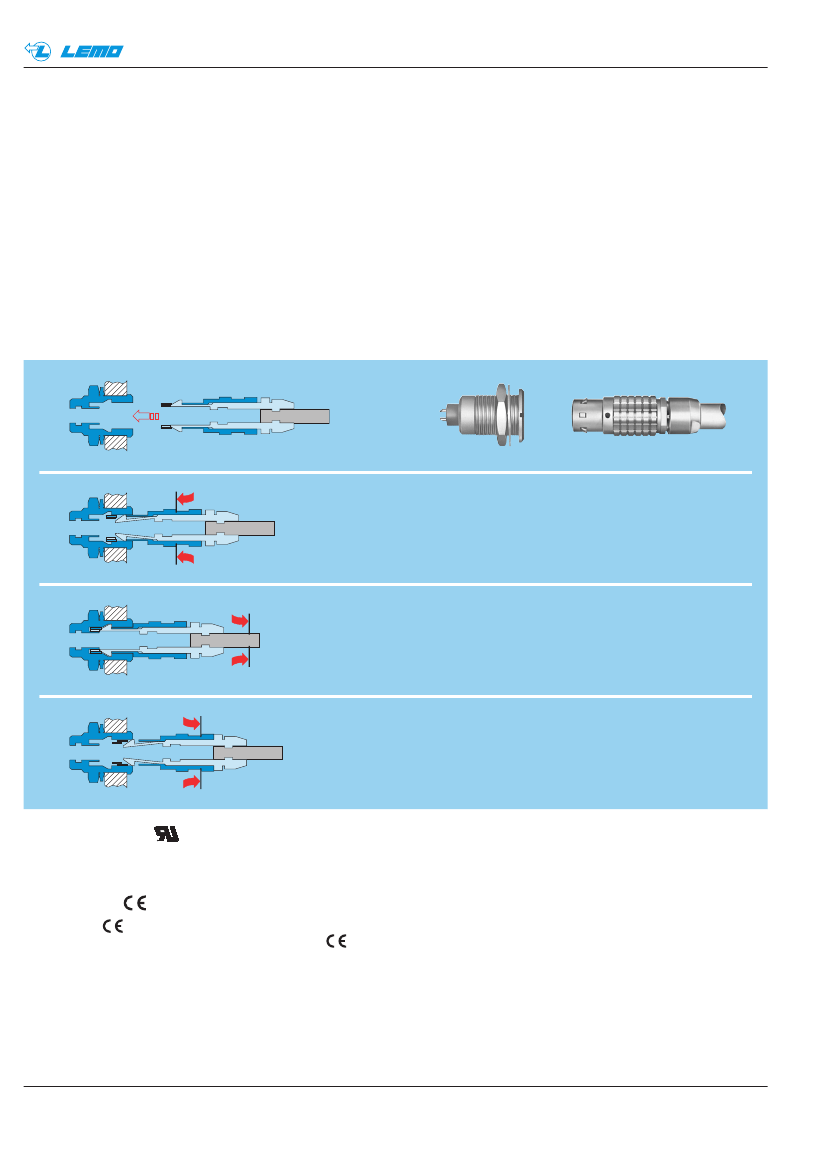

LEMO’s Push-Pull Self-Latching Connection System
This self-latching system is renowned worldwide for its easy and quick mating and unmating features. It provides absolute
security against vibration, shock or pull on the cable, and facilitates operation in a very limited space.
The LEMO self-latching system allows the connector
to be mated by simply pushing the plug axially into the
socket.
Once firmly latched, connection cannot be broken by
pulling on the cable or any other component part other
than the outer release sleeve.
When required, the connector is disengaged by a
single axial pull on the outer release sleeve. This first
disengages the latches and then withdraws the plug
from the socket.
UL Recognition
LEMO connectors are recognized by the Underwriters Laboratories (UL). The approval of the complete system (LEMO
connector, cable and your equipment) will be easier because LEMO connectors are recognized.
CE marking
CE marking
means that the appliance or equipment bearing it complies with the protection requirements of one or
several European safety directives. CE marking
applies to complete products or equipment,
but not to electrome-
chanical components, such as connectors.
RoHS
LEMO connector specifications exceed the requirements of the RoHS directive (2011/65/EU) of the European Parliament
and the latest amendments. This directive specifies the restrictions of the use of hazardous substances in electrical and
electronic equipment marketed in Europe.
2
www.lemo.com
®
®
3 steps to select the right connector
q
Step 1: Select connector series
Select the appropriate LEMO connector series according to the environmental parameters that will affect your device
or cable such as indoor, outdoor, temperature range, ingress protection of the mated connector and of your device.
Use the table shown on page 4.
Part number coding
.
.
.
B, K, S, E, L, G, C or D
q
Step 2: Select connector size
Use the section (mm
2
) or the AWG of your cable wire to select the optimal contact diameter (values vary between
solder, crimp or print contact), see page 7.
Use this optimal contact diameter to determine the right connector size as well as the insert configuration, see page 6.
Part number coding
.
.
.
0, 1, 2, 3, 4, 5 or 6
q
Step 3: Complete the part number
Now that you know the series, as well as the insulator configuration, complete the part numbering system with the help
of the following table.
Part number coding
.
.
.
Model
B Series (indoor, keyed)
K Series (outdoor, keyed)
S Series (indoor, stepped insert)
E Series (outdoor, stepped insert)
L Series (outdoor, keyed, stepped insert)
G Series (indoor, keyed)
C Series (indoor, stepped insert)
D Series (indoor, 4 concentric contacts)
12
34
58
76
86
111
117
125
Series
12
34
58
76
86
111
117
125
Insert
configuration
45
45
91
91
92
112
120
127
Housing
material
50
50
99
99
99
112
120
127
Insulator
material
50
50
99
99
99
110
116
124
Contact
50
50
99
99
99
113
120
127
Collet
52
53
102
105
106
113
121
127
Variant
54
54
107
107
107
113
121
128
Note:
Figures in the above table refer to the catalogue pages.
www.lemo.com
3
