IDT54AHCT273LB datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> IDT54AHCT273LB

IDT54AHCT273LB: DescriptionD Flip-Flop, 8-Func, Positive Edge Triggered, CMOS, CQCC20; Categorylogic logic; File Size210KB，4 Pages; ManufacturerIDT (Integrated Device Technology)

Download Datasheet Parametric Compare View All

IDT54AHCT273LB Overview

D Flip-Flop, 8-Func, Positive Edge Triggered, CMOS, CQCC20

IDT54AHCT273LB Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	IDT (Integrated Device Technology)
package instruction	QCCN, LCC20,.35SQ
Reach Compliance Code	not_compliant
JESD-30 code	S-XQCC-N20
JESD-609 code	e0
Logic integrated circuit type	D FLIP-FLOP
MaximumI(ol)	0.014 A
Number of functions	8
Number of terminals	20
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC
encapsulated code	QCCN
Encapsulate equivalent code	LCC20,.35SQ
Package shape	SQUARE
Package form	CHIP CARRIER
Peak Reflow Temperature (Celsius)	225
power supply	5 V
Certification status	Not Qualified
Filter level	38535Q/M;38534H;883B
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	NO LEAD
Terminal pitch	1.27 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	30
Trigger type	POSITIVE EDGE

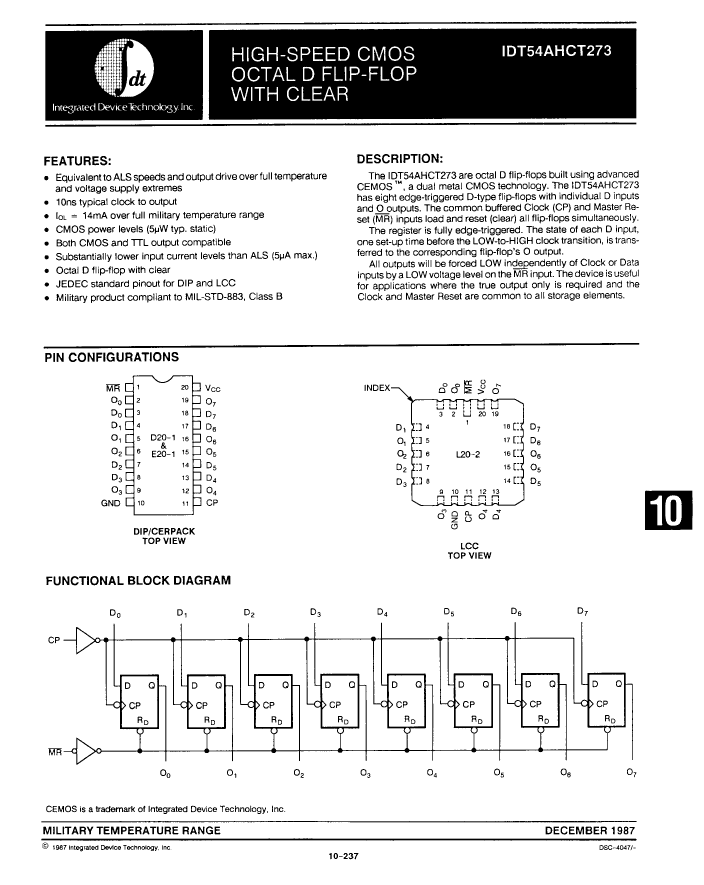

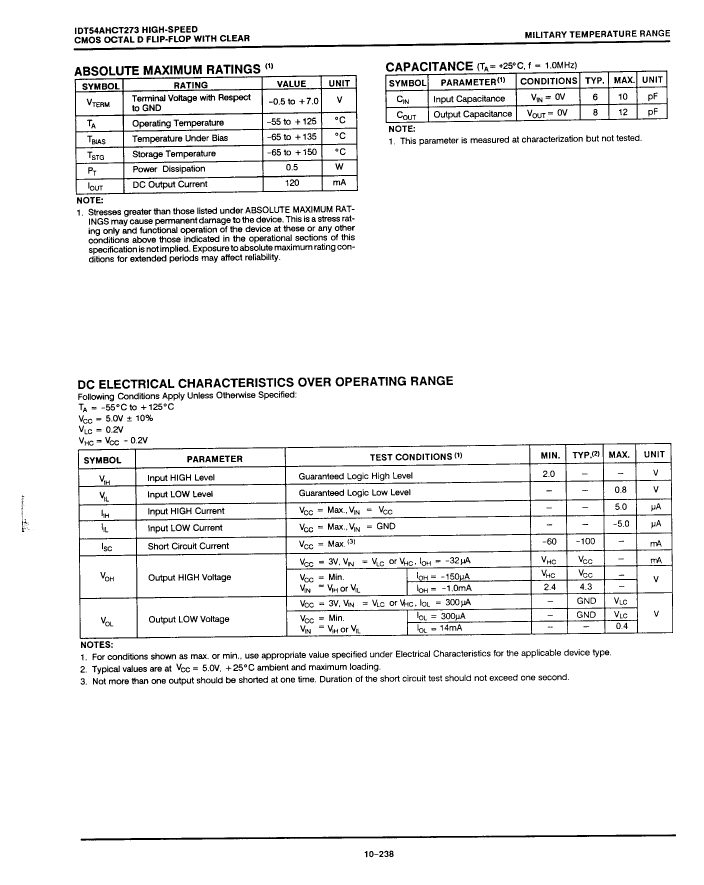

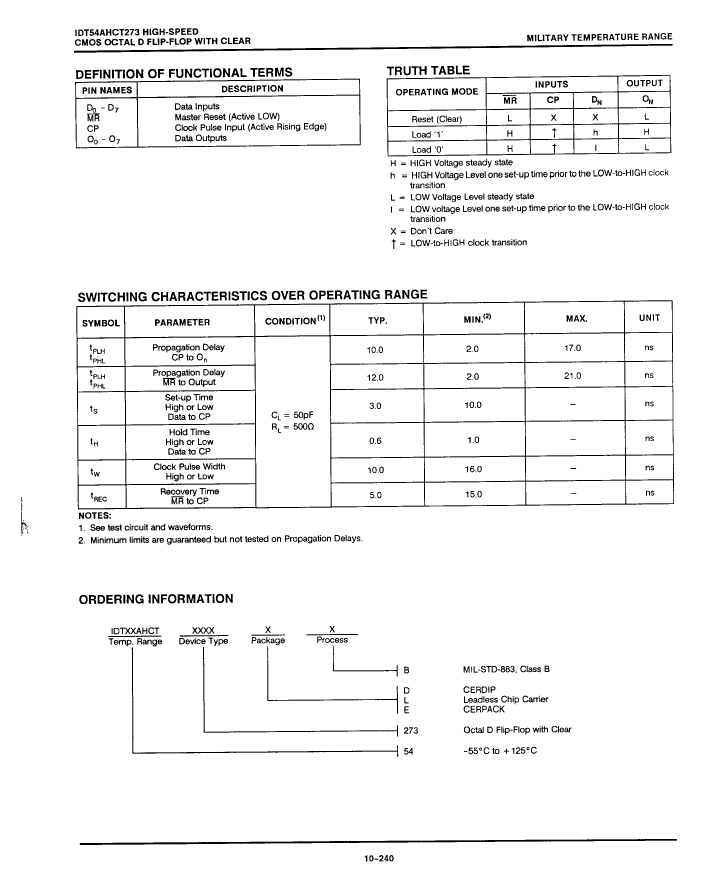

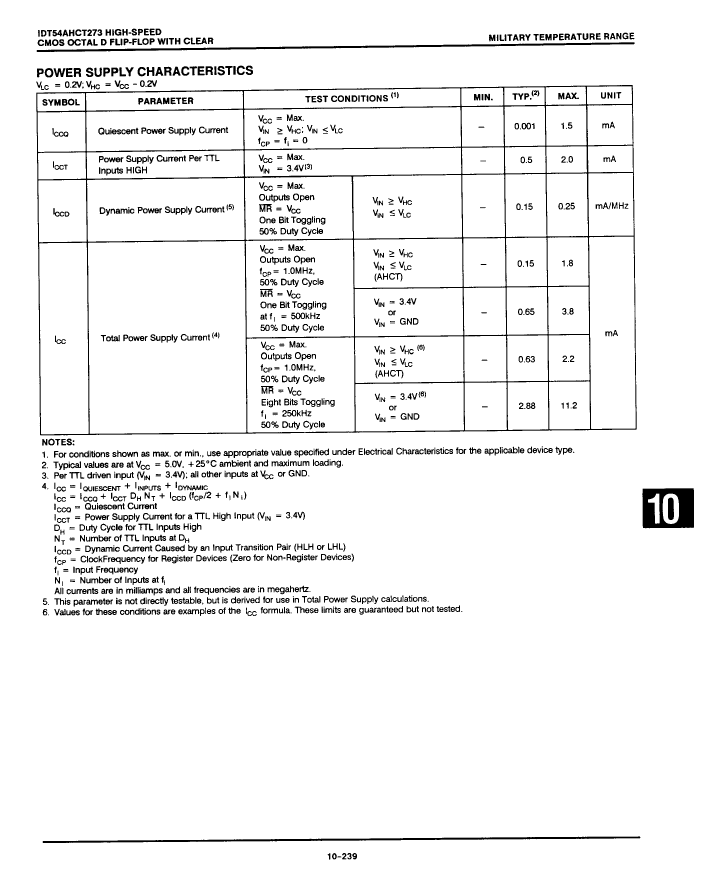

Preview

Download Datasheet

View All

IDT54AHCT273LB Related Products

	IDT54AHCT273LB	5962-01-292-1662	74AHCT273D	IDT54AHCT273DB	IDT54AHCT273EB	5962-01-292-8288
Description	D Flip-Flop, 8-Func, Positive Edge Triggered, CMOS, CQCC20	D Flip-Flop, 8-Func, Positive Edge Triggered, CMOS, CQCC20	D Flip-Flop, 8-Func, Positive Edge Triggered, CMOS, CDIP20	D Flip-Flop, 8-Func, Positive Edge Triggered, CMOS, CDIP20	D Flip-Flop, 8-Func, Positive Edge Triggered, CMOS, CDFP20	D Flip-Flop, 8-Func, Positive Edge Triggered, CMOS, CDIP20
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant
JESD-30 code	S-XQCC-N20	S-XQCC-N20	R-XDIP-T20	R-XDIP-T20	R-XDFP-F20	R-XDIP-T20
JESD-609 code	e0	e0	e0	e0	e0	e0
Logic integrated circuit type	D FLIP-FLOP	D FLIP-FLOP	D FLIP-FLOP	D FLIP-FLOP	D FLIP-FLOP	D FLIP-FLOP
MaximumI(ol)	0.014 A	0.014 A	0.024 A	0.014 A	0.014 A	0.014 A
Number of functions	8	8	8	8	8	8
Number of terminals	20	20	20	20	20	20
Maximum operating temperature	125 °C	125 °C	70 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-	-55 °C	-55 °C	-55 °C
Package body material	CERAMIC	CERAMIC	CERAMIC	CERAMIC	CERAMIC	CERAMIC
encapsulated code	QCCN	QCCN	DIP	DIP	DFP	DIP
Encapsulate equivalent code	LCC20,.35SQ	LCC20,.35SQ	DIP20,.3	DIP20,.3	FL20,.3	DIP20,.3
Package shape	SQUARE	SQUARE	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	CHIP CARRIER	CHIP CARRIER	IN-LINE	IN-LINE	FLATPACK	IN-LINE
Peak Reflow Temperature (Celsius)	225	225	260	225	260	225
power supply	5 V	5 V	5 V	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	NO	NO	YES	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	MILITARY	MILITARY	COMMERCIAL	MILITARY	MILITARY	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	TIN LEAD	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	TIN LEAD
Terminal form	NO LEAD	NO LEAD	THROUGH-HOLE	THROUGH-HOLE	FLAT	THROUGH-HOLE
Terminal pitch	1.27 mm	1.27 mm	2.54 mm	2.54 mm	1.27 mm	2.54 mm
Terminal location	QUAD	QUAD	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	30	30	6	30	6	30
Trigger type	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE
Maker	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)	-
package instruction	QCCN, LCC20,.35SQ	-	DIP, DIP20,.3	DIP, DIP20,.3	DFP, FL20,.3	-
Filter level	38535Q/M;38534H;883B	38535Q/M;38534H;883B	-	38535Q/M;38534H;883B	38535Q/M;38534H;883B	38535Q/M;38534H;883B
