IDT54AHCT533LB datasheet, PDF - EEWORLD Datasheet

IDT54AHCT533LB: DescriptionD Latch, 1-Func, 8-Bit, CMOS, CQCC20; Categorylogic logic; File Size208KB，4 Pages; ManufacturerIDT (Integrated Device Technology)

Download Datasheet Parametric Compare View All

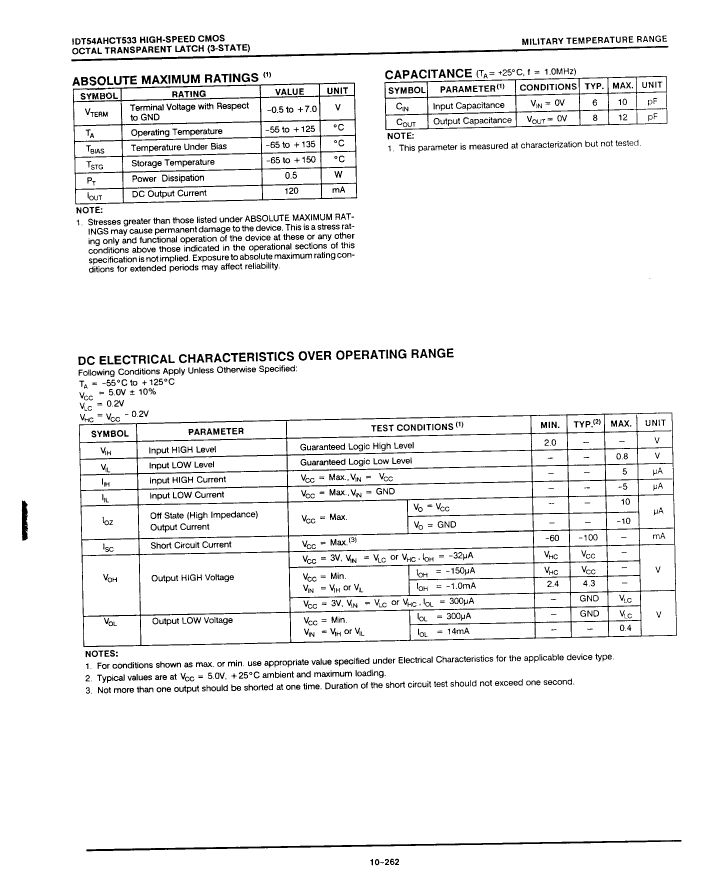

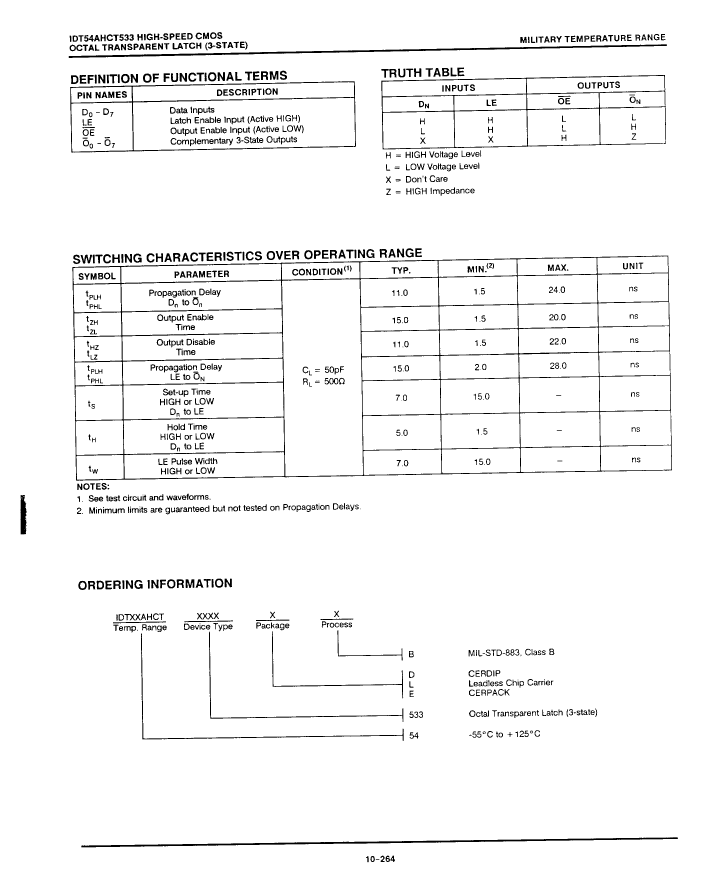

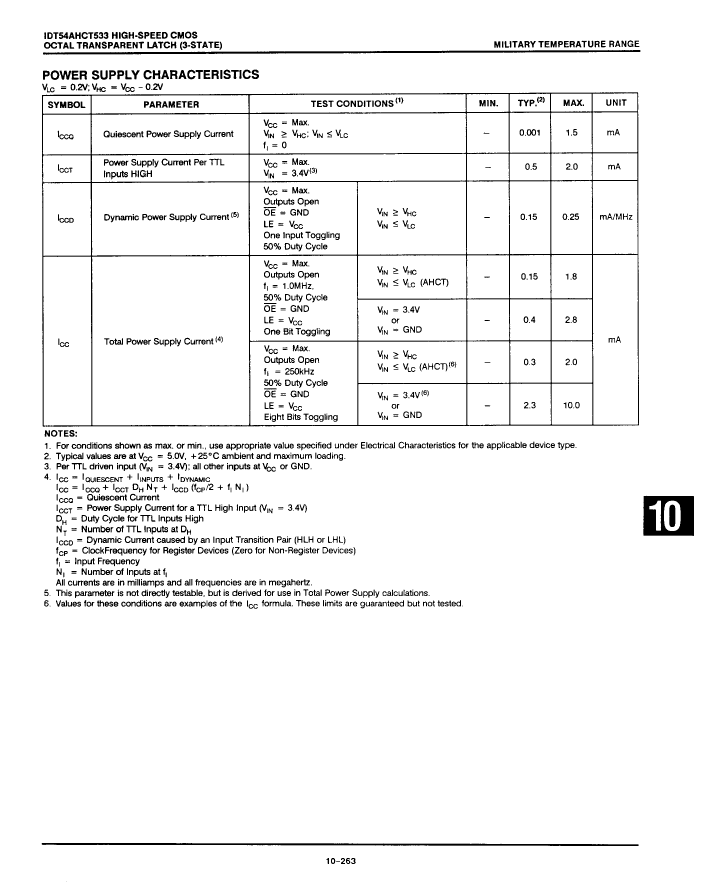

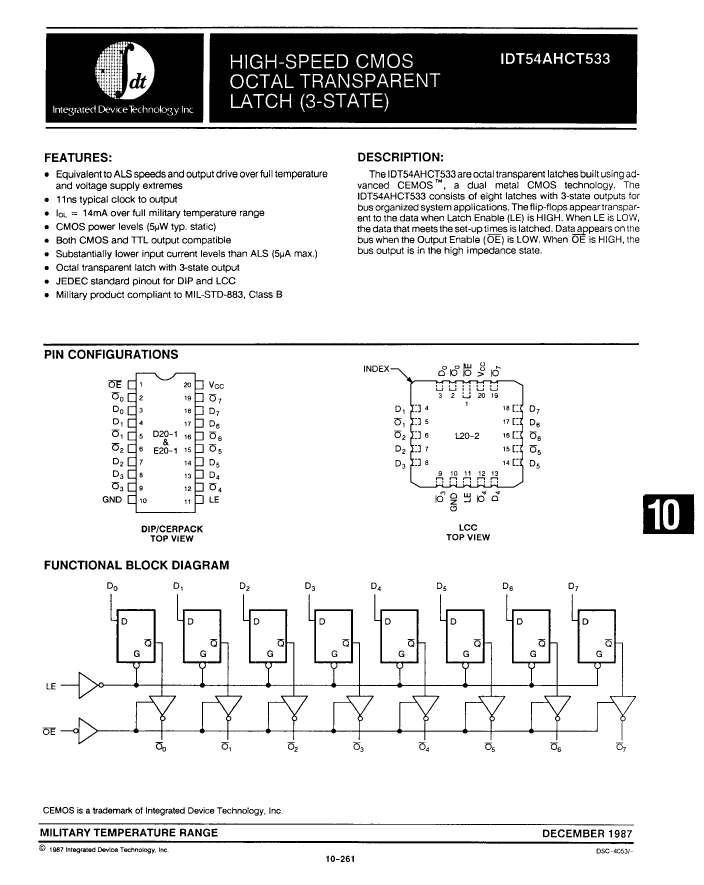

IDT54AHCT533LB Overview

D Latch, 1-Func, 8-Bit, CMOS, CQCC20

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	IDT (Integrated Device Technology)
package instruction	QCCN, LCC20,.35SQ
Reach Compliance Code	not_compliant
JESD-30 code	S-XQCC-N20
JESD-609 code	e0
Logic integrated circuit type	D LATCH
MaximumI(ol)	0.014 A
Number of digits	8
Number of functions	1
Number of terminals	20
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	3-STATE
Package body material	CERAMIC
encapsulated code	QCCN
Encapsulate equivalent code	LCC20,.35SQ
Package shape	SQUARE
Package form	CHIP CARRIER
Peak Reflow Temperature (Celsius)	260
power supply	5 V
Certification status	Not Qualified
Filter level	38535Q/M;38534H;883B
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	NO LEAD
Terminal pitch	1.27 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	6

	IDT54AHCT533LB	IDT54AHCT533EB
Description	D Latch, 1-Func, 8-Bit, CMOS, CQCC20	D Latch, 1-Func, 8-Bit, CMOS, CDFP20
Is it lead-free?	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible
Maker	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)
package instruction	QCCN, LCC20,.35SQ	DFP, FL20,.3
Reach Compliance Code	not_compliant	not_compliant
JESD-30 code	S-XQCC-N20	R-XDFP-F20
JESD-609 code	e0	e0
Logic integrated circuit type	D LATCH	D LATCH
MaximumI(ol)	0.014 A	0.014 A
Number of digits	8	8
Number of functions	1	1
Number of terminals	20	20
Maximum operating temperature	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C
Output characteristics	3-STATE	3-STATE
Package body material	CERAMIC	CERAMIC
encapsulated code	QCCN	DFP
Encapsulate equivalent code	LCC20,.35SQ	FL20,.3
Package shape	SQUARE	RECTANGULAR
Package form	CHIP CARRIER	FLATPACK
Peak Reflow Temperature (Celsius)	260	260
power supply	5 V	5 V
Certification status	Not Qualified	Not Qualified
Filter level	38535Q/M;38534H;883B	38535Q/M;38534H;883B
Nominal supply voltage (Vsup)	5 V	5 V
surface mount	YES	YES
technology	CMOS	CMOS
Temperature level	MILITARY	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	NO LEAD	FLAT
Terminal pitch	1.27 mm	1.27 mm
Terminal location	QUAD	DUAL
Maximum time at peak reflow temperature	6	6
