2-641314-1 datasheet, PDF - EEWORLD Datasheet

2-641314-1: DescriptionHEADER CONNECTOR,CABLE MNT,PLUG,21 CONTACTS,SKT,0.1 PITCH,IDC TERMINAL,GREEN; CategoryThe connector The connector; File Size90KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric View All

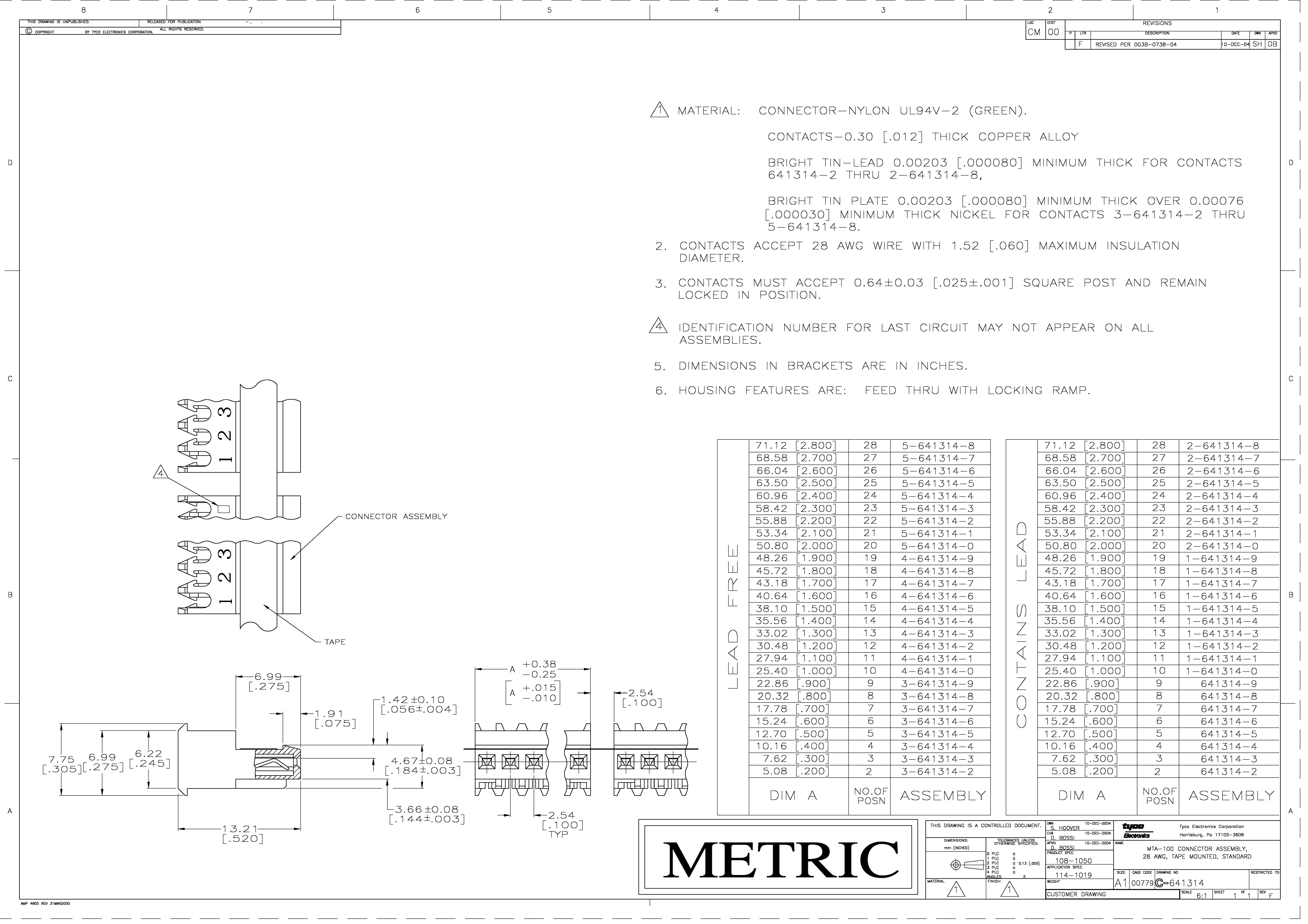

2-641314-1 Overview

HEADER CONNECTOR,CABLE MNT,PLUG,21 CONTACTS,SKT,0.1 PITCH,IDC TERMINAL,GREEN

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Reach Compliance Code	unknow
Other features	FEED THRU, TAPE MOUNTED
body width	0.305 inch
subject depth	0.52 inch
body length	2.1 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contactor design	PREASSEM CONN
Contact to complete cooperation	SN
Contact completed and terminated	TIN
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	6 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	750VAC V
Durability	25 Cycles
maximum insertion force	8.896 N
Insulation resistance	5000000000 Ω
Insulator color	GREEN
insulator material	NYLON
Manufacturer's serial number	641314
Plug contact pitch	0.1 inch
Installation type	CABLE
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Plating thickness	80u inch
Rated current (signal)	5 A
Guideline	UL, CSA
reliability	COMMERCIAL
Termination type	IDC
Total number of contacts	21
Maximum wire diameter	22 AWG
Minimum wire diameter	28 AWG
Evacuation force-minimum value	3.614 N
Base Number Matches	1
