2-794668-2 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 2-794668-2

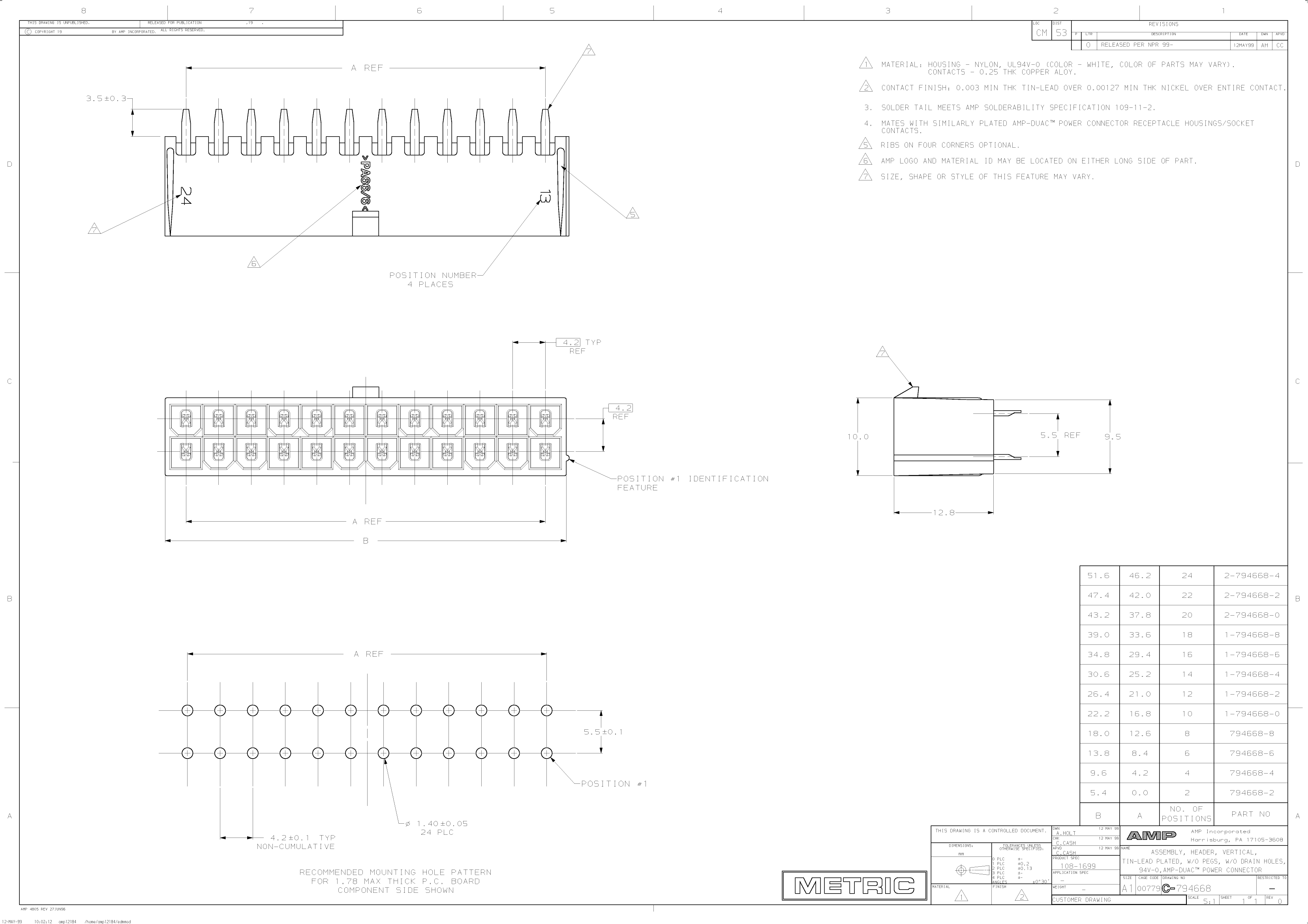

2-794668-2: DescriptionHEADER CONNECTOR,PCB MNT,RECEPT,0+22 CONTACTS,PIN,0.165 PITCH,PC TAIL TERMINAL,LOCKING,WHITE; CategoryThe connector The connector; File Size76KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

2-794668-2 Overview

HEADER CONNECTOR,PCB MNT,RECEPT,0+22 CONTACTS,PIN,0.165 PITCH,PC TAIL TERMINAL,LOCKING,WHITE

2-794668-2 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Reach Compliance Code	unknow
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN-PB
Contact completed and terminated	TIN/LEAD
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	1500VAC V
Insulation resistance	1000000000 Ω
Insulator color	WHITE
insulator material	NYLON
Manufacturer's serial number	794668
Plug contact pitch	0.165 inch
Match contact row spacing	0.165 inch
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	4.191 mm
Rated current (signal)	9 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	4.191 mm
Termination type	SOLDER
Total number of contacts	0+22
Base Number Matches	1

Preview

Download Datasheet

View All

2-794668-2 Related Products

	2-794668-2	2-794668-0	2-794668-4	1-794668-4	794668-8
Description	HEADER CONNECTOR,PCB MNT,RECEPT,0+22 CONTACTS,PIN,0.165 PITCH,PC TAIL TERMINAL,LOCKING,WHITE	HEADER CONNECTOR,PCB MNT,RECEPT,0+20 CONTACTS,PIN,0.165 PITCH,PC TAIL TERMINAL,LOCKING,WHITE	HEADER CONNECTOR,PCB MNT,RECEPT,0+24 CONTACTS,PIN,0.165 PITCH,PC TAIL TERMINAL,LOCKING,WHITE	HEADER CONNECTOR,PCB MNT,RECEPT,0+14 CONTACTS,PIN,0.165 PITCH,PC TAIL TERMINAL,LOCKING,WHITE	HEADER CONNECTOR,PCB MNT,RECEPT,0+8 CONTACTS,PIN,0.165 PITCH,PC TAIL TERMINAL,LOCKING,WHITE
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	unknow	unknow	unknow	compliant	unknown
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	SN-PB	SN-PB	SN-PB	SN-PB	SN-PB
Contact completed and terminated	TIN/LEAD	TIN/LEAD	TIN/LEAD	TIN/LEAD	TIN/LEAD
Contact point gender	MALE	MALE	MALE	MALE	MALE
Contact material	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	10 mΩ	10 mΩ	10 mΩ	10 mΩ	10 mΩ
Contact style	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT
Dielectric withstand voltage	1500VAC V	1500VAC V	1500VAC V	1500VAC V	1500VAC V
Insulation resistance	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω
Insulator color	WHITE	WHITE	WHITE	WHITE	WHITE
insulator material	NYLON	NYLON	NYLON	NYLON	NYLON
Manufacturer's serial number	794668	794668	794668	794668	794668
Plug contact pitch	0.165 inch	0.165 inch	0.165 inch	0.165 inch	0.165 inch
Match contact row spacing	0.165 inch	0.165 inch	0.165 inch	0.165 inch	0.165 inch
Installation option 1	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE	ONE	ONE
PCB row number	2	2	2	2	2
Number of rows loaded	2	2	2	2	2
Maximum operating temperature	105 °C	105 °C	105 °C	105 °C	105 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
PCB contact row spacing	4.191 mm	4.191 mm	4.191 mm	4.191 mm	4.191 mm
Rated current (signal)	9 A	9 A	9 A	9 A	9 A
Guideline	UL	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal pitch	4.191 mm	4.191 mm	4.191 mm	4.191 mm	4.191 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	0+22	0+20	0+24	0+14	0+8
Base Number Matches	1	1	1	1	-
