SG1524N datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> SG1524N

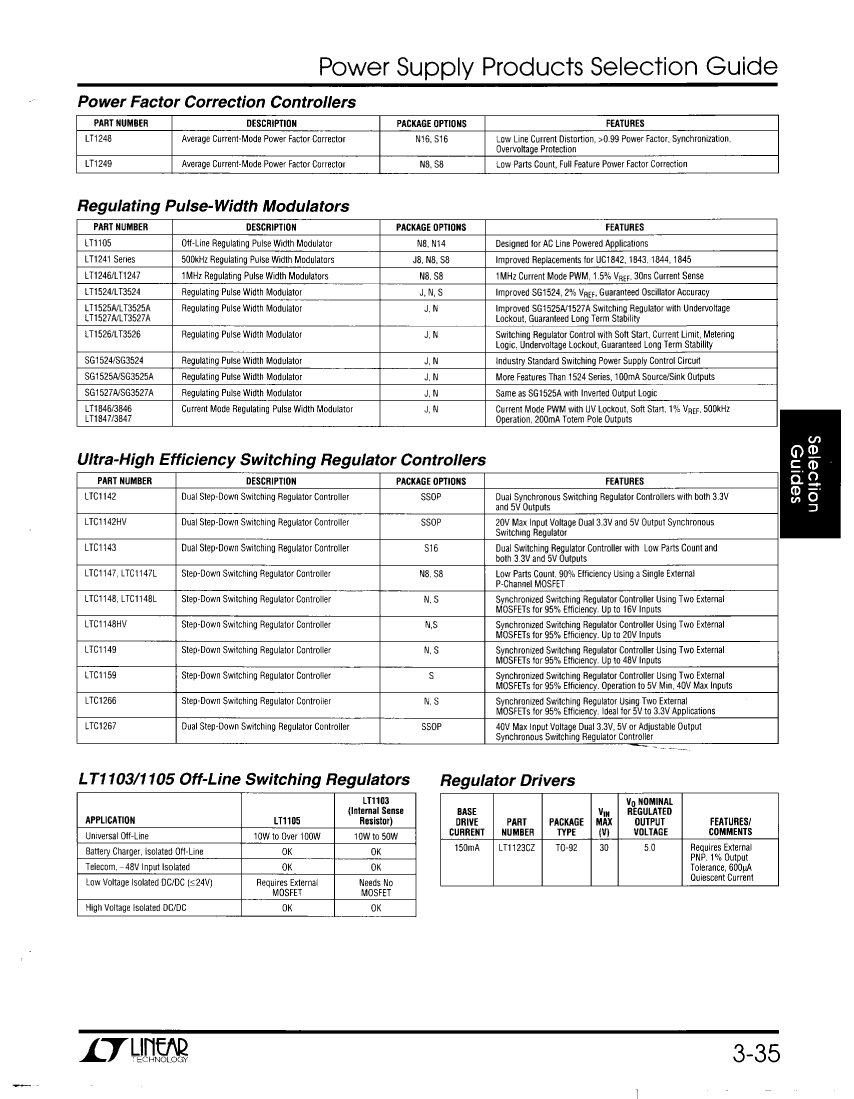

SG1524N: DescriptionIC SWITCHING CONTROLLER, PDIP, Switching Regulator or Controller; CategoryPower/power management The power supply circuit; File Size62KB，1 Pages; ManufacturerLinear ( ADI ); Websitehttp://www.analog.com/cn/index.html

Download Datasheet Parametric Compare View All

SG1524N Overview

IC SWITCHING CONTROLLER, PDIP, Switching Regulator or Controller

SG1524N Parametric

Parameter Name	Attribute value
Maker	Linear ( ADI )
package instruction	DIP,
Reach Compliance Code	unknown
ECCN code	EAR99
Analog Integrated Circuits - Other Types	SWITCHING CONTROLLER
Control Technology	PULSE WIDTH MODULATION
JESD-30 code	R-PDIP-T
JESD-609 code	e0
Number of functions	1
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
surface mount	NO
Terminal surface	TIN LEAD
Terminal form	THROUGH-HOLE
Terminal location	DUAL

Preview

Download Datasheet

View All

SG1524N Related Products

	SG1524N	SG1525AN	LT1524S	SG1527AN	LT1846N	LT1847N	LT3524S	LT1525AN
Description	IC SWITCHING CONTROLLER, PDIP, Switching Regulator or Controller	IC SWITCHING CONTROLLER, PDIP, Switching Regulator or Controller	IC SWITCHING CONTROLLER, PDSO, Switching Regulator or Controller	IC SWITCHING CONTROLLER, PDIP, Switching Regulator or Controller	IC SWITCHING CONTROLLER, 500 kHz SWITCHING FREQ-MAX, PDIP, Switching Regulator or Controller	IC SWITCHING CONTROLLER, 500 kHz SWITCHING FREQ-MAX, PDIP, Switching Regulator or Controller	IC SWITCHING CONTROLLER, PDSO, Switching Regulator or Controller	IC SWITCHING CONTROLLER, PDIP, Switching Regulator or Controller
Reach Compliance Code	unknown	unknown	compliant	unknown	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Analog Integrated Circuits - Other Types	SWITCHING CONTROLLER	SWITCHING CONTROLLER	SWITCHING CONTROLLER	SWITCHING CONTROLLER	SWITCHING CONTROLLER	SWITCHING CONTROLLER	SWITCHING CONTROLLER	SWITCHING CONTROLLER
Control Technology	PULSE WIDTH MODULATION	PULSE WIDTH MODULATION	PULSE WIDTH MODULATION	PULSE WIDTH MODULATION	PULSE WIDTH MODULATION	PULSE WIDTH MODULATION	PULSE WIDTH MODULATION	PULSE WIDTH MODULATION
JESD-30 code	R-PDIP-T	R-PDIP-T	R-PDSO-G	R-PDIP-T	R-PDIP-T	R-PDIP-T	R-PDSO-G	R-PDIP-T
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0
Number of functions	1	1	1	1	1	1	1	1
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	DIP	SOP	DIP	DIP	DIP	SOP	DIP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	SMALL OUTLINE	IN-LINE	IN-LINE	IN-LINE	SMALL OUTLINE	IN-LINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	NO	NO	YES	NO	NO	NO	YES	NO
Terminal surface	TIN LEAD	TIN LEAD	Tin/Lead (Sn/Pb)	TIN LEAD	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	GULL WING	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	GULL WING	THROUGH-HOLE
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maker	Linear ( ADI )	-	-	-	Linear ( ADI )	Linear ( ADI )	Linear ( ADI )	Linear ( ADI )
Is it Rohs certified?	-	-	incompatible	-	incompatible	incompatible	incompatible	incompatible
