DESCRIPTION
The Accutek AK5361024W high density memory module is a
CMOS Dynamic RAM organized in 1024K x 36 bit words. The mod-
ule consists of eight standard 1 Meg x 4 DRAMsin plastic SOJ pack-
ages mounted on the front side of a printed circuit board and four 1
Meg x 1 DRAMs in plastic SOJ packages mounted on the back side
of a printed circuit board with a low profile height of only 0.875 inch
in a 72 pin leadless SIM configuration.
This configuration allows socket-mounting of large quantities of
memory in applications where high density and ease of inserting ad-
ditional memory are important.
The operation of the AK5361024W is identical to eight 1 Meg x 4
plus four 1 Meg x 1 DRAMs. There are four
CAS
lines and two
RAS
lines. Independent byte control is accomplished by four
CAS
lines.
Each separate
CAS
line controls two 1Meg x 4 DRAMs, along with a
1 Meg x 1 DRAM with data in tied to data out to form a 9 bit byte. The
bank of 36 bits is controlled by the two
RAS
lines. An eighteen bit
data path can be produced by connecting DQ
0
to DQ
18
, DQ
1
to
DQ
19
, etc. and alternately strobing
RAS
0
with
RAS
2
.
+
AK5361024W
1,048,576 Word by 36 Bit CMOS
Dynamic Random Access Memory
+
FEATURES
·
·
·
·
·
·
1,048,576 x 36 bit organization
Low profile board height of 0.875 inch
72 pad Single In-Line Module
Multiple
CAS
and
RAS
lines allow x18 or x36 bit widths
CAS-before-RAS, RAS-only
or hidden refresh
Power
7.26 Watt Max Active (60nS)
6.16 Watt Max Active (70 nS)
5.28 Watt Max Active (80 nS)
66 mW Max Standby
·
Single 5 Volt Power Supply
·
1024 Refresh Cycles, 16 mSEC
·
Available in Fast Page Mode and Static Column Mode ver-
sions
·
Available in leadless SIM or leaded ZIP versions
·
Downward compatible with AK536512W and AK536256W
·
Upward compatible with AK5362048W, AK5364096W and
AK5368192W
·
Operating free air temperature 0
0
C to 70
0
C
PIN NOMENCLATURE
DQ
0
- DQ
35
A
0
- A
9
CAS
0
- CAS
3
RAS
0
& RAS
2
WE
PD
1
- PD
4
Vcc
Vss
NC
Data In/Data Out
Address Inputs
Column Address Strobe
Row Address Strobe
Write Enable
Presence Detect
5v Supply
Ground
No Connect
PIN ASSIGNMENT
Pin #
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
Symbol
Vss
DQ0
DQ18
DQ1
DQ19
DQ2
DQ20
DQ3
DQ21
Vcc
NC
A0
A1
A2
A3
A4
A5
A6
Pin #
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
Symbol
NC
DQ4
DQ22
DQ5
DQ23
DQ6
DQ24
DQ7
DQ25
A7
NC
Vcc
A8
A9
NC
RAS2
DQ26
DQ8
Pin #
37
38
39
40
41
42
43
44
45
46
47
48
46
50
51
52
53
54
Symbol
DQ17
DQ35
Vss
CAS0
CAS2
CAS3
CAS1
RAS0
NC
NC
WE
NC
DQ9
DQ27
DQ10
DQ28
DQ11
DQ29
Pin #
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
Symbol
DQ12
DQ30
DQ13
DQ31
Vcc
DQ32
DQ14
DQ33
DQ15
DQ34
DQ16
NC
PD1
PD2
PD3
PD4
NC
Vss
MODULE OPTIONS
Leadless SIM: AK5361024W
Presence Detect
PD1
PD2
PD3
PD4
-60
Vss
Vss
NC
NC
-70
Vss
Vss
Vss
NC
-80
Vss
Vss
NC
Vss

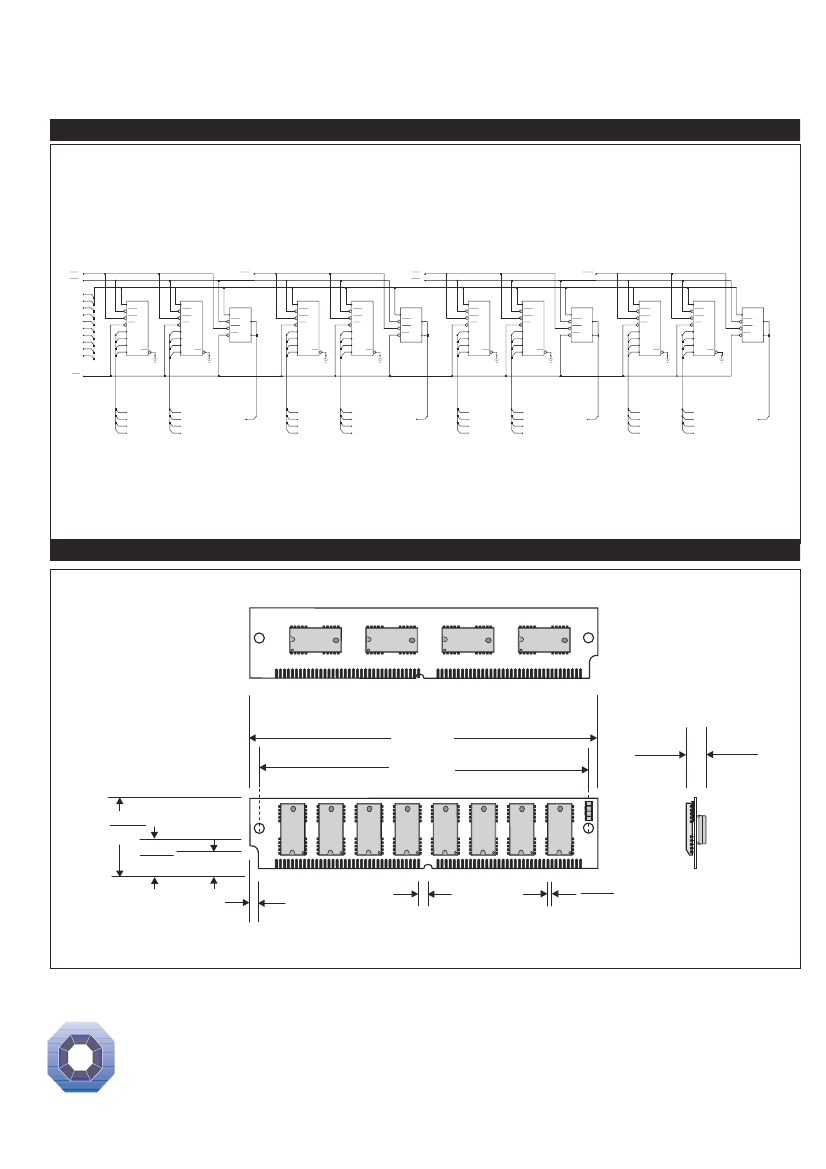

FUNCTIONAL DIAGRAM
CAS0
RAS0
CAS1
CAS2
RAS2
CAS3
A0
A1
A2
A3
A4
A5
A6
A7
A8
A9
A0 - A9
RAS
CAS
WE
DQ1
DQ2
DQ3
DQ4 OE
A0 - A9
RAS
CAS
WE
DQ1
DQ2
DQ3
DQ4 OE
A0 - A9
RAS
D
CAS
WE
Q
A0 - A9
RAS
CAS
WE
DQ1
DQ2
DQ3
DQ4 OE
A0 - A9
RAS
CAS
WE
DQ1
DQ2
DQ3
DQ4 OE
A0 - A9
RAS
D
CAS
WE
Q
A0 - A9
RAS
CAS
WE
DQ1
DQ2
DQ3
DQ4 OE
A0 - A9
RAS
CAS
WE
DQ1
DQ2
DQ3
DQ4 OE
A0 - A9
RAS
D
CAS
WE
Q
A0 - A9
RAS
CAS
WE
DQ1
DQ2
DQ3
DQ4 OE
A0 - A9
RAS
CAS
WE
DQ1
DQ2
DQ3
DQ4 OE
A0 - A9
RAS
D
CAS
WE
Q
WE
DQ0
DQ1
DQ2
DQ3
DQ4
DQ5
DQ6
DQ7
DQ8
DQ9
DQ10
DQ11
DQ12
DQ13
DQ14
DQ15
DQ16
DQ17
DQ18
DQ19
DQ20
DQ21
DQ22
DQ23
DQ24
DQ25
DQ26
DQ27
DQ28
DQ29
DQ30
DQ31
DQ32
DQ33
DQ34
DQ35
MECHANICAL DIMENSIONS
+
+
4.250"
3.850"
0.330"
MAX
0.875"
MAX
0.425"
0.375"
0.250"
+
+
0.080"
0.125"
CC
LL
CC
L L
0.050"
TYP
ACCUTEK MICROCIRCUIT CORPORATION
BUSINESS CENTER at NEWBURYPORT
2 NEW PASTURE ROAD, SUITE 1
NEWBURYPORT, MA 01950-4054
PHONE:
978-465-6200
FAX: 978-462-3396
E-Mail:
sales@accutekmicro.com
Internet:
www.accutekmicro.com
Accutek reserves the right to make changes in specifications at any time and without notice.
Accutek does not assume any responsibility for the use of any circuitry described; no circuit
patent licenses are implied. Preliminary data sheets contain minimum and maximum limits
based upon design objectives, which are subject to change upon full characterization over
the specific operating conditions.
