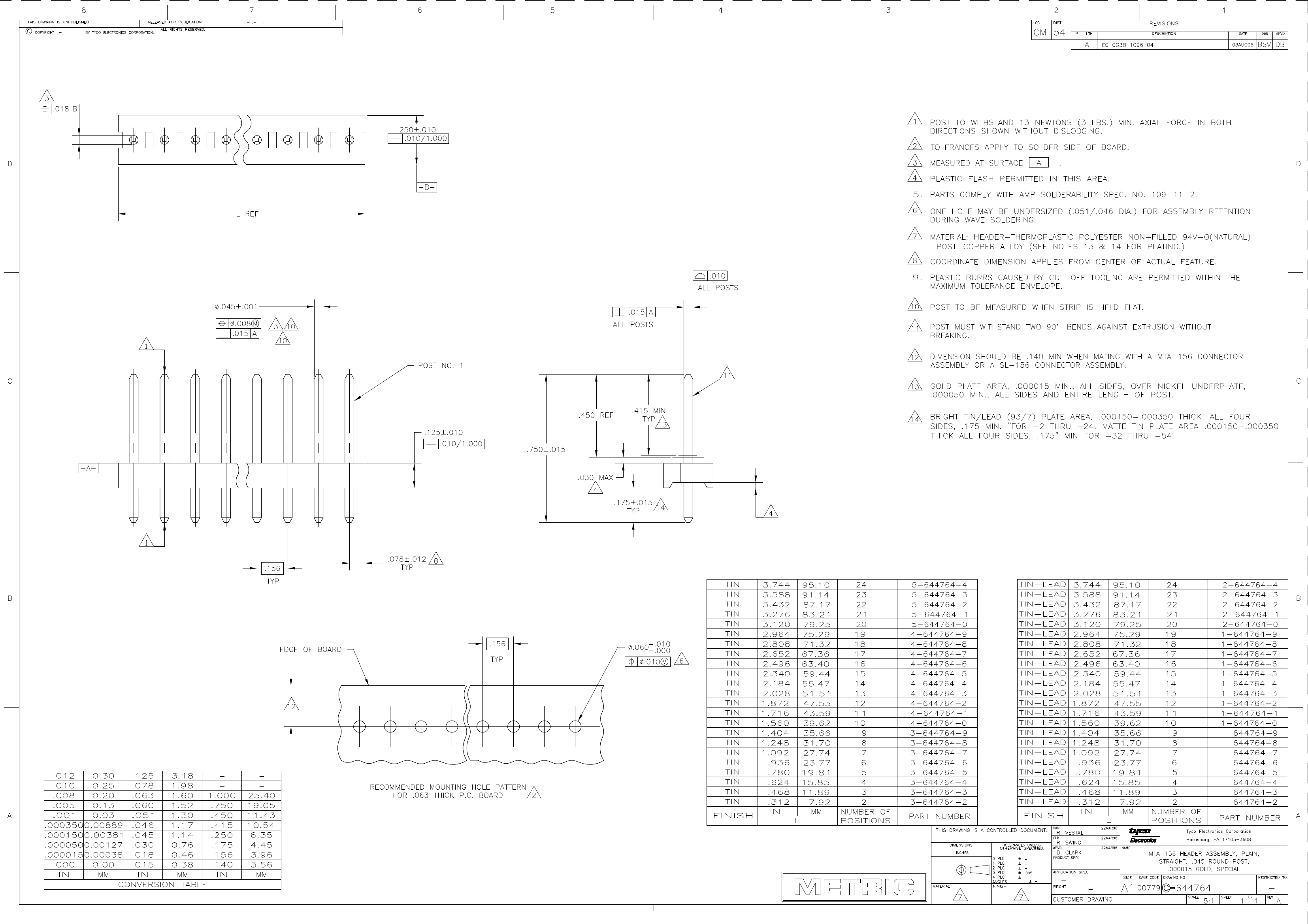

22 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER
| Parameter Name | Attribute value |
| Is it Rohs certified? | conform to |
| Reach Compliance Code | compli |
| Other features | AMP |
| body width | 0.25 inch |
| subject depth | 0.125 inch |
| body length | 3.432 inch |
| Body/casing type | RECEPTACLE |
| Connector type | BOARD CONNECTOR |
| Contact to complete cooperation | NOT SPECIFIED |
| Contact point gender | MALE |
| Contact material | NOT SPECIFIED |
| contact mode | RECTANGULAR |
| Contact resistance | 3 mΩ |
| Contact style | RND PIN-SKT |
| DIN compliance | NO |
| Dielectric withstand voltage | 1250VAC V |
| Durability | 25 Cycles |
| Filter function | NO |
| IEC compliance | NO |
| maximum insertion force | 5.7824 N |
| Insulation resistance | 5000000000 Ω |
| Insulator color | NATURAL |
| insulator material | POLYESTER |
| JESD-609 code | e0 |
| MIL compliance | NO |
| Manufacturer's serial number | 644764 |
| Plug contact pitch | 0.156 inch |
| Plug information | MULTIPLE MATING PARTS AVAILABLE |
| Mixed contacts | NO |
| Installation method | STRAIGHT |
| Installation type | BOARD |
| Number of connectors | ONE |
| PCB row number | 1 |
| Number of rows loaded | 1 |
| Maximum operating temperature | 105 °C |
| Minimum operating temperature | -55 °C |
| Options | GENERAL PURPOSE |
| PCB contact pattern | RECTANGULAR |
| Plating thickness | 15u inch |
| Rated current (signal) | 7 A |
| Guideline | UL, CSA |
| reliability | COMMERCIAL |
| Terminal length | 0.175 inch |
| Terminal pitch | 3.96 mm |
| Termination type | SOLDER |
| Total number of contacts | 22 |
| UL Flammability Code | 94V-0 |
| Evacuation force-minimum value | .4448 N |
| Base Number Matches | 1 |
| 2-644764-2 | 2-644764-4 | GRM2196P2A151GD01D | 4-644764-1 | 4-644764-7 | CHP2-100-3400-F-7-LF | |
|---|---|---|---|---|---|---|
| Description | 22 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER | 24 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER | CERAMIC, CHIP, ROHS COMPLIANT | 11 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER, ROHS COMPLIANT | 17 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER, ROHS COMPLIANT | RESISTOR, METAL GLAZE/THICK FILM, 2W, 1%, 100ppm, 340ohm, SURFACE MOUNT, 3610, MELF, ROHS COMPLIANT |
| Is it Rohs certified? | conform to | conform to | conform to | conform to | conform to | conform to |
| Reach Compliance Code | compli | compli | compliant | compliant | compliant | compliant |
| Connector type | BOARD CONNECTOR | BOARD CONNECTOR | - | BOARD CONNECTOR | BOARD CONNECTOR | - |
| Contact to complete cooperation | NOT SPECIFIED | NOT SPECIFIED | - | NOT SPECIFIED | NOT SPECIFIED | - |
| Contact point gender | MALE | MALE | - | MALE | MALE | - |
| Contact material | NOT SPECIFIED | NOT SPECIFIED | - | NOT SPECIFIED | NOT SPECIFIED | - |
| DIN compliance | NO | NO | - | NO | NO | - |
| Filter function | NO | NO | - | NO | NO | - |
| IEC compliance | NO | NO | - | NO | NO | - |
| MIL compliance | NO | NO | - | NO | NO | - |
| Manufacturer's serial number | 644764 | 644764 | - | 644764 | 644764 | CHP |
| Mixed contacts | NO | NO | - | NO | NO | - |
| Installation method | STRAIGHT | STRAIGHT | - | STRAIGHT | STRAIGHT | - |
| Installation type | BOARD | BOARD | - | BOARD | BOARD | - |
| Number of rows loaded | 1 | 1 | - | 1 | 1 | - |
| Maximum operating temperature | 105 °C | 105 °C | 125 °C | - | - | 150 °C |
| Options | GENERAL PURPOSE | GENERAL PURPOSE | - | GENERAL PURPOSE | GENERAL PURPOSE | - |
| Terminal pitch | 3.96 mm | 3.96 mm | - | 3.96 mm | 3.96 mm | - |
| Termination type | SOLDER | SOLDER | - | SOLDER | SOLDER | - |
| Total number of contacts | 22 | 24 | - | 11 | 17 | - |
| UL Flammability Code | 94V-0 | 94V-0 | - | 94V-0 | 94V-0 | - |
| Base Number Matches | 1 | 1 | - | 1 | 1 | - |
| package instruction | - | - | , 0805 | ROHS COMPLIANT | ROHS COMPLIANT | MELF, ROHS COMPLIANT |
