K6R4016C1C-C, K6R4016C1C-E, K6R4016C1C-I
256K x 16 Bit High-Speed CMOS Static RAM
FEATURES
• Fast Access Time 10,12,15ns(Max.)
• Low Power Dissipation
Standby (TTL)
: 60mA(Max.)
(CMOS) : 10mA(Max.)
Operating K6R4016C1C-10 : 185mA(Max.)
K6R4016C1C-12 : 175mA(Max.)
K6R4016C1C-15 : 165mA(Max.)
• Single 5.0V
±10%
Power Supply
• TTL Compatible Inputs and Outputs
• I/O Compatible with 3.3V Device
• Fully Static Operation
- No Clock or Refresh required
• Three State Outputs
• Center Power/Ground Pin Configuration
• Data Byte Control : LB : I/O1~ I/O8, UB : I/O9~ I/O16
• Standard Pin Configuration
K6R4016C1C-J : 44-SOJ-400
K6R4016C1C-T : 44-TSOP2-400BF
K6R4016C1C-F : 48-Fine pitch BGA with 0.75 Ball pitch
CMOS SRAM
GENERAL DESCRIPTION
The K6R4016C1C is a 4,194,304-bit high-speed Static Ran-
dom Access Memory organized as 262,144 words by 16 bits.
The K6R4016C1C uses 16 common input and output lines and
has an output enable pin which operates faster than address
access time at read cycle. Also it allows that lower and upper
byte access by data byte control(UB, LB). The device is fabri-
cated using SAMSUNG′s advanced CMOS process and
designed for high-speed circuit technology. It is particularly well
suited for use in high-density high-speed system applications.
The K6R4016C1C is packaged in a 400mil 44-pin plastic SOJ
or TSOP(II) forward or 48 Fine pitch BGA.
FUNCTIONAL BLOCK DIAGRAM
Clk Gen.
A
0
A
1
A
2
A
3
A
4
A
5
A
6
A
7
A
8
A
9
I/O
1
~I/O
8
I/O
9
~I/O
16
ORDERING INFORMATION
K6R4016C1C-C10/C12/C15
Commercial Temp.
Extended Temp.
Industrial Temp.
K6R4016C1C-E10/E12/E15
K6R4016C1C-I10/I12/I15
Pre-Charge Circuit
Row Select
Memory Array
1024 Rows
256 x 16 Columns
Data
Cont.
Data
Cont.
Gen.
CLK
I/O Circuit &
Column Select
A
10
A
11
A
12
A
13
A
14
A
15
A
16
A
17
WE
OE
UB
LB
CS
-2-
Rev 4.0
September 2001
PRELIMPreliminaryPPPPPPPPPINARY
K6R4016C1C-C, K6R4016C1C-E, K6R4016C1C-I

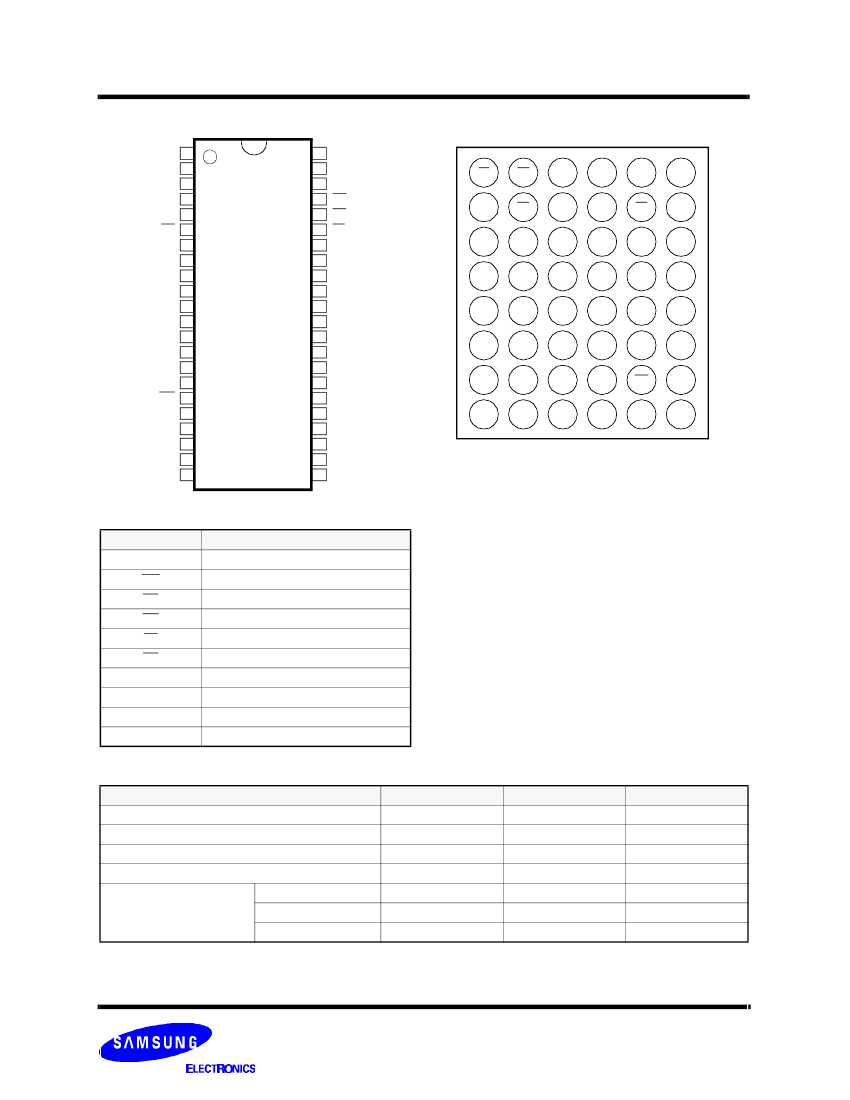

PIN CONFIGURATION
(Top View)
1
2
3
4
5
6
CMOS SRAM
A
0
A
1
A
2
A
3
A
4
CS
I/O
1
I/O
2
I/O
3
1
2
3
4
5
6
7
8
9
44 A
17
43 A
16
42 A
15
41 OE
40 UB
39 LB
38 I/O
16
37 I/O
15
36 I/O
14
D
Vss
I/O4
A17
A7
I/O12
Vcc
C
I/O2
I/O3
A5
A6
I/O11
I/O10
B
I/O1
UB
A3
A4
CS
I/O9
A
LB
OE
A0
A1
A2
N.C
I/O
4
10
Vcc 11
Vss 12
I/O
5
13
I/O
6
14
I/O
7
15
I/O
8
16
WE 17
A
5
18
A
6
19
A
7
20
A
8
21
A
9
22
SOJ/
TSOP2
35 I/O
13
34 Vss
33 Vcc
32 I/O
12
31 I/O
11
30 I/O
10
29 I/O
9
28 N.C
27 A
14
26 A
13
25 A
12
24 A
11
23 A
10
H
N.C
A8
A9
A10
A11
N.C
G
I/O8
N.C
A12
A13
WE
I/O16
F
I/O7
I/O6
A14
A15
I/O14
I/O15
E
Vcc
I/O5
N.C
A16
I/O13
Vss
48-CSP
PIN FUNCTION
Pin Name
A
0
- A
17
WE
CS
OE
LB
UB
I/O
1
~ I/O
16
V
CC
V
SS
N.C
Pin Function
Address Inputs
Write Enable
Chip Select
Output Enable
Lower-byte Control(I/O
1
~I/O
8
)
Upper-byte Control(I/O
9
~I/O
16
)
Data Inputs/Outputs
Power(+5.0V)
Ground
No Connection
ABSOLUTE MAXIMUM RATINGS*
Parameter
Voltage on Any Pin Relative to V
SS
Voltage on V
CC
Supply Relative to V
SS
Power Dissipation
Storage Temperature
Operating Temperature
Commercial
Extended
Industrial
Symbol
V
IN
, V
OUT
V
CC
P
D
T
STG
T
A
T
A
T
A
Rating
-0.5 to V
CC
+0.5
-0.5 to 7.0
1.0
-65 to 150
0 to 70
-25 to 85
-40 to 85
Unit
V
V
W
°C
°C
°C
°C
*
Stresses greater than those listed under "Absolute Maximum Ratings" may cause permanent damage to the device. This is a stress rating only and
functional operation of the device at these or any other conditions above those indicated in the operating sections of this specification is not implied.
Exposure to absolute maximum rating conditions for extended periods may affect reliability.
-3-
Rev 4.0
September 2001
PRELIMPreliminaryPPPPPPPPPINARY
K6R4016C1C-C, K6R4016C1C-E, K6R4016C1C-I
RECOMMENDED DC OPERATING CONDITIONS*
(T
A
=0 to 70°C)
Parameter
Supply Voltage
Ground
Input High Voltage
Input Low Voltage
Symbol
V
CC
V
SS
V
IH
V
IL
Min
4.5
0
2.2
-0.5**
Typ
5.0
0
-
-
Max
5.5
0
V
CC
+0.5***
0.8
Unit
V
V
V
V
CMOS SRAM
* The above parameters are also guaranteed at extended and industrial temperature range.
** V
IL
(Min) = -2.0V a.c(Pulse Width
≤
8ns) for I
≤
20mA
.
*** V
IH
(Max) = V
CC
+ 2.0V a.c (Pulse Width
≤
8ns) for I
≤
20mA.
DC AND OPERATING CHARACTERISTICS*
(T
A
=0 to 70°C, Vcc= 5.0V±10%, unless otherwise specified)
Parameter
Input Leakage Current
Output Leakage Current
Operating Current
Symbol
I
LI
I
LO
I
CC
V
IN
=V
SS
to V
CC
CS=V
IH
or OE=V
IH
or WE=V
IL
V
OUT
= V
SS
to V
CC
Min. Cycle, 100% Duty
CS=V
IL,
V
IN
=V
IH
or V
IL,
I
OUT
=0mA
Com.
10ns
12ns
15ns
Ext.
Ind.
10ns
12ns
15ns
Standby Current
I
SB
I
SB1
Output Low Voltage Level
Output High Voltage Level
V
OL
V
OH
V
OH1**
Min. Cycle, CS=V
IH
f=0MHz, CS≥V
CC
-0.2V,
V
IN
≥V
CC
-0.2V or V
IN
≤0.2V
I
OL
=8mA
I
OH
=-4mA
I
OH1
=-0.1mA
Test Conditions
Min
-2
-2
-
-
-
-
-
-
-
-
-
2.4
-
Max
2
2
185
175
165
200
190
180
60
10
0.4
-
3.95
V
V
V
mA
Unit
µA
µA
mA
* The above parameters are also guaranteed at extended and industrial temperature range.
** V
CC
=5.0V±5%
,
Temp.=25°C.
CAPACITANCE*
(T
A
=25°C, f=1.0MHz)
Item
Input/Output Capacitance
Input Capacitance
* Capacitance is sampled and not 100% tested.
Symbol
C
I/O
C
IN
Test Conditions
V
I/O
=0V
V
IN
=0V
MIN
-
-
Max
8
7
Unit
pF
pF
-4-
Rev 4.0
September 2001
PRELIMPreliminaryPPPPPPPPPINARY
K6R4016C1C-C, K6R4016C1C-E, K6R4016C1C-I
AC CHARACTERISTICS
(T
A
=0 to 70°C, V
CC
=5.0V±10%, unless otherwise noted.)
TEST CONDITIONS*
Parameter
Input Pulse Levels
Input Rise and Fall Times
Input and Output timing Reference Levels
Output Loads
* The above test conditions are also applied at extended and industrial temperature range.
CMOS SRAM
Value
0V to 3V
3ns
1.5V
See below
Output Loads(A)
Output Loads(B)
for t
HZ
, t
LZ
, t
WHZ
, t
OW
, t
OLZ
& t
OHZ
+5.0V
R
L
= 50Ω
D
OUT
V
L
= 1.5V
Z
O
= 50Ω
30pF*
480Ω
D
OUT
255Ω
5pF*
* Capacitive Load consists of all components of the
test environment.
* Including Scope and Jig Capacitance
READ CYCLE*
K6R4016C1C-10
K6R4016C1C-12
K6R4016C1C-15
Parameter
Read Cycle Time
Address Access Time
Chip Select to Output
Output Enable to Valid Output
UB, LB Access Time
Chip Enable to Low-Z Output
Output Enable to Low-Z Output
UB, LB Enable to Low-Z Output
Chip Disable to High-Z Output
Output Disable to High-Z Output
UB, LB Disable to High-Z Output
Output Hold from Address Change
Symbol
t
RC
t
AA
t
CO
t
OE
t
BA
t
LZ
t
OLZ
t
BLZ
t
HZ
t
OHZ
t
BHZ
t
OH
Min
10
-
-
-
-
3
0
0
0
0
0
3
Max
-
10
10
5
5
-
-
-
5
5
5
-
Min
12
-
-
-
-
3
0
0
0
0
0
3
Max
-
12
12
6
6
-
-
-
6
6
6
-
Min
15
-
-
-
-
3
0
0
0
0
0
3
Max
-
15
15
7
7
-
-
-
7
7
7
-
Unit
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
* The above parameters are also guaranteed at extended and industrial temperature range.
I have 20 chips on hand, brand new, unopened, guaranteed to be original and authentic. If you are interested, please call 13675871817. The chips are left over from my previous project. The price is: 5...
As the title says. Can the driver program under Wince be placed in a directory other than Windows? If so, how can it be done? I want to put it in the SD card or NANDFlash directory so that it is easy ...
There is solder connecting two pins on the lauchpad I applied for from TI near the GPIO interface! Is there a problem? I used a multimeter to test for a short circuit, so the two pins should be separa...
I need a program based on STM32 to sample AD, convert it into digital signal, and then store it into array through MDA. Then, through key control, the digital signal in the array is converted into ana...
[i=s]This post was last edited by lyzhangxiang on 2014-12-24 12:45[/i] Well, through the exploration in the first article, I have adopted IAR to run the program. Of course, I have also modified the of...
Emergency hand-held lamps powered by 6V maintenance-free batteries are widely used in rural areas. The charger used is a transformer step-down and single diode half-wave rectifier, and the charging...[Details]
Traditional broadcasting systems generally need to be operated manually at a fixed time, and can only realize one-way broadcasting with few functions. Traditional bell ringing equipment has a singl...[Details]
This program is written to simulate the serial port hardware mechanism. When used, a timed interrupt can be set with a time interval of 1/4 baud rate. The receiving function is called once for ea...[Details]
introduction
1 The significance of using RTOS on MSP430
It is understandable that it is meaningless to use RTOS on MSP430. Because the hardware resources of MSP430 are limited (for exampl...[Details]
introduction
With the continuous optimization of surface mount technology (SMT) and the rapid development of chip component manufacturing technology, the application of chip mounters in the el...[Details]
1. Circuit composition
The whole circuit consists of two parts:
1. Power saving control circuit
As shown in the figure below. Including delay circuit and drive circuit.
(1) Delay ci...[Details]
1. Introduction
Automobile pollution is one of the most important issues that people are most concerned about and need to solve urgently. As an important method for detecting automobile exhau...[Details]
1. Introduction
With the growth of parking demand, the scale of parking lots is becoming larger and larger. A lot of research has been done on intelligent parking lots in China, but most of th...[Details]
1. Introduction
This design was made for participating in an electronic design competition. It effectively solved the problem of the operation and control of an electric car on a seesaw. The s...[Details]
With the advent of increasingly powerful processors, image sensors, memory, and other semiconductor devices, as well as the algorithms that enable them, computer vision can be implemented in a wide...[Details]
Converged processors meet scalability requirements
In current embedded system design, solutions based on MCU, DSP, FPGA and ASIC account for more than 90% of the market share. These solutions ...[Details]
DSP (digital signal processor) is used more and more frequently in today's engineering applications. There are three main reasons for this: first, it has powerful computing power and is capable of ...[Details]
1. Introduction to CIF Board
Fieldbus integration based on PC system
Whether it is a master or a slave, fieldbus has won unanimous praise in the field of PC-based automation. For more...[Details]
As people's requirements for safety and comfort in the process of driving cars continue to increase, automotive radars are widely used in the car's adaptive cruise system, collision avoidance syste...[Details]
Portable power applications are broad and varied. Products range from wireless sensor nodes with average power consumption of only a few microwatts to in-vehicle medical or data acquisition systems...[Details]
stm32/stm8
京公网安备 11010802033920号
EEWORLD
