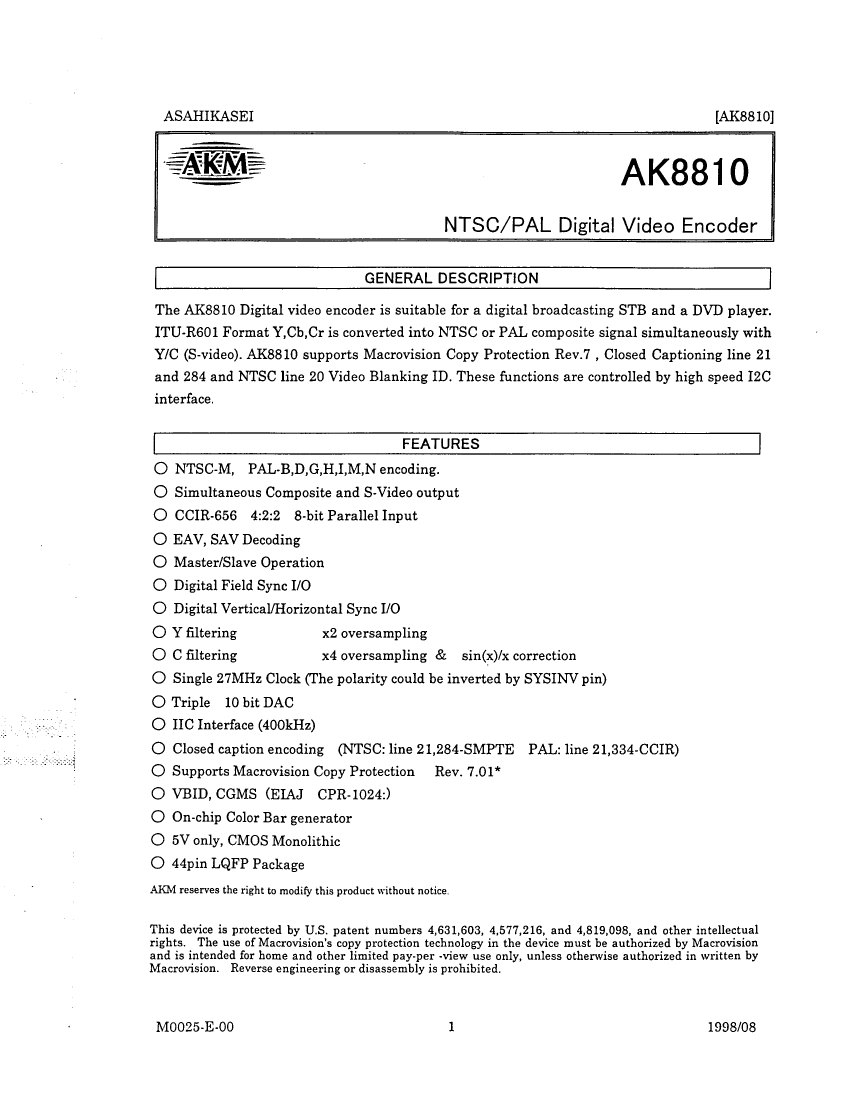

AK8810 Overview

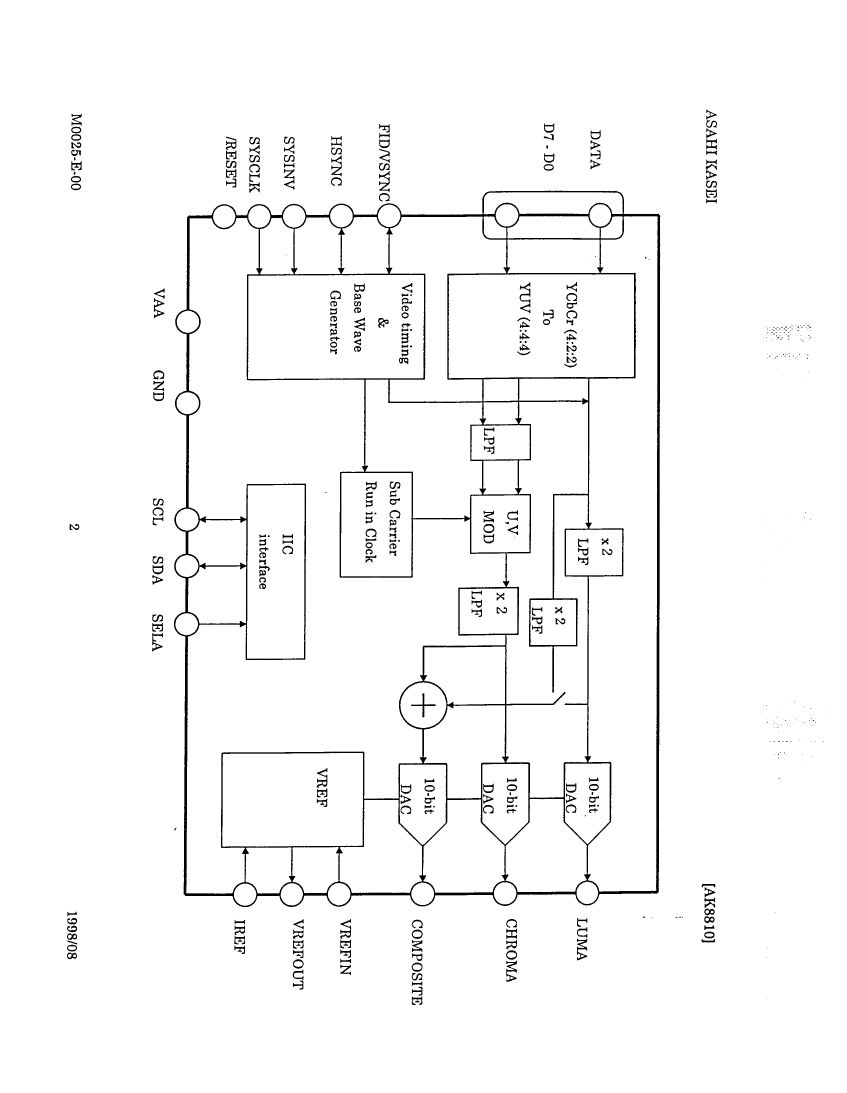

Color Signal Encoder, CMOS, PQFP44, PLASTIC, LQFP-44

Parameter Name	Attribute value
Maker	AKM [Asahi Kasei Microsystems]
Parts packaging code	QFP
package instruction	LQFP,

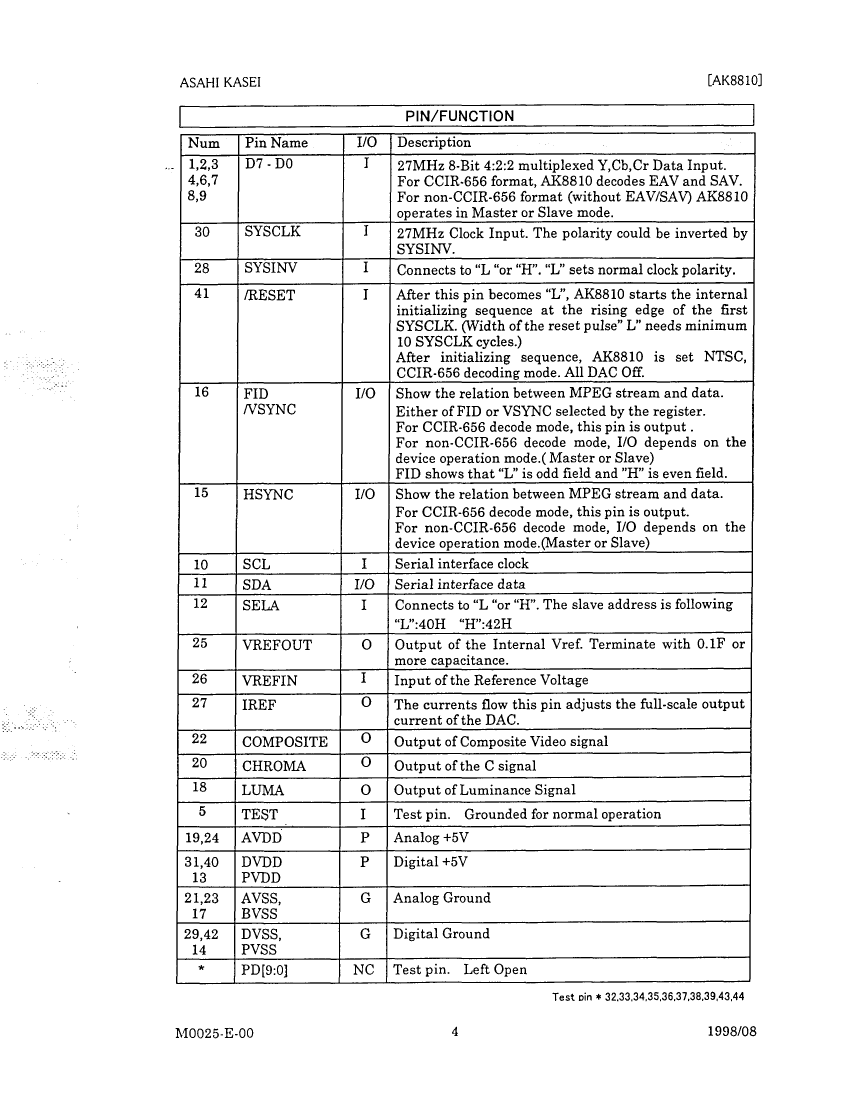

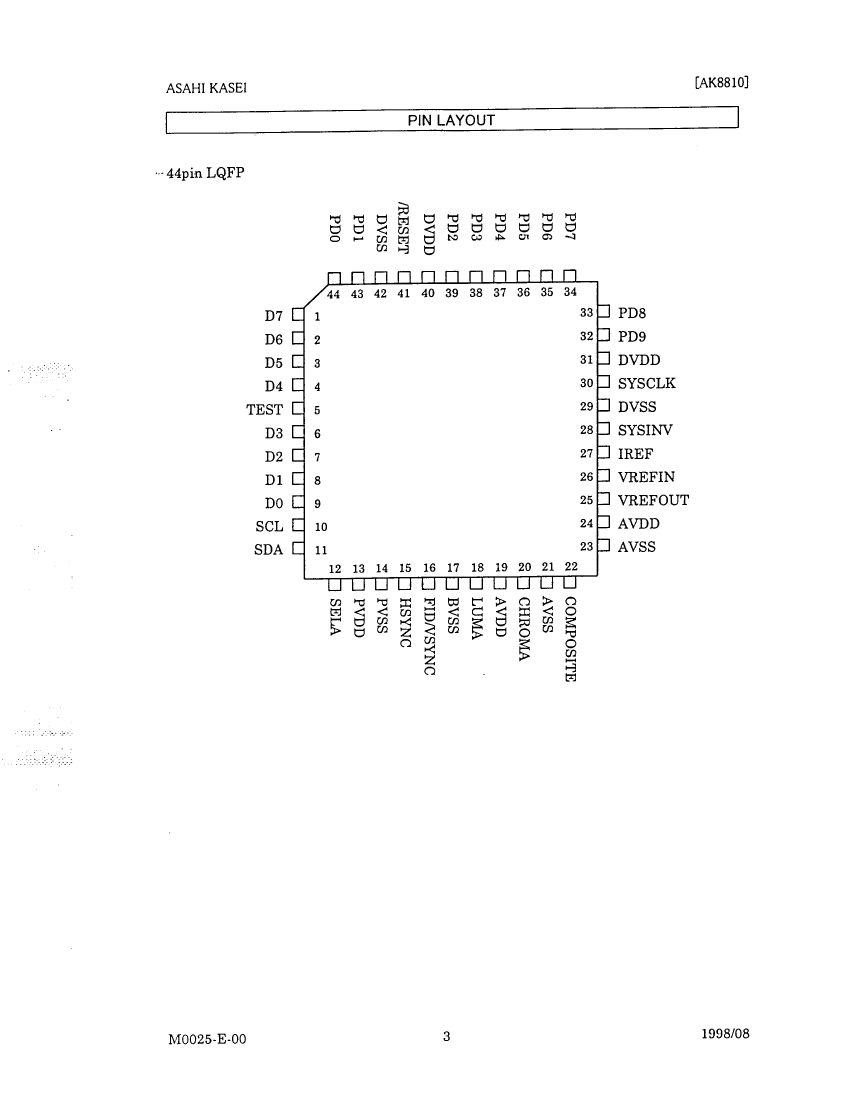

Contacts	44
Reach Compliance Code	unknown
ECCN code	EAR99
Commercial integrated circuit types	COLOR SIGNAL ENCODER
input type	R-Y; B-Y; Y
JESD-30 code	S-PQFP-G44
length	10 mm
Number of functions	1
Number of terminals	44
Maximum operating temperature	70 °C
Minimum operating temperature	-10 °C
Package body material	PLASTIC/EPOXY
encapsulated code	LQFP
Package shape	SQUARE
Package form	FLATPACK, LOW PROFILE
Certification status	Not Qualified
Maximum seat height	1.7 mm
Maximum slew rate	125 mA
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	GULL WING
Terminal pitch	0.8 mm
Terminal location	QUAD
video standards	PAL; NTSC
width	10 mm
