IDT72V261L20TF datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > storage> storage> IDT72V261L20TF

IDT72V261L20TF: DescriptionFIFO, 16KX9, 12ns, Synchronous, CMOS, PQFP64, STQFP-64; Categorystorage storage; File Size858KB，24 Pages; ManufacturerIDT (Integrated Device Technology)

Download Datasheet Parametric Compare View All

IDT72V261L20TF Overview

FIFO, 16KX9, 12ns, Synchronous, CMOS, PQFP64, STQFP-64

IDT72V261L20TF Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	IDT (Integrated Device Technology)
Parts packaging code	QFP
package instruction	STQFP-64
Contacts	64
Reach Compliance Code	not_compliant
ECCN code	EAR99
Maximum access time	12 ns
Maximum clock frequency (fCLK)	50 MHz
period time	20 ns
JESD-30 code	S-PQFP-G64
JESD-609 code	e0
length	10 mm
memory density	147456 bit
Memory IC Type	OTHER FIFO
memory width	9
Humidity sensitivity level	3
Number of functions	1
Number of terminals	64
word count	16384 words
character code	16000
Operating mode	SYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	16KX9
Exportable	YES
Package body material	PLASTIC/EPOXY
encapsulated code	LFQFP
Encapsulate equivalent code	QFP64,.47SQ,20
Package shape	SQUARE
Package form	FLATPACK, LOW PROFILE, FINE PITCH
Parallel/Serial	PARALLEL
power supply	3.3 V
Certification status	Not Qualified
Maximum seat height	1.6 mm
Maximum standby current	0.015 A
Maximum slew rate	0.15 mA
Maximum supply voltage (Vsup)	3.6 V
Minimum supply voltage (Vsup)	3 V
Nominal supply voltage (Vsup)	3.3 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn85Pb15)
Terminal form	GULL WING
Terminal pitch	0.5 mm
Terminal location	QUAD
width	10 mm

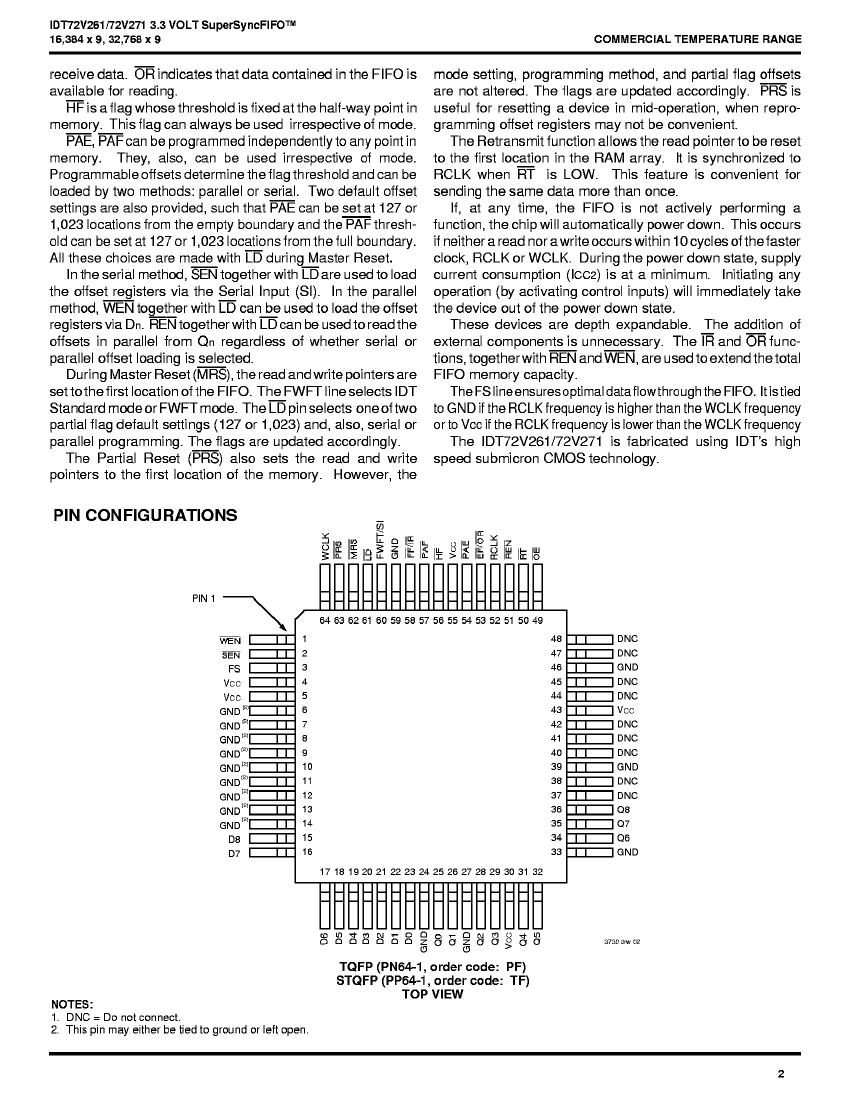

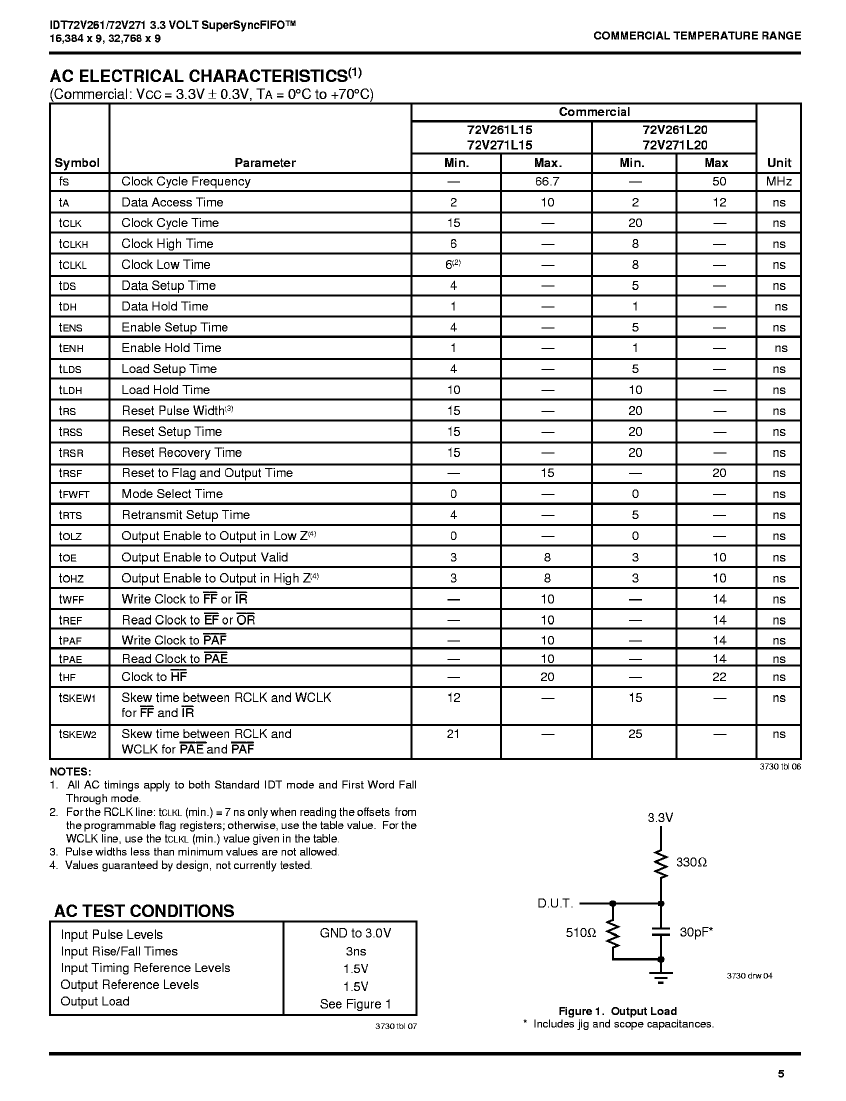

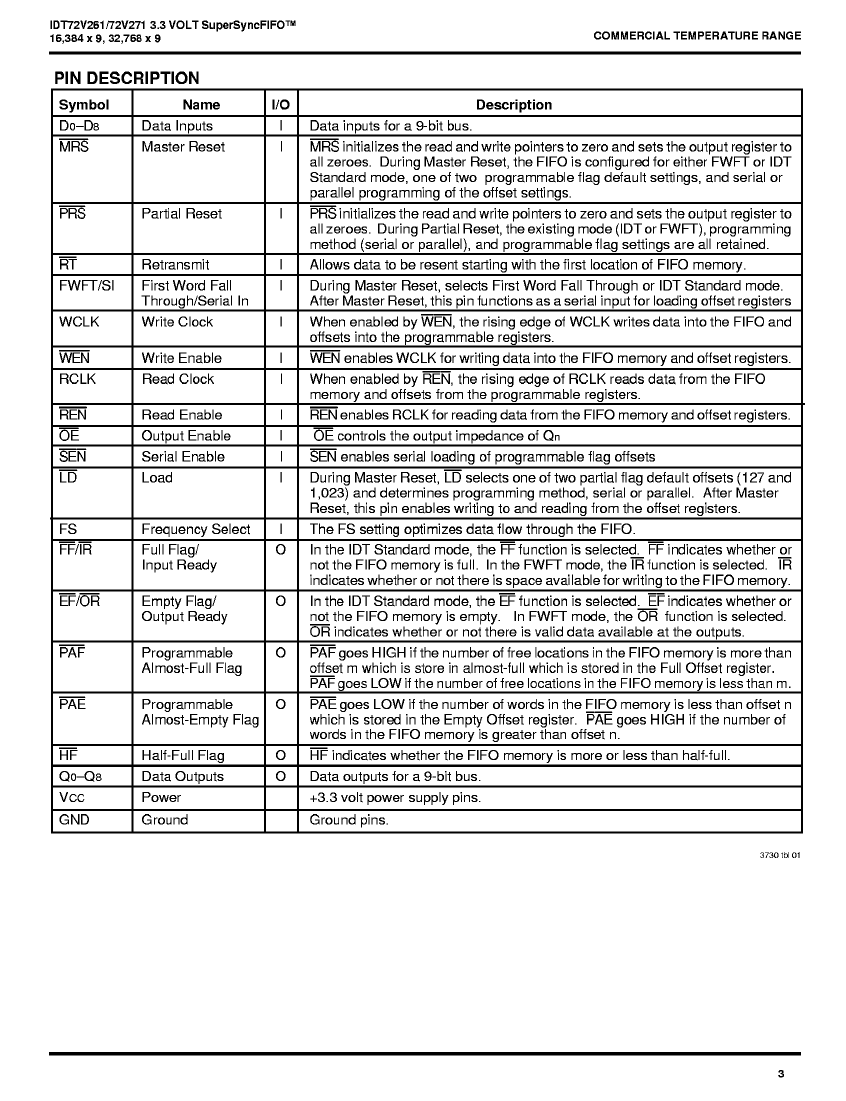

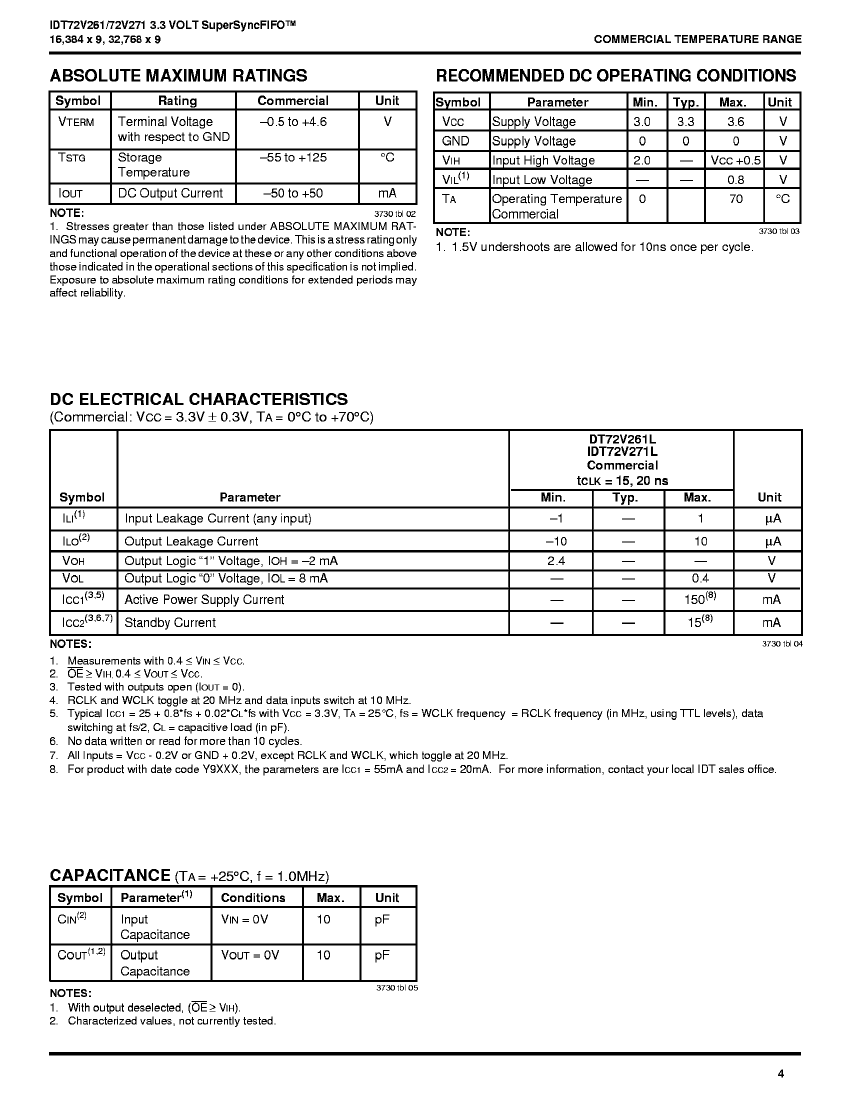

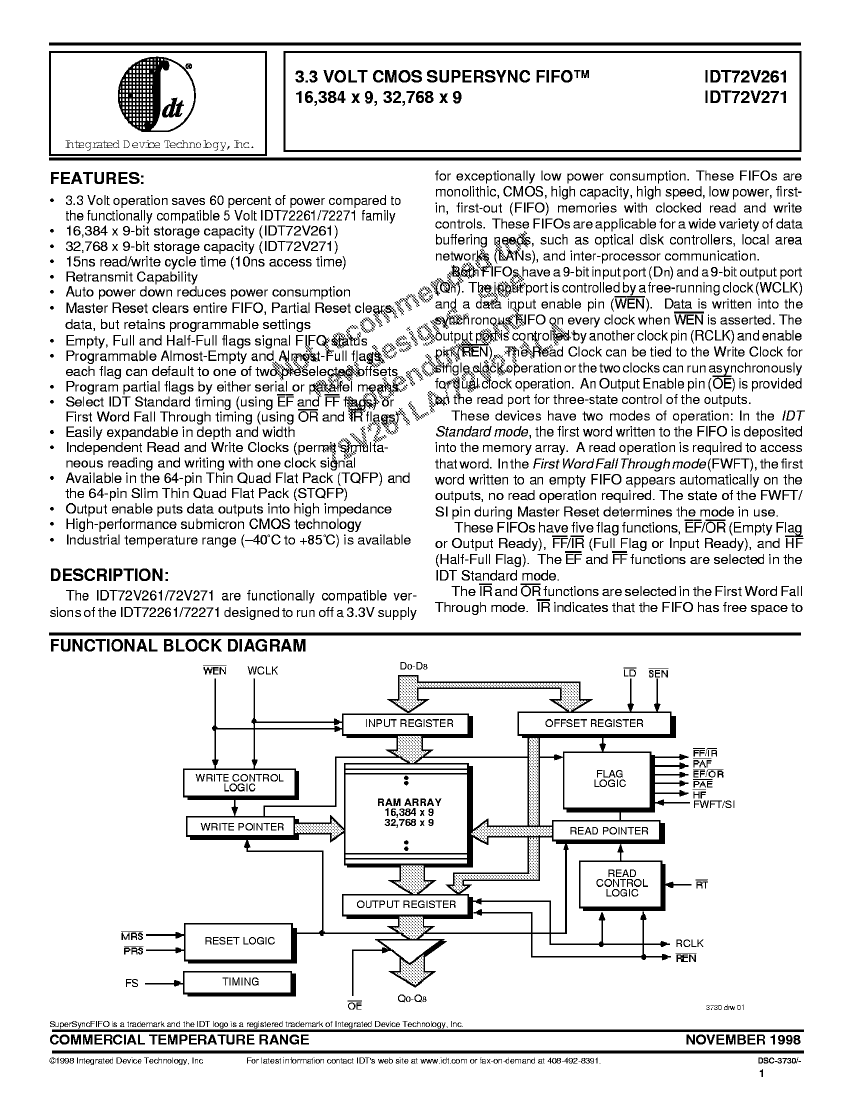

Preview

Download Datasheet

View All

IDT72V261L20TF Related Products

	IDT72V261L20TF	IDT72V271L20TF	IDT72V261L15PF	IDT72V261L15TF	IDT72V271L20PF	IDT72V271L15PF	IDT72V261L20PF	IDT72V271L15TF
Description	FIFO, 16KX9, 12ns, Synchronous, CMOS, PQFP64, STQFP-64	FIFO, 32KX9, 12ns, Synchronous, CMOS, PQFP64, STQFP-64	FIFO, 16KX9, 10ns, Synchronous, CMOS, PQFP64, TQFP-64	FIFO, 16KX9, 10ns, Synchronous, CMOS, PQFP64, STQFP-64	FIFO, 32KX9, 12ns, Synchronous, CMOS, PQFP64, TQFP-64	FIFO, 32KX9, 10ns, Synchronous, CMOS, PQFP64, TQFP-64	FIFO, 16KX9, 12ns, Synchronous, CMOS, PQFP64, TQFP-64	FIFO, 32KX9, 10ns, Synchronous, CMOS, PQFP64, STQFP-64
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)
Parts packaging code	QFP	QFP	QFP	QFP	QFP	QFP	QFP	QFP
package instruction	STQFP-64	STQFP-64	TQFP-64	STQFP-64	TQFP-64	TQFP-64	TQFP-64	STQFP-64
Contacts	64	64	64	64	64	64	64	64
Reach Compliance Code	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant	_compli
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Maximum access time	12 ns	12 ns	10 ns	10 ns	12 ns	10 ns	12 ns	10 ns
Maximum clock frequency (fCLK)	50 MHz	50 MHz	66.7 MHz	66.7 MHz	50 MHz	66.7 MHz	50 MHz	66.7 MHz
period time	20 ns	20 ns	15 ns	15 ns	20 ns	15 ns	20 ns	15 ns
JESD-30 code	S-PQFP-G64	S-PQFP-G64	S-PQFP-G64	S-PQFP-G64	S-PQFP-G64	S-PQFP-G64	S-PQFP-G64	S-PQFP-G64
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0
length	10 mm	10 mm	14 mm	10 mm	14 mm	14 mm	14 mm	10 mm
memory density	147456 bit	294912 bit	147456 bit	147456 bit	294912 bit	294912 bit	147456 bit	294912 bi
Memory IC Type	OTHER FIFO	OTHER FIFO	OTHER FIFO	OTHER FIFO	OTHER FIFO	OTHER FIFO	OTHER FIFO	OTHER FIFO
memory width	9	9	9	9	9	9	9	9
Humidity sensitivity level	3	3	3	3	3	3	3	3
Number of functions	1	1	1	1	1	1	1	1
Number of terminals	64	64	64	64	64	64	64	64
word count	16384 words	32768 words	16384 words	16384 words	32768 words	32768 words	16384 words	32768 words
character code	16000	32000	16000	16000	32000	32000	16000	32000
Operating mode	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
organize	16KX9	32KX9	16KX9	16KX9	32KX9	32KX9	16KX9	32KX9
Exportable	YES	YES	YES	YES	YES	YES	YES	YES
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	LFQFP	LFQFP	LQFP	LFQFP	LQFP	LQFP	LQFP	LFQFP
Encapsulate equivalent code	QFP64,.47SQ,20	QFP64,.47SQ,20	QFP64,.66SQ,32	QFP64,.47SQ,20	QFP64,.66SQ,32	QFP64,.66SQ,32	QFP64,.66SQ,32	QFP64,.47SQ,20
Package shape	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE
Package form	FLATPACK, LOW PROFILE, FINE PITCH	FLATPACK, LOW PROFILE, FINE PITCH	FLATPACK, LOW PROFILE	FLATPACK, LOW PROFILE, FINE PITCH	FLATPACK, LOW PROFILE	FLATPACK, LOW PROFILE	FLATPACK, LOW PROFILE	FLATPACK, LOW PROFILE, FINE PITCH
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL
power supply	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	1.6 mm	1.6 mm	1.6 mm	1.6 mm	1.6 mm	1.6 mm	1.6 mm	1.6 mm
Maximum standby current	0.015 A	0.015 A	0.015 A	0.015 A	0.015 A	0.015 A	0.015 A	0.015 A
Maximum slew rate	0.15 mA	0.15 mA	0.15 mA	0.15 mA	0.15 mA	0.15 mA	0.15 mA	0.15 mA
Maximum supply voltage (Vsup)	3.6 V	3.6 V	3.6 V	3.6 V	3.6 V	3.6 V	3.6 V	3.6 V
Minimum supply voltage (Vsup)	3 V	3 V	3 V	3 V	3 V	3 V	3 V	3 V
Nominal supply voltage (Vsup)	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V
surface mount	YES	YES	YES	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn85Pb15)	Tin/Lead (Sn85Pb15)	Tin/Lead (Sn85Pb15)	Tin/Lead (Sn85Pb15)	Tin/Lead (Sn85Pb15)	Tin/Lead (Sn85Pb15)	Tin/Lead (Sn85Pb15)	Tin/Lead (Sn85Pb15)
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	0.5 mm	0.5 mm	0.8 mm	0.5 mm	0.8 mm	0.8 mm	0.8 mm	0.5 mm
Terminal location	QUAD	QUAD	QUAD	QUAD	QUAD	QUAD	QUAD	QUAD
width	10 mm	10 mm	14 mm	10 mm	14 mm	14 mm	14 mm	10 mm
