FI6003 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> FI6003

FI6003: Description8800 MHz - 9400 MHz RF/MICROWAVE 4 PORT CIRCULATOR; CategoryWireless rf/communication Radio frequency and microwave; File Size108KB，6 Pages; ManufacturerRakon Limited

Download Datasheet Parametric Compare View All

FI6003 Overview

8800 MHz - 9400 MHz RF/MICROWAVE 4 PORT CIRCULATOR

FI6003 Parametric

Parameter Name	Attribute value
Maker	Rakon Limited
Reach Compliance Code	unknown
Other features	I/P POWER-MAX (PEAK)=250000W
structure	WAVEGUIDE
Maximum input power (CW)	53.98 dBm
Maximum insertion loss	0.5 dB
Maximum operating frequency	9400 MHz
Minimum operating frequency	8800 MHz
Maximum operating temperature	60 °C
Minimum operating temperature
RF/Microwave Device Types	4 PORT CIRCULATOR
Maximum voltage standing wave ratio	1.15

Preview

Download Datasheet

View All

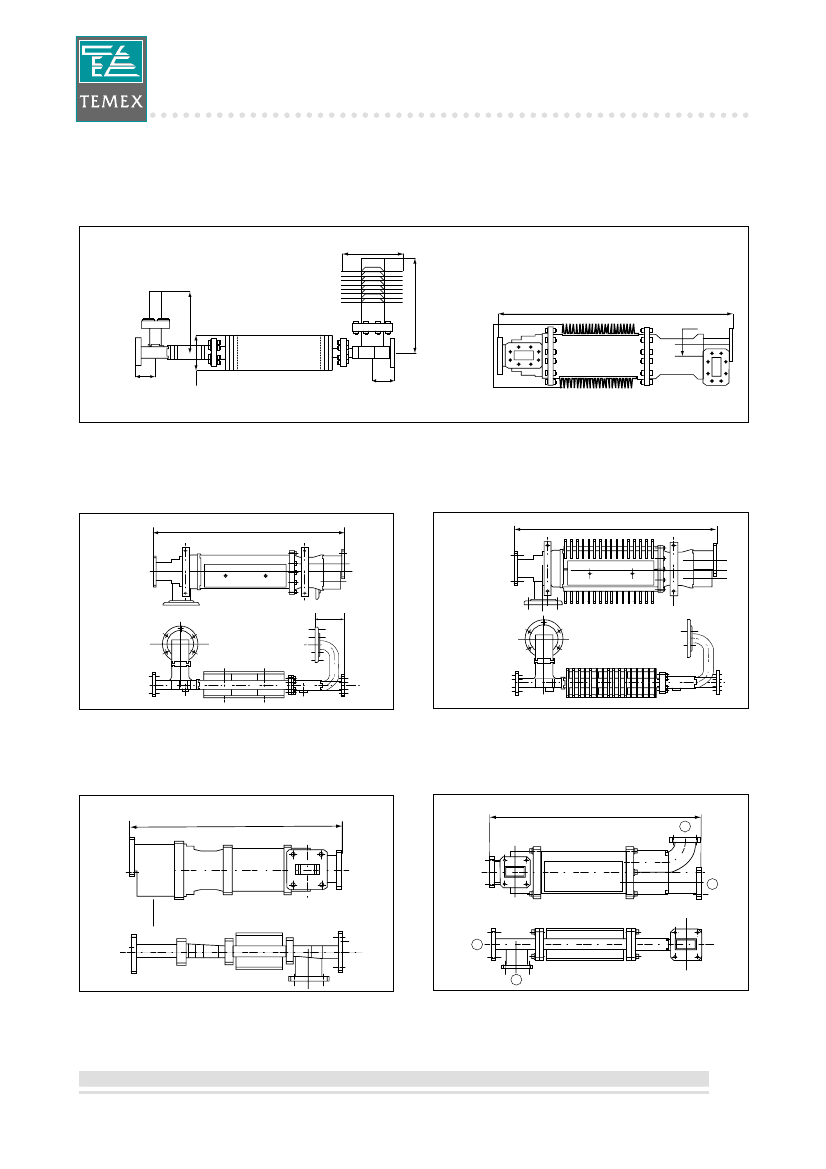

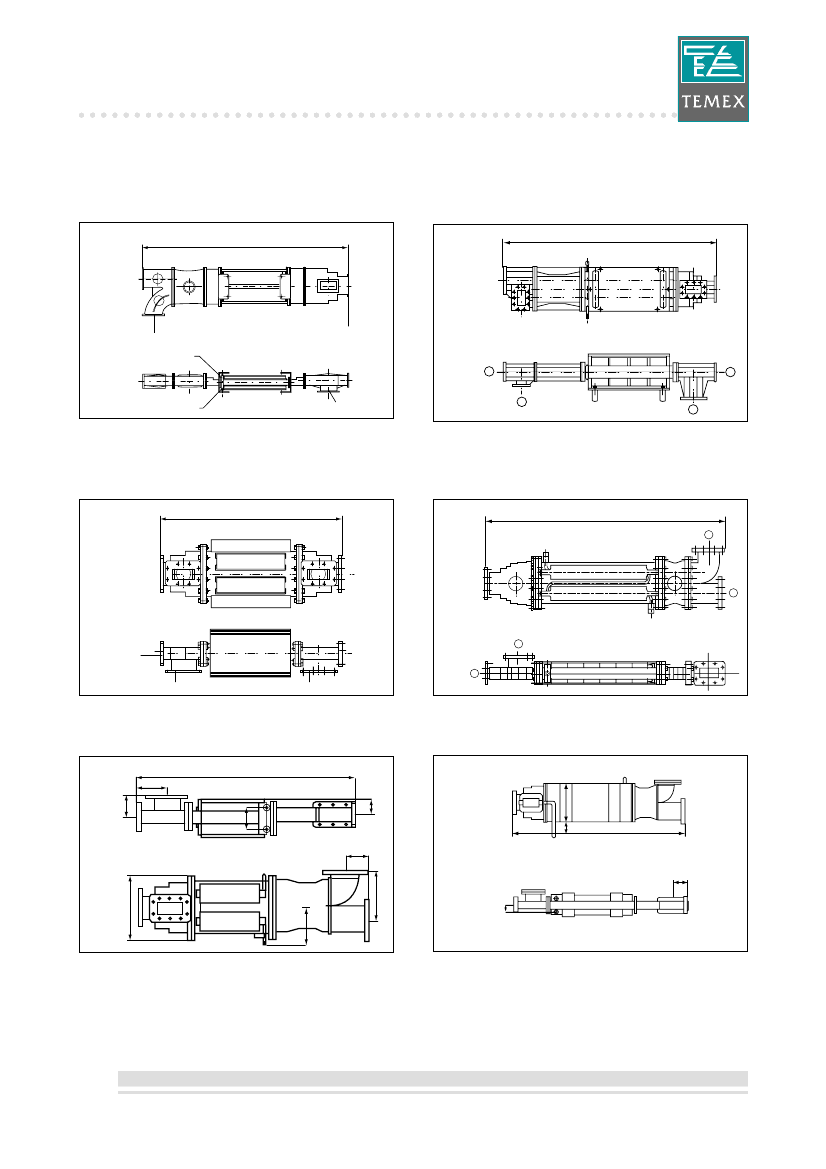

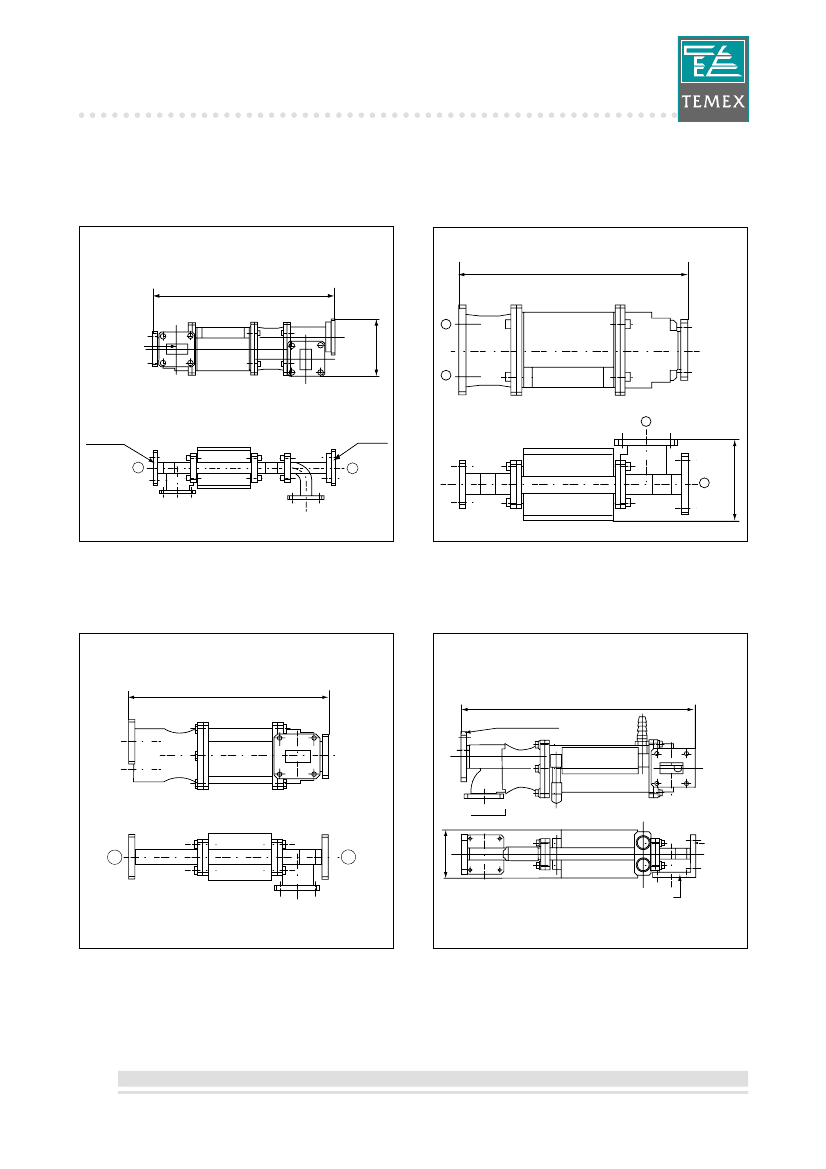

WAVEGUIDE DEVICES

4-Port waveguide differential phase shift circulators (Duplexers)

4-PORT WAVEGUIDE DIFFERENTIAL

PHASE SHIFT CIRCULATORS (DUPLEXERS)

AVERAGE POWER

100

DIFFERENTIAL

WAVEGUIDE

TECHNOLOGY

PHASE

SHIFT

COAXIAL

TECHNOLOGY

DUPLEXERS

0.1

100

FREQUENCY GHz

General description

Designed for use in both high-peak and high-mean power applications, TEMEX differential phase shift

circulators offer high isolation while maintaining low-insertion loss.

These ruggedly constructed circulators can operate under the most severe environmental conditions,

according to MIL-SPEC.

The addition of speciﬁc heat sinks, or liquid cooling jackets increases mean power handling;

for example, of up to 200 kW-CW at 1.250 GHz.

Casting techniques can be used for pressurized waveguide in order to reduce leakage and weight,

especially for airborne radar.

In-house

ferrite materials

facilities, computer-aided design, and experienced research and

development teams, allow TEMEX to offer customers speciﬁc designs with optimal features.

With the addition of a suitable waveguide load and a dummy load on the appropriate port, a 4-port

differential phase shift circulator may be operated as a high-power isolator.

The reﬂected power that will be absorbed in the dummy load, or the output mismatch - (V.S.W.R.) -

should be speciﬁed when ordering.

Options such as direction of circulation, mechanical output ports E-bend or H-bend are available upon

request.

15-42

Vol. 1

SALES OFFICES: VISIT OUR WEB SITE AT

http://www.temex.net

FI6003 Related Products

	FI6003	FI6006	FI6001
Description	8800 MHz - 9400 MHz RF/MICROWAVE 4 PORT CIRCULATOR	7900 MHz - 8400 MHz RF/MICROWAVE 4 PORT CIRCULATOR	8500 MHz - 9600 MHz RF/MICROWAVE 4 PORT CIRCULATOR
Maker	Rakon Limited	Rakon Limited	Rakon Limited
Reach Compliance Code	unknown	unknown	unknown
structure	WAVEGUIDE	WAVEGUIDE	WAVEGUIDE
Maximum input power (CW)	53.98 dBm	62.55 dBm	54.77 dBm
Maximum insertion loss	0.5 dB	0.2 dB	0.5 dB
Maximum operating frequency	9400 MHz	8400 MHz	9600 MHz
Minimum operating frequency	8800 MHz	7900 MHz	8500 MHz
Maximum operating temperature	60 °C	70 °C	70 °C
Minimum operating temperature	-	-10 °C	-40 °C
RF/Microwave Device Types	4 PORT CIRCULATOR	4 PORT CIRCULATOR	4 PORT CIRCULATOR
Maximum voltage standing wave ratio	1.15	1.1	1.2
Other features	I/P POWER-MAX (PEAK)=250000W	-	I/P POWER-MAX (PEAK)=250000W
