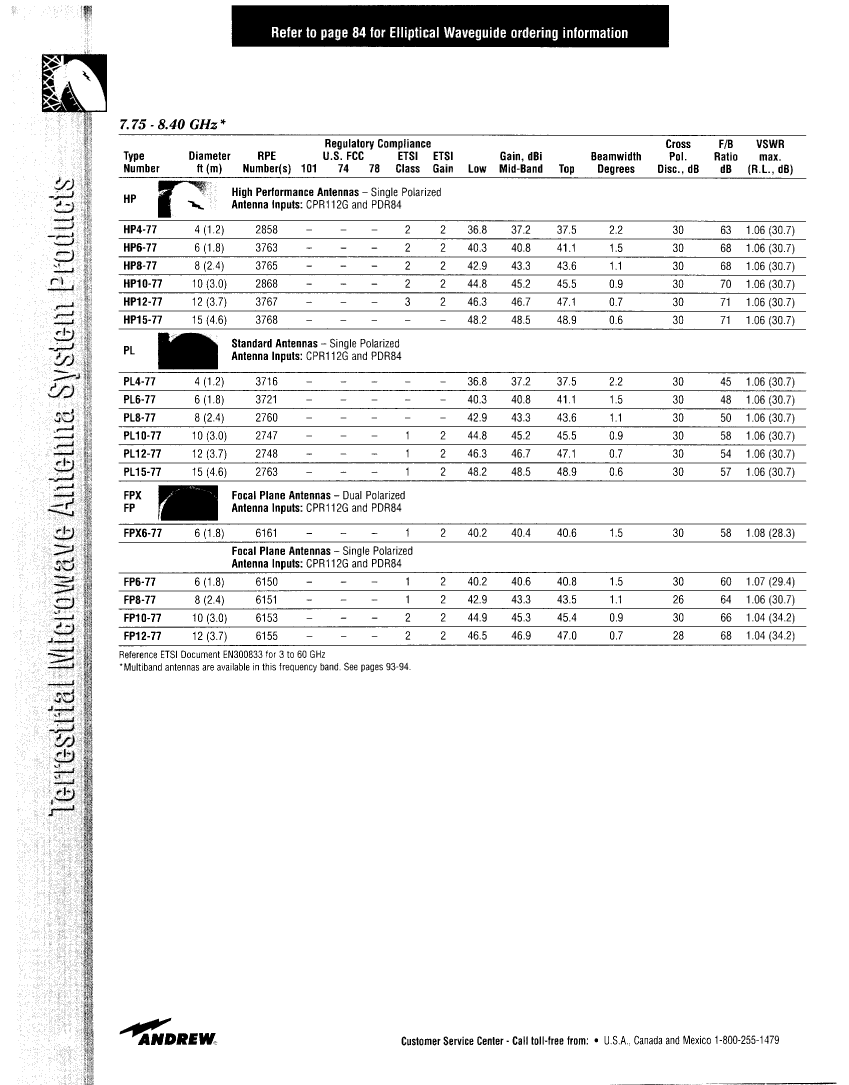

Preview

FP8-77: DescriptionParabolic Antenna, 7750MHz Min, 8400MHz Max, 42.9dB Gain, 1.1deg 3dB Beamwidth; CategoryWireless rf/communication Radio frequency and microwave; File Size117KB，1 Pages; ManufacturerCommScope Inc

Download Datasheet Parametric Compare View All

FP8-77 Overview

Parabolic Antenna, 7750MHz Min, 8400MHz Max, 42.9dB Gain, 1.1deg 3dB Beamwidth

FP8-77 Parametric

Parameter Name	Attribute value
Maker	CommScope Inc
Reach Compliance Code	unknown
Beam Width-E	1.1 deg
Beamwidth-H	1.1 deg
diameter	2.4 mm
front to back ratio	64 dB
Gain	42.9 dB
Omnidirectional	NO
Maximum operating frequency	8400 MHz
Minimum operating frequency	7750 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-50 °C
polarization	CIRCULAR
RF/Microwave Device Types	PARABOLIC ANTENNA
Maximum transmission power	150 W
Maximum voltage standing wave ratio	1.06
Commentary	125 mph

Preview

Download Datasheet

View All

FP8-77 Related Products

	FP8-77	PL15-77	PL4-77	PL8-77	HP6-77	HP4-77	HP12-77
Description	Parabolic Antenna, 7750MHz Min, 8400MHz Max, 42.9dB Gain, 1.1deg 3dB Beamwidth	Parabolic Antenna, 7750MHz Min, 8400MHz Max, 48.2dB Gain, 0.6deg 3dB Beamwidth	Parabolic Antenna, 7750MHz Min, 8400MHz Max, 36.8dB Gain, 2.2deg 3dB Beamwidth	Parabolic Antenna, 7750MHz Min, 8400MHz Max, 42.9dB Gain, 1.1deg 3dB Beamwidth	Parabolic Antenna, 7750MHz Min, 8400MHz Max, 40.3dB Gain, 1.5deg 3dB Beamwidth	Parabolic Antenna, 7750MHz Min, 8400MHz Max, 36.8dB Gain, 2.2deg 3dB Beamwidth	Parabolic Antenna, 7750MHz Min, 8400MHz Max, 46.3dB Gain, 0.7deg 3dB Beamwidth
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknow
Beam Width-E	1.1 deg	0.6 deg	2.2 deg	1.1 deg	1.5 deg	2.2 deg	0.7 deg
Beamwidth-H	1.1 deg	0.6 deg	2.2 deg	1.1 deg	1.5 deg	2.2 deg	0.7 deg
diameter	2.4 mm	4.6 mm	1.2 mm	2.4 mm	1.8 mm	1.2 mm	3.7 mm
front to back ratio	64 dB	57 dB	45 dB	50 dB	68 dB	63 dB	71 dB
Gain	42.9 dB	48.2 dB	36.8 dB	42.9 dB	40.3 dB	36.8 dB	46.3 dB
Omnidirectional	NO	NO	NO	NO	NO	NO	NO
Maximum operating frequency	8400 MHz	8400 MHz	8400 MHz	8400 MHz	8400 MHz	8400 MHz	8400 MHz
Minimum operating frequency	7750 MHz	7750 MHz	7750 MHz	7750 MHz	7750 MHz	7750 MHz	7750 MHz
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
Minimum operating temperature	-50 °C	-50 °C	-50 °C	-50 °C	-50 °C	-50 °C	-50 °C
polarization	CIRCULAR	CIRCULAR	CIRCULAR	CIRCULAR	CIRCULAR	CIRCULAR	CIRCULAR
RF/Microwave Device Types	PARABOLIC ANTENNA	PARABOLIC ANTENNA	PARABOLIC ANTENNA	PARABOLIC ANTENNA	PARABOLIC ANTENNA	PARABOLIC ANTENNA	PARABOLIC ANTENNA
Maximum transmission power	150 W	150 W	150 W	150 W	150 W	150 W	150 W
Maximum voltage standing wave ratio	1.06	1.06	1.06	1.06	1.06	1.06	1.06
Commentary	125 mph	125 mph	125 mph	125 mph	125 mph	125 mph	125 mph
Maker	CommScope Inc	-	-	-	CommScope Inc	CommScope Inc	CommScope Inc
