AMPALC29M16-45DC datasheet, PDF

AMPALC29M16-45DC: DescriptionEE PLD, 55ns, PAL-Type, CMOS, CDIP24, 0.300 INCH, SLIM, CERAMIC, DIP-24; CategoryProgrammable logic devices Programmable logic; File Size527KB，18 Pages; ManufacturerAMD; Websitehttp://www.amd.com

Download Datasheet Parametric View All

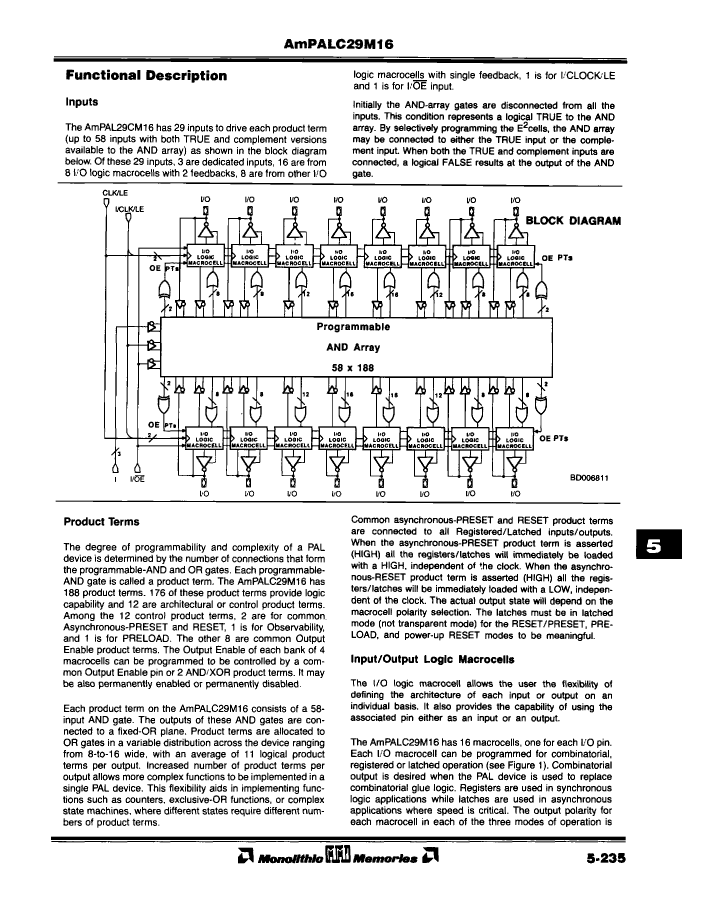

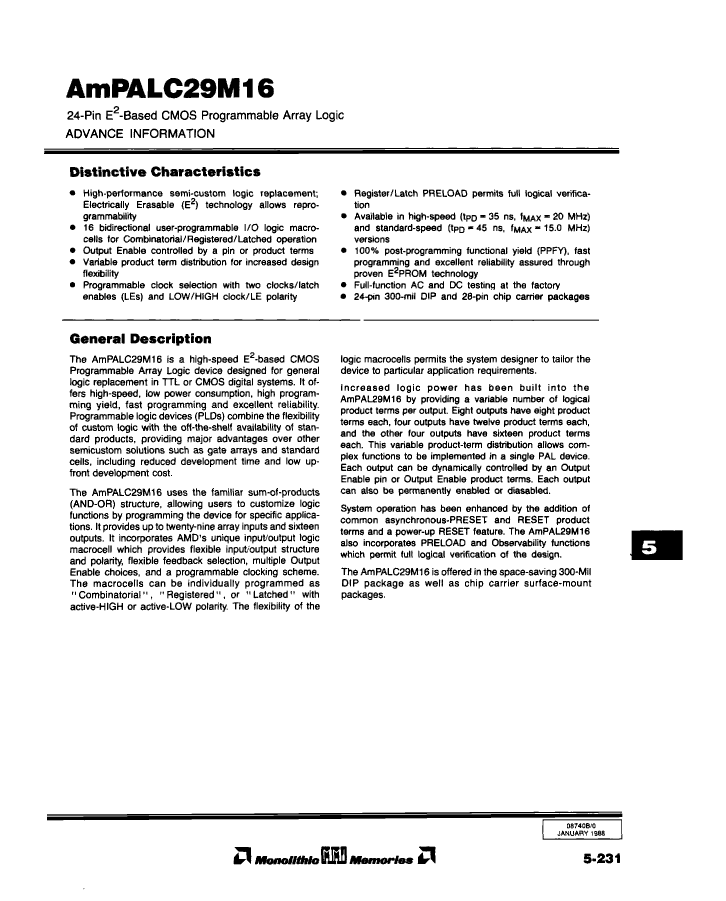

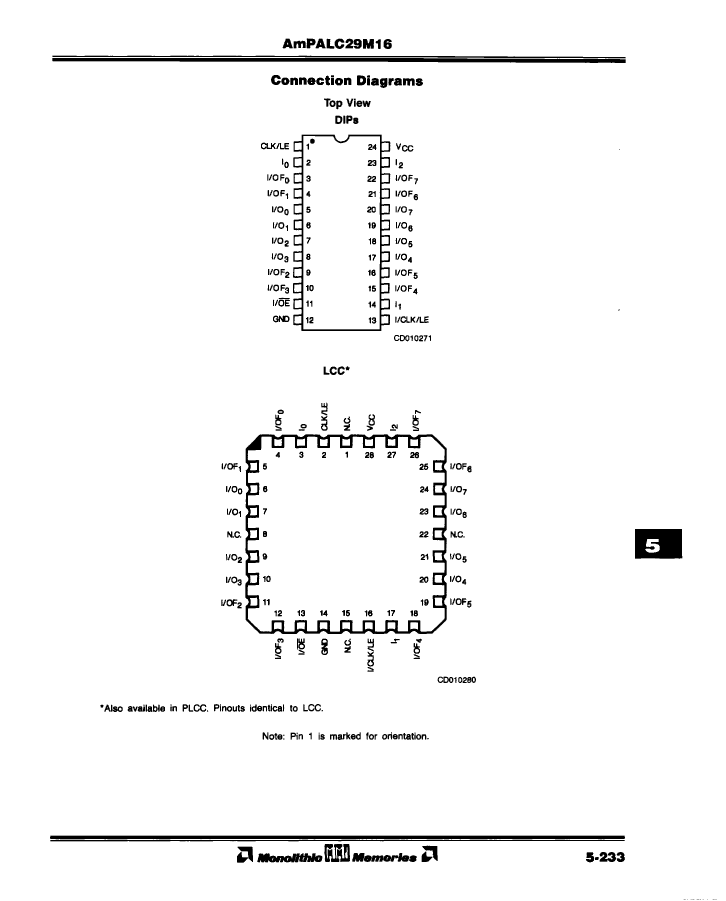

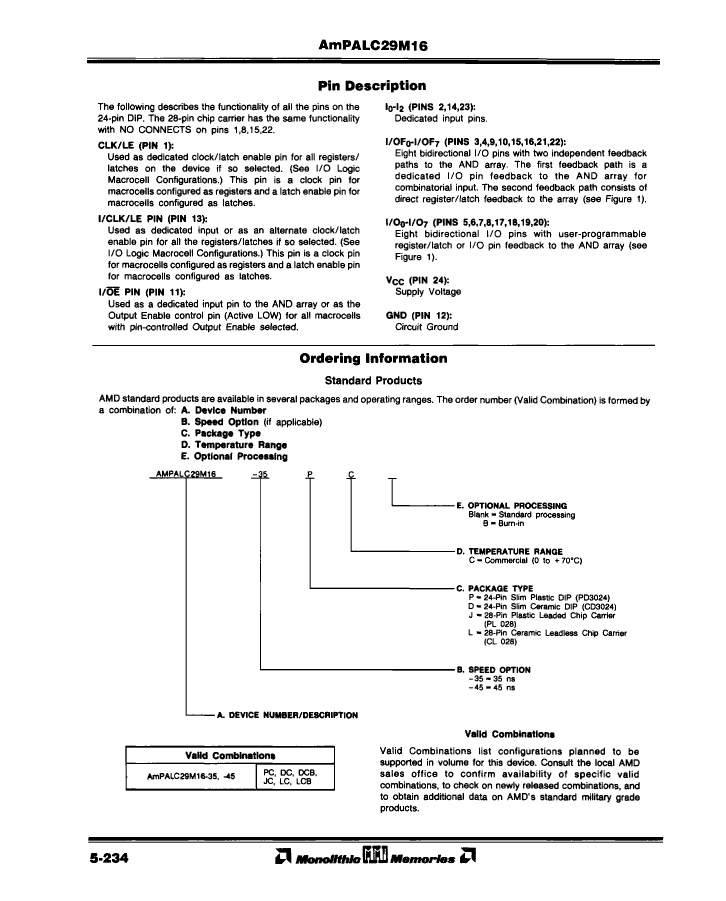

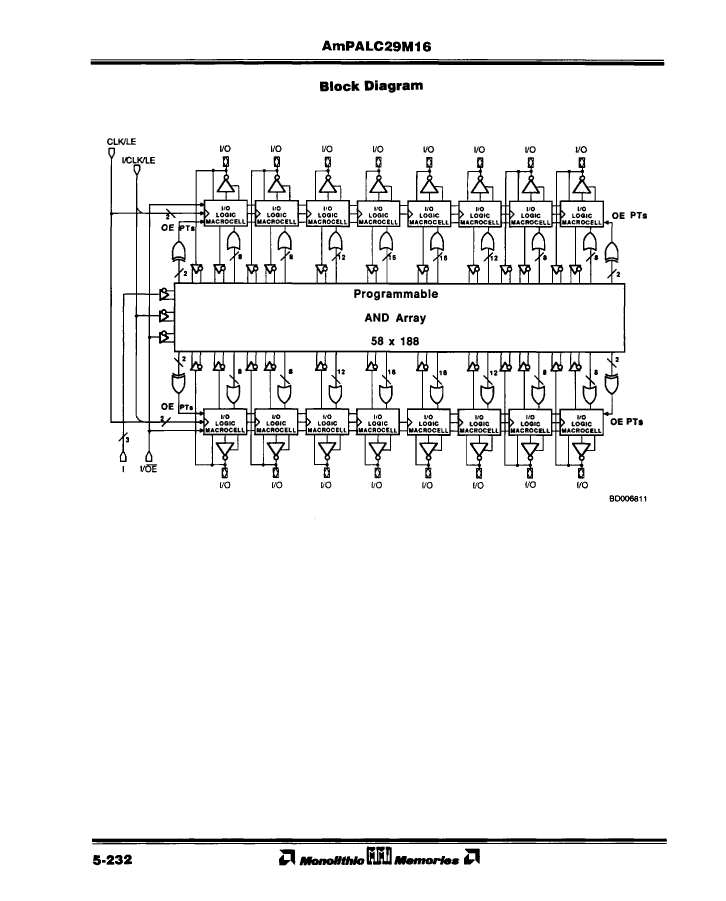

AMPALC29M16-45DC Overview

EE PLD, 55ns, PAL-Type, CMOS, CDIP24, 0.300 INCH, SLIM, CERAMIC, DIP-24

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	AMD
Parts packaging code	DIP
package instruction	DIP, DIP24,.3
Contacts	24
Reach Compliance Code	unknown
Architecture	PAL-TYPE
maximum clock frequency	15 MHz
JESD-30 code	R-CDIP-T24
JESD-609 code	e0
length	31.9405 mm
Dedicated input times	3
Number of I/O lines	16
Number of entries	29
Output times	16
Number of product terms	188
Number of terminals	24
Maximum operating temperature	70 °C
Minimum operating temperature
organize	3 DEDICATED INPUTS, 16 I/O
Output function	MACROCELL
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP
Encapsulate equivalent code	DIP24,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Programmable logic type	EE PLD
propagation delay	55 ns
Certification status	Not Qualified
Maximum seat height	5.08 mm
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	7.62 mm
