ISC-1812ERR47M

Description
General Fixed Inductor, 1 ELEMENT, 0.47 uH, NON-MAGNETIC-CORE, GENERAL PURPOSE INDUCTOR, SMD, CHIP, 1812, ROHS COMPLIANT
CategoryPassive components    inductor
File Size79KB,3 Pages
ManufacturerVishay
Websitehttp://www.vishay.com
Environmental Compliance
Download Datasheet Parametric View All

ISC-1812ERR47M Overview

General Fixed Inductor, 1 ELEMENT, 0.47 uH, NON-MAGNETIC-CORE, GENERAL PURPOSE INDUCTOR, SMD, CHIP, 1812, ROHS COMPLIANT

ISC-1812ERR47M Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerVishay
Reach Compliance Codeunknown

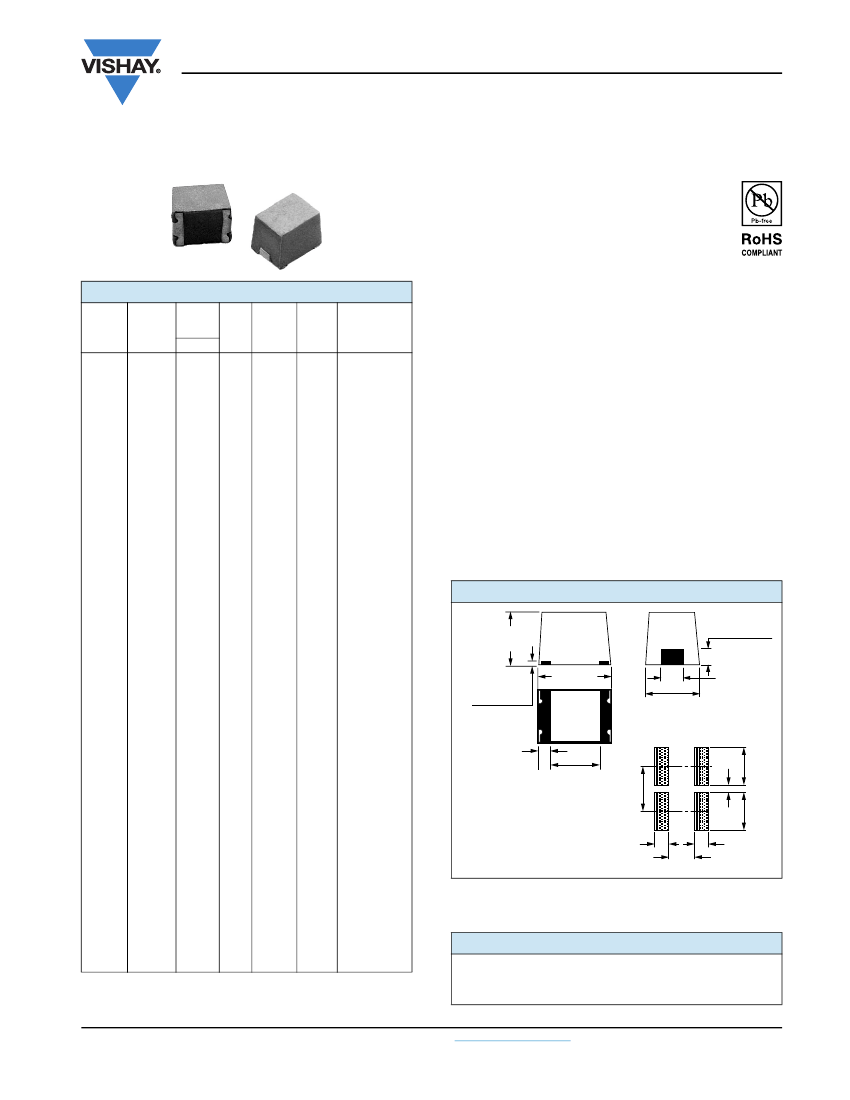

ISC-1812
Vishay Dale
Wirewound, Surface Mount, Molded, Shielded Inductors
FEATURES
• Molded construction provides superior strength
and moisture resistance
• Tape and reel packaging for automatic handling,
2000/reel, EIA-481
• Compatible with vapor phase and infrared reflow
soldering
• Shielded construction minimizes coupling to
components
• Compliant to RoHS directive 2002/95/EC
STANDARD ELECTRICAL SPECIFICATIONS
IND.
(µH)
TOL.
0.1
± 20 %
0.1
± 20 %
0.2
± 20 %
0.2
± 20 %
0.2
± 20 %
0.3
± 20 %
0.3
± 20 %
0.4
± 20 %
0.5
± 20 %
0.6
± 20 %
0.7
± 20 %
0.8
± 20 %
1.0
± 10 %
1.2
± 10 %
1.5
± 10 %
1.8
± 10 %
2.2
± 10 %
2.7
± 10 %
3.3
± 10 %
3.9
± 10 %
4.7
± 10 %
5.6
± 10 %
6.8
± 10 %
8.2
± 10 %
10.0
± 10 %
12.0
± 10 %
15.0
± 10 %
18.0
± 10 %
22.0
± 10 %
27.0
± 10 %
33.0
± 10 %
39.0
± 10 %
47.0
± 10 %
56.0
± 10 %
68.0
± 10 %
82.0
± 10 %
100.0 ± 10 %
120.0 ± 10 %
150.0 ± 10 %
180.0 ± 10 %
220.0 ± 10 %
270.0 ± 10 %
330.0 ± 10 %
390.0 ± 10 %
470.0 ± 10 %
560.0 ± 10 %
680.0 ± 10 %
820.0 ± 10 %
1000.0 ± 10 %
Note
(1)
Rated DC current based on the maximum temperature rise, not
to exceed 40 °C at + 85 °C ambient
Document Number: 34061
Revision: 01-Jul-09
TEST
FREQ.
(MHz)
Q
L & Q MIN.
25.2
30
25.2
30
25.2
30
25.2
30
25.2
30
25.2
30
25.2
30
25.2
30
25.2
30
25.2
30
25.2
30
25.2
30
7.96
30
7.96
30
7.96
30
7.96
30
7.96
30
7.96
30
7.96
30
7.96
30
7.96
30
7.96
30
7.96
30
7.96
30
2.52
50
2.52
50
2.52
50
2.52
50
2.52
50
2.52
50
2.52
50
2.52
50
2.52
50
2.52
50
2.52
50
2.52
50
0.796
50
0.796
50
0.796
50
0.796
40
0.796
40
0.796
40
0.796
40
0.796
40
0.796
40
0.796
40
0.796
40
0.796
40
0.252
40
SRF
MIN.
(MHz)
460
400
390
350
310
280
240
215
205
195
165
155
140
120
100
90.0
80.0
67.0
61.0
56.0
50.0
40.0
32.0
30.0
25.0
22.0
18.0
15.0
14.0
13.0
12.0
11.0
9.0
8.0
7.6
7.2
7.0
6.0
5.0
4.5
4.2
4.0
3.7
3.5
3.3
2.8
2.6
2.2
2.0
RATED
DC
DCR
MAX. CURRENT
(1)
(Ω)
(mA)
0.23
552
0.26
519
0.29
491
0.32
468
0.36
441
0.40
418
0.45
394
0.60
342
0.75
306
0.80
296
0.95
271
1.20
242
0.35
447
0.38
429
0.40
418
0.43
403
0.46
390
0.49
378
0.55
357
0.59
344
0.62
336
0.69
333
0.75
306
0.82
292
0.90
279
1.00
265
1.10
252
1.24
238
1.36
227
1.56
212
1.72
202
1.89
192
2.10
183
2.34
173
2.60
164
2.86
156
3.25
147
3.64
139
4.16
130
5.72
111
6.30
105
6.90
101
7.54
96
8.20
92
9.20
87
10.50
82
12.00
76
13.50
72
16.00
66
other
ELECTRICAL SPECIFICATIONS
Inductance Range:
0.10 µH to 1000 µH
Inductance Tolerance:
± 20 % for 0.10 µH to 0.82 µH
± 10 % for 1.0 µH to 1000 µH
standard
± 10 %, ± 5 %, ± 3 % available
Operating Temperature:
- 55 °C to + 125 °C
Coilform Material:
Non-magnetic for 0.10 µH to 0.82 µH
Powdered iron for 1.0 µH to 22 µH
Ferrite for 27 µH to 1000 µH
TEST EQUIPMENT
• H/P 4342A Q meter with Vishay Dale test fixture or
equivalent
• H/P 4191A RF impedance analyzer (for SRF
measurements)
• Wheatstone bridge
DIMENSIONS
in inches [millimeters]
0.126 ± 0.008
[3.200 ± 0.203]
0.177 ± 0.008
[4.500 ± 0.203]
0.126 ± 0.008
[3.200 ± 0.203]
0.037 ± 0.008
[0.940 ± 0.203]
0.006 [0.152]
Ref. Typ.
0.030 ± 0.004
[0.762 ± 0.102]
Typ.
+ 0.004
- 0.008
+ 0.102
[1.270
- 0.203
]
0.050
Typ.
0.124 [3.15]
Ref.
Guidelines for
Parallel Component
Printed Circuit
Mounting Pads on
ISC-1812 Chip
Inductors
0.158
[4.0]
0.181
[4.6]
0.024
[0.6]
(1)
0.158
[4.0]
0.059
[1.5]
0.118 [3.0]
0.059
[1.5]
Note
(1)
Recommended minimum spacing between components
PART MARKING
- Vishay Dale
- Inductance value
- Date code
For technical questions, contact:
magnetics@vishay.com
www.vishay.com
1
