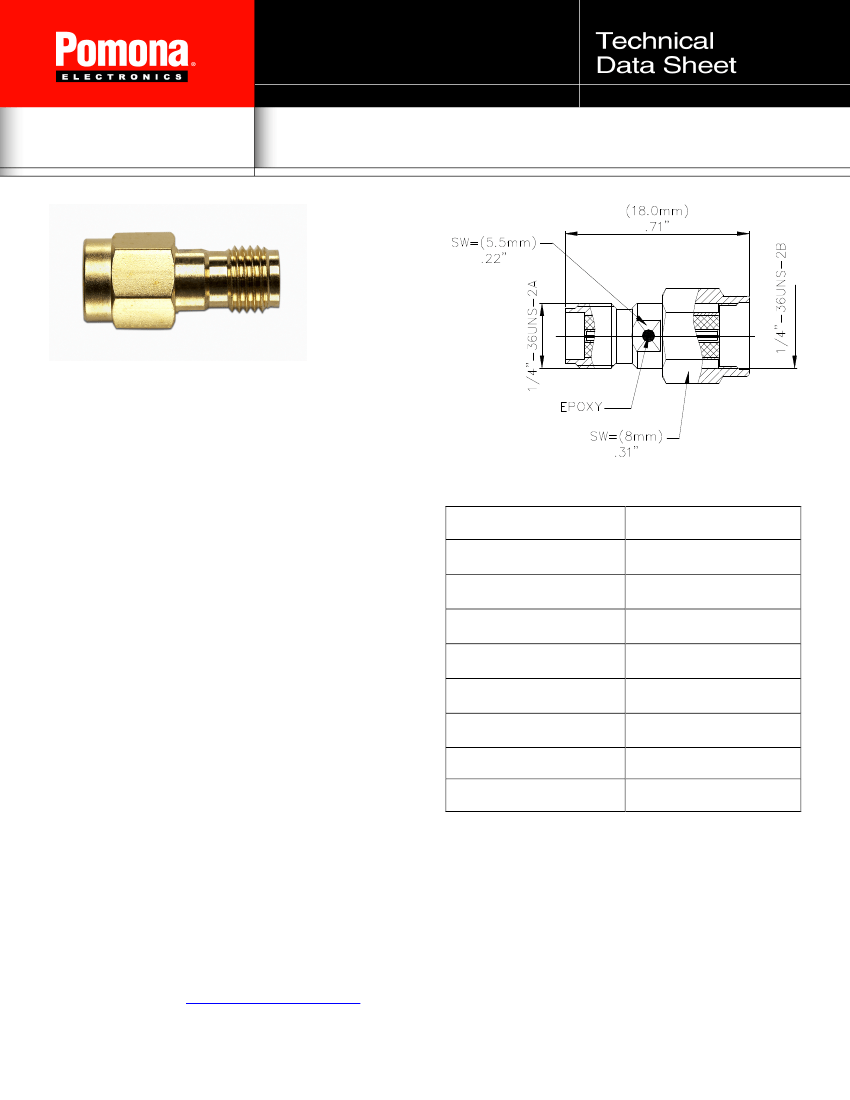

Model 72967 SMA JACK (F) / JACK (F), REVERSE POLARITY
High bandwidth, small size, and
durability for confident
connections
Specifications
Features
•
•
•
•
DC - 6 GHz
Meets MIL-C-39012, IEC 169-15, CECC 22110.
Small size and durability for mobile
communications.
Precision machined and gold-plated for low loss.
Frequency Range
Working Voltage
Dielectric Withstanding
Voltage
VSWR
Center/Outer Contact
Resistance
Insulation resistance
Number of Insertions
Temperature Range
DC – 6 GHz
< 500 Vpeak
1,000 Vrms
1.35 max.
0.003/0.002
> 5000 M
500 cycles minimum
-65˚ C to 165˚ C, -85˚ F to
329˚ F
max
Impedance
50
Materials
•
•
•
•
•
Body is machined brass with gold plating.
Center Contacts - Plug is gold plated brass and
Jack is gold plated Beryllium copper.
Insulators are high quality PTFE.
Crimp Ferrules are copper with gold or nickel
plating.
Gaskets are silicone rubber.
!
Information
Model: 72967
Description: SMA JACK (F) / JACK (F), REVERSE
POLARITY
USA:
Sales: 800-490-2361
Technical Support:
technicalsupport@pomonatest.com
Fax: 425-446-5844
Europe:
31-(0) 40 2675 150
International:
425-446-5500
Where to Buy:
www.pomonaelectronics.com
All dimensions are in inches. Tolerances (except noted): .xx = ±.02” (.51 mm),
.xxx = ± .005” (.127 mm). All specifications are to the latest revisions.
Specifications are subject to change without notice. Registered trademarks
are the property of their respective companies.
D2003406 REV 001
Copyright © 2007 11/13/2007
Page 1 of 1
