91910-1211LF: DescriptionBoard Stacking Connector, 11 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal, ROHS COMPLIANT; CategoryThe connector The connector; File Size386KB，2 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

91910-1211LF Overview

Board Stacking Connector, 11 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal, ROHS COMPLIANT

91910-1211LF Parametric

Parameter Name	Attribute value
Maker	Amphenol
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Other features	POLARISED
Connector type	BOARD STACKING CONNECTOR
Contact to complete cooperation	GOLD FLASH (15) OVER PALLADIUM NICKEL
Contact completed and terminated	TIN OVER NICKEL
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	919
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	1 mm
Termination type	SURFACE MOUNT
Total number of contacts	11
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

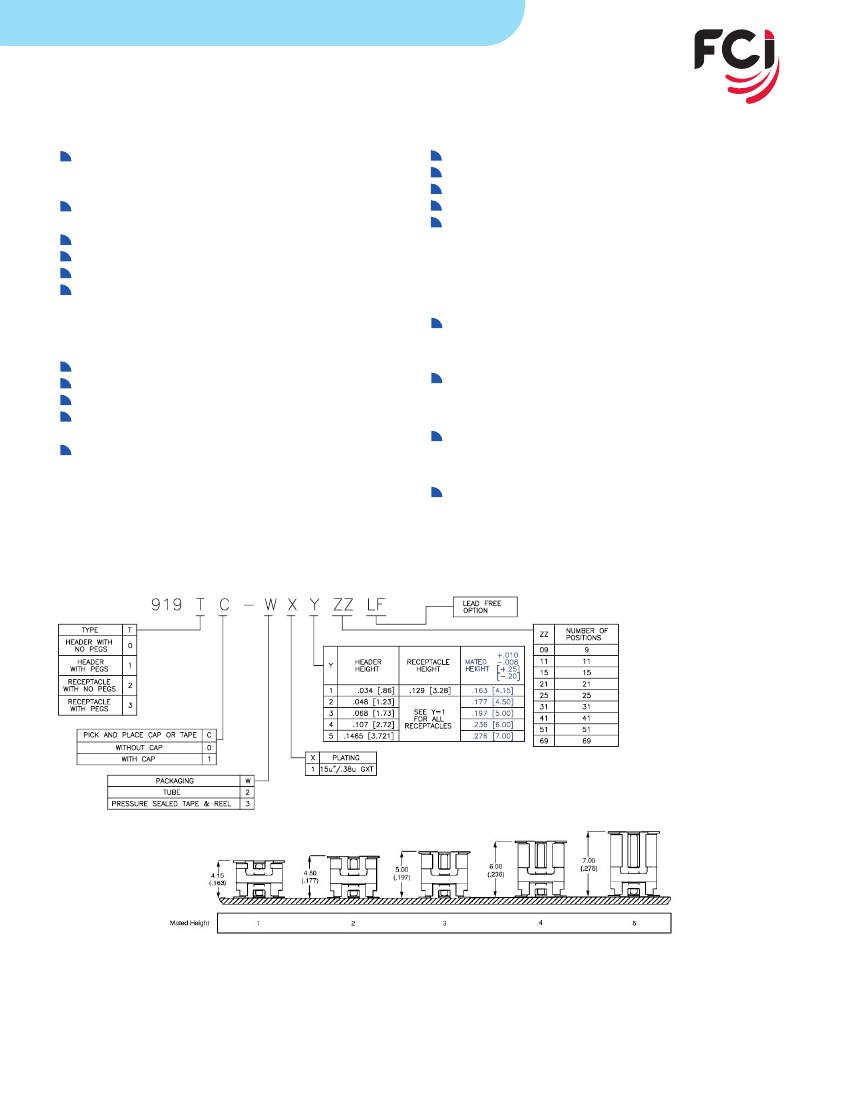

BOARD TO BOARD CONNECTORS

CONAN

High Density, Low Profile 1.00mm Connector System

Enhances Reliability for Portable Electronics

DESCRIPTION

The Conan 1.0mm mezzanine connector

system provides a mechanically secure, high

density electrical interface between parallel

printed circuit boards.

Conan’s mechanical features and

palladium/nickel/gold plated electrical

contacts qualify it for high reliability use in

portable and mobile electronic equipment.

FEATURES & BENEFITS

“Snap” engagement contacts assure secure mating

with an audible “click”

Blade-on-beam contact design allows "peeling"

disengagement and prevents contact stubbing

Connector housings feature "lead-in" angles to

assist in mating

Surface mounted metal hold-downs reinforce

connector retention to the printed circuit board

Mating polarization prevents backward connections

PCB polarization prevents errors during printed

circuit board assembly

Pick and place caps with tape and reel packaging

support automated assembly processes

Header height options support a range of PCB

stack heights: 4.15mm to 7mm

9 part sizes: 9 to 69 contacts

Lead-free RoHS compatible products satisfy

environmental regulations

TARGET MARKETS / APPLICATIONS

Portable and mobile electronic equipment

Medical and Instrumentation

Office equipment

Communications and networking equipment

Point-of-sale equipment
