H4151AA: DescriptionPushbutton Switch, DPST, Off-(on), Momentary, Quick Connect Terminal, Panel Mount, ROHS COMPLIANT; CategoryMechanical and electronic products switch; File Size80KB，1 Pages; ManufacturerArcolectric

Download Datasheet Parametric View All

H4151AA Overview

Pushbutton Switch, DPST, Off-(on), Momentary, Quick Connect Terminal, Panel Mount, ROHS COMPLIANT

H4151AA Parametric

Parameter Name	Attribute value
Maker	Arcolectric
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Actuator angle
Actuator length	0.815 inch
Actuator type	PLUNGER
body width	17 mm
body height	46 mm
Body length or diameter	39.9 mm
center contact material	SILVER ALLOY
Contact (AC) maximum rated R load	13A@250VAC
Maximum contact current (AC)	13 A
Contact function	OFF-(ON)
Contact resistance	0.1 mΩ
Maximum contact voltage (AC)	250 V
Dielectric withstand voltage	3000VAC V
Electrical life	10000 Cycle(s)
End contact material	SILVER ALLOY
Insulation resistance	20000000 Ω
insulator material	NYLON
Manufacturer's serial number	H4151
Installation features	PANEL MOUNT
surface mount	NO
Switch action	MOMENTARY
switch function	DPST
Switch type	PUSHBUTTON SWITCH
Termination type	QUICK CONNECT

Preview

Download Datasheet

View All

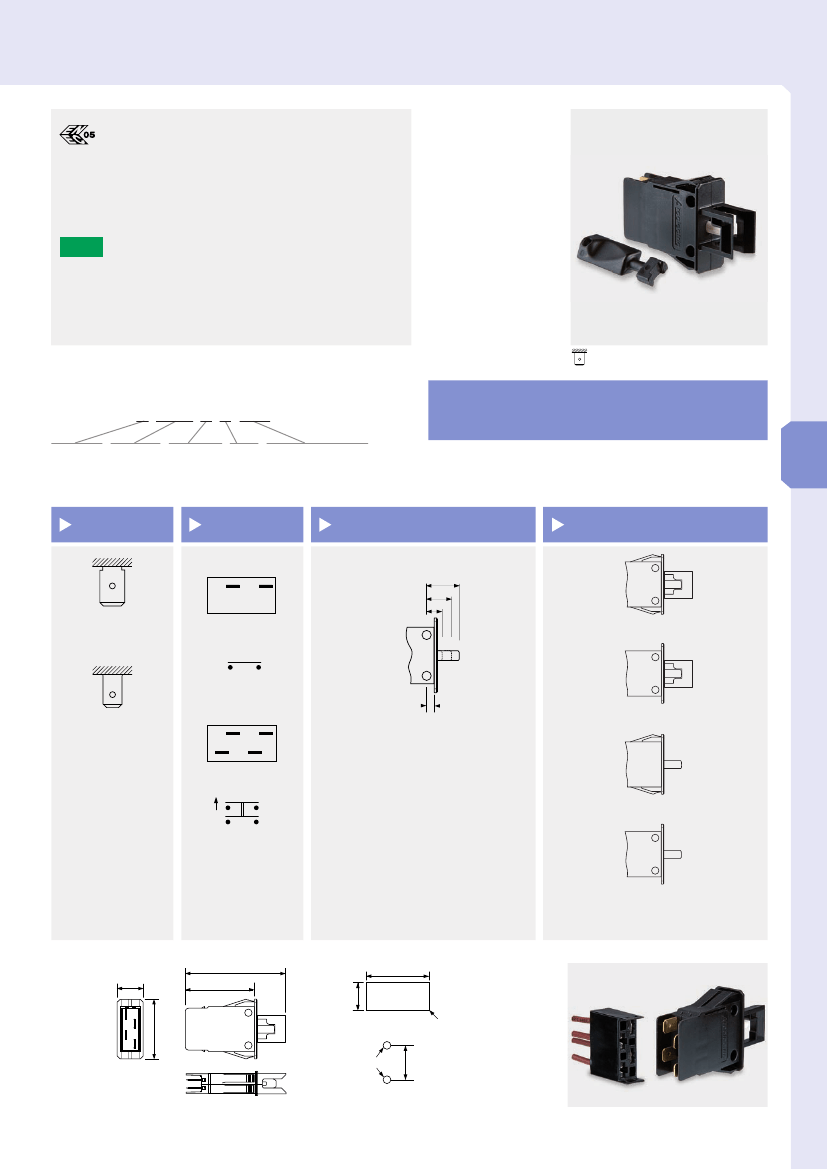

Push Button Switch

13A 250Vac

13(4)A 250Vac, T85, 1E4 (10,000 Operations)

250Vac, 13A, 10,000

operations

Double & single pole

momentary operation

Plunger operation with

key for locking

Approvals applied for

4.8 & 6.3mm tags

Snap in mounting &

screw fixing

Panel cut out:

37.0 x 13.5

RoHS

Compliant

C4151AA ---

NEW PRODUCT

C 4151 A A - - -

TERMINAL FUNCTION ACTUATOR BODY PRINT, COLOUR, ETC

Please contact the sales office for availability.

push

switches

TERMINAL

C

FUNCTION

Single 4101

1

2

ACTUATOR

A

(Off)18.0

(Mom On)12.6

(Full Travel) 8.0

BODY

A

6.3 x 0.8

B

H

4.0

Double 4151

4.8 x 0.8

1

3

4

2

C

D

OFF - ON (momentary)

Accessories

Locking key: M1395

Connector: M1396

Dimensions

(mm)

C4151HAA

17.0

46.0

66.7

37.0

13.5

R1.3 max

39.9

21.8 CRS

Ø5.0

tel: +44 (0)20 8979 3232 •

Arcolectric

• email: info@arcoswitch.co.uk

39
