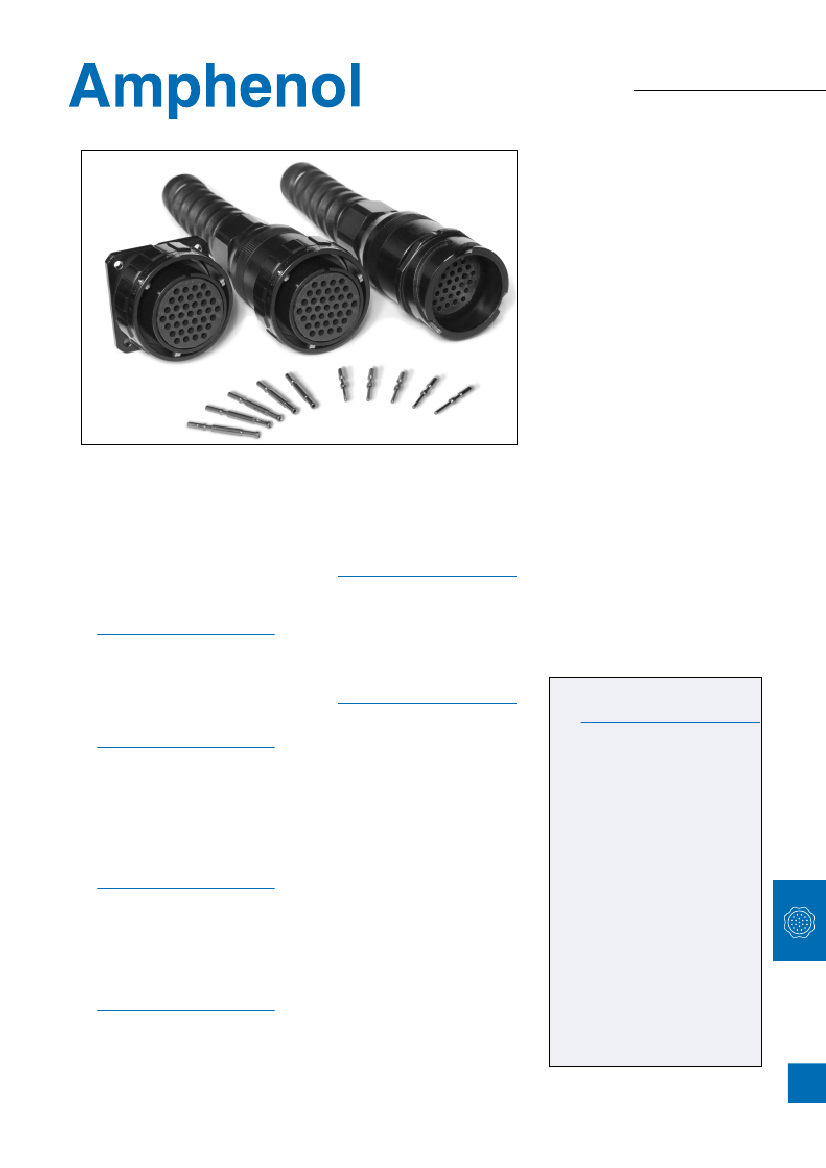

MULTIPIN CONNETORS
MULTIPIN
CONNECTORS
Amphenol has an extensive range of circular
and rectangular multi-pin connectors ideally
suited to the entertainment industry. Featuring
rugged housings and precision made
contacts these connectors have proven
themselves in the most demanding of
applications. The extensive arrangement of
different connector sizes and contact
numbers ensure we can offer a solution to
your multi-pin wiring applications.
• Two part backshell ensures simple wiring
and maintenance
• Thermoset inserts
• Adaptable capacity cable clamp
Features / Options - C146
Series Rectangular
• 3 to 244 pins
• Silver contact plating
• Zinc diecast aluminium housings
• Positive latch locking
Request catalogue CAT-AMPHENOL359
Applications
• Audio Cables and Snakes
• Lighting control
• Concert Touring Systems
• Outside Broadcast Systems
Ordering Codes
We have listed the more common ordering
codes in each section. For further options
please contact us.
Features / Options - MP-41
Series
• 13 to 200 pins
• Gold plated crimp contacts
• Synthetic inserts
• Environmental resistant
• Positive Bayonet locking
• PG cable gland
Simple steps to guide you in
using this catalogue
1) Identify the product group listed in
Contents on Page 1 and go directly to that
page number.
2) Each product group cover page then details
information and options available.
3) Refer to the product detail pages and identify
the product you require pictorially.
4) Read the product description column for the
products standard features.
5) Use pins column to determine number of
contacts.
6) Identify part number.
7) In the event the particular option you require
is not listed please refer to the part number
breakdown page at the end of each section.
8) Please contact us directly if you have any
further problems.
75
Features / Options - MP-62
Series
- 39 or 61 pins
- Gold plated solder contacts
- Neoprene inserts
- Environmental resistant
- Positive Bayonet locking
- PG cable gland
Features / Options - Socapex™
• 19 pin
• Gold plated machined solder contacts
• Closed entry socket contacts
ENTERTAINMENT INTERCONNECT CATALOGUE
- Amphenol Australia Pty Ltd
Telephone 61 3 8796 8888 Fax 61 3 8796 8801
www.amphenol.com.au

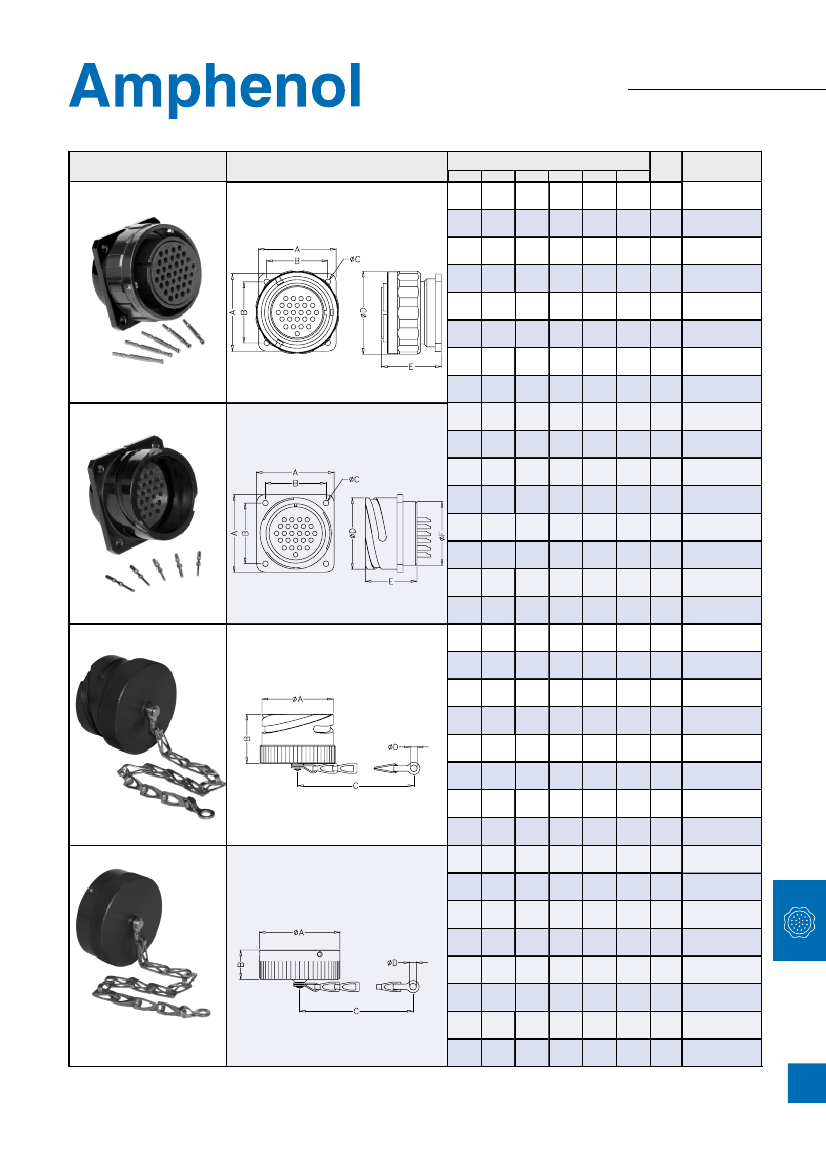

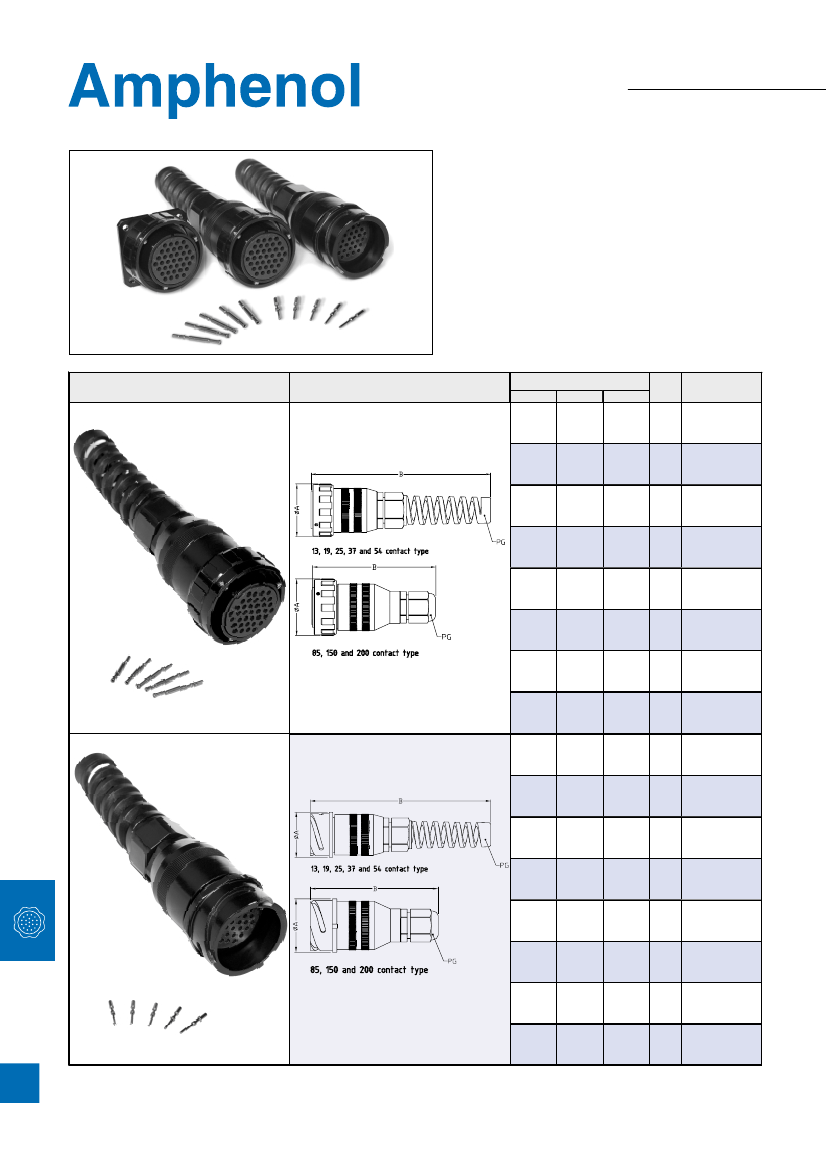

MULTIPIN CONNECTORS
MP-41 SERIES
Amphenol’s MP-41 series of multipin connectors utilise the same
design principals of the rugged Mil-C-5015 military connectors. They
can withstand high shock and vibration environments and are ideal for
tough on-road applications. Featuring a quick mating bayonet coupling
with an audible full mating feature ensures a positive connection every
time. Available from 13 to 200 pins with gold plated crimp contacts
supplied with each connector as standard.
Features:
• 13 to 200 pins (4 to 66 channel)
• Environmental resistant
• Gold plated crimp contacts
• Black finish
• Synthetic insert
• Positive bayonet locking
• Protective dust caps
• PG cable glands
• Industry standard compatible
• IP67 rated
Options:
S
older contacts available as a special.
Crimp Tooling: Page 78
Specifications: Page 79
PRODUCT - FIGURE
Dimensions in mm (inches)
Part Number Breakdown: Page 78
PINS PART NUMBER
Dimensions in mm (inches)
A
B
PG
DRAWING
Straight cable plug with socket contacts,
Black finish, supplied complete with gold
plated crimp contacts.
39.9
(1.57)
43.1
(1.69)
46.6
(1.83)
53.4
(2.10)
60.1
(2.36)
72.4
(2.85)
72.4
(2.85)
72.4
(2.85)
160
(6.30)
171
(6.73)
193
(7.60)
210
(8.26)
210
(8.26)
137
(5.40)
145
(5.70)
145
(5.70)
160
(6.30)
171
(6.73)
193
(7.60)
210
(8.26)
210
(8.26)
137
(5.40)
145
(5.70)
145
(5.70)
36
200
MP-4101-200P
36
150
MP-4101-150P
29
85
MP-4101-85P
21
54
MP-4101-54P
21
37
MP-4101-37P
16
25
MP-4101-25P
13.5
19
MP-4101-19P
11
13
MP-4101-13P
36
200
MP-4106-200S
36
150
MP-4106-150S
29
85
MP-4106-85S
21
54
MP-4106-54S
21
37
MP-4106-37S
16
25
MP-4106-25S
13.5
19
MP-4106-19S
11
13
MP-4106-13S
Cable connecting receptacle with pin
contacts, Black finish, supplied complete with
gold plated crimp contacts.
37.5
(1.47)
40.5
(1.59)
41.5
(1.63)
50
(1.96)
56.5
(2.22)
69
(2.71)
69
(2.71)
69
(2.71)
76
ENTERTAINMENT INTERCONNECT CATALOGUE
- Amphenol Australia Pty Ltd
Telephone 61 3 8796 8888 Fax 61 3 8796 8801
www.amphenol.com.au
MULTIPIN CONNECTORS
MP-41 SERIES
PRODUCT - FIGURE
Dimensions in mm (inches)
Dimensions in mm (inches)
A
B
C
D
E
F
DRAWING
Panel plug with socket contacts, Black
finish, supplied complete with gold plated
crimp contacts.
PINS PART NUMBER
13
19
25
37
54
85
150
200
13
19
25
37
54
85
150
200
13
19
25
37
54
85
150
200
13
19
25
37
54
85
150
200
MP-4164-13S
MP-4164-19S
MP-4164-25S
MP-4164-37S
MP-4164-54S
MP-4164-85S
MP-4164-150S
MP-4164-200S
MP-4102-13P
MP-4102-19P
MP-4102-25P
MP-4102-37P
MP-4102-54P
MP-4102-85P
MP-4102-150P
MP-4102-200P
MP-25042-13
MP-25042-19
MP-25042-25
MP-25042-37
MP-25042-54
MP-25042-85
MP-25042-85
MP-25042-85
MP-25043-13
MP-25043-19
MP-25043-25
MP-25043-37
MP-25043-54
MP-25043-85
MP-25043-85
MP-25043-85
77
Panel receptacle with pin contacts, Black
finish, supplied complete with gold plated
crimp contacts.
Plug protective dustcap to suit MP-4106 type
and MP-4164 type.
Receptacle protective dustcap to suit MP-
4101 and MP-4102 types
38
(1.49)
41
(1.61)
44.5
(1.75)
50.8
(1.99)
57
(2.24)
69.8
(2.74)
69.8
(2.74)
69.8
(2.74)
38
(1.49)
41
(1.61)
44.5
(1.75)
50.8
(1.99)
57
(2.24)
69.8
(2.74)
69.8
(2.74)
69.8
(2.74)
40.5
(1.59)
43.50
(1.71)
46.5
(1.83)
54
(2.12)
60
(2.36)
73
(2.87)
73
(2.87)
73
(2.87)
40.5
(1.59)
43.5
(1.71)
47
(1.85)
54
(2.12)
60.5
(2.38)
73
(2.87)
73
(2.87)
73
(2.87)
29.4
(1.15)
31.8
(1.25)
34.9
(1.37)
39.7
(1.56)
44.5
(1.75)
55.5
(2.18)
55.5
(2.18)
55.5
(2.18)
29.4
(1.15)
31.8
(1.25)
34.9
(1.37)
39.7
(1.56)
44.5
(1.75)
55.5
(2.18)
55.5
(2.18)
55.5
(2.18)
33
(1.29)
33
(1.29)
44
(1.73)
33
(1.29)
46
(1.81)
33
(1.29)
33
(1.29)
33
(1.29)
21.2
(0.83)
21.20
(0.83)
21.2
(0.83)
21.2
(0.83)
21.2
(0.83)
21.2
(0.83)
21.2
(0.83)
21.2
(0.83)
3.2
(0.13)
3.2
(0.13)
3.73
(0.14)
3.73
(0.14)
4.39
(0.17)
4.39
(0.17)
4.39
(0.17)
4.39
(0.17)
3.05
(0.12)
3.05
(0.12)
3.73
(0.14)
3.73
(0.14)
4.39
(0.17)
4.39
(0.17)
4.39
(0.17)
4.39
(0.17)
127
(4.99)
127
(4.99)
140
(5.51)
197
(7.75)
197
(7.75)
197
(7.75)
197
(7.75)
197
(7.75)
127
(4.99)
127
(4.99)
140
(5.51)
197
(7.75)
197
(7.75)
197
(7.75)
197
(7.75)
197
(7.75)
42.16
(1.66)
44.95
(1.77)
48.51
(1.91)
52.9
(2.09)
61.97
(2.44)
73.91
(2.91)
73.91
(2.91)
73.91
(2.91)
34.2
(1.34)
37.4
(1.47)
40.9
(1.61)
46.7
(1.83)
53.4
(2.10)
65.5
(2.57)
65.5
(2.57)
65.5
(2.57)
4.7
(0.18)
4.70
(0.18)
4.7
(0.18)
5.6
(0.22)
5.6
(0.22)
5.6
(0.22)
5.6
(0.22)
5.6
(0.22)
4.7
(0.18)
4.7
(0.18)
4.7
(0.18)
5.6
(0.22)
5.6
(0.22)
5.6
(0.22)
5.6
(0.22)
5.6
(0.22)
38.1
(1.5)
38.1
(1.5)
40.6
(1.60)
41.3
(1.67)
44.7
(1.76)
44.7
(1.76)
44.7
(1.76)
44.7
(1.76)
34.5
(1.35)
34.5
(1.35)
35.7
(1.40)
35.7
(1.40)
37.3
(1.46)
37.3
(1.46)
37.3
(1.46)
37.3
(1.46)
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
29
(1.14)
32.2
(1.26)
35.3
(1.38)
41.4
(1.62)
47.8
(1.88)
59
(2.32)
59
(2.32)
59
(2.32)
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
ENTERTAINMENT INTERCONNECT CATALOGUE
- Amphenol Australia Pty Ltd
Telephone 61 3 8796 8888 Fax 61 3 8796 8801
www.amphenol.com.au
MULTIPIN CONNECTORS

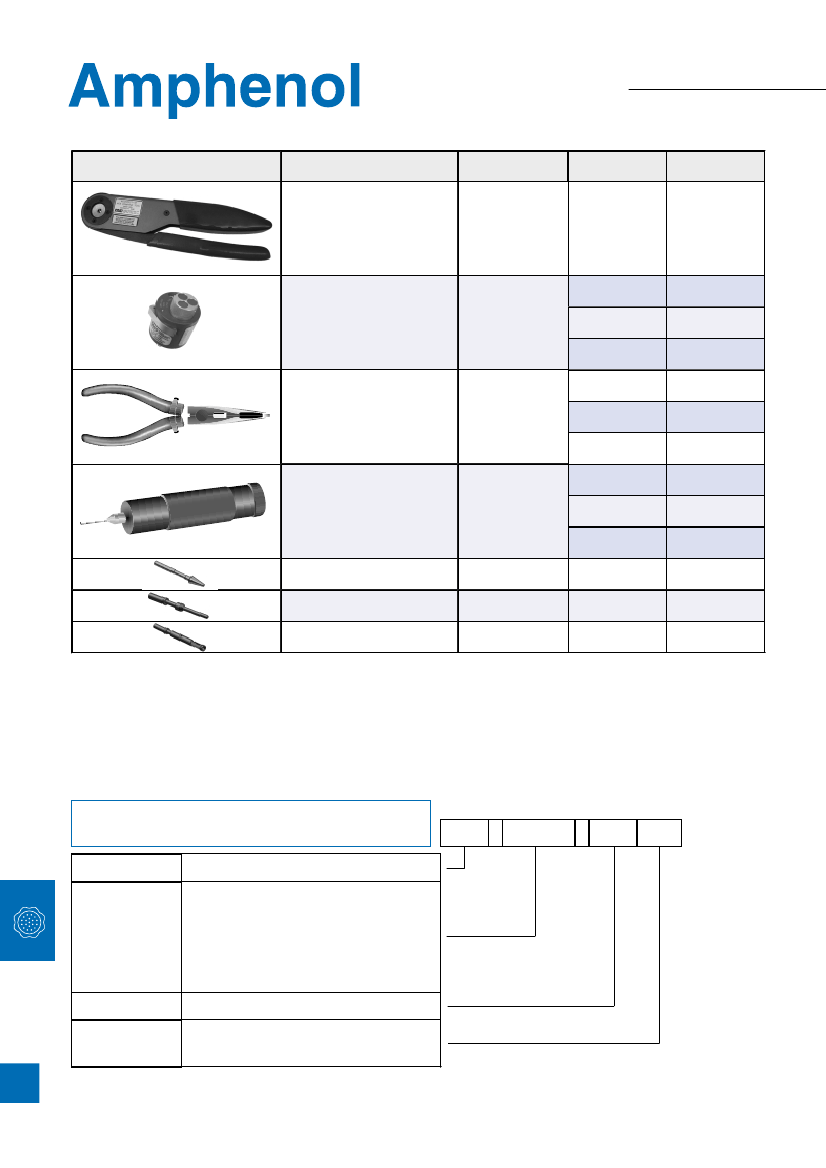

ACCESSORIES
PRODUCT - FIGURE
DRAWING
DESCRIPTION
Crimp Tool
NO. OF PINS
All
PART NUMBER
M22520/1-01
NOT APPLICABLE
Positioner / Turret
13-85
150
200
TH29-1
ON REQUEST
ON REQUEST
MP-INS-16
ON REQUEST
ON REQUEST
MP-EXT-16
ON REQUEST
ON REQUEST
10-242758-16
MP-108295
MP-108457
NOT APPLICABLE
Insertion tool
13-85
150
200
NOT APPLICABLE
Extraction tool
13-85
150
200
NOT APPLICABLE
NOT APPLICABLE
NOT APPLICABLE
NOT APPLICABLE
Contact Pilot Pin
Pin Contact
Socket Contact
13-85
Crimp size 16
Crimp size 16
NOTE:
Complete instructions for providing reliable crimped wire to contact terminations and inserting proprietary crimp contacts in MP-41 Series
connectors are available in publication Pi523 located on our website
www.amphenol.com.au.
PR
E
US
IN
G
NU
M
BE
R
OF
MULTIPIN CIRCULAR CONNECTORS
E. G .
MP-4106-85S
Multipin, 4106
Cable Plug,
85
Contacts,
S
Female Socket Contacts,
SE
R
FI
TY
PE
S
HO
MP
-
4106
-
85
SERIES PREFIX
HOUSING TYPE
MP
4101
4102
4106
4164
25042
25043
=
=
=
=
=
=
=
=
=
Series Prefix
Inline cable connecting receptacle
Panel receptacle
Cable plug
Panel plug
Dustcap for plug
Dustcap for receptacle
13, 19, 25, 37, 54, 85, 150, 200
NO. OF CONTACTS
GENDER
P
S
78
Male pin contacts
Female socket contacts
ENTERTAINMENT INTERCONNECT CATALOGUE
- Amphenol Australia Pty Ltd
Telephone 61 3 8796 8888 Fax 61 3 8796 8801
GE
S
ND
E
IE
R
CO
NT
AC
TS
PART NUMBER BREAKDOWN MP-41 SERIES
X
www.amphenol.com.au
MULTIPIN CONNECTORS
STANDARD DATA
STANDARD DATA MP-41 SERIES
VALUE
GENERAL
CHARACTERISTICS
Number of contacts
Number of channels
Termination
Wire Gauge - Stranded Wire
16AWG
250V*
200V*
1000V
13A
3.46mΩ
3.46mΩ
IP67 (when mated)
-55°C to +125°C (-67°F to +257°F)
PG Gland
500 mating cycles
Aluminium Alloy / Black
Synthetic Insert to MIL-R-3065
Brass / Gold flash plated
Brass / Gold flash plated
11
mm
(inches)
*
Not suitable for domestic applications above 50V
13
4
19
6
25
8
37
12
Crimp
54
16
85
28
150
48
200
66
18AWG
250V*
200V*
1000V
7.5A
11.25mΩ
11.25mΩ
20AWG
250V*
200V*
1000V
7.5A
11.25mΩ
11.25mΩ
ELECTRICAL
CHARACTERISTICS
Operating Voltage at Sea level - DC
Operating Voltage at Sea level - AC
Test Voltage AC RMS
Current Carrying Capacity
Typical Contact Resistance
Insulation Resistance
CLIMATIC
CHARACTERISTICS
MECHANICAL
CHARACTERISTICS
MATERIALS
Protection Class
Operating Temperature
Cable Retention
Mechanical Operations
Connector / Shell Finish
Insert
Male pin contact / Plating
Female socket contact / Plating
CLAMPING
CHARACTERISTICS
PG Gland
Cable Clamping range
13.5
5-12
(0.19”-
0.47”)
16
9-14
(0.35”-
0.55”)
21
13-18
(0.51”- 0.70”)
29
14-25
(0.55”-
0.98”)
36
19-32
(0.74”- 1.25”)
4-10
(0.15”-
0.39”)
79
ENTERTAINMENT INTERCONNECT CATALOGUE
- Amphenol Australia Pty Ltd
Telephone 61 3 8796 8888 Fax 61 3 8796 8801
www.amphenol.com.au
京公网安备 11010802033920号
EEWORLD
