SN65ALS172AN datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Drivers and interfaces> SN65ALS172AN

Preview

SN65ALS172AN: DescriptionLINE DRIVER, PDIP16; CategoryAnalog mixed-signal IC Drivers and interfaces; File Size831KB，7 Pages; ManufacturerRochester Electronics; Websitehttps://www.rocelec.com/

Download Datasheet Parametric View All

SN65ALS172AN Overview

LINE DRIVER, PDIP16

SN65ALS172AN Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Maker	Rochester Electronics
Reach Compliance Code	unknown
Differential output	YES
Number of drives	4
Input properties	STANDARD
Interface integrated circuit type	LINE DRIVER
Interface standards	V.11; EIA-422-B; EIA-485
JESD-30 code	R-PDIP-T16
JESD-609 code	e0
length	19.305 mm
Humidity sensitivity level	NOT SPECIFIED
Number of functions	1
Number of terminals	16
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	COMMERCIAL
Maximum seat height	5.08 mm
Maximum supply voltage	5.25 V
Minimum supply voltage	4.75 V
Nominal supply voltage	5 V
surface mount	NO
technology	BIPOLAR
Temperature level	INDUSTRIAL
Terminal surface	TIN LEAD
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
maximum transmission delay	22 ns
width	7.62 mm

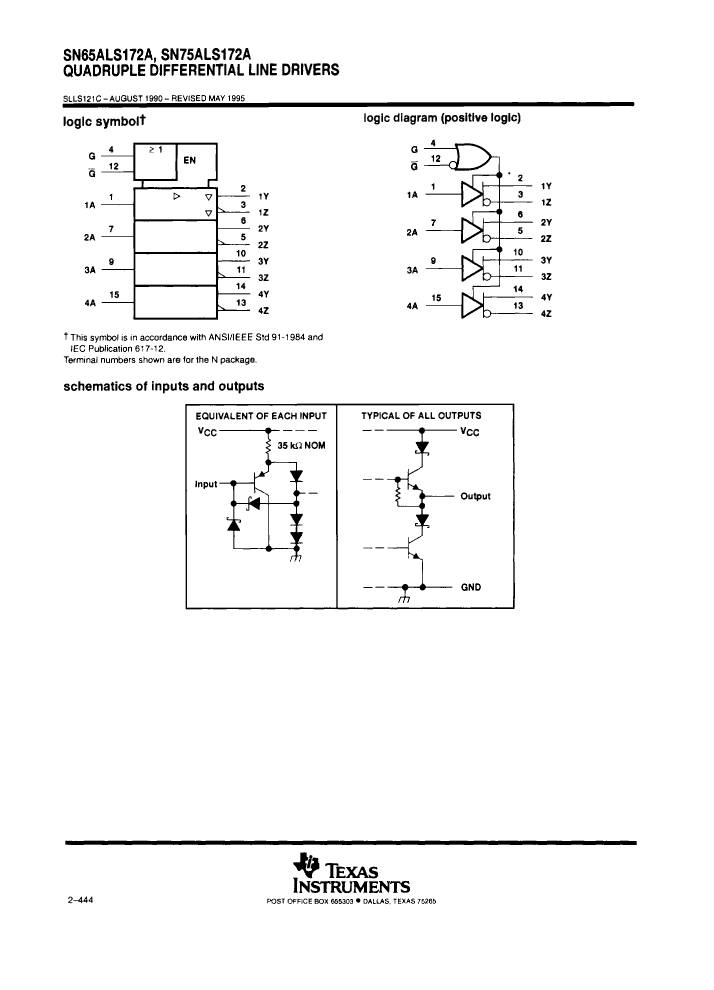

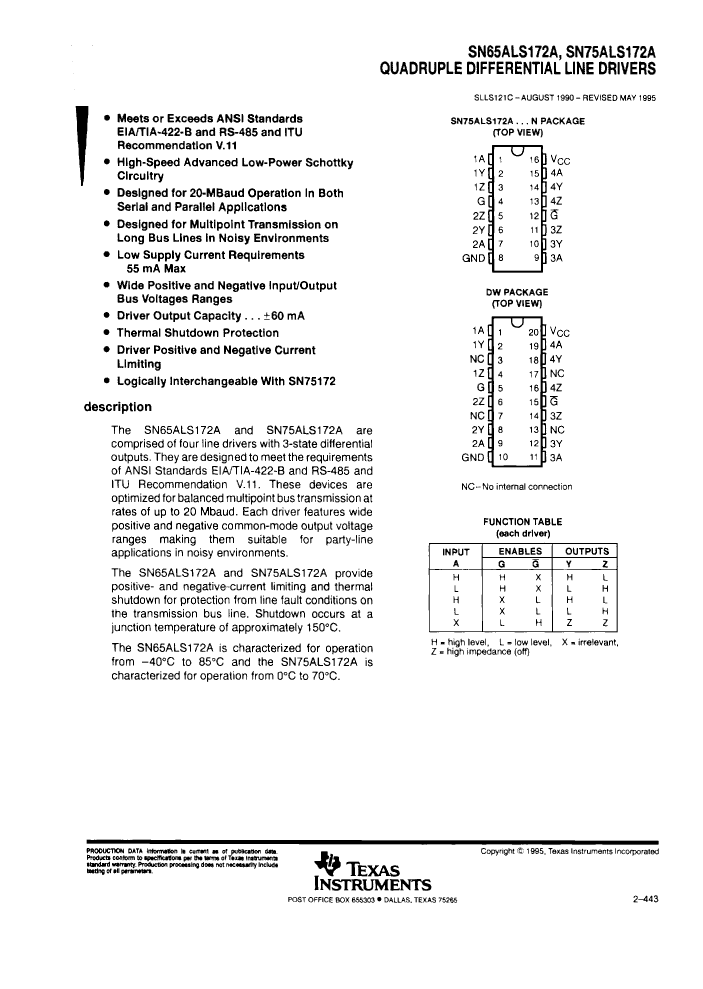

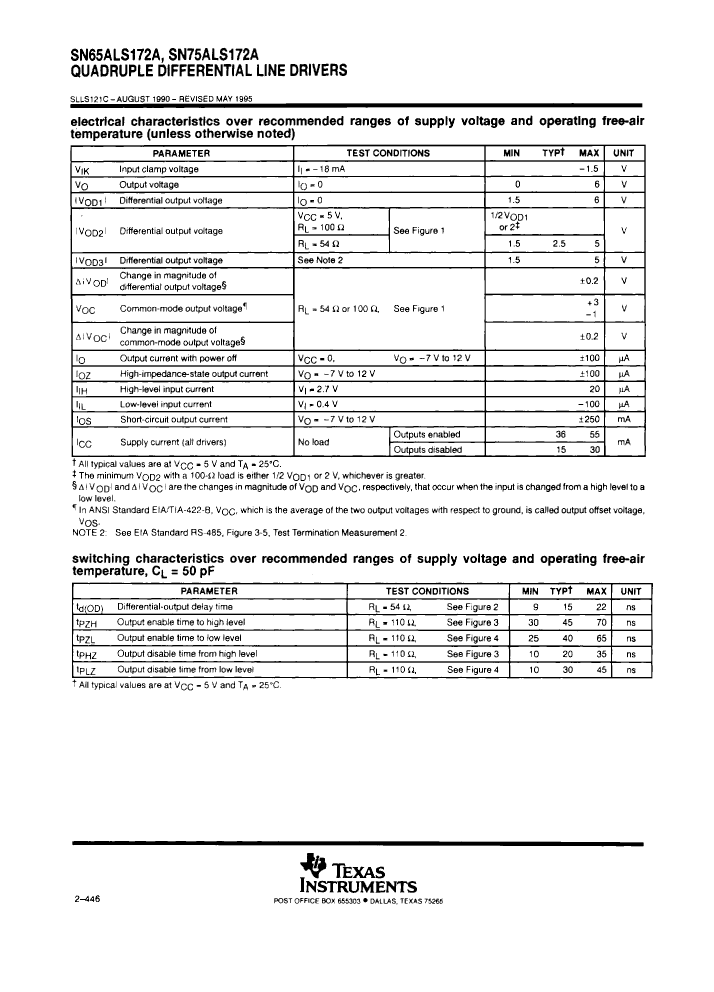

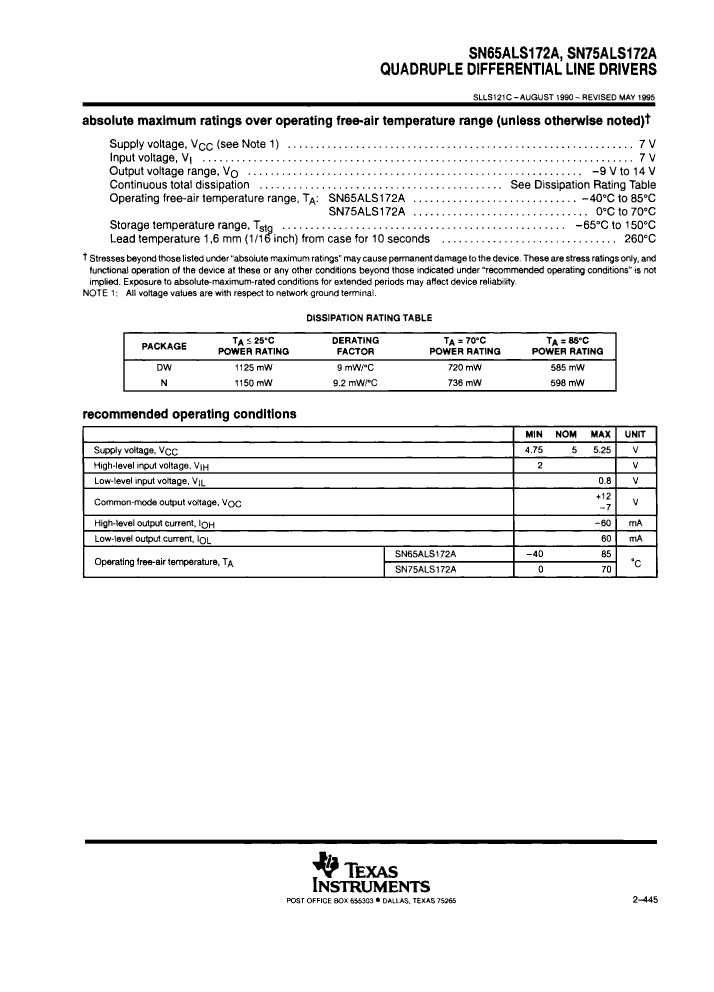

SN65ALS172AN Preview
