FH431MB36-A Overview

Three Terminal Voltage Reference, PDSO3, SOT-23, 3 PIN

FH431MB36-A Parametric

Parameter Name	Attribute value
Maker	Fenghua (HK) Electronics Ltd.
Parts packaging code	SOT-23
package instruction	SOT-23, 3 PIN
Contacts	3
Reach Compliance Code	unknown
Analog Integrated Circuits - Other Types	THREE TERMINAL VOLTAGE REFERENCE
JESD-30 code	R-PDSO-G3
Number of terminals	3
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Certification status	Not Qualified
surface mount	YES
Terminal form	GULL WING
Terminal location	DUAL

Preview

Download Datasheet

View All

广东肇庆风华新谷微电子有限公司

广东省肇庆市风华路

号风华电子工业城三号楼一楼

TEL:0758-2865088 2865091

FAX:0758-2849749

ADJUSTABLE PRECISION SHUNT REGULATORS

精密可调电压基准源

DESCRIPTION & FEATURES

概述及特点

The FH431 series ICs are three-terminal adjustable

shunt regulators with guaranteed thermal stability over

a full operation range. These ICs feature sharp turn-on

characteristics, low temperature coefficient and low

output impedance, which make them ideal substitutes

for Zener diodes in applications such as switching

power supply, charger and other adjustable

regulators. The FH431 precision reference is offered

in three band gap tolerance: 0.5%,1.0% and 1.5％.

・

Adjustable output voltage from V

REF

to 36V

・

Low dynamic output resistance: 200mΩ typical

・

Sink current capacity from 1mA to 100 mA

・

Low output noise

・

Typical equivalent full range temperature coefficient

of 30ppm/°C

FH431

系列三端可调精密稳压电路，具有½温度系数和

½输出阻抗，这样精密可调的特性½其可替代许多应用

场合下的稳压二极管。例如：开关电源、充电器及可调

稳压器。FH431 参考电压有三种精度：0.5%，1.0%和

1.5％。

FH431

・

可调电压范围：2.5V½36V

½动态输出阻抗：200mΩ（典型值）

灌电流½力为

1.0½100mA

½输出噪声

½温度系数：30ppm/°C（典型值）

Applications

应用

・

PC Motherboard

Voltage monitor

Voltage Reference

PWM down converter with reference

Charger

・

电脑主板

电压监控器

电压基准源

开关电源（参考电压）

充电器

Ordering Information

订购信息

Package

封装类型

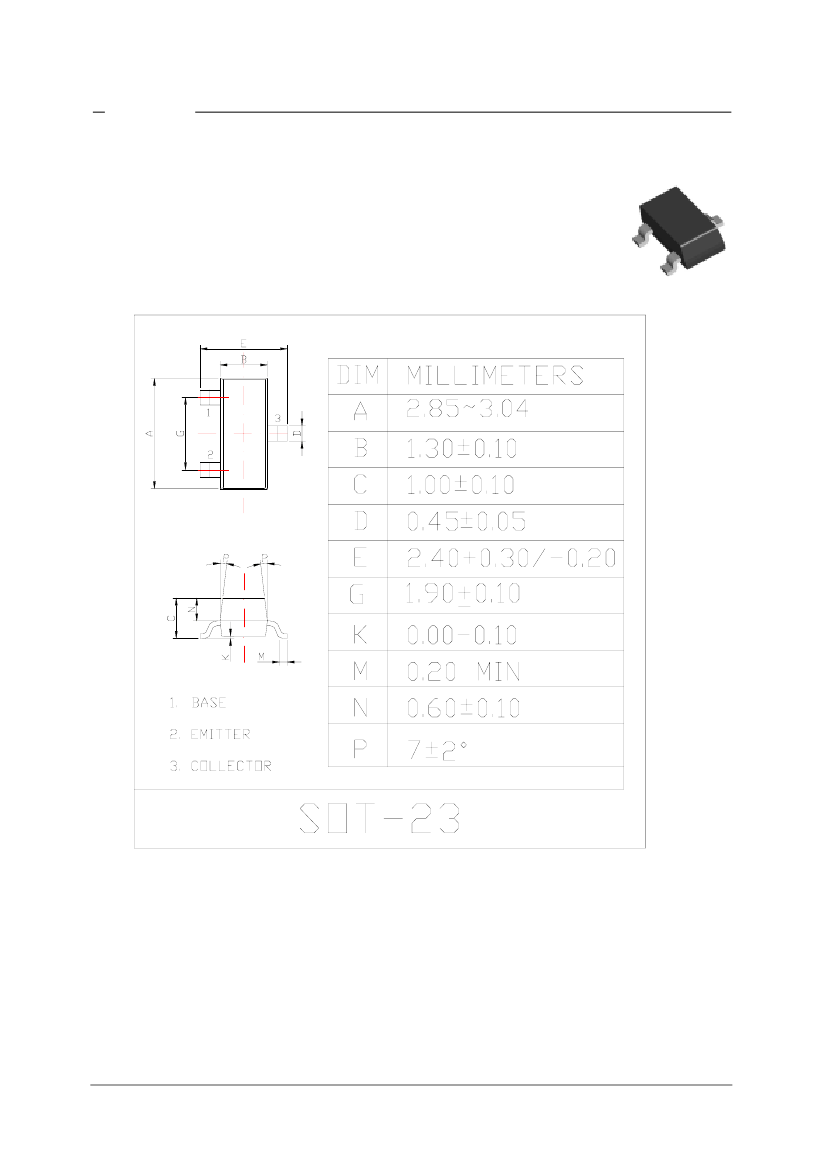

SOT-23

Temperature Range

温度范围

Voltage Tolerance

精度

0.5%

1.0%

1.5%

Part Number

产品型号

FH431MT36-A

FH431MT36-B

FH431MT36-C

Packing Type

包装类型

Tape

FH431

Type

产品型号

T 36 –A

Voltage Tolerance

精度

Packing Type

包装½式

T: Tape

编带

B: Bulk

散装

Package

封装½式

M: SOT-23

Page 0 of 4

*2005

年第

版*
