M31x Series Multiple Frequency VCXO
Product Features
•
•
•
•
•
•
•
Multiple Output Frequencies (2, 3, or 4) - Selectable
QiK Chip
TM
Technology
Superior jitter performance (less than 0.25 ps RMS,
12 kHz - 20 MHz)
APR from ±50 to
±300
ppm over industrial temperature range
SAW replacement - better performance
Frequencies from 50 MHz - 1.4 GHz (LVDS/LVPECL/CML)
Frequencies from 10 MHz to 150 MHz (HCMOS)
5x7 mm, 3.3/2.5/1.8 Volt, LVPECL/LVDS/CML/HCMOS Output
QiK Chip™
Product Description
The multiple frequency VCXO utilizes MtronPTI’s Qik Chip
TM
technology to provide a very low jitter clock for all
output frequencies. The M31x is available with up to 4 different frequency outputs from 10MHz through 1.4
GHz. Unlike traditional VCXO’s where multiple crystals are required for each frequency, the M31x utilizes a
rock solid fundamental 3rd overtone crystal and the Qik Chip
TM
IC to provide the wide range of output frequen-
cies. Using this design approach, the M31x provides exceptional performance in frequency stability, jitter,
phase noise and long term reliability.
Product Applications
•
•
•
•
•
Global/Regional selection
Forward Error Correction (FEC) / Selectable Functionality applications
Telecommunications such as SONET / SDH / DWDM / FEC / SERDES
/ OC-3 thru OC-192
1-2-4-10 Gigabit Fibre Channel
Wireless base stations / WLAN / Gigabit Ethernet
•
•
•
•
•
•
xDSL, Network Communications
Avionic flight controls
Military Communications
Clock and data recovery
Low jitter clock generation
Frequency margining

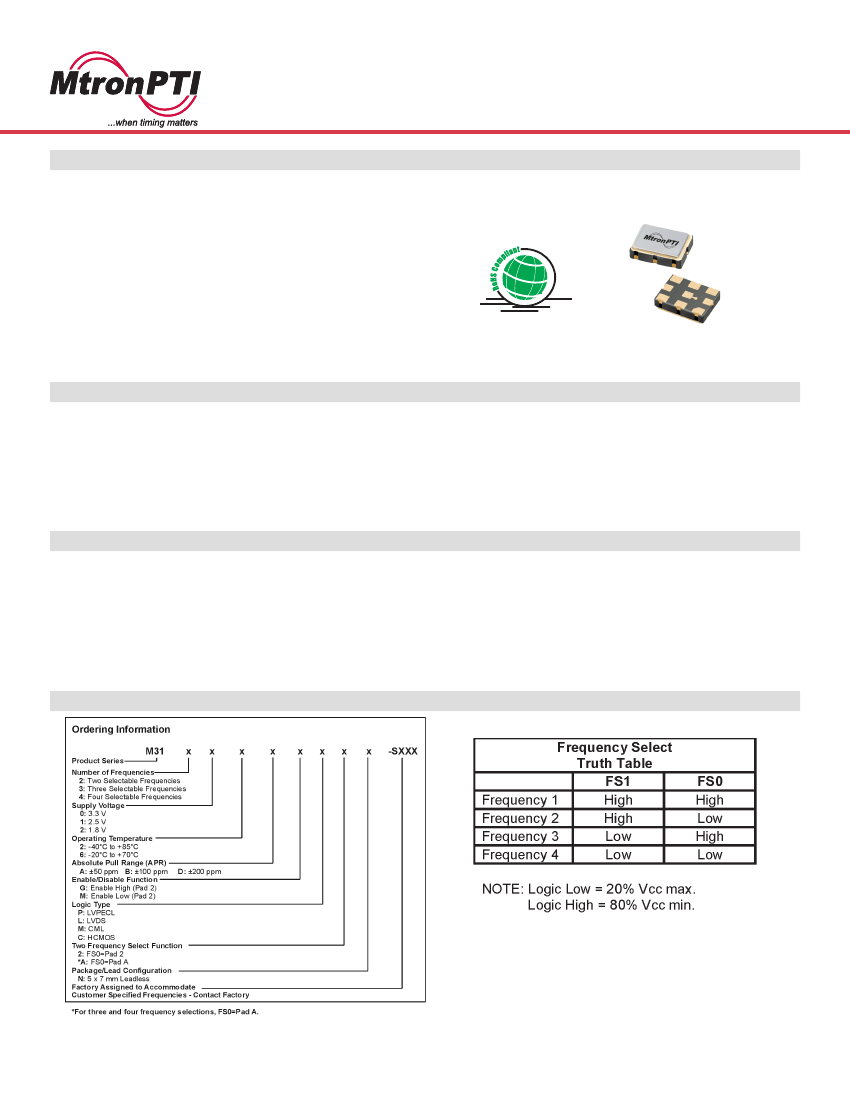

Product Ordering Information
M3120Sxxx, M3121Sxxx, M3122Sxxx
M3130Sxxx, M3131Sxxx, M3132Sxxx
M3140Sxxx, M3141Sxxx, M3142Sxxx
Contact factory for datasheets.
MtronPTI reserves the right to make changes to the product(s) and service(s) described herein without notice. No liability is assumed as a result of their use or application.
Please see www.mtronpti.com for our complete offering and detailed datasheets. Contact MtronPTI for your application specific requirements at 800.762.8800 toll free or 605.665.9321.
Revision: 8-22-08
M31x Series Multiple Frequency VCXO

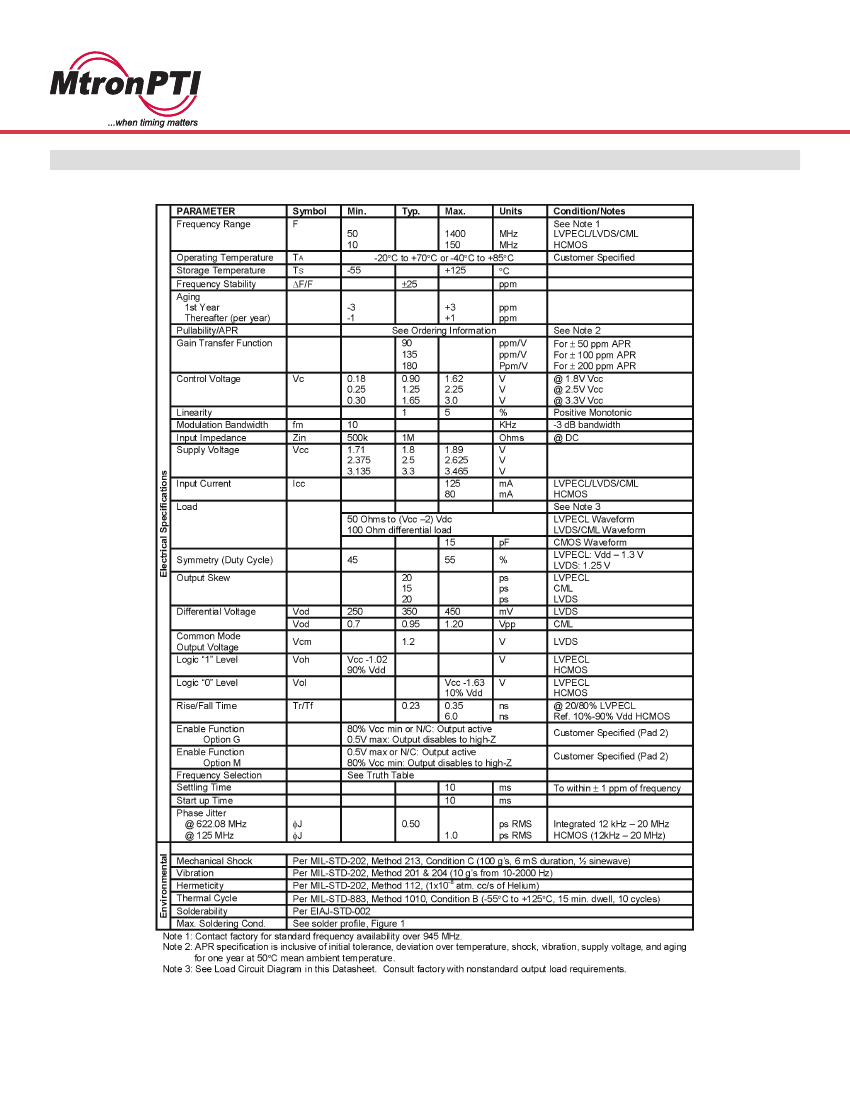

Performance Characteristics
5x7 mm, 3.3/2.5/1.8 Volt, LVPECL/LVDS/CML/HCMOS Output
MtronPTI reserves the right to make changes to the product(s) and service(s) described herein without notice. No liability is assumed as a result of their use or application.
Please see www.mtronpti.com for our complete offering and detailed datasheets. Contact MtronPTI for your application specific requirements at 800.762.8800 toll free or 605.665.9321.
2
M31x Series Multiple Frequency VCXO

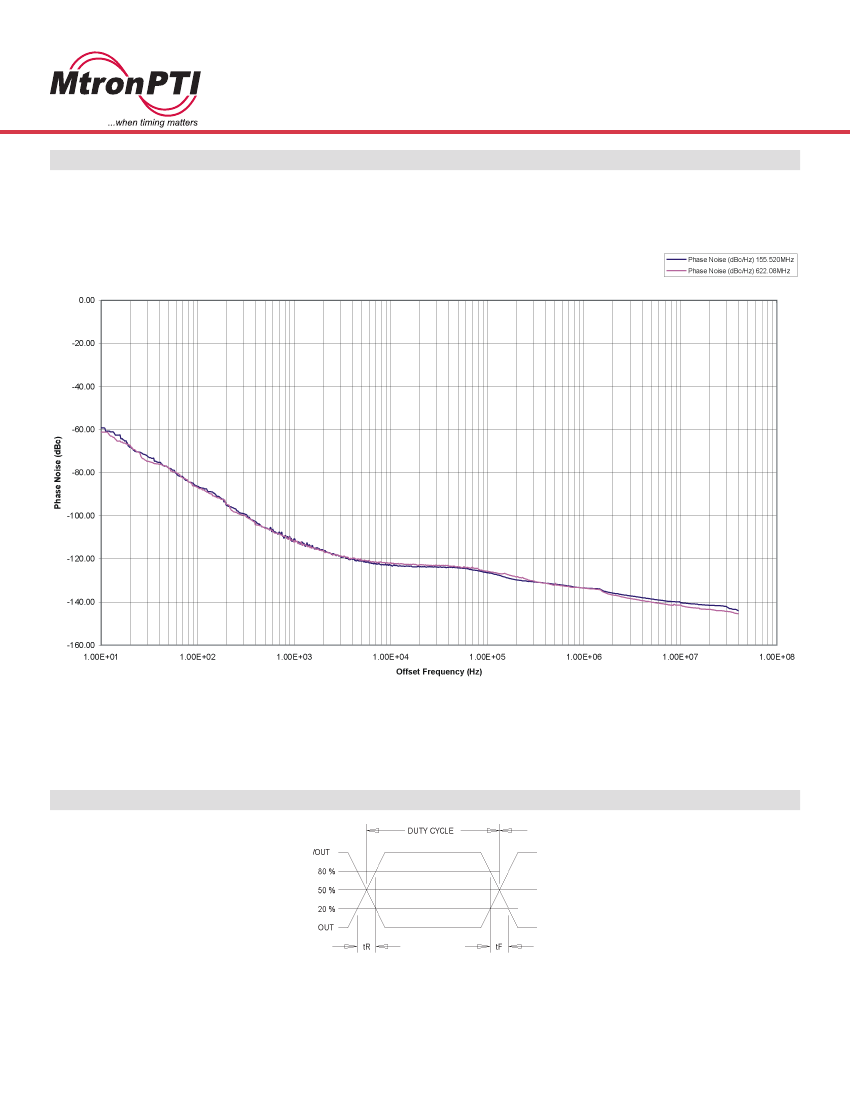

Phase Noise Plot
5x7 mm, 3.3/2.5/1.8 Volt, LVPECL/LVDS/CML/HCMOS Output
Output Waveform
Output Waveform: LVDS / CML / LVPECL
MtronPTI reserves the right to make changes to the product(s) and service(s) described herein without notice. No liability is assumed as a result of their use or application.
Please see www.mtronpti.com for our complete offering and detailed datasheets. Contact MtronPTI for your application specific requirements at 800.762.8800 toll free or 605.665.9321.
3
M31x Series Multiple Frequency VCXO

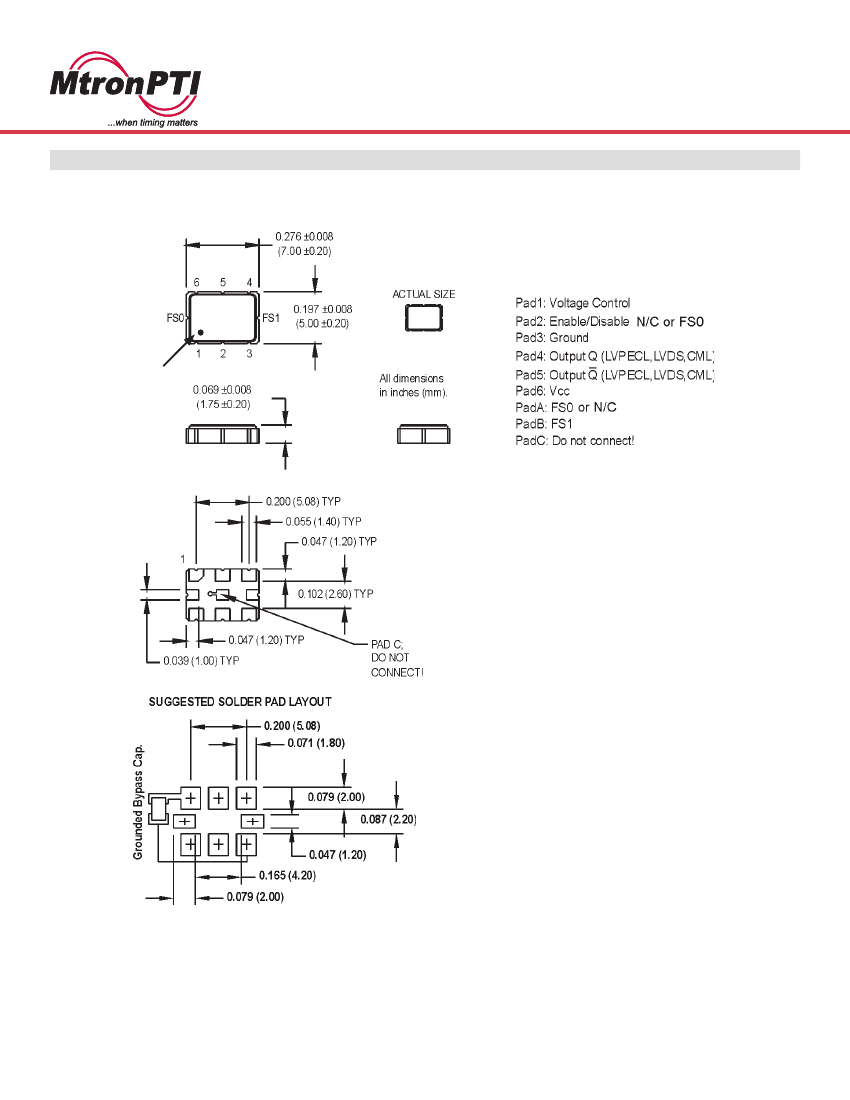

Product Dimension & Pinout Information
5x7 mm, 3.3/2.5/1.8 Volt, LVPECL/LVDS/CML/HCMOS Output
DENOTES PIN 1
MtronPTI reserves the right to make changes to the product(s) and service(s) described herein without notice. No liability is assumed as a result of their use or application.
Please see www.mtronpti.com for our complete offering and detailed datasheets. Contact MtronPTI for your application specific requirements at 800.762.8800 toll free or 605.665.9321.
4
M31x Series Multiple Frequency VCXO

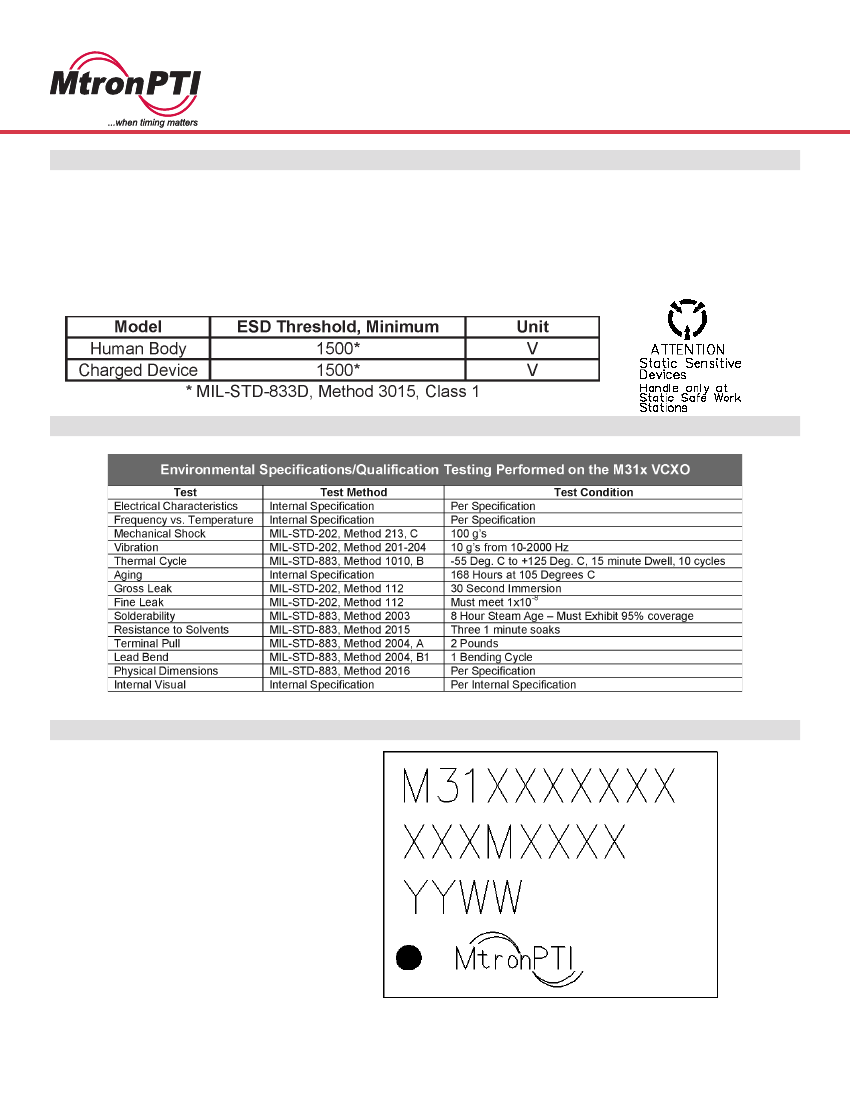

Handling Information
5x7 mm, 3.3/2.5/1.8 Volt, LVPECL/LVDS/CML/HCMOS Output
Although protection circuitry has been designed into the M31x oscillator, proper precautions should be taken to
avoid exposure to electrostatic discharge (ESD) during handling and mounting. MtronPTI utilizes a human-body
model (HBM) and a charged-device model (CDM) for ESD-susceptibility testing and protection design evaluation.
ESD voltage thresholds are dependent on the circuit parameters used to define the mode. Although no industry-
wide standard has been adopted for the CDM, a standard HBM (resistance = 1500
Ω,
capacitance = 100 pF) is
widely used and therefore can be used for comparison purposes. The HBM ESD threshold presented here was
obtained using these circuit parameters.
Quality Parameters
Part Marking Guide
Line 1: Model Number
Line 2: Frequency
Line 3: Date Code
Line 4: Pin 1 Indicator / MtronPTI
MtronPTI reserves the right to make changes to the product(s) and service(s) described herein without notice. No liability is assumed as a result of their use or application.
Please see www.mtronpti.com for our complete offering and detailed datasheets. Contact MtronPTI for your application specific requirements at 800.762.8800 toll free or 605.665.9321.
5
