3-216470-3

Description
CONNECTOR, 33 CONTACT(S), FEMALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER, RECEPTACLE, ROHS COMPLIANT
CategoryThe connector    The connector
File Size108KB,1 Pages
ManufacturerTE Connectivity
Websitehttp://www.te.com
Environmental Compliance
Download Datasheet Parametric View All

3-216470-3 Overview

CONNECTOR, 33 CONTACT(S), FEMALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER, RECEPTACLE, ROHS COMPLIANT

3-216470-3 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
package instructionROHS COMPLIANT
Reach Compliance Codeunknow
Body/casing typeRECEPTACLE
Connector typeBOARD CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact completed and terminatedTIN
Contact point genderFEMALE
Contact materialPHOSPHOR BRONZE
DIN complianceNO
Filter functionNO
IEC complianceNO
JESD-609 codee3
MIL complianceNO
Manufacturer's serial number216470
Mixed contactsNO
Installation methodSTRAIGHT
Installation typeBOARD
Number of rows loaded1
OptionsGENERAL PURPOSE
Terminal pitch2.54 mm
Termination typeSOLDER
Total number of contacts33
UL Flammability Code94V-0
Base Number Matches1
My Account
Tyco Electronics
(C hange)
Se arch by Ke yword or Part #
Products
Documentation
Resources
My Account
Customer Support
Home
>
Products
>
By Type
>
PC B C onnectors
>
Product Feature Selector
> Product Details

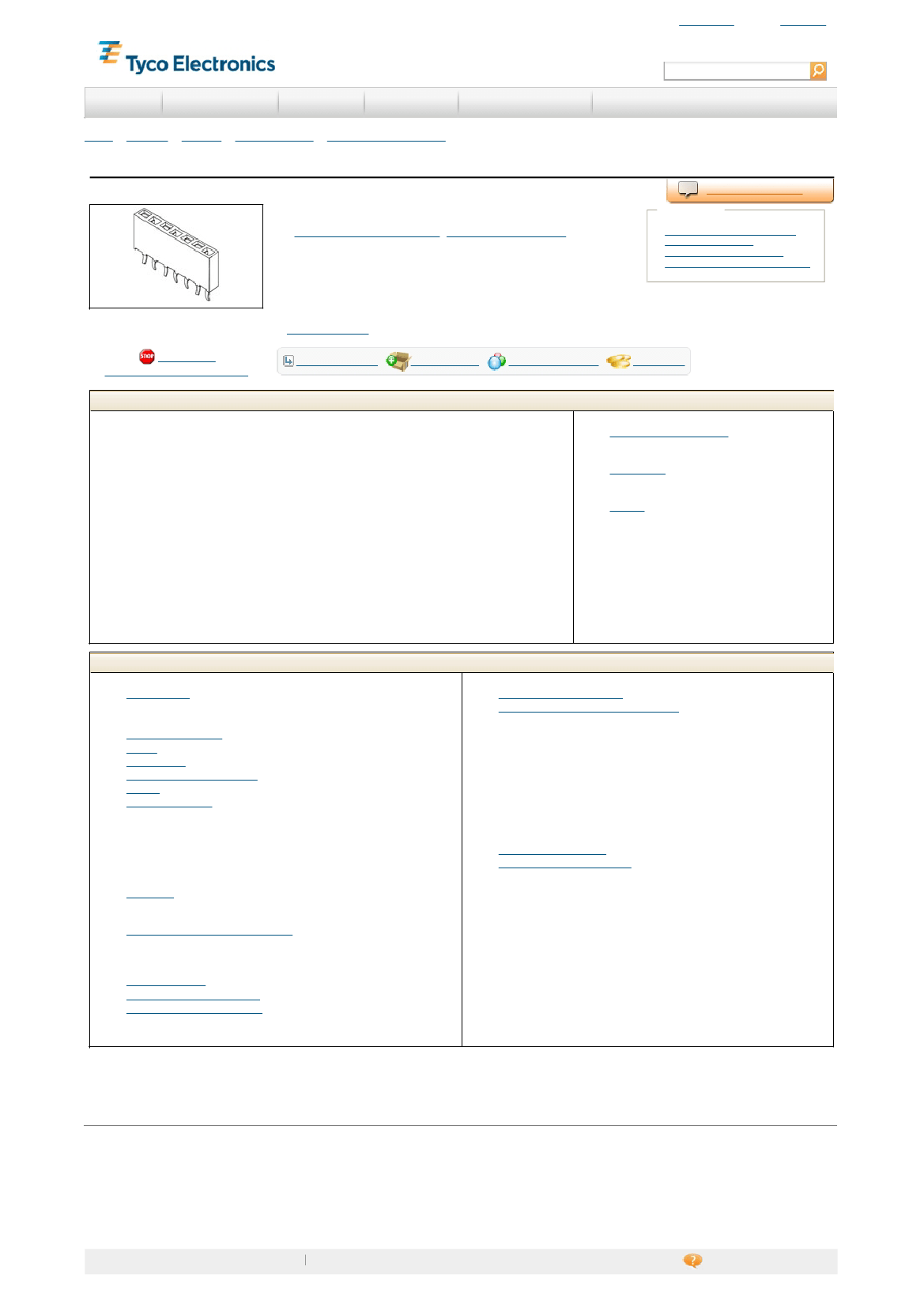

3-216470-3 Product Details
Live Product Chat
.100 inch AMPMODU Receptacles
Always EU R oHS/ELV C om pliant
(
Sta te m e nt of C om pliance
)
Quick Links
C heck Pricing & Availability
Search for Tooling
Product Feature Selector
C ontact Us About This Product
3-216470-3
T E I nternal N umber: 3 - 2 1 6 4 7 0 - 3
Product Highlights:
l
C onnector
l
C onnector Type = C onnector - Receptacle
l
HV-190
l
33 Positions
l
Number of Rows = Single
View all Features
Superseded
Search for Replacement Parts
A dd to M y P art L is t
Reques t Sample
Find Similar P roduc ts
Buy P roduc t
Documentation & Additional Information
Product Drawings:
l
None Available
Catalog Pages/Data Sheets:
l
None Available
Product Specifications:
l
None Available
Application Specifications:
l
None Available
Instruction Sheets:
l
None Available
CAD Files:
l
None Available
Additional Information:
l
Product Line Information
Additional Product Images:
l
PC B Layout
Related Products:
l
Tooling
Product Features
(Please use the Product Drawing for all design activity)
Product Type Features:
l
Product Type
= C onnector
l
C onnector Type = C onnector - Receptacle
l
C onnector Series = HV-190
l
Number of Positions
= 33
l
Profile
= Standard
l
Mount Angle
= Vertical
l
Mounting Pattern (mm [in])
= 2.54 [.100]
l
Sealed
= No
l
Holddown Feature
= Without
l
PC B Retention Feature = No
l
C losed Entry = With
l
Board Standoff = Without
l
C omment = C ontact Point turned 90°
Mechanical Attachment:
l
Stackable
= Yes
Termination Related Features:
l
Termination Post Length (mm [in])
= 3.20 [0.126]
l
Solder Tail C ontact Plating = Tin
Body Related Features:
l
Number of Rows
= Single
l
C onnector Height (mm [in])
= 8.50 [0.335]
l
C enterline, Matrix (mm [in])
= 2.54 [.100]
l
C losed Bottom = Without
Contact Related Features:
l
C ontact Termination Type
= Through Hole
l
C ontact Plating, Mating Area, Material
= Gold (30)
l
C ontact Base Material = Phosphor Bronze
Housing Related Features:
l
Housing Entry Style = Top
l
Housing Material = Polyester GF
l
Housing Flammability Rating = UL 94V-0
l
Housing C olor = Green
Industry Standards:
l
Government/Industry Qualification = No
l
RoHS/ELV C ompliance
= RoHS compliant, ELV compliant
l
Lead Free Solder Processes
= Not relevant for lead free process
l
RoHS/ELV C ompliance History = Always was RoHS compliant
Other:
l
Brand = AMP
