pc BoarD connectors
00 series
n

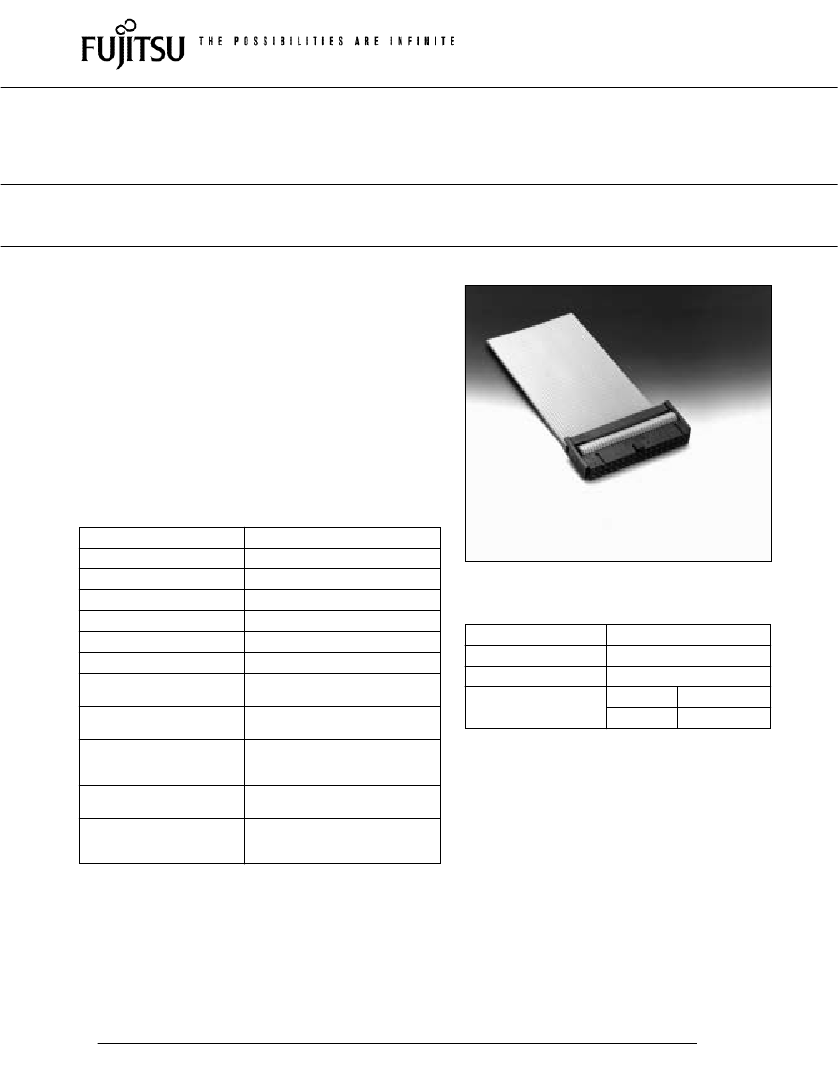

Features
The 700 series connector has a superior ejector with a
unique flexible latch. Terminals are palladium plated and
have an excellent cost performance ratio. The solder dip
section is a 0.5 mm (0.020 in.) square and can be used
in a
φ0.8
mm (0.031 in.) through hole. Special strain
relief prevents breakage. Two kinds of keys and bump
polarization prevent incorrect insertion. Connectors with 4
mm (0.157 in.) long tails are also available for mounting on
multilayer PC boards.
n
speciFications
item
Operating temperature range
Current rating
Voltage rating
Contact resistance
Insulation resistance
Dielectric strength
Insertion force
Withdrawal force
Applicable wire
Applicable wire-wrapping
wire
Applicable PC board
(standard)
DC 1 A
AC 250 V
120 mΩ
max. (DC 6 V, 0.1 A)
1000 MΩ min. (DC 500 V)
AC 500 V for 1 minute
3.5 kg max. (10 pins), 21 kg max.
(60 pins)
0.25 kg min. (10 pins), 2.5 kg min.
(60 pins)
Flat cable: 1.27 mm (0.050 in.) pitch
AWG #28 (stranded wires) or AWG
#30 (solid wire)
AWG #26 to #30 (solid wire)
1.6 mm (0.062 in.) for standard
terminal, 3.2 mm (0.125 in.) for
long tail
Specification
–55°C to +105°C
n
Materials
item
Insulating material
Conductor
Plating
Materials
Polyester (UL94V-0)
Copper alloy
Contact
Terminal
Gold
Palladium
Specifications
subject to change
Dimensions are in millimeters (inches)
www.fcai.fujitsu.com
700 Series
socket
n

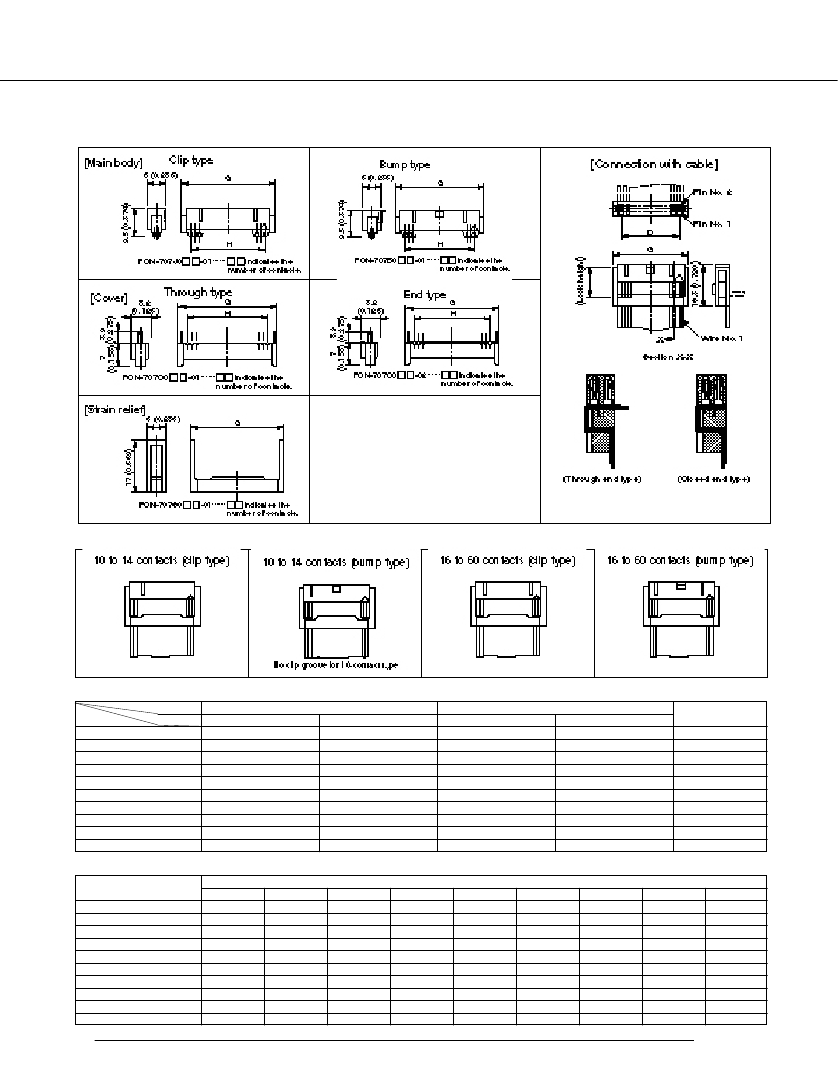

DiMensions
Unit: mm (in.)
n
conFiguration By the nuMBer oF pins
n
part nuMBers
Number of contacts
10
14
16
20
26
30
34
40
50
60
type
Configuration
Clip type
Through type
End type
FCN-707J010-AU/0
FCN-707J010-AU/B
FCN-707J014-AU/0
FCN-707J014-AU/B
FCN-707J016-AU/0
FCN-707J016-AU/B
FCN-707J020-AU/0
FCN-707J020-AU/B
FCN-707J026-AU/0
FCN-707J026-AU/B
FCN-707J030-AU/0
FCN-707J030-AU/B
FCN-707J034-AU/0
FCN-707J034-AU/B
FCN-707J040-AU/0
FCN-707J040-AU/B
FCN-707J050-AU/0
FCN-707J050-AU/B
FCN-707J060-AU/0
FCN-707J060-AU/B
Bump type
Through type
End type
FCN-707B010-AU/0
FCN-707B010-AU/B
FCN-707B014-AU/0
FCN-707B014-AU/B
FCN-707B016-AU/0
FCN-707B016-AU/B
FCN-707B020-AU/0
FCN-707B020-AU/B
FCN-707B026-AU/0
FCN-707B026-AU/B
FCN-707B030-AU/0
FCN-707B030-AU/B
FCN-707B034-AU/0
FCN-707B034-AU/B
FCN-707B040-AU/0
FCN-707B040-AU/B
FCN-707B050-AU/0
FCN-707B050-AU/B
FCN-707B060-AU/0
FCN-707B060-AU/B
Min. purchase
lot quality
30
23
21
17
14
12
11
9
7
6
n
DiMensions
Number of contacts
10
14
16
20
26
30
34
40
50
60
a
32.0 (1.25)
37.1 (1.46)
39.6 (1.56)
44.7 (1.76)
52.3 (2.06)
57.4 (2.26)
62.5 (2.46)
70.1 (2.76)
82.8 (3.26)
95.5 (3.76)
B
21.8 (.858)
26.9 (1.06)
29.4 (1.16)
34.5 (1.36)
42.2 (1.66)
47.2 (1.86)
52.3 (2.06)
59.9 (2.36)
72.6 (2.86)
85.3 (3.36)
c
27.9 (1.10)
33.0 (1.30)
35.5 (1.40)
40.6 (1.60)
48.3 (1.90)
53.3 (2.10)
58.4 (2.30)
66.0 (2.60)
78.7 (3.10)
91.4 (3.60)
Dimensions: mm (in.)
D
e
F
10.16 (0.400)
18.3 (0.720) 32.3 (1.27)
15.24 (0.600) 23.4 (0.921)
37.4 (1.47)
17.78 (0.700)
25.9 (1.02)
39.9 (1.57)
22.86 (0.900)
31.0 (1.22)
45.0 (1.77)
30.48 (1.20)
38.6 (1.52)
52.6 (2.07)
35.56 (1.40)
43.7 (1.72)
57.7 (2.27)
40.64 (1.60) 48.8 (1.92)
62.8 (2.47)
48.26 (1.90) 56.4 (2.22)
70.4 (2.77)
60.96 (2.40) 69.0 (2.72)
83.0 (3.26)
73.66 (2.90)
81.8 (3.22)
95.8 (3.77)
F’
26.3 (1.04)
31.4 (1.24)
33.9 (1.33)
39.0 (1.54)
46.6 (1.83)
51.7 (2.04)
56.8 (2.24)
64.4 (2.54)
77.0 (3.03)
89.8 (3.33)
g
17.3 (0.681)
22.4 (0.881)
24.9 (0.980)
30.0 (1.18)
37.6 (1.48)
42.7 (1.68)
47.8 (1.88)
55.4 (2.18)
68.1 (2.68)
80.8 (3.18)
h
11.43 (0.450)
16.51 (0.650)
19.05 (0.750)
24.13 (0.950)
31.75 (1.25)
36.83 (1.45)
41.91 (1.65)
49.53 (1.95)
62.23 (2.45)
74.93 (2.95)
Specifications
subject to change
Dimensions are in millimeters (inches)
www.fcai.fujitsu.com
700 Series
iDc heaDer M6 series
n

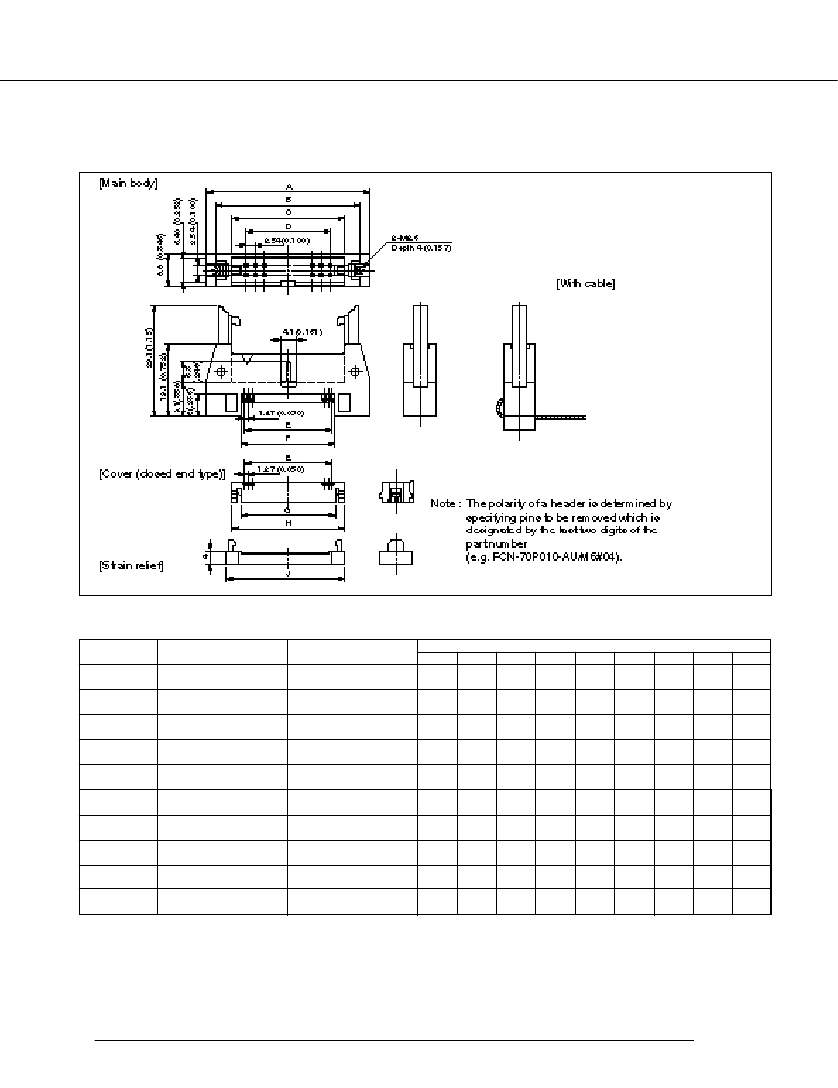

DiMensions
n
part nuMBers anD DiMensions
Number of
contacts
10
14
16
20
26
30
34
40
50
60
Without mini latch
FCN-707P010-AU/0
FCN-707P014-AU/0
F
FCN-707P016-AU/0
FCN-707P020-AU/0
FCN-707P026-AU/0
FCN-707P030-AU/0
FCN-707P034-AU/0
FCN-707P040-AU/0
FCN-707P050-AU/0
FCN-707P060-AU/0
N
C
s
x
D
/x
e
U
u
-A
in
x
t
x
n
0
P
o
7
c
0
is
-7
D
With mini latch
FCN-707P010-AU/M6
FCN-707P014-AU/M6
FCN-707P016-AU/M6
FCN-707P020-AU/M6
FCN-707P026-AU/M6
FCN-707P030-AU/M6
FCN-707P034-AU/M6
FCN-707P040-AU/M6
FCN-707P050-AU/M6
FCN-707P060-AU/M6
a
32.0
(1.25)
37.1
(1.46)
39.62
(1.56)
44.7
(1.76)
52.32
(2.06)
57.4
(2.26)
62.48
(2.46)
70.1
(2.76)
82.8
(3.26)
95.5
(3.76)
B
26.80
(1.06)
31.90
(1.26)
34.42
(1.36)
39.50
(1.56)
47.12
(1.86)
52.20
(2.06)
57.28
(2.26)
64.90
(2.56)
77.60
(3.06)
90.30
(3.56)
c
18.3
(.720)
23.4
(.921)
25.9
(1.02)
31.0
(1.22)
38.6
(1.52)
43.7
(1.72)
48.8
(1.92)
56.4
(2.22)
69.1
(2.72)
81.8
(3.22)
ri
e
s
e
-
Unit: mm (in.)
Dimensions: mm (in.)
D
e
F
10.16
11.43
13.43
(.400) (.450) (.528)
15.24
16.51
18.53
(.600) (.650) (.729)
17.78
19.05
21.03
(.700) (.750) (.828)
22.86
24.13
26.13
(.900) (.950)
(1.03)
30.48
31.75
33.73
(1.20) (1.25) (1.33)
35.56
36.83
38.83
(1.40) (1.45) (1.53)
40.64
41.91
43.93
(1.60) (1.65)
(1.73)
48.26
49.53
51.53
(1.90) (1.95)
(2.03)
60.96
62.23
64.23
(2.40) (2.45) (2.53)
73.66
74.93
76.93
(2.90) (2.95)
(3.03)
g
13.43
(.528)
18.53
(.729)
21.03
(.828)
26.13
(1.03)
33.73
(1.33)
38.83
(1.53)
43.93
(1.73)
51.53
(2.03)
64.23
(2.53)
76.93
(3.03)
h
18.3
(.720)
23.4
(.921)
25.9
(1.02)
31.0
(1.22)
38.6
(1.52)
43.7
(1.72)
48.8
(1.92)
56.4
(2.22)
69.1
(2.72)
81.8
(3.22)
J
20.2
(.795)
25.3
(.996)
27.8
(1.09)
32.9
(1.29)
40.5
(1.59)
45.6
(1.79)
50.7
(2.00)
58.3
(2.29)
71.0
(2.79)
83.7
(3.29)
Specifications
subject to change
Dimensions are in millimeters (inches)
www.fcai.fujitsu.com
700 Series
through hole socket
n
DiMensions
Unit: mm (in.)
n
part nuMBers anD DiMensions
Number of
contacts
10
14
16
20
26
30
34
40
50
60
Part number
FCN-704J010-AU/0
FCN-704J014-AU/0
FCN-704J016-AU/0
FCN-704J020-AU/0
FCN-704J026-AU/0
FCN-704J030-AU/0
FCN-704J034-AU/0
FCN-704J040-AU/0
FCN-704J050-AU/0
FCN-704J060-AU/0
a
10.16 (0.400)
15.24 (0.600)
17.78 (0.700)
22.86 (0.900)
30.48 (1.20)
35.56 (1.40)
40.64 (1.60)
48.26 (1.90)
60.96 (2.40)
73.66 (2.90)
Dimensions: mm (in.)
B
17.3 (0.681)
22.4 (0.881)
24.9 (0.980)
30.0 (1.18)
37.6 (1.48)
42.7 (1.68)
47.8 (1.88)
55.4 (2.18)
68.1 (2.68)
80.8 (3.18)
Specifications
subject to change
Dimensions are in millimeters (inches)
www.fcai.fujitsu.com
10
700 Series
accessories (PolAriziNg key, lock SPriNg)
n
DiMensions
Unit: mm (in.)
Unit: mm (in.)
n
speciFication oF polarity to prevent incorrect insertion
• Specify polarity as follows:
• Socket (pin type)
FCN-707J050-AU/B #
s
s
Basic part number
Common
Pin number with pin polarity
Example
04: FCN-700A1 plugged into pin
4
Note: The specification method is the
same for IDC plugs and through
hole sockets.
Notes: •
•
•
•
See the next page for cable termination.
See the next page for IDC tools.
The last digit (0) of the part number is zero.
Use tapping screws JIS B1122, 2.5x6 to mount a straight connector on PC boards.
Specifications
subject to change
Dimensions are in millimeters (inches)
www.fcai.fujitsu.com
11
