NC7SZ66P5

Description
1-CHANNEL, SGL POLE SGL THROW SWITCH, PDSO5, 1.25 MM, EIAJ, SC-88A, SC-70, 5 PIN
CategoryAnalog mixed-signal IC    The signal circuit
File Size775KB，9 Pages
ManufacturerRochester Electronics
Websitehttps://www.rocelec.com/
Download Datasheet Parametric Compare View All

NC7SZ66P5 Online Shopping

Suppliers Part Number Price MOQ In stock
NC7SZ66P5 - - View Buy Now

NC7SZ66P5 Overview

1-CHANNEL, SGL POLE SGL THROW SWITCH, PDSO5, 1.25 MM, EIAJ, SC-88A, SC-70, 5 PIN

NC7SZ66P5 Parametric

Parameter NameAttribute value
MakerRochester Electronics
Parts packaging codeSOIC
package instructionTSSOP,
Contacts5
Reach Compliance Codeunknown
Analog Integrated Circuits - Other TypesSPST
JESD-30 codeR-PDSO-G5
length2 mm
Number of channels1
Number of functions1
Number of terminals5
Nominal off-state isolation50 dB
Maximum on-state resistance (Ron)60 Ω
Maximum operating temperature85 °C
Minimum operating temperature-40 °C
Package body materialPLASTIC/EPOXY
encapsulated codeTSSOP
Package shapeRECTANGULAR
Package formSMALL OUTLINE, THIN PROFILE, SHRINK PITCH
Certification statusCOMMERCIAL
Maximum seat height1.1 mm
Maximum supply voltage (Vsup)5.5 V
Minimum supply voltage (Vsup)1.65 V
Nominal supply voltage (Vsup)1.8 V
surface mountYES
Maximum disconnect time18.2 ns
Maximum connection time14.2 ns
technologyCMOS
Temperature levelINDUSTRIAL
Terminal surfaceNOT SPECIFIED
Terminal formGULL WING
Terminal pitch0.65 mm
Terminal locationDUAL
width1.25 mm

NC7SZ66P5 Preview

D ts e t
aa h e
R c e t r lc r nc
o h se Ee to is
Ma u a t r dCo o e t
n fc u e
mp n n s
R c e tr b a d d c mp n ns ae
o h se rn e
o oet r
ma ua trd u ig ete dewaes
n fcue sn i r i/ fr
h
p rh s d f m te oiia s p l r
uc a e r
o h r n l u pi s
g
e
o R c e tr waes rce td f m
r o h se
fr e rae r
o
te oiia I. Al rce t n ae
h
r nl P
g
l e rai s r
o
d n wi tea p o a o teOC
o e t h p rv l f h
h
M.
P r aetse u igoiia fcoy
at r e td sn r n la tr
s
g
ts p o rmso R c e tr e eo e
e t rga
r o h se d v lp d
ts s lt n t g aa te p o u t
e t oui s o u rne
o
rd c
me t o e c e teOC d t s e t
es r x e d h
M aa h e.
Qu l yOv riw
ai
t
e ve
• IO- 0 1
S 90
•A 92 cr ct n
S 1 0 et ai
i
o
• Qu l e Ma ua trr Ls (
ai d
n fcues it QML MI- R -
) LP F
385
53
•C a sQ Mitr
ls
lay
i
•C a sVS a eL v l
ls
p c ee
• Qu l e S p l r Ls o D sr uos( L )
ai d u pi s it f it b tr QS D
e
i
•R c e trsacic l u pir oD A a d
o h se i
r ia s p l t L n
t
e
me t aln u t a dD A sa d r s
es lid sr n L tn ad .
y
R c e tr lcrnc , L i c mmi e t
o h se Ee t is L C s o
o
tdo
t
s p ligp o u t ta s t f c so r x e t-
u pyn rd cs h t ai y u tme e p ca
s
t n fr u lya daee u loto eoiial
i s o q ai n r q a t h s r n l
o
t
g
y
s p l db id sr ma ua trr.
u pi
e yn ut
y n fcues
T eoiia ma ua trr d ts e t c o a yn ti d c me t e e t tep r r n e
h r n l n fcue’ aa h e a c mp n ig hs o u n r cs h ef ma c
g
s
o
a ds e ic t n o teR c e tr n fcue v rino ti d vc . o h se Ee t n
n p c ai s f h o h se ma ua trd eso f hs e ie R c e tr lcr -
o
o
isg aa te tep r r n eo i s mio d co p o u t t teoiia OE s e ic -
c u rne s h ef ma c ft e c n u tr rd cs o h r n l M p c a
o
s
g
t n .T pc lv le aefr eee c p r o e o l. eti mii m o ma i m rt g
i s ‘y ia’ au s r o rfrn e up s s ny C r n nmu
o
a
r xmu ai s
n
ma b b s do p o u t h rceiain d sg , i lt n o s mpetsig
y e a e n rd c c aa tr t , e in smuai , r a l e t .
z o
o
n
© 2 1 R cetr l t n s LC Al i t R sre 0 1 2 1
0 3 ohs E cr i , L . lRg s eevd 7 1 0 3
e e oc
h
T l r m r, l s v iw wrcl . m
o e n oe p ae it w . e c o
a
e
s
o ec
NC7SZ66 TinyLogic Low Voltage UHS Single SPST Normally Open Analog Switch or 1-Bit Bus Switch
November 1996
Revised January 2001
NC7SZ66
TinyLogic
Low Voltage UHS Single SPST
Normally Open Analog Switch or 1-Bit Bus Switch
General Description
The NC7SZ66 is a ultra high-speed (UHS) CMOS compati-
ble single-pole/single-throw (SPST) analog switch or 1-bit
bus switch. The LOW on resistance of the switch allows
inputs to be connected to outputs with minimal propagation
delay and without generating additional ground bounce
noise. The device is organized as a 1-bit switch with a
switch enable (OE) signal. When OE is HIGH, the switch is
on and Port A is connected to Port B. When OE is LOW,
the switch is open and a high-impedance state exists
between the two ports.
Features
s
Space saving SOT23 or SC70 5-lead package
s
Broad V
CC
Operating Range 1.65V–5.5V
s
Rail-to-rail signal handling
s
5
Ω
switch connection between two ports
s
Minimal propagation delay through the switch
s
Low I
CC
s
Zero bounce in flow-through mode
s
Control input compatible with CMOS input levels
s
>
250 MHz
−
3dB bandwidth
Ordering Code:
Order
Number
NC7SZ66M5
NC7SZ66M5X
NC7SZ66P5
NC7SZ66P5X
Package
Number
MA05B
MA05B
MAA05A
MAA05A
Product Code
Top Mark
7Z66
7Z66
Z66
Z66
Package Description
5-Lead SOT23, JEDEC MO-178, 1.6mm
5-Lead SOT23, JEDEC MO-178, 1.6mm
5-Lead SC70, EIAJ SC-88a, 1.25mm Wide
5-Lead SC70, EIAJ SC-88a, 1.25mm Wide
Supplied As
250 Units on Tape and Reel
3k Units on Tape and Reel
250 Units on Tape and Reel
3k Units on Tape and Reel
Logic Symbol
Analog Symbol
Pin Descriptions
Pin Names
OE
A
B
Description
Switch Enable Input
Bus A I/O
Bus B I/O
Connection Diagram
Function Table
OE
L
H
B
0
HIGH-Z State
A
0
Function
Disconnect
Connect
(Top View)
TinyLogic is a trademark of Fairchild Semiconductor Corporation.
© 2001 Fairchild Semiconductor Corporation
DS012177
www.fairchildsemi.com
NC7SZ66
Absolute Maximum Ratings
(Note 1)
Supply Voltage (V
CC
)
DC Switch Voltage (V
S
)
DC Input Voltage (V
IN
) (Note 2)
DC Input Diode Current
(I
IK
) V
IN
<
0V
DC Output (I
OUT
) Sink Current
DC V
CC
/GND Current (I
CC
/I
GND
)
Storage Temperature Range
(T
STG
)
Junction Lead Temperature
under Bias (T
J
)
Junction Lead Temperature (T
L
)
(Soldering, 10 Seconds)
Power Dissipation (P
D
) @
+
85
°
C
SOT23-5
SC70-5
200 mW
150 mW
−
0.5V to
+
7.0V
−
0.5V to V
CC
+
0.5V
−
0.5V to
+
7.0V
−
50 mA
128 mA
Recommended Operating
Conditions
(Note 3)
Power Supply Operating (V
CC
)
Control Input Voltage (V
IN
)
Switch Input Voltage (V
IN
)
Switch Output Voltage (V
OUT
)
Input Rise and Fall Time (t
r
, t
f
)
Control Input; V
CC
=
2.3V
−
3.6V
Control Input; V
CC
=
4.5
−
5.5V
Switch I/O
Operating Temperature (T
A
)
Thermal Resistance (
θ
JA
)
SOT23-5
300
°
C/Watt
425
°
C/Watt
SC70-5
0 ns/V to 10 ns
0 ns/V to 5 ns
0 ns/V to DC
1.65V to 5.5V
0V to 5.5V
0V to V
CC
0V to V
CC
±
100 mA
−
65
°
C to
+
150
°
C
+
150
°
C
+
260
°
C
−
40
°
C to
+
85
°
C
Note 1:
The “Absolute Maximum Ratings” are those values beyond which
the safety of the device cannot be guaranteed. The device should not be
operated at these limits. The parametric values defined in the Electrical
Characteristics tables are not guaranteed at the absolute maximum ratings.
The “Recommended Operating Conditions” table will define the conditions
for actual device operation.
Note 2:
The input and output negative voltage ratings may be exceeded if
the input and output diode current ratings are observed.
Note 3:
Unused inputs must be held HIGH or LOW. They may not float.
DC Electrical Characteristics
Symbol
V
IH
V
IL
I
IN
I
OFF
R
ON
Parameter
HIGH Level Input Voltage
LOW Level Input Voltage
Control Input Leakage Current
OFF Leakage Current
Switch On Resistance
(Note 4)
4.5
V
CC
(V)
1.65 to 1.95
2.3 to 5.5
1.65 to 1.95
2.3 to 5.5
0 to 5.5
1.65 to 5.5
3
5
7
3.0
2.3
1.8
I
CC
Quiescent Supply Current
1.65 to 5.5
4
10
5
13
7
25
T
A
= −40°C
to
+85°C
Min
0.75 V
CC
0.7 V
CC
0.25 V
CC
0.3 V
CC
±1.0
±10.0
7
12
15
9
20
12
30
28
60
10
Typ
(Note 5)
Units
Max
V
V
µA
µA
Ω
Ω
Ω
Ω
Ω
Ω
Ω
Ω
Ω
µA
0
≤
V
IN
≤
5.5V
0
≤
A, B
≤
V
CC
V
IN
=
0V, I
IN
=
30 mA
V
IN
=
2.4V, I
IN
=
15 mA
V
IN
=
4.5V, I
IN
=
30 mA
V
IN
=
0V, I
IN
=
24 mA
V
IN
=
3V, I
IN
=
24 mA
V
IN
=
0V, I
IN
=
8 mA
V
IN
=
2.3V, I
IN
=
8 mA
V
IN
=
0V, I
IN
=
4 mA
V
IN
=
1.8V, I
IN
=
4 mA
V
IN
=
V
CC
or GND
I
OUT
=
0
Conditions
Note 4:
Measured by the voltage drop between A and B pins at the indicated current through the switch. On resistance is determined by the lower of the
voltages on the two (A or B) pins.
Note 5:
All typical values are at the specified V
CC
, and T
A
=
25°C.
www.fairchildsemi.com
2
NC7SZ66
AC Electrical Characteristics
T
A
= −40°C
to
+85°C,
Symbol
Parameter
V
CC
(V)
t
PHL
, t
PLH
Prop Delay Bus to Bus
(Note 7)
1.65 to 1.95
2.3-2.7
3.0-3.6
4.5-5.5
t
PZL
, t
PZH
Output Enable Time
1.65 to 1.95
2.3-2.7
3.0-3.6
4.5-5.5
t
PLZ
, t
PHZ
Output Disable Time
1.65 to 1.95
2.3-2.7
3.0-3.6
4.5-5.5
Q
OIRR
BW
Charge Injection (Note 8)
Off Isolation (Note 9)
−3dB
Bandwidth
1.65-5.5
1.65-5.5
1.65-5.5
−50
>250
1.5
1.5
1.5
1.5
1.5
1.5
1.5
1.5
7.0
3.3
2.4
2.0
9.2
5.3
4.0
2.7
C
L
=
50 pF, RU= RD
=
500Ω
Min
Typ
(Note 6)
Max
4.3
1.2
0.8
0.3
14.2
7.0
5.5
4.5
18.2
9.0
7.0
5.0
ns
ns
ns
pC
dB
MHz
C
L
=
0.1 nF, V
GEN
=
0V,
R
GEN
=
0Ω, f
=
1 MHz
R
L
=
50
Ω,
C
L
=
5 pF,
f
=
10 MHz
RL
=
50
Ω
Note 6:
All typical values are at the specified V
CC
, and T
A
=
25°C.
Note 7:
This parameter is guaranteed by design but is not tested. The switch contributes no propagation delay other than the RC delay of the typical On
resistance of the switch and the 50 pF load capacitance, when driven by an ideal voltage source (zero output impedance).
Note 8:
Guaranteed by design.
Note 9:
Off Isolation
=
20 log
10
[V
A
/V
BN
].
Units
Conditions
Fig. No.
ns
ns
ns
ns
ns
ns
V
IN
=
OPEN
Figures
1, 2
V
IN
=
2 x V
CC
for t
PZL
V
IN
=
0V for t
PZH
Figures
1, 2
V
IN
=
2 x V
CC
for t
PLZ
V
IN
=
0V for t
PHZ
Figures
1, 2
Figure 3
Figure 4
Figure 5
Capacitance
Symbol
C
IN
C
I/O
Parameter
Control Pin Input Capacitance
Input/Output Capacitance
Typ
2
6
Max
Units
pF
pF
Conditions
V
CC
=
0V
V
CC
=
5.0V
3
www.fairchildsemi.com
NC7SZ66

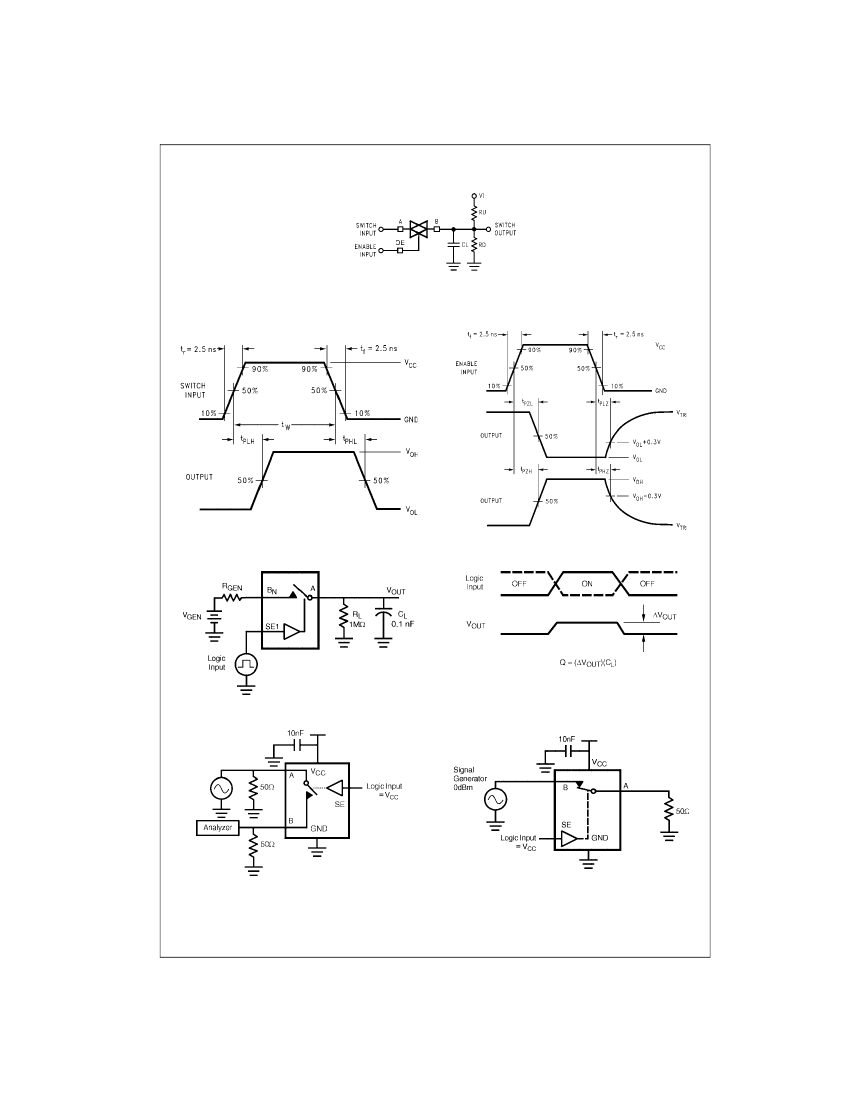

AC Loading and Waveforms
Input driven by 50Ω source terminated in 50Ω
C
L
includes load and stray capacitance.
Input PRR
=
1.0 MHz; t
w
=
500 ns
FIGURE 1. AC Test Circuit
FIGURE 2. AC Waveforms
FIGURE 3. Charge Injection Test
FIGURE 4. Off Isolation
FIGURE 5. Bandwidth
www.fairchildsemi.com
4
More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

NC7SZ66P5 Related Products

NC7SZ66P5 NC7SZ66M5
Description 1-CHANNEL, SGL POLE SGL THROW SWITCH, PDSO5, 1.25 MM, EIAJ, SC-88A, SC-70, 5 PIN 1-CHANNEL, SGL POLE SGL THROW SWITCH, PDSO5, 1.60 MM, MO-178, SOT-23, 5 PIN
Maker Rochester Electronics Rochester Electronics
Parts packaging code SOIC SOIC
package instruction TSSOP, LSSOP,
Contacts 5 5
Reach Compliance Code unknown unknown
Analog Integrated Circuits - Other Types SPST SPST
JESD-30 code R-PDSO-G5 R-PDSO-G5
length 2 mm 2.9 mm
Number of channels 1 1
Number of functions 1 1
Number of terminals 5 5
Nominal off-state isolation 50 dB 50 dB
Maximum on-state resistance (Ron) 60 Ω 60 Ω
Maximum operating temperature 85 °C 85 °C
Minimum operating temperature -40 °C -40 °C
Package body material PLASTIC/EPOXY PLASTIC/EPOXY
encapsulated code TSSOP LSSOP
Package shape RECTANGULAR RECTANGULAR
Package form SMALL OUTLINE, THIN PROFILE, SHRINK PITCH SMALL OUTLINE, LOW PROFILE, SHRINK PITCH
Certification status COMMERCIAL COMMERCIAL
Maximum seat height 1.1 mm 1.4 mm
Maximum supply voltage (Vsup) 5.5 V 5.5 V
Minimum supply voltage (Vsup) 1.65 V 1.65 V
Nominal supply voltage (Vsup) 1.8 V 1.8 V
surface mount YES YES
Maximum disconnect time 18.2 ns 18.2 ns
Maximum connection time 14.2 ns 14.2 ns
technology CMOS CMOS
Temperature level INDUSTRIAL INDUSTRIAL
Terminal surface NOT SPECIFIED NOT SPECIFIED
Terminal form GULL WING GULL WING
Terminal pitch 0.65 mm 0.95 mm
Terminal location DUAL DUAL
width 1.25 mm 1.6 mm

Recommended Resources

Current cut-off circuit

With fast electrical circuit of C650 type lathe

Current expansion circuit diagram

Servo motor speed control circuit

Inductive power test circuit

Low resistance power distribution circuit

0
...
钟亥 Embedded System
Who knows subnet division???
? 1. Based on the following host addresses and subnet masks, try to find out the subnet to which each address belongs, and find out the broadcast address and available host address range in the subnet...
xsmao520 Embedded System
plc SCL programming language usage experience sharing
The PLC SCL programming language has very similar characteristics to high-level computer programming languages. It is supported by both the classic Step7 5.X platform and the newly launched TIA Portal...
科技变革 Integrated technical exchanges
About the serial communication problem between msp430 microcontroller and arm9
I am currently developing a project that requires three microcontrollers: one msp430 microcontroller is built into each of the two sensors, and an arm9 microcontroller is built into the main control b...
piaofu ARM Technology
51 MCU Basic Experiment
Experimental content and steps: Before the experiment, let's review the relevant knowledge of interrupts that we have learned before. MCS-51 is a [b][b]single-chip microcomputer[/b][/b] with multiple ...
cqycmc 51mcu
[Help] What chip do you use for 485 communication?
What low-voltage 485 communication chip do you use for 430?Which is better, MAX3485 or SN75 series? What is the price?What is the specific difference between SN75HVD10, 11, and 12?...
xianghonghe Microcontroller MCU
Shortcut:   A0 A1 A2 A3 A4 A5 A6 A7 A8 A9 AA AB AC AD AE AF AG AH AI AJ AK AL AM AN AO AP AQ AR AS AT AU AV AW AX AY AZ B0 B1 B2 B3 B4 B5 B6 B7 B8 B9 BA BB BC BD BE BF BG BH BI BJ BK BL BM BN BO BP BQ BR BS BT BU BV BW BX BY BZ C0 C1 C2 C3 C4 C5 C6 C7 C8 C9 CA CB CC CD CE CF CG CH CI CJ CK CL CM CN CO CP CQ CR CS CT CU CV CW CX CY CZ D0 D1 D2 D3 D4 D5 D6 D7 D8 D9 DA DB DC DD DE DF DG DH DI DJ DK DL DM DN DO DP DQ DR DS DT DU DV DW DX DZ

Popular Components

  1. 1113536
  2. PT02CE-16-8S
  3. D38999/21NC35AB
  4. S2512CUY335K20-TR
  5. JH40480800BCNSMNTZEWC
  6. WSK25125L500DEK
  7. MEWT-113-B/Q
  8. YC124-FR-101K74
  9. AME8800HEEVZ
  10. A2007WVD-6P
  11. TR1206D9K00P0550Z
  12. STA034RF1K1Q05

Popular Articles

  1. Connective Peripherals series of connection products are available from element14
  2. How to choose a cable fault tester?
  3. Baidu PaddlePaddle fully supports training and reasoning on Graphcore IPU
  4. Automatic identification of vehicle violations! Alipay releases new patent: Capture violations through driving recorders
  5. Selection and use of FPGAs for automotive interfaces, safety, and compute-intensive loads
  6. 51 MCU Introduction - Serial Communication Experiment (Simulated Serial Communication/Multi-machine Communication Example)
  7. Based on ARM board s3c2440---SPI protocol
  8. How to maintain automobile circuits
  9. Scenera and Blaize® demonstrate hybrid cloud solutions with Marketplace on AITRIOS™ at Security Show West
  10. Simple oscilloscope design based on STC8A8K MCU

Technical ResourceMore

  1. Design and simulation of octave electronic piano based on Multisim
  2. Filter Design with Parasitic Passband Suppression Structure
  3. ASP.NET Programming Basics and Applications Electronic Lesson Plan
  4. Design of Bluetooth temperature sensor
  5. Graduation Project Management Platform Based on SSH
  6. Temperature characteristics of LDMOS power amplifier and design of temperature compensation circuit
  7. PL2303 Driver
  8. Frequency calculation method analysis and error analysis
  9. Test Signal Analysis and Processing Technology of Virtual Instrument
  10. Several issues on the design of intermittent flyback transformer

EEWorld
subscription
account

EEWorld
service
account

Automotive
development
circle

Robot
development
community

About Us Customer Service Contact Information Datasheet Sitemap LatestNews
Index Files: 259  2510  1745  2394  167  6  51  36  49  4
Datasheet   0 1 2 3 4 5 6 7 8 9 A B C D E F G H I J K L M N O P Q R S T U V W X Y Z
Room 1530, 15th Floor, Building B, No. 18 Zhongguancun Street, Haidian District, Beijing Telephone: (010) 82350740 Postal Code: 100190
Copyright © 2005-2026 EEWORLD.com.cn, Inc. All rights reserved 京ICP证060456号 京ICP备10001474号-1 电信业务审批[2006]字第258号函 京公网安备 11010802033920号
