LPS24-T

Description
1-OUTPUT 40W AC-DC REG PWR SUPPLY MODULE, ROHS COMPLIANT PACKAGE-10
CategoryPower/power management    The power supply circuit
File Size96KB,3 Pages
ManufacturerEmerson Embedded Power
Download Datasheet Parametric View All

LPS24-T Online Shopping

Suppliers Part Number Price MOQ In stock
LPS24-T - - View Buy Now

LPS24-T Overview

1-OUTPUT 40W AC-DC REG PWR SUPPLY MODULE, ROHS COMPLIANT PACKAGE-10

LPS24-T Parametric

Parameter NameAttribute value
MakerEmerson Embedded Power
Parts packaging codeMODULE
package instruction,
Contacts10
Reach Compliance Codeunknown
ECCN codeEAR99
Other featuresIT OPERATES FROM AN AC SUPPLY OF 85V TO 264V
Analog Integrated Circuits - Other TypesAC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage300 V
Minimum input voltage120 V
JESD-30 codeR-XXMA-X10
Maximum load regulation2%
Number of functions1
Output times1
Number of terminals10
Maximum operating temperature50 °C
Minimum operating temperature
Maximum output voltage16.5 V
Minimum output voltage14.25 V
Nominal output voltage15 V
Package body materialUNSPECIFIED
Package shapeRECTANGULAR
Package formMICROELECTRONIC ASSEMBLY
Certification statusNot Qualified
surface mountNO
technologyHYBRID
Temperature levelCOMMERCIAL
Terminal formUNSPECIFIED
Terminal locationUNSPECIFIED
Maximum total power output40 W
Fine-tuning/adjustable outputYES

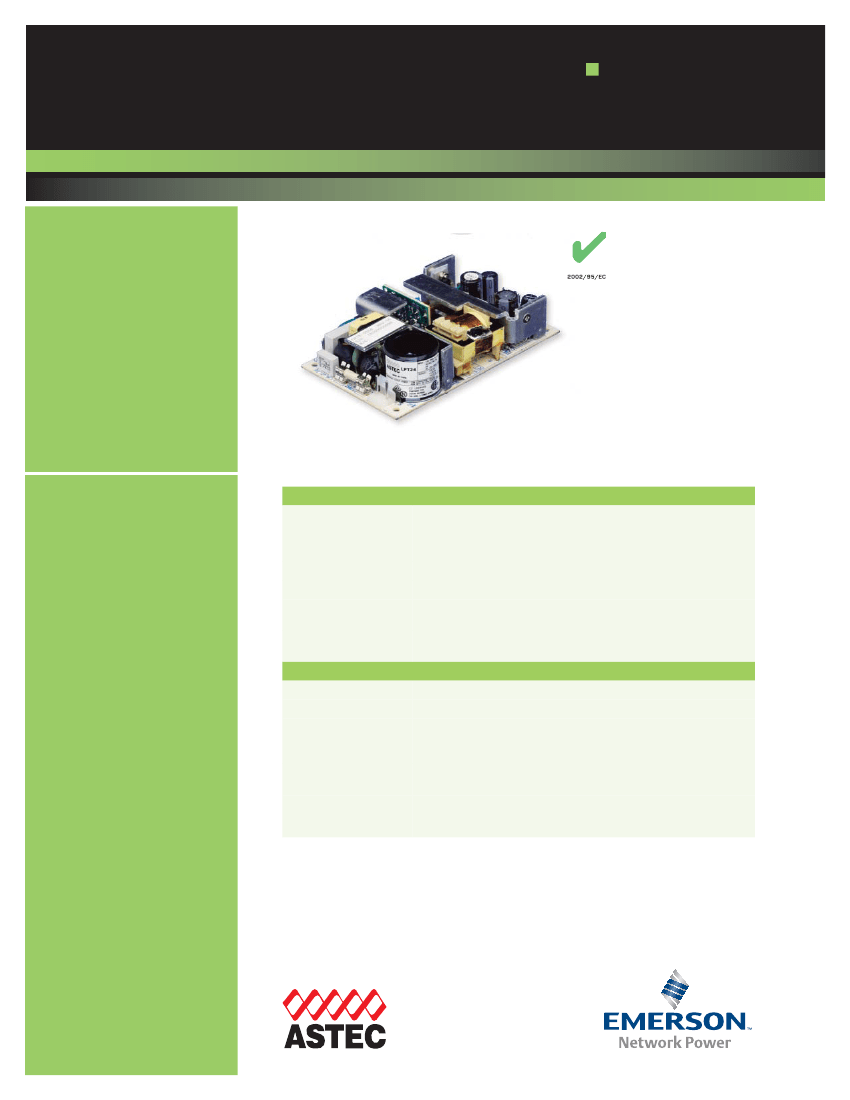

Embedded Power for
Business-Critical Continuity
LPS25 Series
25 Watts
Total Power:
Input Voltage:
# of Outputs:
25-40 Watts
85-264 VAC
120-300 VDC
Single
Rev. 02.05.07
LPS25 Series
1 of 3
RoHS
Electrical Specifications
Special Features
Universal input
3" x 5" footprint
Less than 1U high
Remote sense
Terminal block option (-T)
Built-in EMI filter
Low output ripple
Adjustable output
Overvoltage protection
Overload protection
110 KHz switching frequency
LPX40 enclosure kit available
2 year warranty
Input
Input range
Frequency
Inrush current
Input current
Efficiency
EMI filter
Safety ground
leakage current
85-264 VAC; 120-300 VDC
47-440 Hz
<15A peak @ 115VAC; <30A peak @ 230VAC, cold start @ 25°C
1A max. (RMS) @ 115VAC
70% typical at full load
FCC Class B conducted; CISPR 22 Class B conducted;
EN55022 Class B conducted
<0.5 mA @ 50/60 Hz, 264 VAC input
Output
Maximum power
Adjustment range
Hold-up time
Overload protection
25 W for convection; 40W with 30CFM forced air
-5, +10% minimum
Safety
0805 EN60950
11774-3336-1241
(LC#84936)
UL
UL60950 E132002
CSA
CSA 22.2-234 Level 3
LR53982C
NEMKO EN 60950/EMKO-TUE
P95100442 (74-sec) 203
CB
Certificate and report
1577, 1578, 1579, 1580
CE Mark (LVD)
VDE
20 ms @ 25W load, 115VAC nominal line
Short circuit protection on all outputs
Case overload protected @ 110 -145% above peak rating
Overvoltage protection 5V output; 5.7 to 6.7VDC. Other outputs 10% to 25% above
nominal output
Remote sense
Compensates for 0.5 V lead drop minimum
Will operate without remote sense connected
Reverse connection protected
