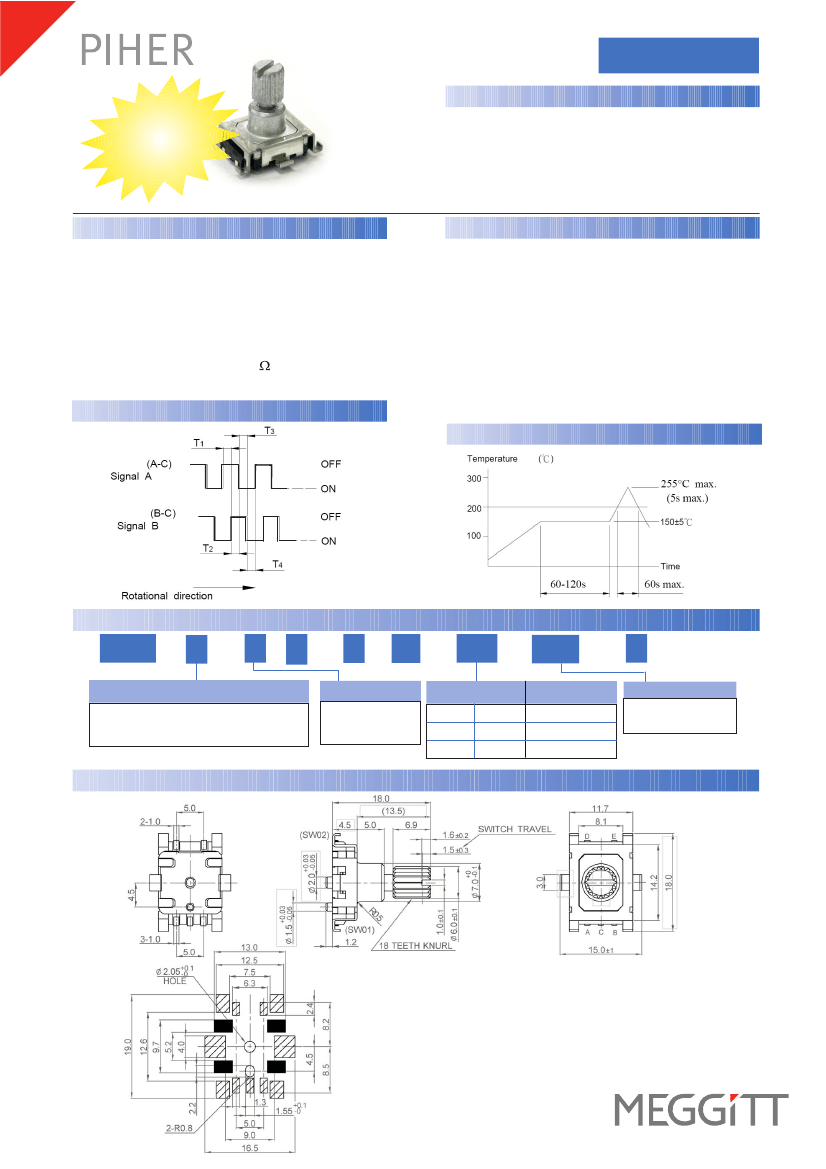

CS11LM
FEATURES
VEL
TRA H-ON
m
S
1.5m R PUCH
E IT
B
RU SW
11mm Incremental
Encoder
-
1.5mm Rubber Push-on
switch.
- Automotive spec.
- 2 bit in quadrature code.
- Contact type.
- No switch version available
- Compact design.
- SMD mount.
- Endless rotation.
- 15 pulses / 30 detents.
- optional 0.5mm Push-on
switch
STANDARD SPECIFICATIONS
Operating Temperature: -40ºC to +85ºC
Life (endless rotation):
Life (switch):
Detent torque:
Push on switch travel
Contact Resistance:
Pulses / Detents:
15.000 cycles
20.000 operations
50 gf.cm MAX
1.5mm (rubber);0.5mm
no switch version available
100 m
15/30
Initial (max)
TYPICAL APPLICATIONS
The CS11LM has been designed specifically for
Automotive applications.
The positive action 1.5mm throw push switch has been
designed to assure that driver has no need to make an
additional visual check after making his/her selection.
This means REDUCED DRIVER DISTRACTION.
The CS11LM can be used in all passenger compartment
applications typically Infotainment, Navigation and
Heating, Ventilation and Air Conditioning.
GRAPH CODE
TEMPERATURE PROFILE
HOW TO ORDER
CS11LM
SE
5
NB
F
-
SMT
-
13.5K
-
15-30C
-
6H
Pulse/Detents
15 - 30C*
*Blank = no detents
Switch
SE = With Switch (Switch Travel: 1.5mm)
SD = With Switch (Switch Travel: 0.5mm)
Blank = Without Switch
(Rubber switch only applies to 1.5mm version)
Bushing Length
Blank = 7mm
5 = 5mm
Shaft Length
Shaft Type
9.5mm 13.5mm K = w/ switch
9.5mm
X
K = w/o Switch
20mm
X
F = w/switch
DIMENSIONS (CS11LMSE5NBF-SMT-13.5K-6H)
-24-
