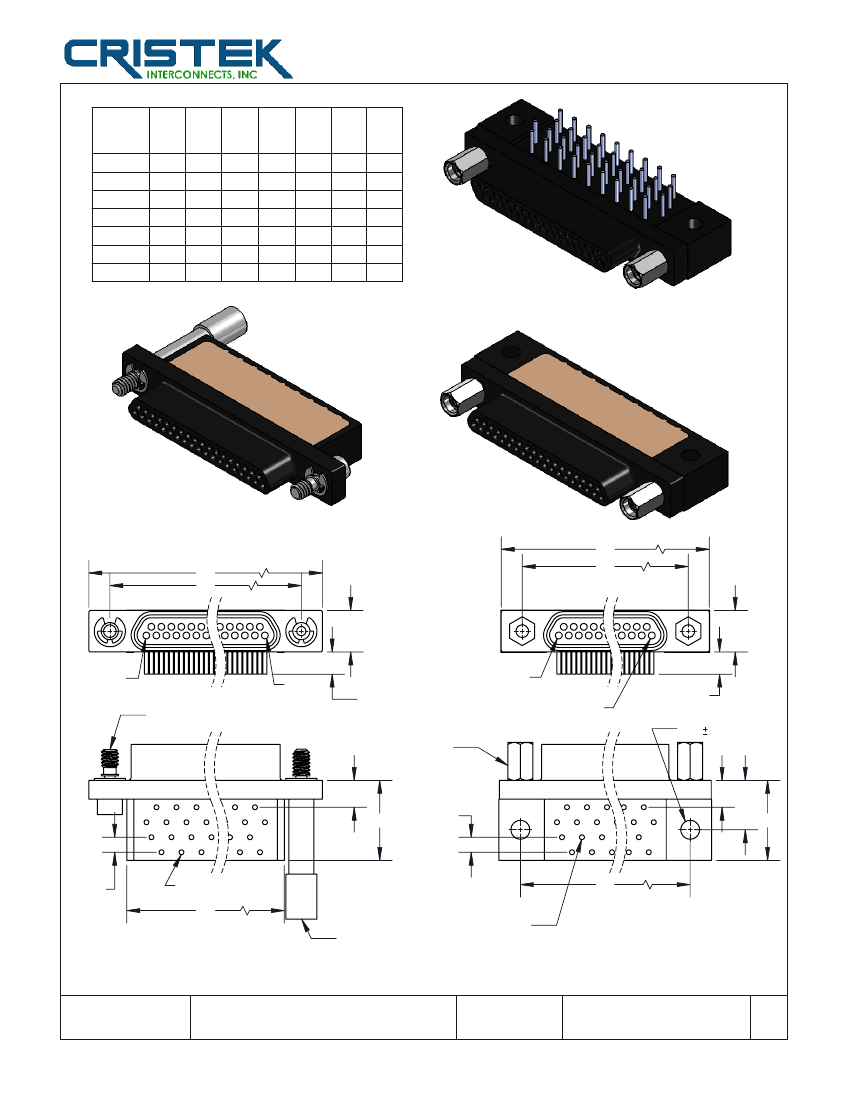

SERIES
PCR
MICRO-D PLASTIC SHELL,
RIGHT ANGLE BOARD MOUNT, CONDENSED
PCR
PLASTIC MINI-D RIGHT ANGLE
BOARD MOUNT CONDENSED
GENDER
1 = RECEPTACLE, SOCKET CONTACTS
2 = PLUG, PIN CONTACTS
NUMBER OF CONTACTS
009 025 051
015 031
021 037
X XXX
X 5 X
SHELL HARDWARE/BODY STYLE
1 = JACKPOST/BODY STYLE #2
2 = LOW PROFILE JACKSCREW/BODY STYLE #1
3 = JACKPOST/BODY STYLE #1
4 = NO HARDWARE/BODY STYLE #2
5 = NO HARDWARE/BODY STYLE #1
6 = HIGH PROFILE JACKSCREW/BODY STYLE #1
MATERIAL
5 = POLYPHENYLENE SULFIDE
TERMINATIONS
1 = .109 ±.015
2 = .140 ±.015
3 = .172 ±.015
4 = .190 ±.015
5 = .250 ±.015
6 = .125 ±.015
ALL 24 AWG (.020 DIA)
HOT SOLDER DIPPED
MATERIALS AND FINISHES ARE IAW MIL-DTL-83513
FOR DETAILS SEE MIL SPEC OR WWW.CRISTEK.COM
1. MATERIALS:
3. SPECIFICATIONS:
4. ADDITIONAL INFORMATION:
INSULATOR/BACKSHELL - GLASS FILLED THERMOPLASTIC
PIN/SOCKET CONTACT - COPPER ALLOY
PIN/SOCKET CONTACT - GOLD OVER NICKEL
2. FINISH:
CURRENT RATING ------------------ 3 AMPS MAX
DESIGN AND PERFORMANCE IN GENERAL
TEMPERATURE RATING ---------- -55° C TO +125° C
ACCORDANCE WITH M83513 WHERE APPLICABLE.
INSULATION RESISTANCE -------- 5000 MEGOHMS MIN
CONTACT CRISTEK FOR OTHER CONFIGURATIONS.
DWV AT SEA LEVEL ---------------- 600 VAC
DWV AT 70,000 FT ALTITUDE --- 150 VAC
CONTACT RESISTANCE ------------ 24 AWG = 25 MILLIOHMS MAX
CONTACT RETENTION ------------- 5 lb MINIMUM AXIAL LOAD
ENGAGEMENT FORCE ------------- 6 oz MAX
SEPARATION FORCE --------------- 0.5 oz MIN
TOLERANCE: .XXX ±.005
.XX ±.01
ANGLE ±1°
TITLE
MICRO-D PLASTIC SHELL,
RIGHT ANGLE BOARD MOUNT,
CONDENSED
DWG. NO.
SHT
2
OF
4
PCR
G
888.265.9162
REV
CRISTEK.COM
SERIES
PCR
MICRO-D PLASTIC SHELL,
RIGHT ANGLE BOARD MOUNT, CONDENSED
.183
.100 TYP*
.050 TYP*
.075 TYP*
.025 TYP*
8
9
5
4
3
2
7
1
6
15
8
7
.183
.183
(.0375)
14
13
6
12
11
4
5
10
9
2
3
1
21
11
20
19
9
10
18
17
7
8
16
5
6
14
15 13
3
4
12
1
2
(.0375)
(.0375)
9 CONTACTS
.183
15 CONTACTS
.183
21 CONTACTS
24
25
13
12
23
11
22
21
9
10
20
19
7
8
18
17
5
6
16
15
3
4
14
31
1
2
16
30
29
14
15
28
27
12
13
26
25
10
11
24
23
8
9
22
21
6
7
20
19
4
5
18
17
2
3
1
(.0375)
(.0375)
25 CONTACTS
31 CONTACTS
.183
.230
36
37
19
18
35
17
16
34
33
15
14
32
31
13
12
30
29
11
10
28
27
9
8
26
25
7
6
24
23
5
4
22
21
3
2
1
20
51 49 46 44 42 41 39 38 37 36
50 48 47 45 43 25 40 22 21 19
35 33 31 30 29 27 26 24 23 20 1
34 32 14 12 28 9
8
6
5
4
3
2
18 17 16 15 13 11 10 7
.075
.0375
(.0375)
37 CONTACTS
51 CONTACTS
* SIZES 9-37:.100 X .075 GRID PATTERN OFFSET BY .050
*SIZE 51: .075 X .075 GRID PATTERN OFFSET BY .0375
TOLERANCE: .XXX ±.005
.XX ±.01
ANGLE ±1°
TITLE

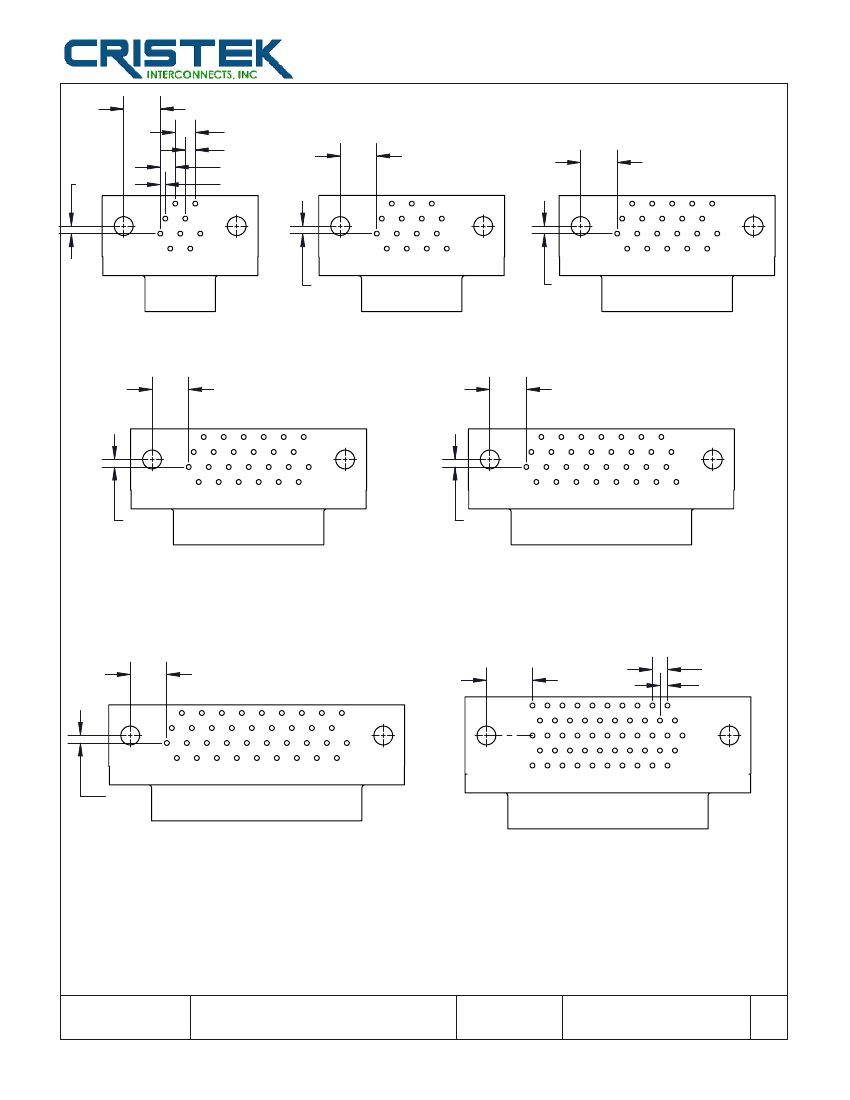

PCR PLUG PCB LAYOUTS
MICRO-D PLASTIC SHELL,
RIGHT ANGLE BOARD MOUNT,
CONDENSED
DWG. NO.
SHT
3
OF
4
PCR
G
888.265.9162
REV
CRISTEK.COM
SERIES
PCR
MICRO-D PLASTIC SHELL,
RIGHT ANGLE BOARD MOUNT, CONDENSED
.183
.100 TYP*
.050 TYP*
.075 TYP*
.025 TYP*
7
6
1
2
3
4
8
5
1
2
9
9
.183
10
11
3
4
12
13
5
6
14
15
7
8
.183
13
12
1
2
14
3
4
15
16
5
6
17
18
7
8
19
20
9
10
11
21
(.0375)
(.0375)
(.0375)
9 CONTACTS
.183
15
14
1
2
16
3
4
17
18
5
6
19
20
7
8
21
22
9
10
23
24
11
12
13
25
15 CONTACTS
.183
18
17
1
2
19
3
4
20
21
5
6
22
23
7
8
24
25
9
10
21 CONTACTS
26
27
11
28
29
13
12
30
31
15
14
16
(.0375)
(.0375)
25 CONTACTS
31 CONTACTS
.183
.075
.230
21
20
1
2
22
3
4
23
24
5
6
25
26
7
8
27
28
9
10
29
30
11
12
31
32
13
14
33
34
15
16
35
36
17
18
19
37
36 37 39 40 42 44 45 47 48 50
20 38 23 41 43 28 46 31 49 51
19 21 22 24 26 27 29 30 32 34 35
2
1
3
4
5
6 25 9 11 12 14 33 17
7
8 10 13 15 16 18
.0375
(.0375)
37 CONTACTS
51 CONTACTS
PCR RECEPTACLE PCB LAYOUTS
* SIZES 9-37:.100 X .075 GRID PATTERN OFFSET BY .050
*SIZE 51:.075 X .075 GRID PATTERN OFFSET BY .0375
TOLERANCE: .XXX ±.005
.XX ±.01
ANGLE ±1°
TITLE
MICRO-D PLASTIC SHELL,
RIGHT ANGLE BOARD MOUNT,
CONDENSED
DWG. NO.
SHT
4
OF
4
PCR
G
888.265.9162
REV
CRISTEK.COM
