HFWJ-04-04-TM-S datasheet, PDF

HFWJ-04-04-TM-S: DescriptionBoard Connector, 4 Contact(s), 1 Row(s), Male, Straight, Solder Terminal,; CategoryThe connector The connector; File Size262KB，1 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric View All

HFWJ-04-04-TM-S Overview

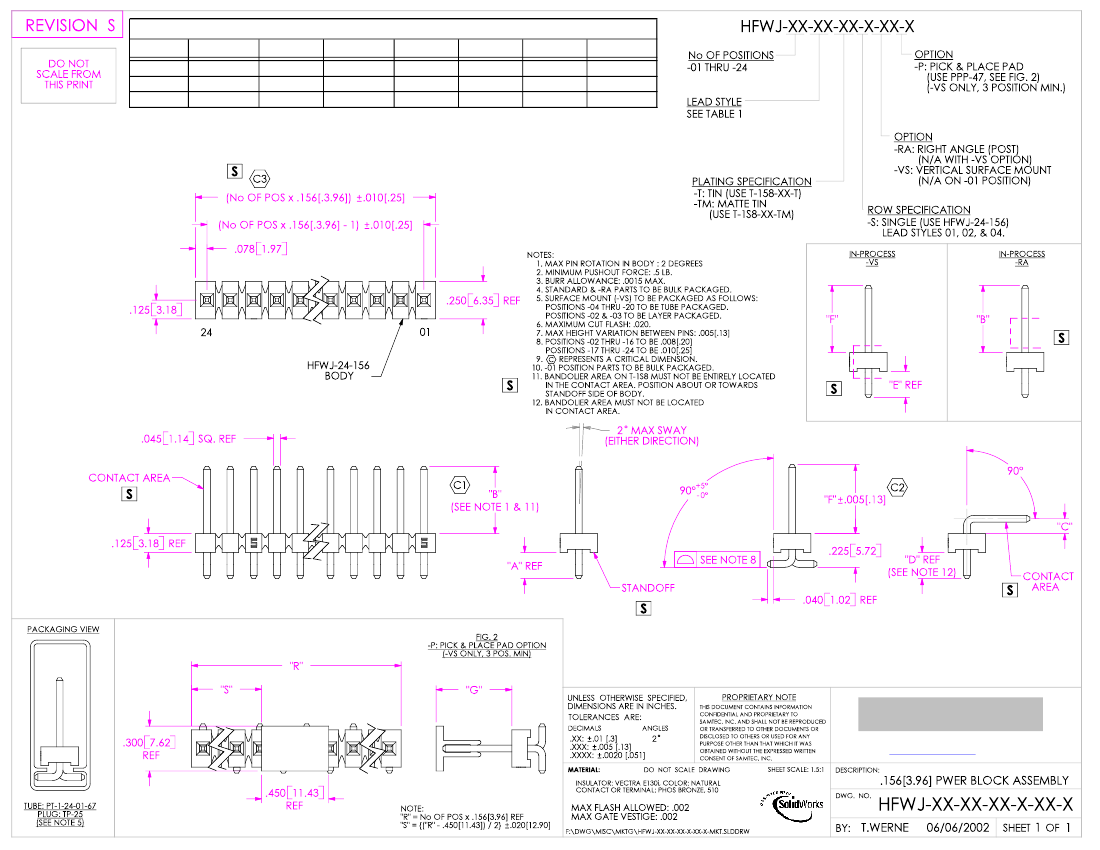

Board Connector, 4 Contact(s), 1 Row(s), Male, Straight, Solder Terminal,

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SAMTEC
Reach Compliance Code	compliant
Factory Lead Time	2 weeks
Connector type	BOARD CONNECTOR
Contact to complete cooperation	MATTE TIN
Contact completed and terminated	Matte Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	3.96 mm
Termination type	SOLDER
Total number of contacts	4

TABLE 1

STYLE

-01

-02

-04

TERMINAL

"A"

"B"

"C"

"D"

"E"

"F"

T-1S8-01-T .175 [4.45] .450 [11.43]

N/A

.213 [5.41] .412 [10.46]

T-1S8-02-T .175 [4.45] .500 [12.70] .100 [2.54] .175 [4.45] .213 [5.41] .462 [11.73]

T-1S8-04-T .156 [3.96] .809 [3.96] .195 [4.95] .156 [3.96] .213 [5.41] .752 [19.10]

S A M TE C

5 2 0 P A R K E A S T B L V D , N E W A L B A N Y , IN 4 7 1 5 0

P H O N E : 8 1 2 .9 4 4 .6 7 3 3

F A X : 8 1 2 .9 4 8 .5 0 4 7

e -M ail:

IN F O @ S A M T E C .C O M

C O D E: 55322
