MXD1000-50PD: DescriptionSilicon Delay Line, 1-Func, 5-Tap, True Output, PDIP14, PLASTIC, DIP-14; Categorylogic logic; File Size163KB，8 Pages; ManufacturerMaxim; Websitehttps://www.maximintegrated.com/en.html

Download Datasheet Parametric View All

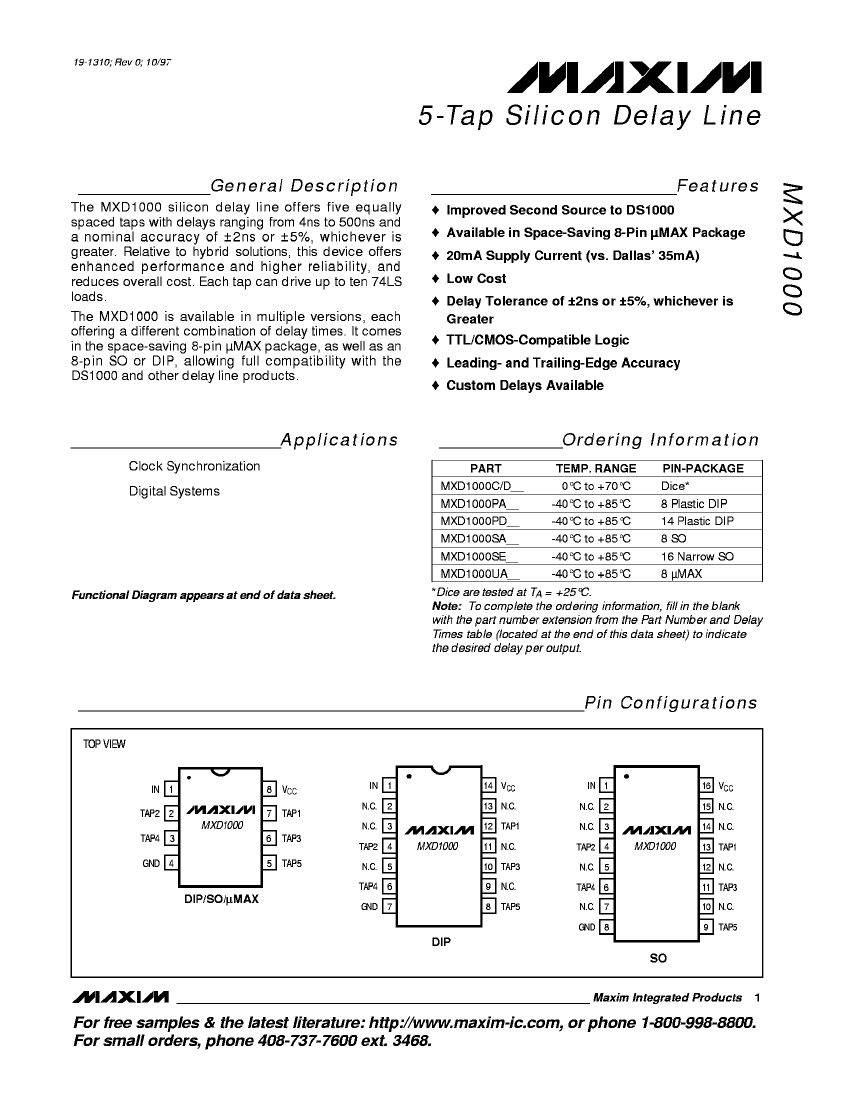

MXD1000-50PD Overview

Silicon Delay Line, 1-Func, 5-Tap, True Output, PDIP14, PLASTIC, DIP-14

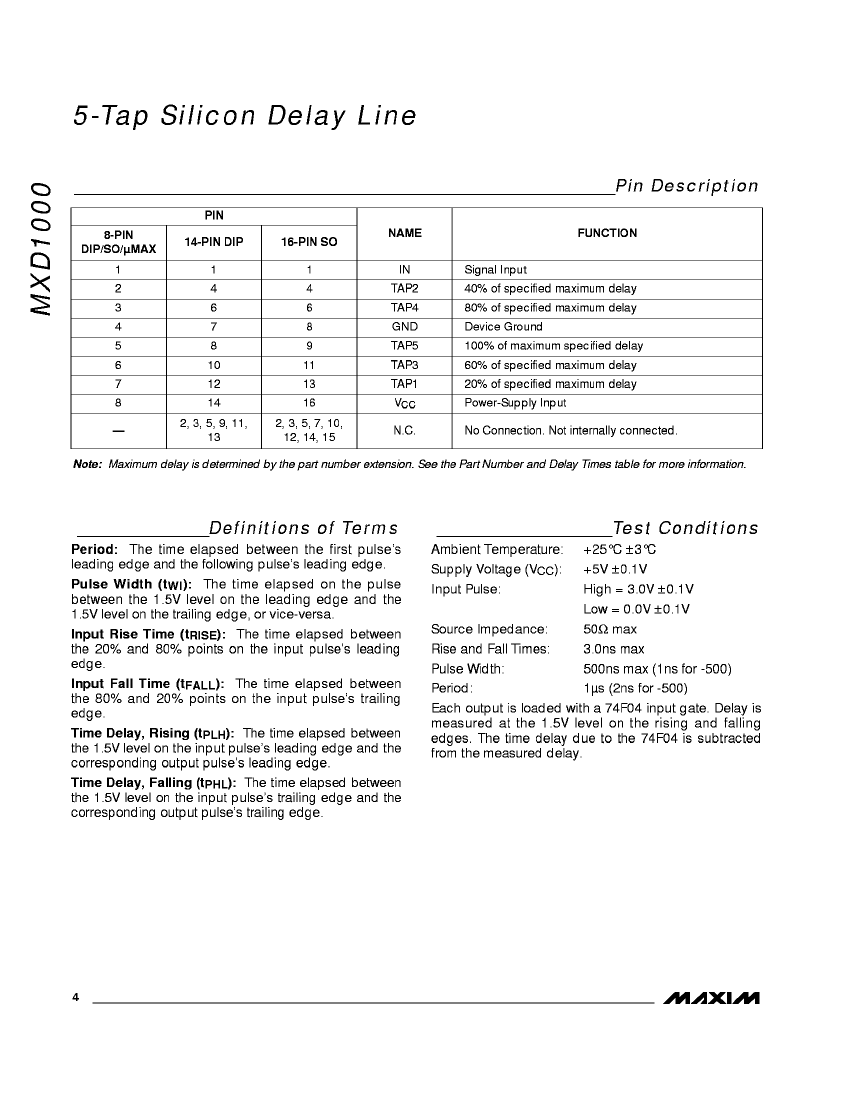

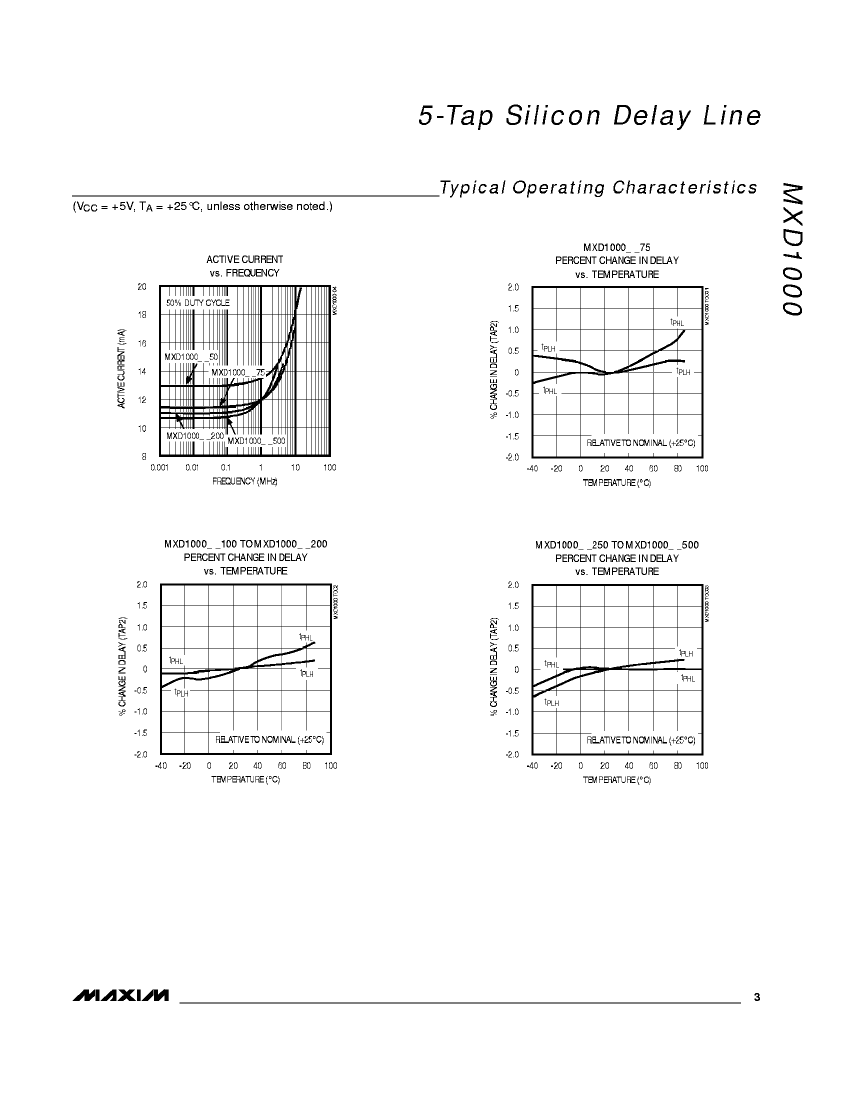

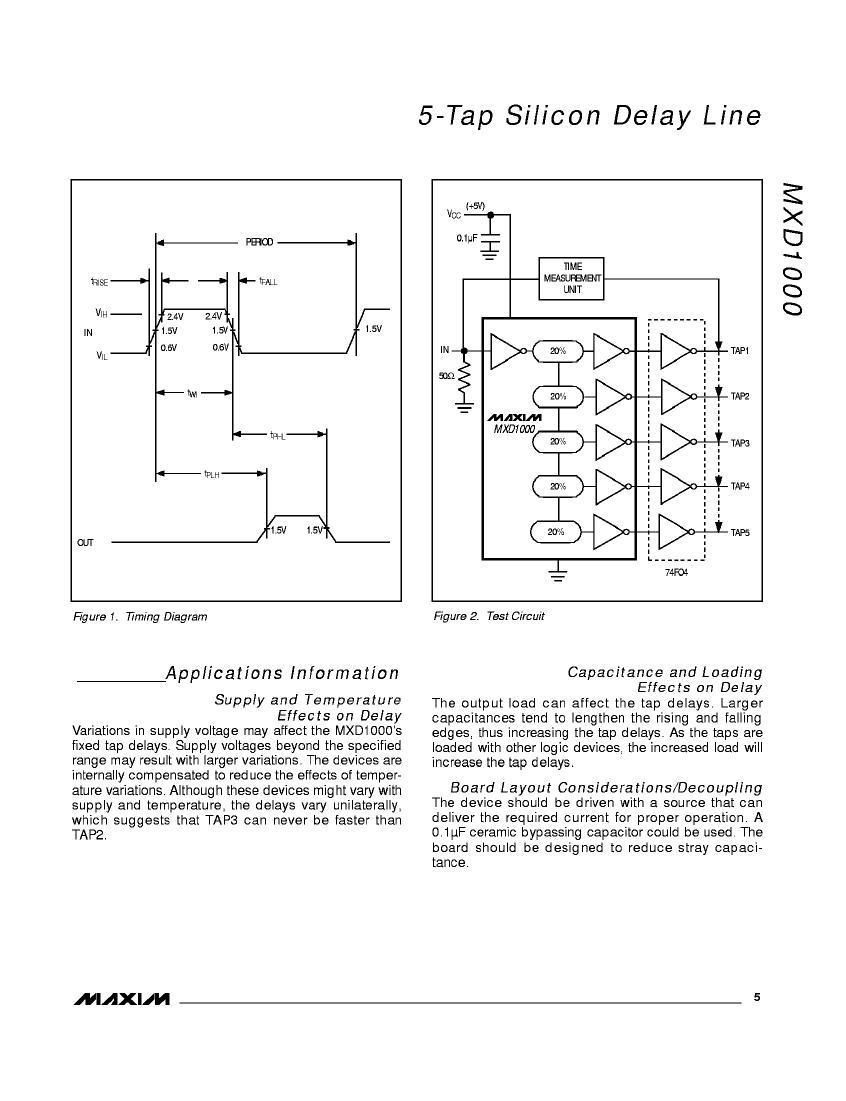

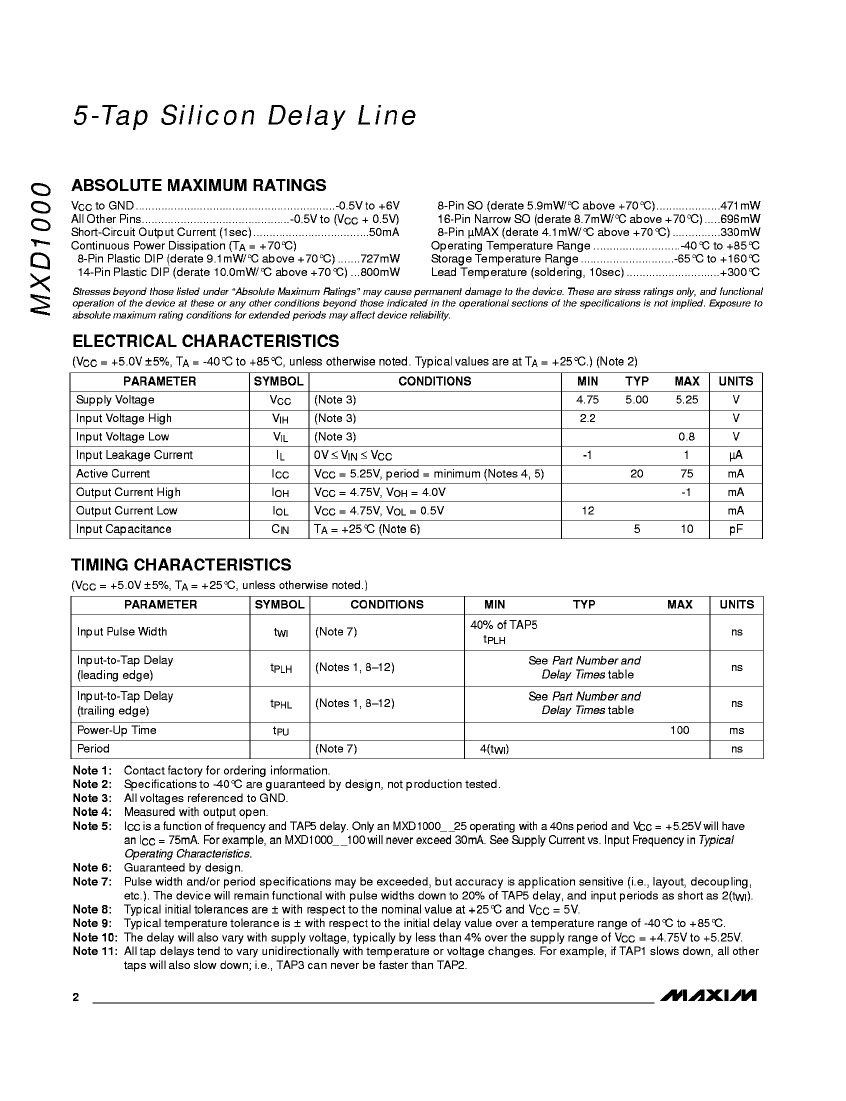

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Maxim
Parts packaging code	DIP
package instruction	DIP,
Contacts	14
Reach Compliance Code	compliant
series	MXD1000
JESD-30 code	R-PDIP-T14
JESD-609 code	e0
length	19.05 mm
Logic integrated circuit type	SILICON DELAY LINE
Number of functions	1
Number of taps/steps	5
Number of terminals	14
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output polarity	TRUE
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
programmable delay line	NO
Certification status	Not Qualified
Maximum seat height	4.572 mm
Maximum supply voltage (Vsup)	5.25 V
Minimum supply voltage (Vsup)	4.75 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
Temperature level	INDUSTRIAL
Terminal surface	TIN LEAD
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Total delay nominal (td)	50 ns
width	7.62 mm
