LM131H/B datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> converter> LM131H/B

LM131H/B: DescriptionVoltage to Frequency Converter; CategoryAnalog mixed-signal IC converter; File Size2MB，14 Pages; ManufacturerRochester Electronics; Websitehttps://www.rocelec.com/

Download Datasheet Parametric Compare View All

LM131H/B Overview

Voltage to Frequency Converter

LM131H/B Parametric

Parameter Name	Attribute value
Maker	Rochester Electronics
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
Converter type	VOLTAGE TO FREQUENCY CONVERTER

Preview

Download Datasheet

View All

REI Datasheet

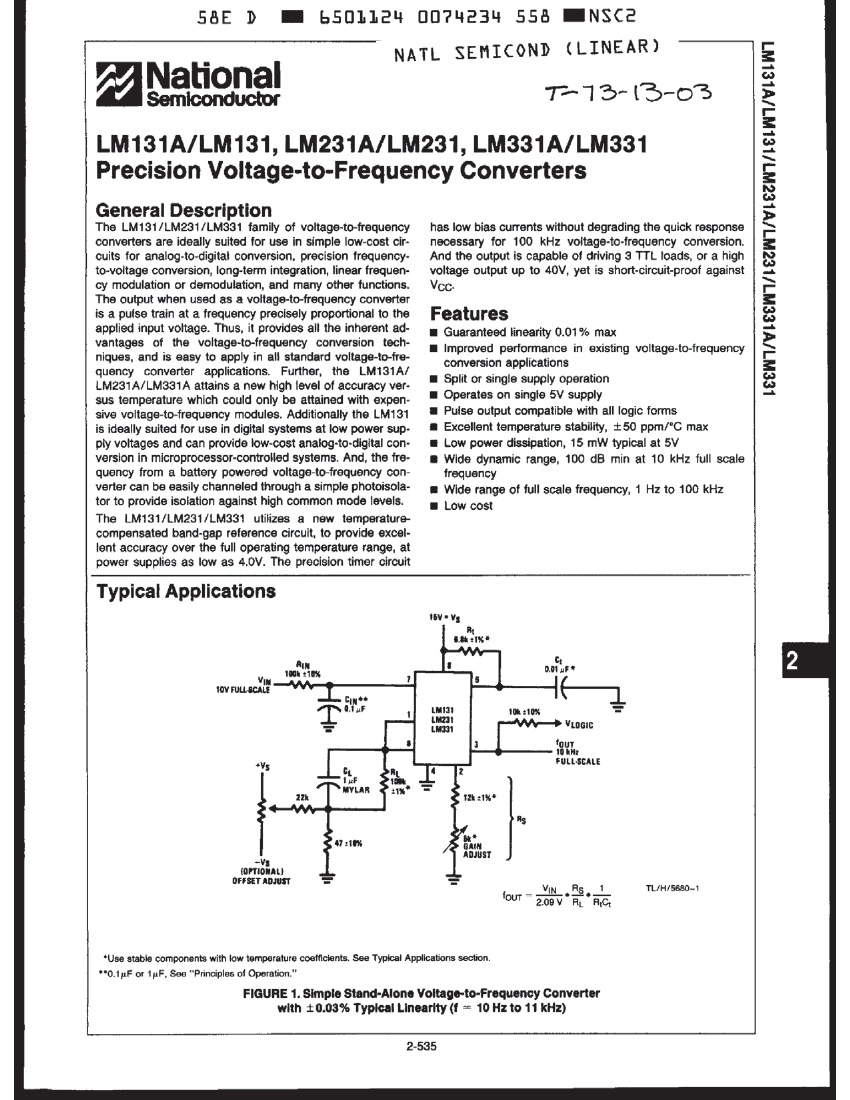

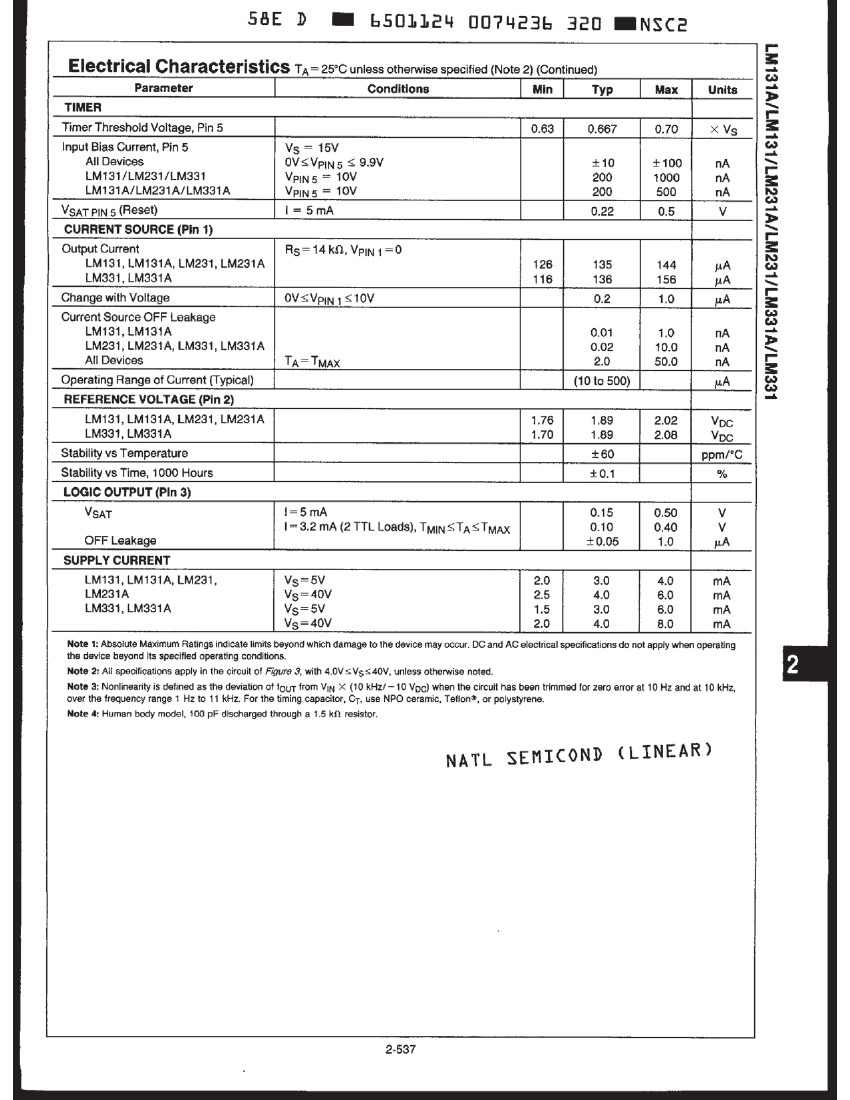

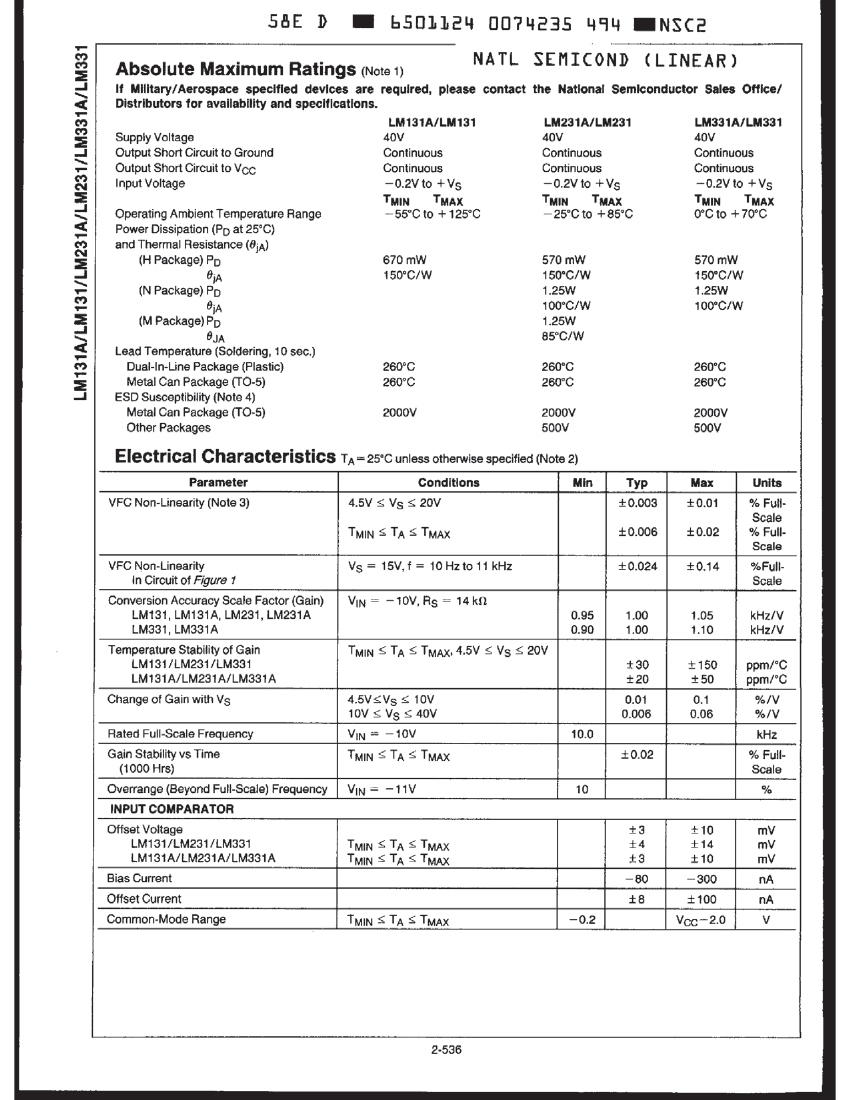

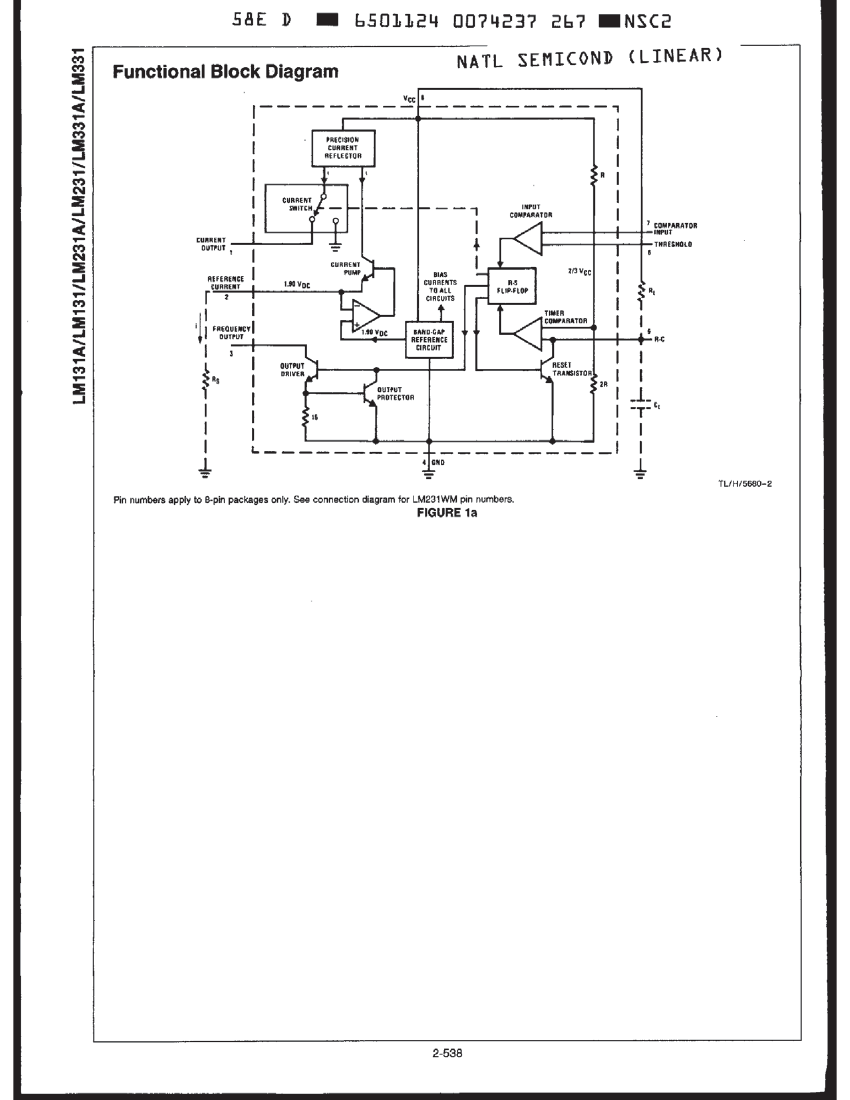

LM131, LM131A, LM231, LM231A, LM331, LM331A

Precision Voltage-to-Frequency Converters

The LM131/LM231/LM331 family of voltage-to-frequency converters are ideally suited for use in

simple low-cost circuits for analog-to-digital conversion, precision frequency-to-voltage conversion,

long-term integration, linear frequency modulation or demodulation, and many other functions.

The output when used as a voltage-to-frequency converter is a pulse train at a frequency precisely

proportional to the applied input voltage. Thus, it provides all the inherent advantages of the voltage-

to-frequency conversion techniques, and is easy to apply in all standard voltage-to-frequency

converter applications. Further, the LM131A/LM231A/LM331A attains a new high level of accuracy

versus temperature which could only be attained with expensive voltage-to-frequency modules.

Rochester Electronics

Manufactured Components

Rochester branded components are

manufactured using either die/wafers

purchased from the original suppliers

or Rochester wafers recreated from the

original IP. All recreations are done with

the approval of the OCM.

Parts are tested using original factory

test programs or Rochester developed

test solutions to guarantee product

meets or exceeds the OCM data sheet.

Quality Overview

•

ISO-9001

AS9120 certification

Qualified Manufacturers List (QML) MIL-PRF-38535

•

Class Q Military

•

Class V Space Level

Qualified Suppliers List of Distributors (QSLD)

•

Rochester is a critical supplier to DLA and

meets all industry and DLA standards.

Rochester Electronics, LLC is committed to supplying

products that satisfy customer expectations for

quality and are equal to those originally supplied by

industry manufacturers.

The original manufacturer’s datasheet accompanying this document reflects the performance

and specifications of the Rochester manufactured version of this device. Rochester Electronics

guarantees the performance of its semiconductor products to the original OEM specifications.

‘Typical’ values are for reference purposes only. Certain minimum or maximum ratings may be

based on product characterization, design, simulation, or sample testing.

To learn more, please visit

www.rocelec.com

LM131H/B Related Products

	LM131H/B	LM131AH
Description	Voltage to Frequency Converter	Voltage to Frequency Converter, 1 Func, 0.1MHz, MBCY8, PACKAGE-8
Maker	Rochester Electronics	Rochester Electronics
Reach Compliance Code	unknown	unknown
ECCN code	EAR99	EAR99
Converter type	VOLTAGE TO FREQUENCY CONVERTER	VOLTAGE TO FREQUENCY CONVERTER
