HV 500 V
Vishay BCcomponents
Ceramic Disc Capacitors
Class 1 and 2, 500 V (DC) General Purpose
FEATURES
•
Low losses
•
High stability
•
High capacitance in small size
•
Kinked (preferred) or straight leads.
•
Lead (Pb)-free available.
tangent
line
SH
D
APPLICATIONS
•
Bypassing
•
Coupling
•
Resonant circuit.
F
Capacitors with 5 mm (0.20") lead spacing.
DESIGN
The capacitors consist of a ceramic disc both sides of which
are silver-plated. Connection leads are made of tinned
copper having a diameter of 0.6 mm.
The capacitors have inward kinked leads with a spacing of
5 mm (0.200") or 7.5 mm (0.300”) and a lead length from
4 to 30 mm. Encapsulation is made of phenolic resin.
tangent
line
D
SH
CAPACITANCE RANGE:
Class 1, at 1 MHz, 1.2 V (RMS); 10 to 82 pF
1 kHz, 1 ± 0.2 V (RMS) for capacitance values higher than 1000 pF.
Class 2, at 1 kHz, 1 ± 0.2 V (RMS); 100 to 22000 pF
F
RATED DC VOLTAGE:
500 V
Capacitors with 7.5 mm (0.30") lead spacing.
DIELECTRIC STRENGTH:
250 % of rated voltage
SECTIONAL SPECIFICATIONS:
Class 1 IEC 60 384-8,
Class 2 IEC 60 384-9,
INSULATION RESISTANCE AT 500V (DC):
≥
10000 MΩ
EIA 198
CLIMATIC CATEGORY:
TOLERANCE ON CAPACITANCE:
± 5 %; ± 10 %; ± 20 %; + 80 /- 20 %
Class 1 55/125/21
Class 2 10/85/21 and 30/85/21
DISSIPATION FACTOR:
Class 1, C
≤
30 pF;
≤
20 x (10/C + 0.7) x
Class 1, C > 30 pF;
≤
20 x 10
-4
Class 2,
≤
3.0 %
10
-4
maximum
OPERATING TEMPERATURE RANGE:
Class1 - 55 to +125 °C
Class 2 - 30 to + 85 °C
TEMPERATURE COEFFICIENTS:
Class 1 C0G (NP0); SL0
Class 2 Y5P; Z5U; Y5V
MARKING
Marking indicates capacitance value and tolerance in
accordance with
“EIA 198”.
The capacitors meet the essential requirements of “EIA 198”. Unless stated otherwise all electrical values apply at an ambient
temperature of 25 ± 3 °C, at normal atmospheric conditions
Document Number 28513
Revision 23-Feb-05
For technical questions contact: CDC@vishay.com
www.vishay.com
35
HV 500 V
Vishay BCcomponents
Ceramic Disc Capacitors
Class 1 and 2, 500 V (DC) General Purpose
ORDERING INFORMATION (PREFERED TYPES), CLASS 1, 500 V (DC), KINKED
CLEAR TEXT CODE
C
(pF)
TOL.
(%)
D
max
(mm)
LEAD
SPACING
F
(mm)
SH
(2)
(mm)
13
th
DIGIT:
T = REEL; U = AMMO;
3 = BULK
16
th
DIGIT:
R = RoHS COMPLIANT
PACKAGING CODE
8
th
AND 9
th
DIGIT
(3)
CATALOG
NUMBER
(4)
3
rd
DIGIT:
5 = STANDARD
8 = RoHS
COMPLIANT
REEL
AMMO
BULK
CLASS 1 NP0
10
D100J20C0GL6.J5.
22.2 508 ..005
12
D120J20C0GL6.J5.
22.2 508 ..055
5.0
15
D150J20C0GL6.J5.
22.2 508 ..105
±
5
5.0
4.0
06
08
10
18
D180J20C0GL6.J5.
22.2 508 ..155
22
6.5
D220J25C0GL6.J5.
22.2 508 ..205
27
D270J25C0GL6.J5.
22.2 508 ..255
CLASS 1 SL0
33
D330J20SL0L6.J5.
22.2 568 ..305
39
D390J20SL0L6.J5.
22.2 568 ..355
5.0
47
D470J20SL0L6.J5.
22.2 568 ..405
±
5
5.0
4.0
06
08
10
56
D560J20SL0L6.J5.
22.2 568 ..505
68
D680J25SL0L6.J5.
22.2 568 ..605
6.5
82
D820J25SL0L6.J5.
22.2 568 ..805
Notes
1. Maximum thickness 4.0 mm.
2. SH = seated height.
3. Packaging codes refer to inward kinked leads. Other styles available on request.
4. 3
rd
digit to complete RoHS catalog number. 8
th
and 9
th
digit of the catalog number to be completed with the packaging code.
ORDERING INFORMATION (PREFERED TYPES), CLASS 2, 500 V (DC), KINKED
CLEAR TEXT CODE
C
(pF)
TOL.
(%)
D
max
(mm)
LEAD
SPACING
F
(mm)
SH
(2)
(mm)
13
th
DIGIT:
T = REEL; U = AMMO;
3 = BULK
16
th
DIGIT:
R = RoHS COMPLIANT
D101K20Y5PL6.J5.
D151K20Y5PL6.J5.
D221K20Y5PL6.J5.
D331K20Y5PL6.J5.
D471K20Y5PL6.J5.
D681K25Y5PL6.J5.
D102K25Y5PL6.J5.
D152K29Y5PL6.J5.
D222K33Y5PL6.J5.
D332K39Y5PL6.J5.
D472K43Y5PL6.J5.
D682K53Y5PL6.J7.
D103K69Y5PL6.J7.
D102Z20Y5VL6.J5.
D152Z20Y5VL6.J5.
D222Z25Y5VL6.J5.
D322Z25Y5VL6.J5.
D472Z29Y5VL6.J5.
D682Z33Y5VL6.J5.
D103Z39Y5VL6.J5.
D153Z43Y5VL6.J5.
D223Z53Y5VL6.J7.
D333Z69Y5VL6.J7.
PACKAGING CODE
8
th
AND 9
th
DIGIT
(3)
CATALOG
NUMBER
(4)
3
rd
DIGIT:
5 = STANDARD
8 = RoHS
COMPLIANT
REEL
AMMO
BULK
CLASS 2 Y5P
100
150
220
330
470
680
±
10
1000
1500
2200
3300
4700
6800
10000
CLASS 2 Y5V
1000
1500
2200
3300
4700
+ 80/− 20
6800
10000
15000
22000
33000
www.vishay.com
36
5.0
6.5
7.5
8.5
10.0
11.0
13.5
17.5
5.0
6.5
7.5
8.5
10.0
11.0
13.5
17.5
5.0
4.0
06
08
10
7.5
−
−
31
22.2 618 ..011
22.2 618 ..111
22.2 618 ..211
22.2 618 ..311
22.2 618 ..411
22.2 618 ..611
22.2 618 ..021
22.2 618 ..121
22.2 618 ..221
22.2 618 ..321
22.2 618 ..421
22.2 618 ..621
22.2 618 ..031
22.2 638 ..023
22.2 638 ..123
22.2 638 ..223
22.2 638 ..323
22.2 638 ..423
22.2 638 ..623
22.2 638 ..033
22.2 638 ..133
22.2 638 ..233
22.2 638 ..333
Document Number 28513
Revision 23-Feb-05
5.0
4.0
06
08
10
7.5
−
−
31
For technical questions contact: CDC@vishay.com
HV 500 V
Ceramic Disc Capacitors
Vishay BCcomponents
Class 1 and 2, 500 V (DC) General Purpose
ORDERING INFORMATION (PREFERED TYPES), CLASS 2, 500 V (DC), KINKED
CLEAR TEXT CODE
C
(pF)
TOL.
(%)
D
max
(mm)
LEAD
SPACING
F
(mm)
SH
(2)
(mm)
13
th
DIGIT:
T = REEL; U = AMMO;
3 = BULK
16
th
DIGIT:
R = RoHS COMPLIANT
PACKAGING CODE
8
th
AND 9
th
DIGIT
(3)
CATALOG
NUMBER
(4)
3
rd
DIGIT:
5 = STANDARD
8 = RoHS
COMPLIANT
REEL
AMMO
BULK
CLASS 2 Z5U
1000
D102M20Z5UL6.J5.
22.2 648 ..022
5.0
1500
D152M25Z5UL6.J5.
22.2 648 ..122
2200
D222M25Z5UL6.J5.
22.2 648 ..222
5.0
06
08
10
3300
7.5
D332M29Z5UL6.J5.
22.2 648 ..322
±
20
4.0
4700
8.5
D472M33Z5UL6.J5.
22.2 648 ..422
6800
10.0
D682M39Z5UL6.J5.
22.2 648 ..622
10000
11.0
D103M43Z5UL6.J5.
22.2 648 ..032
15000
13.5
D153M53Z5UL6.J7.
22.2 648 ..132
7.5
−
−
31
22000
15.0
D223M59Z5UL6.J7.
22.2 648 ..232
Notes
1. Maximum thickness 4.0 mm.
2. SH = seated height.
3. Packaging codes refer to inward kinked leads. Other styles available on request.
4. 3
rd
digit to complete RoHS catalog number. 8
th
and 9
th
digit of the catalog number to be completed with the packaging code.
PACKAGING
D
max
mm
5.0 (0.20")
6.5 (0.25")
7.5 (0.29")
8.5 (0.33")
10.0 (0.39")
11.0 (0.43")
12.0 (0.47")
13.5 (0.53")
15.0 (0.59")
17.5 (0.69")
SIZE CODE
20
25
29
33
39
43
47
53
59
69
PACKAGING QUANTITIES
BULK
REEL
AMMO
1000
2000
2000
500
−
−
Note
1. The capacitors are supplied in bulk packaging (cardboard boxes), in tape on reel or in ammopack
D
P
2
P
∆P
∆P
∆h
∆h
H
1
W
2
H
0
L
W
1
W
0
W
A
e
direction of unreeling
∅d
P
1
F
P
0
t
1
detail A
t
D
0
Kinked capacitors on tape, lead spacing 5.0 mm (0.2 inch).
Document Number 28513
Revision 23-Feb-05
For technical questions contact: CDC@vishay.com
www.vishay.com
37
HV 500 V
Vishay BCcomponents
Ceramic Disc Capacitors
Class 1 and 2, 500 V (DC) General Purpose
DIMENSIONS OF TAPE
SYMBOL
D
d
P
P
0
∆P
P
1
P
2
F
∆h
∆s
W
W
0
W
1
W
2
H
0
H
1
e
L
D
0
t
t
1
PARAMETER
body diameter
lead diameter
pitch between capacitors
feed-hole pitch
plane deviation
feed-hole centre to lead centre
feed-hole centre to component centre
lead spacing
component alignment
deviation along tape, left or right
tape width
hold-down tape width
hole position
hold-down tape margin
height to seating plane
maximum component height
lead end protrusion
maximum length of snipped lead
feed-hole diameter
total tape thickness
maximum thickness of tape and wires
DIMENSIONS (mm)
NOMINAL
11.0 maximum
0.6
12.7
12.7
1.0 maximum
3.85
6.35
5.0
0
0
18.0
5.0 minimum
9.0
3.0 maximum
16.0
32.0
1.0 maximum
11.0
4.0
0.9 maximum
1.5 maximum
TOLERANCE
-
± 0.05
± 1.0
± 0.3; note 1
-
± 0.7; note 2
± 1.3; note 2
+ 0.6
- 0.4
± 1.0
± 1.0
+ 1.0
- 0.5
-
+ 0.75
- 0.5
-
± 0.5
-
-
-
±
0.2
−
−
Notes
1. Cumulative pitch error:
± ≤
1 mm /20 pitches.
2. Obliquity maximum 3°.

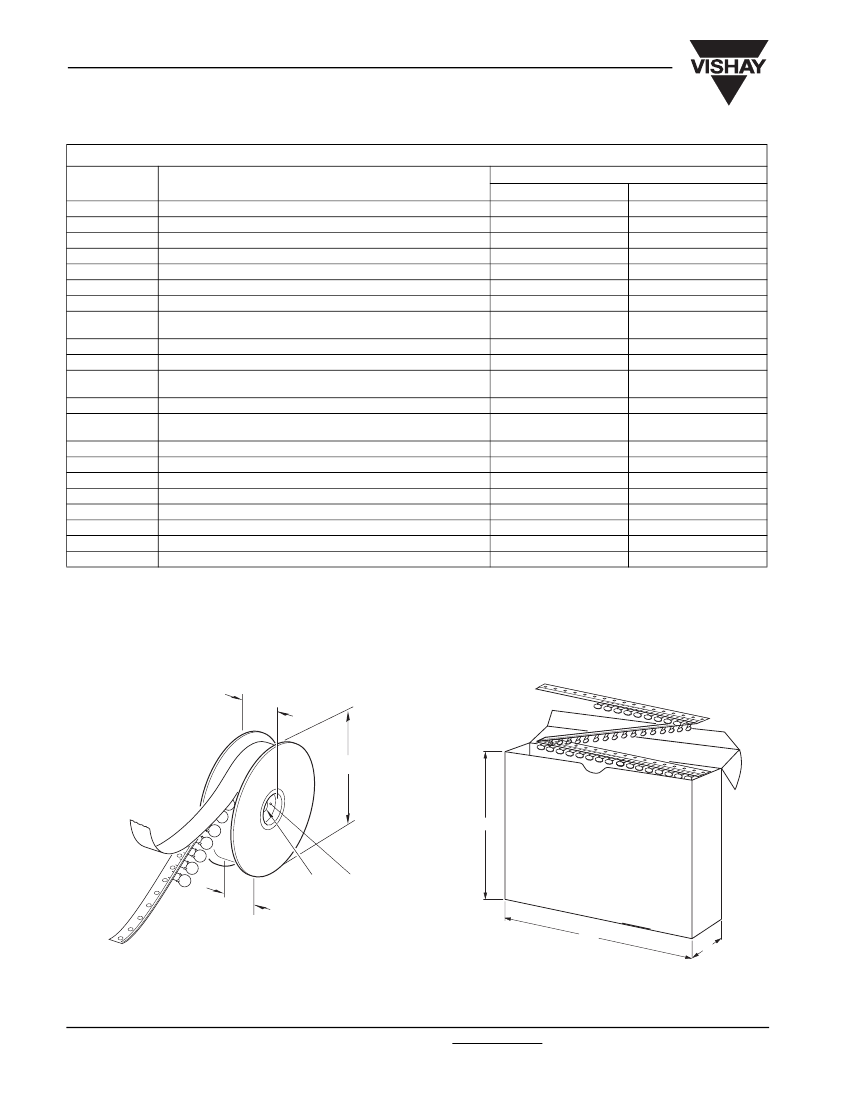

REEL AND TAPE DATA
in millimeters
51 max.
355.6
±2.0
290
28
±1.5
45 max.
8.0
335
50
Reel with capacitors on tape.
Ammopack with capacitors on tape.
www.vishay.com
38
For technical questions contact: CDC@vishay.com
Document Number 28513
Revision 23-Feb-05
