71694-2107 Overview

Rectangular Power Connector, 10 Contact(s), Female, IDC Terminal, Receptacle

71694-2107 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	MINI-FIT IDT, POLARIZED, POSITIVE LOCK
body width	0.43 inch
subject depth	1.028 inch
body length	1.813 inch
Body/casing type	RECEPTACLE
Connector type	RECTANGULAR POWER CONNECTOR
Contactor design	PREASSEM CONN
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	2200VAC V
Durability	30 Cycles
empty shell	NO
Filter function	NO
IEC compliance	NO
maximum insertion force	6.672 N
Insulation resistance	1000000000 Ω
insulator material	POLYESTER
JESD-609 code	e3
MIL compliance	NO
Plug contact pitch	0.165 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	LOCKING MECH
Installation type	CABLE
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
Plating thickness	15u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	6 A
Guideline	CSA, UL
reliability	COMMERCIAL
Shell material	POLYESTER
Terminal length
Termination type	IDC
Total number of contacts	10
UL Flammability Code	94V-0
Maximum wire diameter	18 AWG
Minimum wire diameter	18 AWG
Evacuation force-minimum value	3.9198 N

Preview

Download Datasheet

View All

FEATURES AND SPECIFICATIONS

Features and Beneﬁts

Sizes 2 to 12 circuits

Positive latching system

Built-in strain relief

Polarized

Feed-to and feed-through

Electrical (continued)

Current: Receptacle and plug

Wire Gauge

2 Circuit

6.25

5.50

4.75

4.50

3 to 12 Circuit

5.00

4.75

4.25

4.00

4.20mm (.165") Pitch

Mini-Fit, IDT

™

Receptacle

71694

Single Row

Power Connectors

Reference Information

Product Speciﬁcation: PS-71690-001

Packaging: Bag

UL File No.: E29179

CSA File No.: LR19980

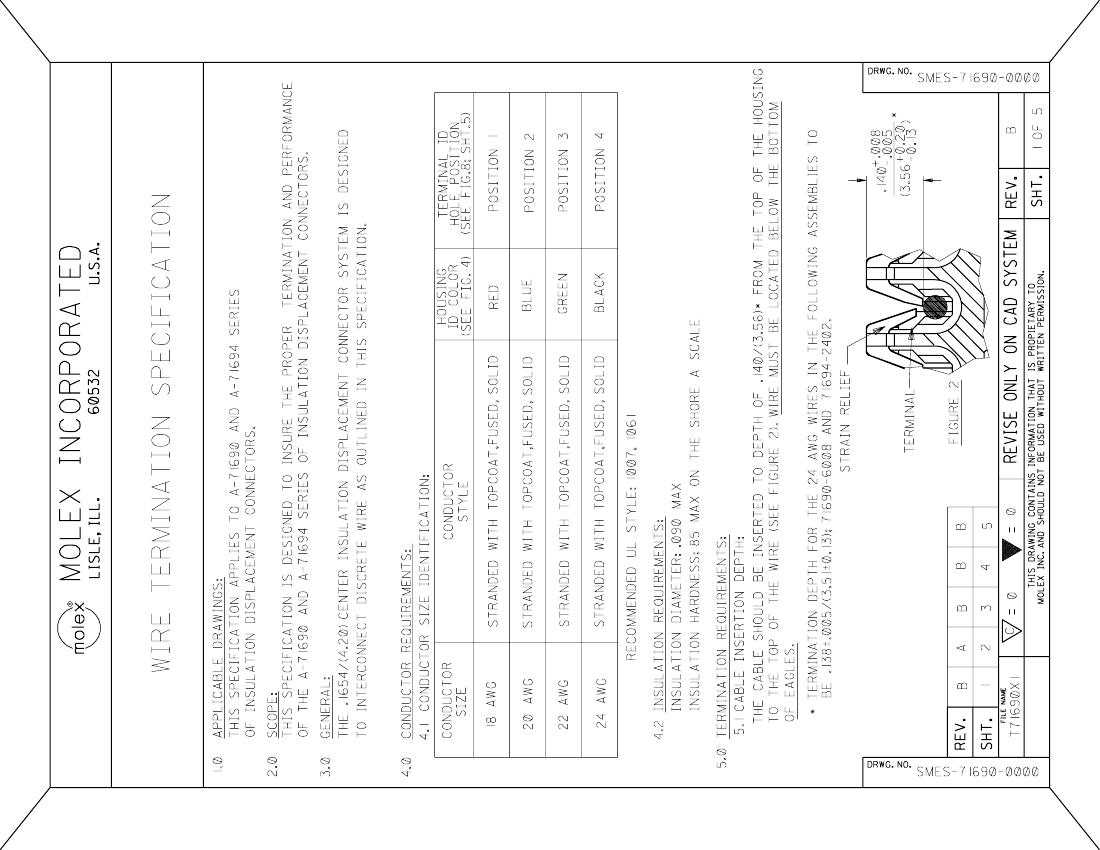

Tooling Information: See end of section

Mates With:

71690, 71231

and

71233

Designed In: Inches

Electrical

Voltage: 600V

Current: Receptacle and header

Wire Gauge

2 Circuit

7.0

6.0

5.0

4.50

3 to 12 Circuit

6.0

5.25

4.50

4.0

Contact Resistance: 20m

Ω

max.

Dielectric Withstanding Voltage: 2200V AC

Insulation Resistance: 1000 M

Ω

min.

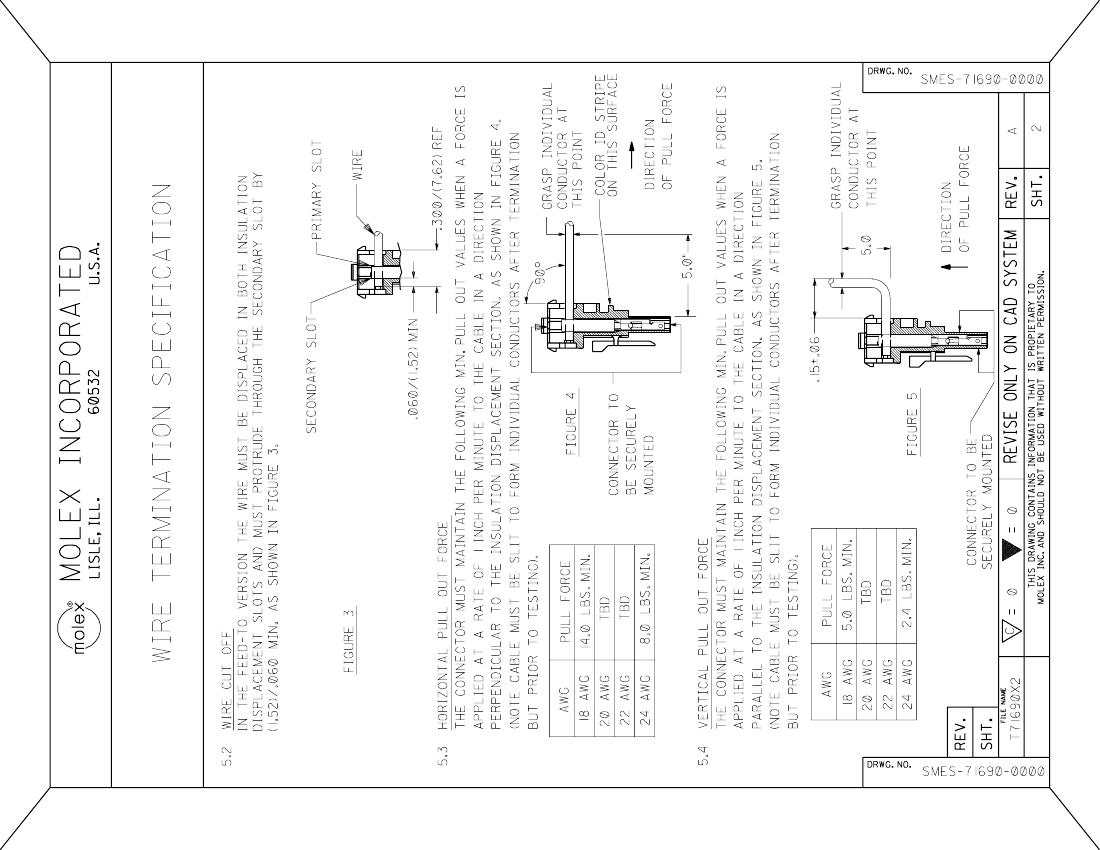

Mechanical

Contact Retention to Housing: 74N (16.64 lb) min.

Wire Pull-Out Force: 23N (5.17 lb) min.

Mating Force: 6.86N (1.54 lb) max.

Unmating Force: 3.92N (.89 lb) min.

Normal Force: 1.96N (.44 lb) min.

Durability: 30 cycles

Physical

Housing: Unfilled polyester, UL 94V-0

Contact: Phosphor Bronze

Plating: See table

Operating Temperature: -40 to +105˚C

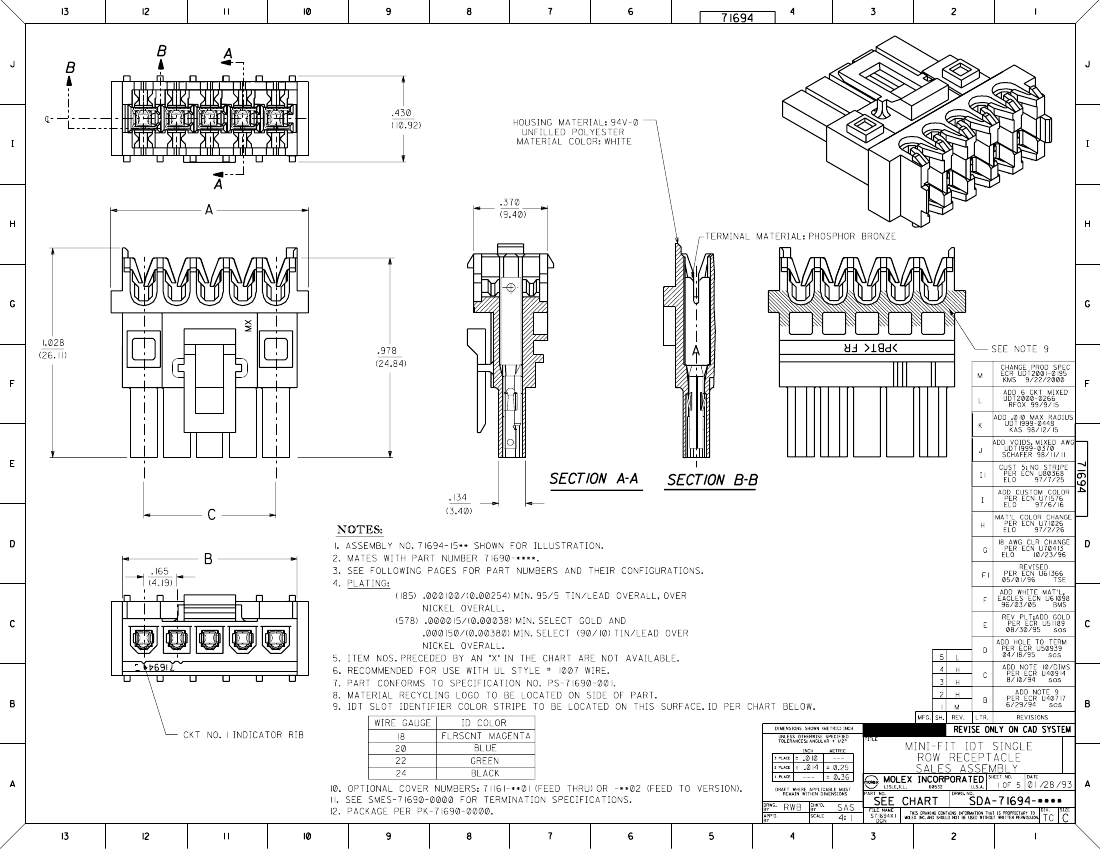

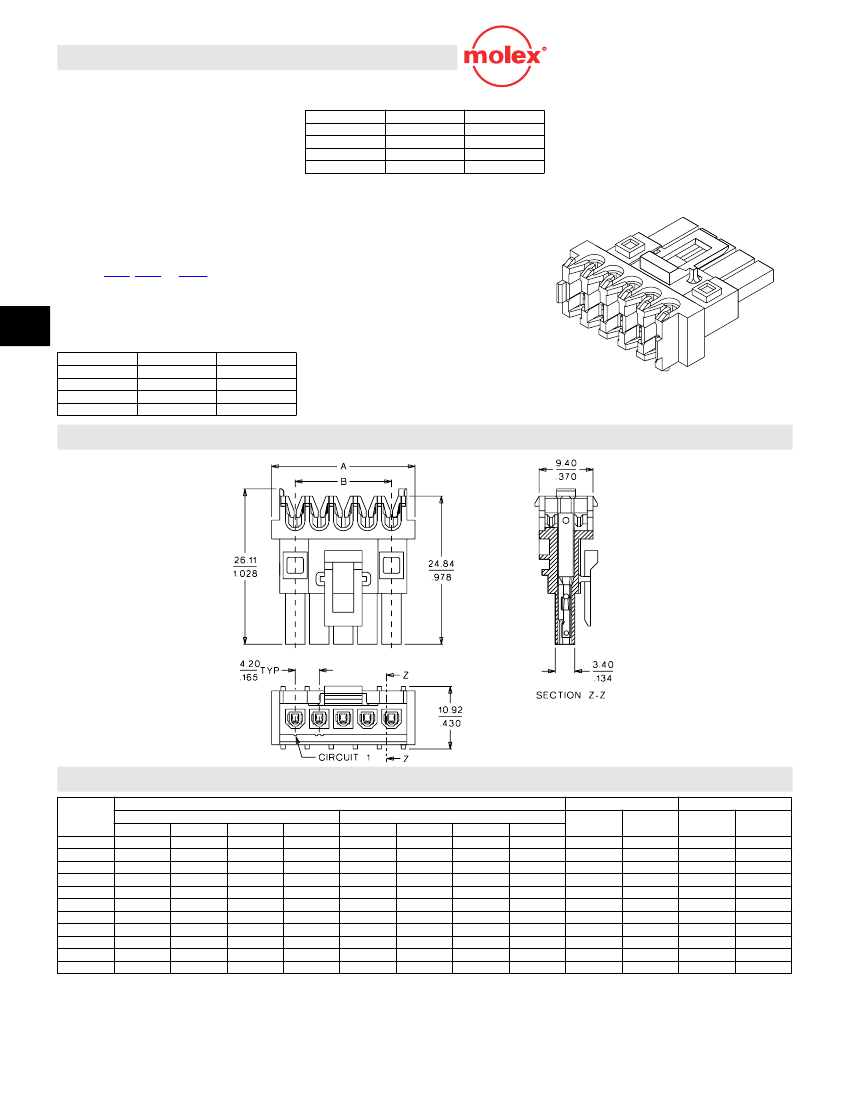

CATALOG DRAWING (FOR REFERENCE ONLY)

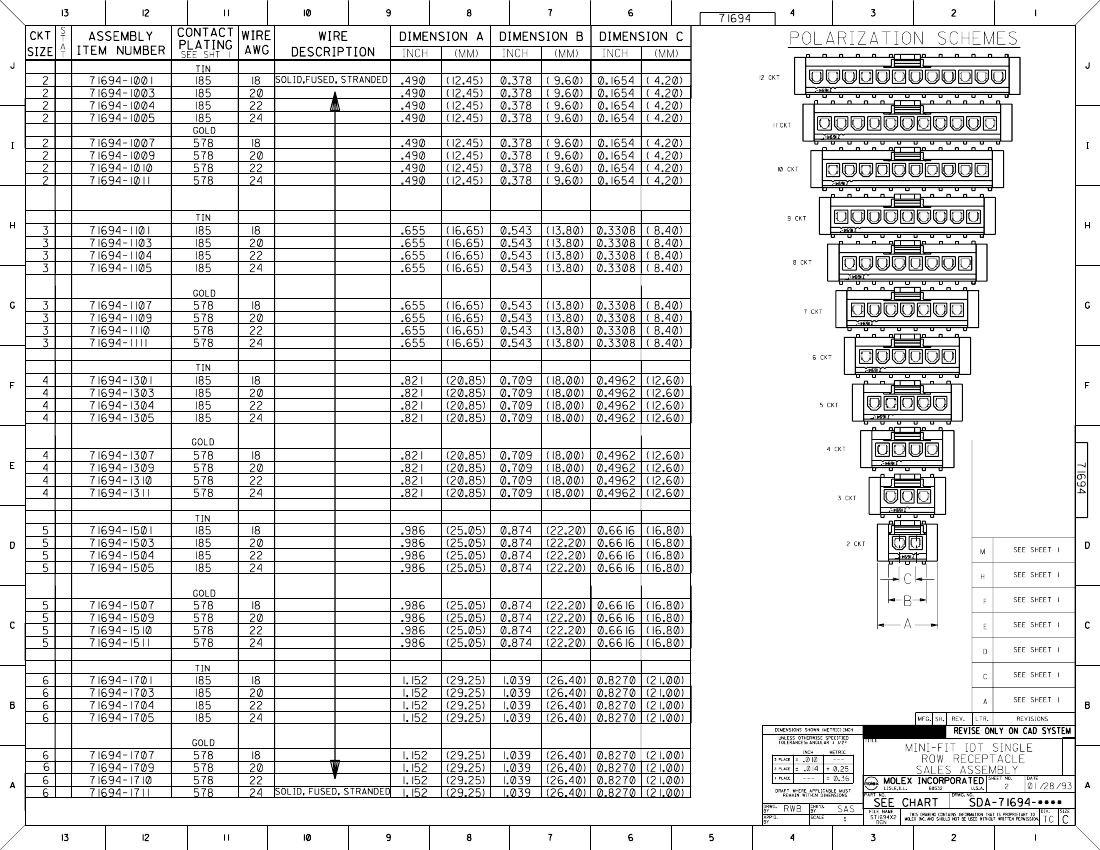

ORDERING INFORMATION AND DIMENSIONS

Order No.

Circuits

18 AWG

• 71694-1001

• 71694-1101

• 71694-1301

• 71694-1501

• 71694-1701

• 71694-1801

• 71694-1901

• 71694-2001

• 71694-2101

• 71694-2201

• 71694-2301

Tin/Lead

20 AWG

22 AWG

• 71694-1003

71694-1004

• 71694-1103

71694-1104

• 71694-1303

71694-1304

• 71694-1503

71694-1504

• 71694-1703

71694-1704

• 71694-1803

71694-1804

• 71694-1903

71694-1904

• 71694-2003

71694-2004

• 71694-2103

71694-2104

• 71694-2203

71694-2204

• 71694-2303

71694-2304

Gold

24 AWG

71694-1005

71694-1105

71694-1305

71694-1505

71694-1705

71694-1805

71694-1905

71694-2005

71694-2105

71694-2205

71694-2305

18 AWG

71694-1007

71694-1107

71694-1307

71694-1507

71694-1707

71694-1807

71694-1907

71694-2007

71694-2107

71694-2207

71694-2307

20 AWG

71694-1009

71694-1109

71694-1309

71694-1509

71694-1709

71694-1809

71694-1909

71694-2009

71694-2109

71694-2209

71694-2309

22 AWG

71694-1010

71694-1110

71694-1310

71694-1510

71694-1710

71694-1810

71694-1910

71694-2010

71694-2110

71694-2210

71694-2310

24 AWG

71694-1011

71694-1111

71694-1311

71694-1511

71694-1711

71694-1811

71694-1911

71694-2011

71694-2111

71694-2211

71694-2311

Cover

Feed-Through

71161-0201

71161-0301

71161-0401

71161-0501

71161-0601

71161-0701

71161-0801

71161-0901

71161-1001

71161-1101

71161-1201

Feed-To

71161-0202

71161-0302

71161-0402

71161-0502

71161-0602

71161-0702

71161-0802

71161-0902

71161-1002

71161-1102

71161-1202

12.45

16.65

20.85

25.05

29.25

33.45

37.65

41.85

46.05

50.25

54.45

(.490)

(.655)

(.821)

(.986)

(1.152)

(1.317)

(1.482)

(1.648)

(1.813)

(1.978)

(2.144)

4.20

8.40

12.60

16.80

21.00

25.20

29.40

33.60

37.80

42.00

46.20

Dimension

(.165)

(.331)

(.496)

(.661)

(.827)

(.992)

(1.158)

(1.323)

(1.488)

(1.654)

(1.819)

• US Standard Product, available through Molex franchised distributors

F-56

MX01
