TSOP1238TB1

Description
Photo IC, 3 Pin,
CategoryLED optoelectronic/LED    photoelectric
File Size279KB，8 Pages
ManufacturerVishay Telefunken (Vishay)
Websitehttp://www.vishay.com
Download Datasheet Parametric Compare View All

TSOP1238TB1 Overview

Photo IC, 3 Pin,

TSOP1238TB1 Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerVishay Telefunken (Vishay)
Reach Compliance Codeunknown
JESD-609 codee0
Number of terminals3
Terminal surfaceTin/Lead (Sn/Pb)

TSOP1238TB1 Preview

VISHAY
TSOP12..TB1
Vishay Semiconductors
IR Receiver Modules for Remote Control Systems
Description
The TSOP12..TB1 - series are miniaturized receivers
for infrared remote control systems. PIN diode and
preamplifier are assembled on lead frame, the epoxy
package is designed as IR filter.
The demodulated output signal can directly be
decoded by a microprocessor. TSOP12..TB1 is the
standard IR remote control receiver series, support-
ing all major transmission codes.
GND
V
S
OUT
94 8692
Features
• Photo detector and preamplifier in one package
• Internal filter for PCM frequency
• Improved shielding against electrical field distur-
bance
• TTL and CMOS compatibility
• Output active low
• Low power consumption
Parts Table
Part
TSOP1230TB1
TSOP1233TB1
TSOP1236TB1
TSOP1237TB1
TSOP1238TB1
TSOP1240TB1
TSOP1256TB1
30 kHz
33 kHz
36 kHz
36.7 kHz
38 kHz
40 kHz
56 kHz
Carrier Frequency
Special Features
• Improved immunity against ambient light
• Suitable burst length
≥
10 cycles/burst
Application Circuit
Transmitter
TSOPxxxx
with
TSALxxxx
Circuit
Block Diagram
R
1
= 100
Ω
V
S
C
1
=
4.7 µF
V
O
+V
S
2
30 kΩ
Input
PIN
AGC
Band
Pass
Demo-
dulator
V
S
3
OUT
OUT
GND
µC
GND
1
Control Circuit
GND
R
1
+ C
1
recommended to suppress power supply
disturbances.
The output voltage should not be hold continuously at
a voltage below V
O =
3.3 V by the external circuit.
Absolute Maximum Ratings
T
amb
= 25 °C, unless otherwise specified
Parameter
Supply Voltage
(Pin 2)
Test condition
Symbol
V
S
Value
- 0.3 to +
6.0
Unit
V
Document Number 82020
Rev. 10, 15-Oct-2002
www.vishay.com
1
TSOP12..TB1
Vishay Semiconductors
Parameter
Supply Current
Output Voltage
Output Current
Junction Temperature
Storage Temperature Range
Operating Temperature Range
Power Consumption
Soldering Temperature
(T
amb
≤
85 °C)
t
≤
5s
(Pin 2)
(Pin 3)
(Pin 3)
Test condition
Symbol
I
S
V
O
I
O
T
j
T
stg
T
amb
P
tot
T
sd
Value
5
VISHAY
Unit
mA
V
mA
°C
°C
°C
mW
°C
- 0.3 to +
6.0
5
100
- 25 to + 85
- 25 to + 85
50
260
Electrical and Optical Characteristics
T
amb
= 25 °C, unless otherwise specified
Parameter
Supply Current (Pin 2)
Supply Voltage (Pin 2)
Transmission Distance
Output Voltage Low (Pin 3)
Irradiance (30 - 40 kHz)
Irradiance (56 kHz)
Irradiance
Directivity
E
v
= 0, test signal see fig.1, IR
diode TSAL6200, I
F
= 400 mA
I
OSL
= 0.5 mA, E
e
= 0.7 mW/m
2
, f
= f
o
, test signal see fig. 1
Pulse width tolerance: t
pi
- 5/f
o
< t
po
< t
pi
+ 6/f
o
, test signal see fig.1
Pulse width tolerance: t
pi
- 5/f
o
< t
po
< t
pi
+ 6/f
o
, test signal see fig.1
t
pi
- 5/f
o
< t
po
< t
pi
+ 6/f
o
, test signal
see fig. 1
Angle of half transmission distance
Test condition
V
S
= 5 V, E
v
= 0
V
S
= 5 V, E
v
= 40 klx, sunlight
Symbol
I
SD
I
SH
V
S
d
V
OSL
E
e min
E
e min
E
e max
ϕ
1/2
30
±
45
0.35
0.4
4.5
35
250
0.5
0.6
Min
0.8
Typ.
1.2
1.5
5.5
Max
1.5
Unit
mA
mA
V
m
mV
mW/m
2
mW/m
2
W/m
2
deg
Typical Characteristics
(T
amb
= 25°C unless otherwise specified)
E
e
Optical Test Signal
(IR diode TSAL6200, I
F
= 0.4 A, 30 pulses, f = f
0
, T = 10 ms)
1.0
t
po
– Output Pulse Width ( ms )
0.9
0.8
0.7
0.6
0.5
0.4
0.3
0.2
0.1
0.0
0.1
1.0
Output Pulse
t
t
pi
*
T
* t
pi
w
10/fo is recommended for optimal function
V
O
V
OH
V
OL
t
d1 )
Output Signal
1)
2)
16110
Input Burst Duration
7/f
0
<
t
d
<
15/f
0
t
pi
–5/f
0
<
t
po
<
t
pi
+6/f
0
t
po2 )
t
l
= 950 nm,
optical test signal, fig.1
10.0
100.0 1000.010000.0
16908
E
e
– Irradiance ( mW/m
2
)
Figure 1. Output Function
Figure 2. Pulse Length and Sensitivity in Dark Ambient
Document Number 82020
Rev. 10, 15-Oct-2002
www.vishay.com
2
VISHAY
TSOP12..TB1
Vishay Semiconductors
E
e
Optical Test Signal
E
e min
– Threshold Irradiance ( mW/m
2
)
4.0
3.5
3.0
2.5
2.0
1.5
1.0
0.5
0.0
0.01
Ambient,
l
= 950 nm
Correlation with ambient light sources:
10W/m
2
^1.4klx
(Std.illum.A,T=2855K)
10W/m
2
^8.2klx
(Daylight,T=5900K)
600
ms
T = 60 ms
Output Signal,
( see Fig.4 )
600
ms
t
94 8134
V
O
V
OH
V
OL
T
on
T
off
t
16911
0.10
1.00
10.00
(W/m
2
)
100.00
E – Ambient DC Irradiance
Figure 3. Output Function
Figure 6. Sensitivity in Bright Ambient
0.9
0.8
0.7
0.6
0.5
0.4
0.3
0.2
0.1
0.0
0.1
1.0
l
= 950 nm,
optical test signal, fig.3
Toff
Ton
E
e min
– Threshold Irradiance ( mW/m
2
)
T
on
,T
off
– Output Pulse Width ( ms )
1.0
2.0
f = f
o
f = 10 kHz
1.0
1.5
f = 1 kHz
0.5
f = 100 Hz
0.0
0.1
1.0
10.0
100.0
1000.0
10.0
100.0 1000.010000.0
mW/m
2
)
16912
16909
E
e
– Irradiance (
DV
sRMS
– AC Voltage on DC Supply Voltage (mV)
Figure 4. Output Pulse Diagram
Figure 7. Sensitivity vs. Supply Voltage Disturbances
E
e min
– Threshold Irradiance ( mW/m
2
)
1.2
E
e min
/ E
e
– Rel. Responsivity
2.0
f(E) = f
0
1.6
1.2
0.8
0.4
0.0
0.0
0.4
0.8
1.2
1.6
2.0
E – Field Strength of Disturbance ( kV/m )
1.0
0.8
0.6
0.4
0.2
0.0
0.7
f = f
0
"5%
Df
( 3dB ) = f
0
/10
0.9
1.1
1.3
16925
f/f
0
– Relative Frequency
94 8147
Figure 5. Frequency Dependence of Responsivity
Figure 8. Sensitivity vs. Electric Field Disturbances
Document Number 82020
Rev. 10, 15-Oct-2002
www.vishay.com
3
TSOP12..TB1
Vishay Semiconductors
VISHAY
0.8
0.7
Max. Envelope Duty Cycle
0
10
20
30
0.6
40
0.5
0.4
0.3
0.2
0.1
0.0
0
20
40
60
80
100
120
95 11340p2
1.0
0.9
0.8
f = 38 kHz, E
e
= 2
mW/m
2
0.7
50
60
70
80
0.6
0.6
0.4
0.2
0
0.2
0.4
d
rel
– Relative Transmission Distance
16913
Burst Length ( number of cycles / burst )

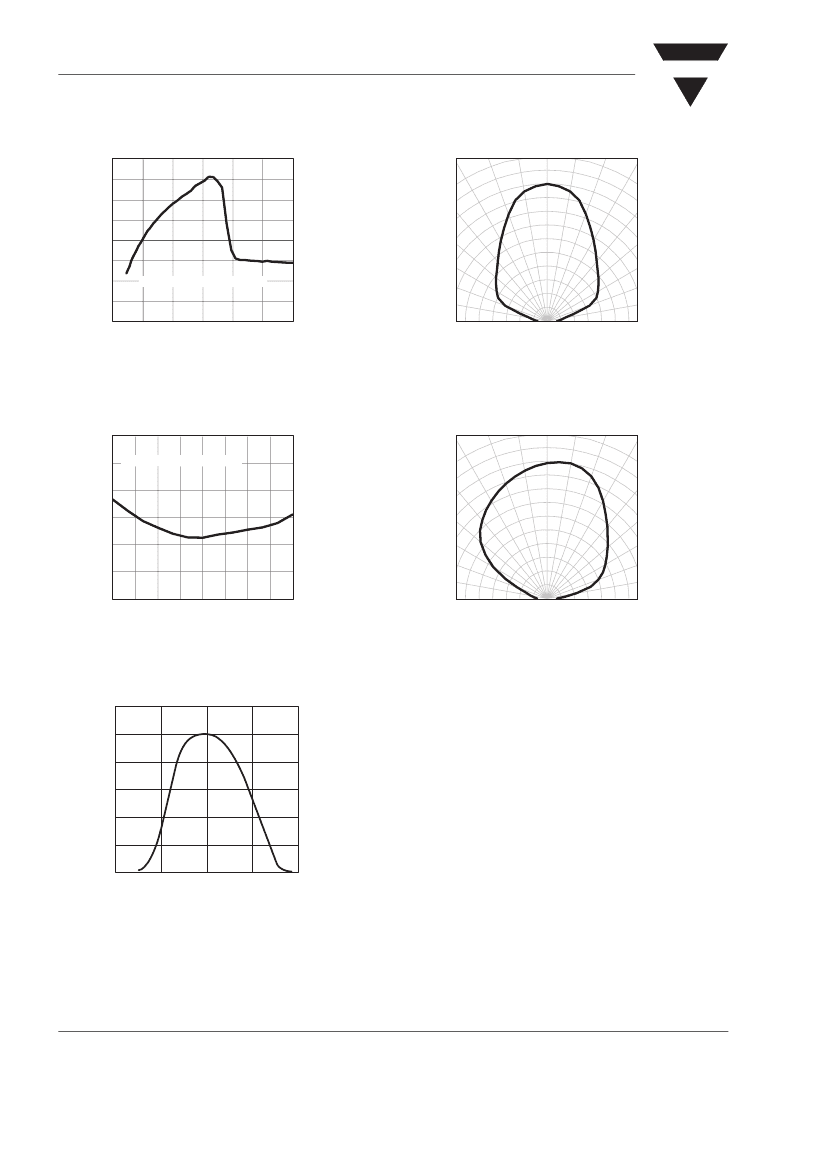

Figure 9. Max. Envelope Duty Cycle vs. Burstlength
Figure 12. Horizontal Directivity
ϕ
x
E
e min
– Threshold Irradiance ( mW/m
2
)
0.6
0.5
0.4
1.0
0.3
0.2
0.1
0.0
–30 –15
0.9
0.8
0.7
Sensitivity in dark ambient
0
10
20
30
40
50
60
70
80
0
15
30
45
60
75
90
95 11339p2
0.6
16918
T
amb
– Ambient Temperature ( C )
0.6
0.4
0.2
0
0.2
0.4
d
rel
– Relative Transmission Distance
Figure 10. Sensitivity vs. Ambient Temperature
Figure 13. Vertical Directivity
ϕ
y
S (
l
)
rel
– Relative Spectral Sensitivity
1.2
1.0
0.8
0.6
0.4
0.2
0
750
Suitable Data Format
The circuit of the TSOP12..TB1 is designed in that
way that unexpected output pulses due to noise or
disturbance signals are avoided. A bandpassfilter, an
integrator stage and an automatic gain control are
used to suppress such disturbances.
The distinguishing mark between data signal and dis-
turbance signal are carrier frequency, burst length
and duty cycle.
The data signal should fulfill the following conditions:
• Carrier frequency should be close to center fre-
quency of the bandpass (e.g. 38 kHz).
• Burst length should be 10 cycles/burst or longer.
• After each burst which is between 10 cycles and 70
cycles a gap time of at least 14 cycles is necessary.
• For each burst which is longer than 1.8 ms a corre-
sponding gap time is necessary at some time in the
850
950
1050
1150
94 8408
l
– Wavelength ( nm )
Figure 11. Relative Spectral Sensitivity vs. Wavelength
Document Number 82020
Rev. 10, 15-Oct-2002
www.vishay.com
4
VISHAY
data stream. This gap time should be at least 4 times
longer than the burst.
• Up to 800 short bursts per second can be received
continuously.
Some examples for suitable data format are: NEC
Code (repetitive pulse), NEC Code (repetitive data),
Toshiba Micom Format, Sharp Code, RC5 Code,
RC6 Code, R-2000 Code, Sony Code.
When a disturbance signal is applied to the
TSOP12..TB1 it can still receive the data signal. How-
ever the sensitivity is reduced to that level that no
unexpected pulses will occure.
Some examples for such disturbance signals which
are suppressed by the TSOP12..TB1 are:
• DC light (e.g. from tungsten bulb or sunlight)
• Continuous signal at 38 kHz or at any other fre-
quency
• Signals from fluorescent lamps with electronic bal-
last with high or low modulation (see Figure 14 or Fig-
ure 15).
TSOP12..TB1
Vishay Semiconductors
IR Signal from fluorescent
lamp with high modulation
IR Signal
0
16921
5
10
Time ( ms )
15
20
Figure 15. IR Signal from Fluorescent Lamp with high Modulation
IR Signal
IR Signal from fluorescent
lamp with low modulation
0
16920
5
10
Time ( ms )
15
20
Figure 14. IR Signal from Fluorescent Lamp with low Modulation
Document Number 82020
Rev. 10, 15-Oct-2002
www.vishay.com
5
More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

TSOP1238TB1 Related Products

TSOP1238TB1 TSOP1233TB1 TSOP1230TB1 TSOP1240TB1 TSOP1237TB1 TSOP1236TB1 TSOP1256TB1
Description Photo IC, 3 Pin, Photo IC, 3 Pin, Photo IC, 3 Pin, Photo IC, 3 Pin, Photo IC, 3 Pin, Photo IC, 3 Pin, Photo IC, 3 Pin,
Is it Rohs certified? incompatible incompatible incompatible incompatible incompatible incompatible incompatible
Maker Vishay Telefunken (Vishay) Vishay Telefunken (Vishay) Vishay Telefunken (Vishay) Vishay Telefunken (Vishay) Vishay Telefunken (Vishay) Vishay Telefunken (Vishay) Vishay Telefunken (Vishay)
Reach Compliance Code unknown unknown unknown unknown unknown unknown unknown
JESD-609 code e0 e0 e0 e0 e0 e0 e0
Number of terminals 3 3 3 3 3 3 3
Terminal surface Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb)

Recommended Resources

Automotive electronic fuel-saving circuit (1)

The high voltage output of the inverter forms the circuit

Dehydrator automatic timer shutdown circuit

Simple telephone function test power supply diagram

Energy-saving three-phase asynchronous motor phase failure protection circuit

Mixing amplifier circuit diagram

STM8S103 serial port problem, two days ago
The chip used is STM8S103F3. Use serial port 1, internal clock, query transmission, interrupt or query reception. Question: Is the STM8 multiplexing? If you configure the serial port, the correspondin...
xingkong911 stm32/stm8
Student dormitory apartment monitoring system based on Internet of Things
1. Background of the work: In recent years, college dormitory safety accidents have occurred frequently, causing unnecessary personal injury and property loss to students. Therefore, dormitory safety ...
青春最好时 DigiKey Technology Zone
Reading DSP IO port status problem
[font=Tahoma,]I would like to ask, TI's 28335DSP. When the GPIO is configured as digital IO and input, when a high or low level is input, why is the status seen in the GPxDAT register different from t...
kikihi DSP and ARM Processors
100 points, please come and enlighten me, a singing toy doll
Hello everyone, someone asked how to make a singing toy doll, just like the toy dolls on the market, press it once and it will sing a song, press it again and it will smile, press it again and it will...
mysky163 Embedded System
Help: I need excellent works of Liquid Drops
[i=s]This post was last edited by paulhyde on 2014-9-15 09:00[/i] I have been looking for information recently, but I haven't found any excellent works about liquid dripping. If anyone has any, please...
xiaolai083 Electronics Design Contest
Technical principles and technical problems of vibration meter
[b][size=16pt][url=http://www.bcae.com.cn/product/bcae_14.html][color=black][font=宋体]Technical Principles of Vibration Meter[/font][/color][/url][/size][/b][b][font=宋体][size=16pt] and Technical Issues...
aluu2005 Automotive Electronics
Shortcut:   E0 E1 E2 E3 E4 E5 E6 E7 E8 E9 EA EB EC ED EE EF EG EH EI EJ EK EL EM EN EO EP EQ ER ES ET EU EV EW EX EY EZ F0 F1 F2 F3 F4 F5 F6 F7 F8 F9 FA FB FC FD FE FF FG FH FI FJ FK FL FM FN FO FP FQ FR FS FT FU FV FW FX FY FZ G0 G1 G2 G3 G4 G5 G6 G7 G8 G9 GA GB GC GD GE GF GG GH GI GJ GK GL GM GN GO GP GQ GR GS GT GU GV GW GX GZ H0 H1 H2 H3 H4 H5 H6 H7 H8 HA HB HC HD HE HF HG HH HI HJ HK HL HM HN HO HP HQ HR HS HT HU HV HW HX HY HZ I1 I2 I3 I4 I5 I6 I7 IA IB IC ID IE IF IG IH II IK IL IM IN IO IP IQ IR IS IT IU IV IW IX J0 J1 J2 J6 J7 JA JB JC JD JE JF JG JH JJ JK JL JM JN JP JQ JR JS JT JV JW JX JZ K0 K1 K2 K3 K4 K5 K6 K7 K8 K9 KA KB KC KD KE KF KG KH KI KJ KK KL KM KN KO KP KQ KR KS KT KU KV KW KX KY KZ

Popular Components

  1. 240-030-2-37SPBS1
  2. V54C3256164VDUG6
  3. 50S2RJ71TH
  4. ER136CM9-26B/WQ
  5. 0603B302J500PT
  6. M55342K12B20W3RWI
  7. EC3SM-16-23.999M
  8. FP20114121232DHAG
  9. P4SMAJ200C-AU_R2_000A1
  10. UM809NP
  11. A3501WVE-F1-4P-NAT
  12. 78L05

Popular Articles

  1. Element14 Releases: Growing Demand for Low-Cost Single Board Computers for Industrial and IoT Applications
  2. Ultrasonic level meter liquid level measurement software framework
  3. Infineon's new factory goes into production, requiring only 10 workers to operate?
  4. Take you to learn more about autonomous driving sensors
  5. IC Insights: Forecast of the third quarter revenue of the world's top 15 semiconductor companies
  6. Chinese researchers propose new proton-conducting electrolyte design principle for solid oxide fuel cells
  7. Google Pixel 6 Pro DXOMARK screen score is 90, ranking seventh
  8. OnePlus 10 Pro is equipped with Pixelworks visual display technology
  9. Ajax Systems and Howe Group partner to create wireless outdoor intrusion detectors
  10. Man rips ex-girlfriend's eyelids to transfer 150,000 yuan via mobile phone: verdict revealed

Technical ResourceMore

  1. C language practice 105 source code examples
  2. Study on judging SCR fault
  3. Signal processing and oversampling conversion (PDG).
  4. Design of UHF RFID Reader-Writer Based on ARM7
  5. MAC97A8_MAC97A6 pdf
  6. Common system maintenance tools
  7. Vibrator inspection standards
  8. Verilog Public Responsibility Manual
  9. Various development practical circuit diagrams
  10. Displacement Calculation of Statically Determined Structures

EEWorld
subscription
account

EEWorld
service
account

Automotive
development
circle

Robot
development
community

About Us Customer Service Contact Information Datasheet Sitemap LatestNews
Index Files: 1387  2612  2160  1019  2104  28  53  44  21  43
Datasheet   0 1 2 3 4 5 6 7 8 9 A B C D E F G H I J K L M N O P Q R S T U V W X Y Z
Room 1530, 15th Floor, Building B, No. 18 Zhongguancun Street, Haidian District, Beijing Telephone: (010) 82350740 Postal Code: 100190
Copyright © 2005-2026 EEWORLD.com.cn, Inc. All rights reserved 京ICP证060456号 京ICP备10001474号-1 电信业务审批[2006]字第258号函 京公网安备 11010802033920号
