2N6349 datasheet, PDF - EEWORLD Datasheet

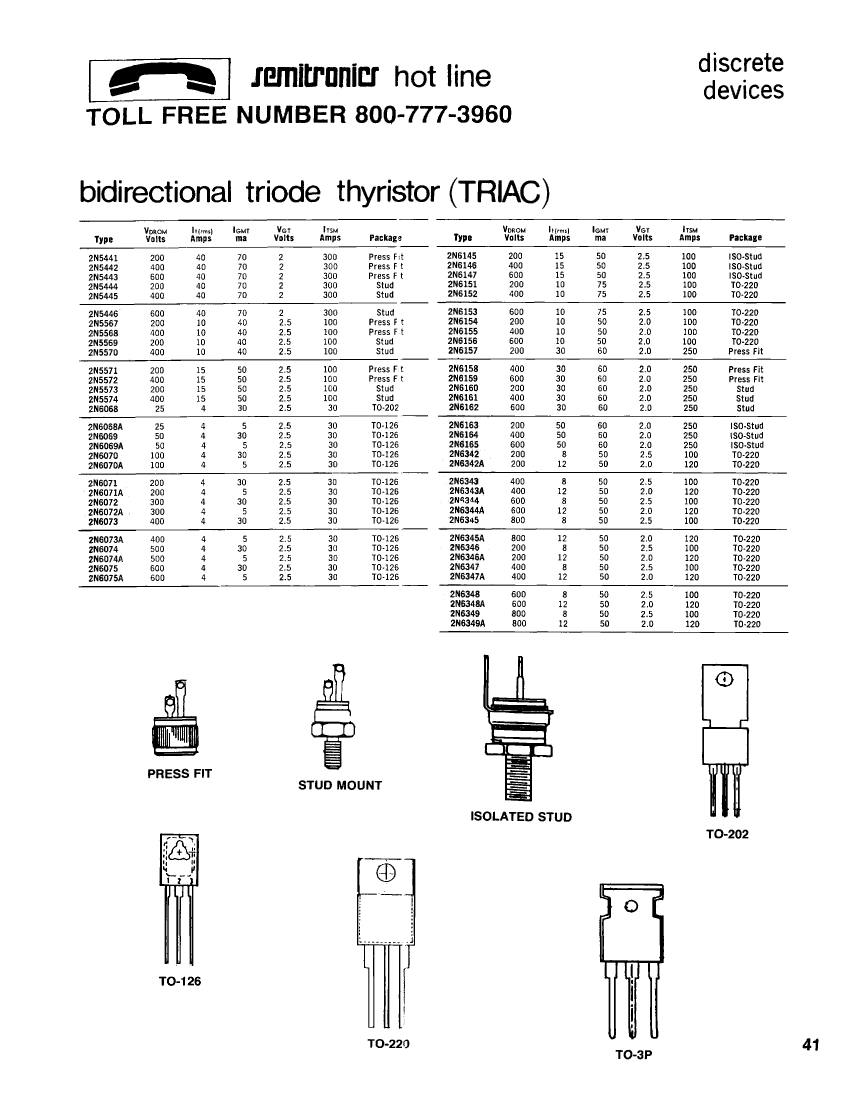

2N6349: DescriptionTRIAC, 800V V(DRM), 8A I(T)RMS, TO-220AB, TO-220, 3 PIN; CategoryAnalog mixed-signal IC Trigger device; File Size44KB，1 Pages; ManufacturerSemitronics Corp.; Related ProductsFound19parts with similar functions to 2N6349

Download Datasheet Parametric View All

2N6349 Overview

TRIAC, 800V V(DRM), 8A I(T)RMS, TO-220AB, TO-220, 3 PIN

Parameter Name	Attribute value
Parts packaging code	SFM
package instruction	FLANGE MOUNT, R-PSFM-T3
Contacts	3
Reach Compliance Code	unknow
Configuration	SINGLE
Maximum DC gate trigger current	50 mA
Maximum DC gate trigger voltage	2.5 V
Maximum holding current	75 mA
JEDEC-95 code	TO-220AB
JESD-30 code	R-PSFM-T3
Maximum leakage current	2 mA
Number of components	1
Number of terminals	3
Maximum operating temperature	100 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Certification status	Not Qualified
Maximum rms on-state current	8 A
Off-state repetitive peak voltage	800 V
surface mount	NO
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
Trigger device type	TRIAC
Base Number Matches	1
