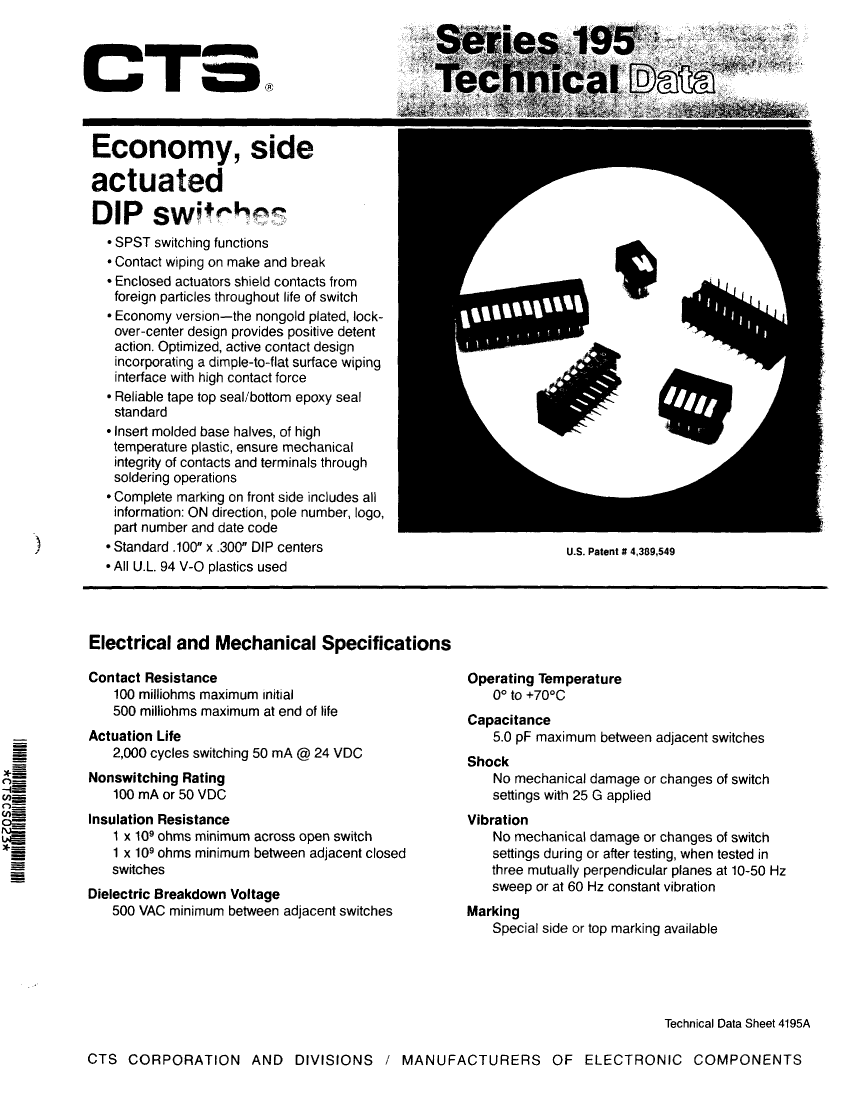

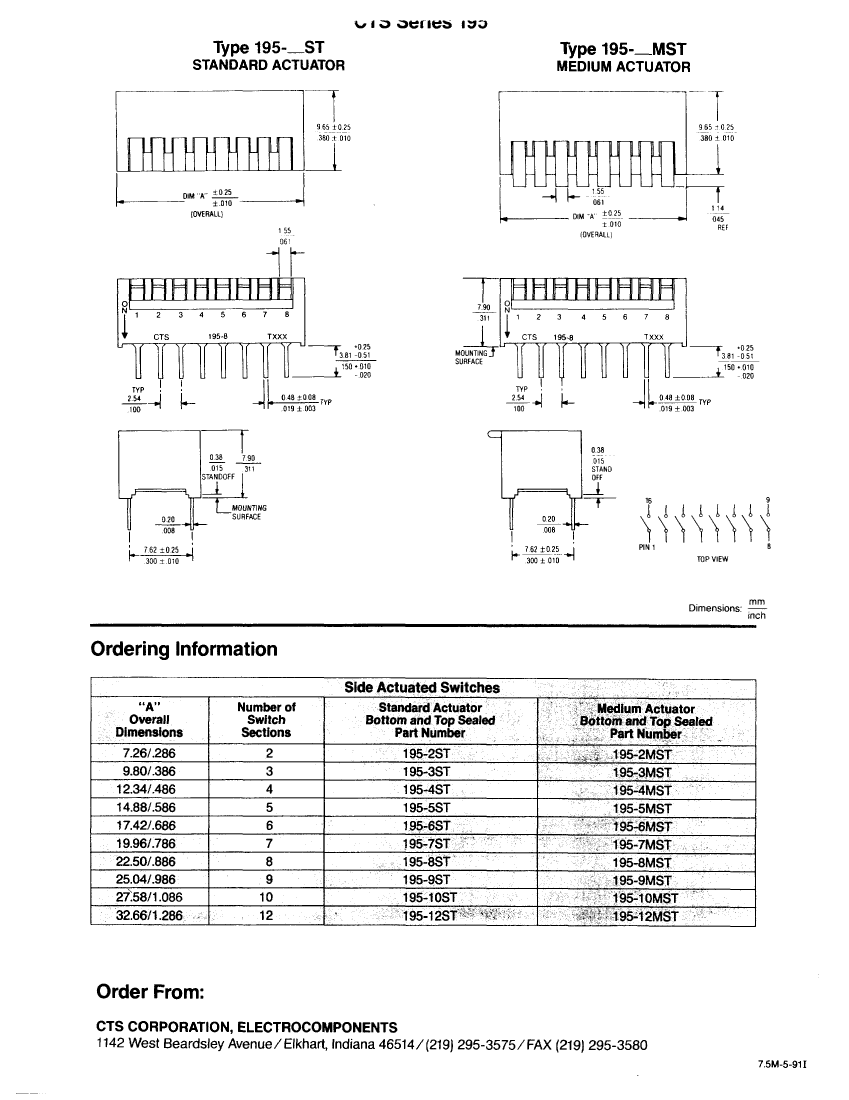

195-5ST: DescriptionPiano Dip Switch, 5 Switches, SPST, Momentary, 0.05A, 24VDC, Solder Terminal, Through Hole-straight; CategoryMechanical and electronic products switch; File Size198KB，2 Pages; ManufacturerCTS

Download Datasheet Parametric Compare View All

195-5ST Overview

Piano Dip Switch, 5 Switches, SPST, Momentary, 0.05A, 24VDC, Solder Terminal, Through Hole-straight

195-5ST Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknow
ECCN code	EAR99
body width	9.65 mm
body height	7.9 mm
Body length or diameter	14.88 mm
Maximum contact current (DC)	0.05 A
Contact (DC) maximum rated R load	.05A@24VDC
Maximum contact voltage (DC)	24 V
Electrical life	2000 Cycle(s)
Manufacturer's serial number	195
Installation features	THROUGH HOLE-STRAIGHT
Number of switching segments	5
Maximum operating temperature	70 °C
Minimum operating temperature
seal	TOP TAPE SEALED
surface mount	NO
Switch action	MOMENTARY
switch function	SPST
Switch type	PIANO DIP SWITCH
Termination type	SOLDER
Base Number Matches	1

Preview

Download Datasheet

View All

195-5ST Related Products

	195-5ST	195-2ST	195-10ST	195-9ST	195-6ST	195-4ST	195-12ST	195-8ST	195-3ST	195-7ST
Description	Piano Dip Switch, 5 Switches, SPST, Momentary, 0.05A, 24VDC, Solder Terminal, Through Hole-straight	Piano Dip Switch, 2 Switches, SPST, Momentary, 0.05A, 24VDC, Solder Terminal, Through Hole-straight	Piano Dip Switch, 10 Switches, SPST, Momentary, 0.05A, 24VDC, Solder Terminal, Through Hole-straight	Piano Dip Switch, 9 Switches, SPST, Momentary, 0.05A, 24VDC, Solder Terminal, Through Hole-straight	Piano Dip Switch, 6 Switches, SPST, Momentary, 0.05A, 24VDC, Solder Terminal, Through Hole-straight	Piano Dip Switch, 4 Switches, SPST, Momentary, 0.05A, 24VDC, Solder Terminal, Through Hole-straight	Piano Dip Switch, 12 Switches, SPST, Momentary, 0.05A, 24VDC, Solder Terminal, Through Hole-straight	Piano Dip Switch, 8 Switches, SPST, Momentary, 0.05A, 24VDC, Solder Terminal, Through Hole-straight	Piano Dip Switch, 3 Switches, SPST, Momentary, 0.05A, 24VDC, Solder Terminal, Through Hole-straight	Piano Dip Switch, 7 Switches, SPST, Momentary, 0.05A, 24VDC, Solder Terminal, Through Hole-straight
Reach Compliance Code	unknow	unknow	unknow	unknow	unknow	unknow	unknow	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
body width	9.65 mm	7.26 mm	9.65 mm	9.65 mm	9.65 mm	9.65 mm	9.65 mm	9.65 mm	9.65 mm	9.65 mm
body height	7.9 mm	7.9 mm	7.9 mm	7.9 mm	7.9 mm	7.9 mm	7.9 mm	7.9 mm	7.9 mm	7.9 mm
Body length or diameter	14.88 mm	9.65 mm	27.58 mm	25.04 mm	17.42 mm	12.34 mm	32.66 mm	22.5 mm	9.8 mm	19.96 mm
Maximum contact current (DC)	0.05 A	0.05 A	0.05 A	0.05 A	0.05 A	0.05 A	0.05 A	0.05 A	0.05 A	0.05 A
Contact (DC) maximum rated R load	.05A@24VDC	.05A@24VDC	.05A@24VDC	.05A@24VDC	.05A@24VDC	.05A@24VDC	.05A@24VDC	.05A@24VDC	.05A@24VDC	.05A@24VDC
Maximum contact voltage (DC)	24 V	24 V	24 V	24 V	24 V	24 V	24 V	24 V	24 V	24 V
Electrical life	2000 Cycle(s)	2000 Cycle(s)	2000 Cycle(s)	2000 Cycle(s)	2000 Cycle(s)	2000 Cycle(s)	2000 Cycle(s)	2000 Cycle(s)	2000 Cycle(s)	2000 Cycle(s)
Manufacturer's serial number	195	195	195	195	195	195	195	195	195	195
Installation features	THROUGH HOLE-STRAIGHT	THROUGH HOLE-STRAIGHT	THROUGH HOLE-STRAIGHT	THROUGH HOLE-STRAIGHT	THROUGH HOLE-STRAIGHT	THROUGH HOLE-STRAIGHT	THROUGH HOLE-STRAIGHT	THROUGH HOLE-STRAIGHT	THROUGH HOLE-STRAIGHT	THROUGH HOLE-STRAIGHT
Number of switching segments	5	2	10	9	6	4	12	8	3	7
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
seal	TOP TAPE SEALED	TOP TAPE SEALED	TOP TAPE SEALED	TOP TAPE SEALED	TOP TAPE SEALED	TOP TAPE SEALED	TOP TAPE SEALED	TOP TAPE SEALED	TOP TAPE SEALED	TOP TAPE SEALED
surface mount	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Switch action	MOMENTARY	MOMENTARY	MOMENTARY	MOMENTARY	MOMENTARY	MOMENTARY	MOMENTARY	MOMENTARY	MOMENTARY	MOMENTARY
switch function	SPST	SPST	SPST	SPST	SPST	SPST	SPST	SPST	SPST	SPST
Switch type	PIANO DIP SWITCH	PIANO DIP SWITCH	PIANO DIP SWITCH	PIANO DIP SWITCH	PIANO DIP SWITCH	PIANO DIP SWITCH	PIANO DIP SWITCH	PIANO DIP SWITCH	PIANO DIP SWITCH	PIANO DIP SWITCH
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Base Number Matches	1	1	1	1	1	1	1	1	1	1
