JANTX2N1488

Description
Power Bipolar Transistor, 6A I(C), 55V V(BR)CEO, 1-Element, NPN, Silicon, TO-204AA, Metal, 2 Pin, TO-33, 2 PIN
CategoryDiscrete semiconductor    The transistor
File Size25KB，2 Pages
ManufacturerMicrosemi
Websitehttps://www.microsemi.com
Download Datasheet Parametric Compare View All

JANTX2N1488 Overview

Power Bipolar Transistor, 6A I(C), 55V V(BR)CEO, 1-Element, NPN, Silicon, TO-204AA, Metal, 2 Pin, TO-33, 2 PIN

JANTX2N1488 Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
Parts packaging codeTO-3
package instructionFLANGE MOUNT, O-MBFM-P2
Contacts2
Reach Compliance Codecompli
ECCN codeEAR99
Maximum collector current (IC)6 A
Collector-emitter maximum voltage55 V
ConfigurationSINGLE
Minimum DC current gain (hFE)15
JEDEC-95 codeTO-204AA
JESD-30 codeO-MBFM-P2
JESD-609 codee0
Number of components1
Number of terminals2
Maximum operating temperature200 °C
Package body materialMETAL
Package shapeROUND
Package formFLANGE MOUNT
Peak Reflow Temperature (Celsius)NOT SPECIFIED
Polarity/channel typeNPN
Certification statusNot Qualified
GuidelineMIL-19500/208
surface mountNO
Terminal surfaceTIN LEAD
Terminal formPIN/PEG
Terminal locationBOTTOM
Maximum time at peak reflow temperatureNOT SPECIFIED
Transistor component materialsSILICON
Base Number Matches1

Preview

Download Datasheet
Back to Bipolar Power Transistors

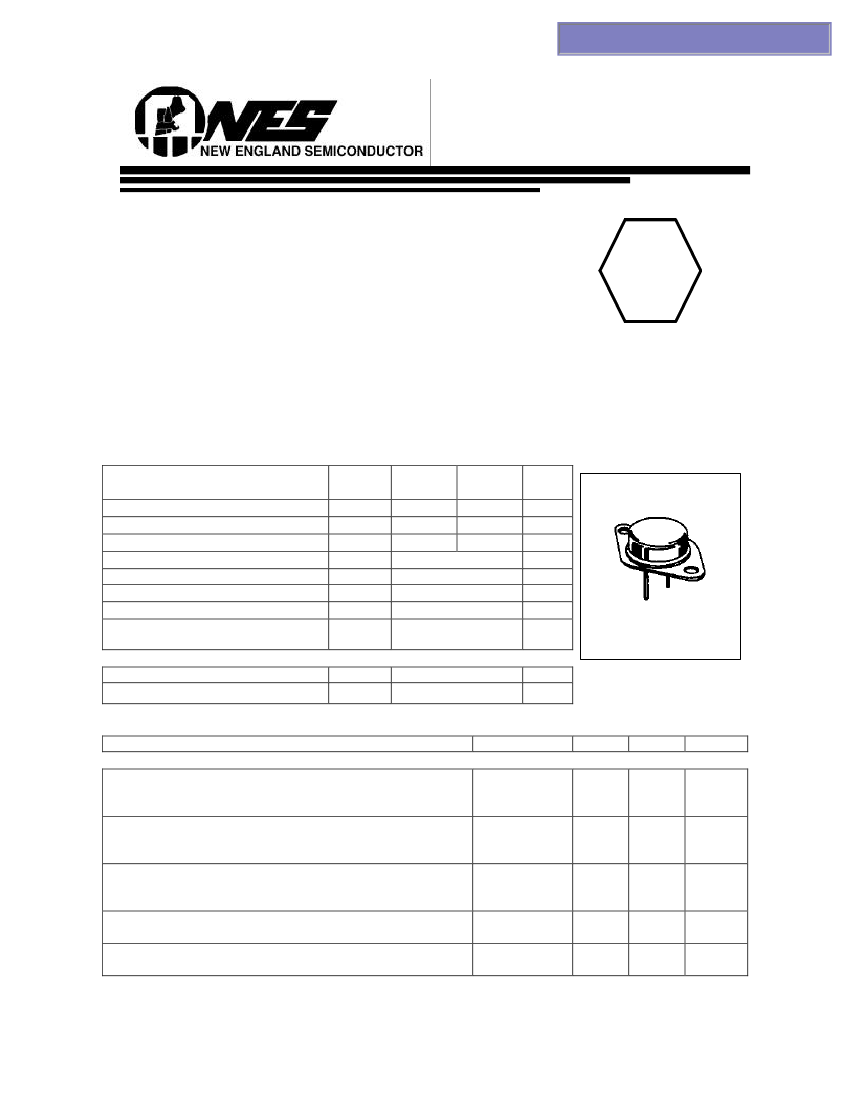

TECHNICAL DATA
2N1487 JAN, JTX, JTXV
2N1488 JAN, JTX, JTXV
2N1489 JAN, JTX, JTXV
2N1490 JAN, JTX, JTXV
Processed per MIL-PRF-19500/208
MIL-PRF
QPL
DEVICES
NPN HIGH-POWER SILICON TRANSISTOR
MAXIMUM RATINGS
Ratings
Collector-Emitter Voltage
Collector-Base Voltage
Collector-Emitter Voltage
Emitter-Base Voltage
Base Current
Collector Current
Total Power Dissipation @ T
C
= 25
0
C
(1)
Operating & Storage Junction
Temperature Range
Symbol
V
CEO
V
CBO
V
CEX
V
EBO
I
B
I
C
P
T
T
J
,
T
stg
2N1487
2N1498
40
60
60
10
3.0
6.0
75
2N1488
2N1490
55
100
100
Units
Vdc
Vdc
Vdc
Vdc
Adc
Adc
W
0
-65 to +200
Max.
2.33
C
TO-33 (TO-204AA)
THERMAL CHARACTERISTICS
Characteristics
Thermal Resistance, Junction-to-Case
1) Derate linearly 0.429 W/ C for T
C
> 25 C
0
0
Symbol
R
θ
JC
0
Unit
C/W
ELECTRICAL CHARACTERISTICS (T
C
= 25
0
C unless otherwise noted)
Characteristics
Symbol
Min.
Max.
Unit
OFF CHARACTERISTICS
Collector-Emitter Breakdown Voltage
I
C
= 100 mAdc
Collector-Emitter Breakdown Voltage
I
C
= 200
µAdc
Collector-Emitter Breakdown Voltage
I
C
= 0.5 mAdc, V
EB
= 1.5 Vdc
Collector-Base Cutoff Current
V
CB
= 30 Vdc
Emitter-Base Cutoff Current
V
EB
= 10 Vdc
2N1487, 2N1489
2N1488, 2N1490
2N1487, 2N1489
2N1488, 2N1490
2N1487, 2N1489
2N1488, 2N1490
V
(BR)
CEO
40
55
60
100
60
100
25
25
Vdc
V
(BR)
CBO
Vdc
V
(BR)
CEX
Vdc
I
CBO
I
EBO
µAdc
µAdc
6 Lake Street, Lawrence, MA 01841
1-800-446-1158 / (978) 794-1666 / Fax: (978) 689-0803
3/98 REV: B
Page 1 of 2

JANTX2N1488 Related Products

JANTX2N1488 JAN2N1488 JAN2N1489 JANTXV2N1488 JANTX2N1490 JANTXV2N1490 JANTXV2N1489 A21ACP48VDC1.9D
Description Power Bipolar Transistor, 6A I(C), 55V V(BR)CEO, 1-Element, NPN, Silicon, TO-204AA, Metal, 2 Pin, TO-33, 2 PIN Power Bipolar Transistor, 6A I(C), 55V V(BR)CEO, 1-Element, NPN, Silicon, TO-204AA, Metal, 2 Pin, TO-33, 2 PIN Power Bipolar Transistor, 6A I(C), 40V V(BR)CEO, 1-Element, NPN, Silicon, TO-204AA, Metal, 2 Pin, TO-33, 2 PIN Power Bipolar Transistor, 6A I(C), 55V V(BR)CEO, 1-Element, NPN, Silicon, TO-204AA, Metal, 2 Pin, TO-33, 2 PIN Power Bipolar Transistor, 6A I(C), 55V V(BR)CEO, 1-Element, NPN, Silicon, TO-204AA, Metal, 2 Pin, TO-33, 2 PIN Power Bipolar Transistor, 6A I(C), 55V V(BR)CEO, 1-Element, NPN, Silicon, TO-204AA, Metal, 2 Pin, TO-33, 2 PIN Power Bipolar Transistor, 6A I(C), 40V V(BR)CEO, 1-Element, NPN, Silicon, TO-204AA, Metal, 2 Pin, TO-33, 2 PIN Large switching capacity up to 40A
Is it Rohs certified? incompatible incompatible incompatible incompatible incompatible incompatible incompatible -
Parts packaging code TO-3 TO-3 TO-3 TO-3 TO-3 TO-3 TO-3 -
package instruction FLANGE MOUNT, O-MBFM-P2 FLANGE MOUNT, O-MBFM-P2 TO-33, 2 PIN FLANGE MOUNT, O-MBFM-P2 FLANGE MOUNT, O-MBFM-P2 FLANGE MOUNT, O-MBFM-P2 FLANGE MOUNT, O-MBFM-P2 -
Contacts 2 2 2 2 2 2 2 -
Reach Compliance Code compli _compli _compli compliant compliant compliant compliant -
ECCN code EAR99 EAR99 EAR99 EAR99 EAR99 EAR99 EAR99 -
Maximum collector current (IC) 6 A 6 A 6 A 6 A 6 A 6 A 6 A -
Collector-emitter maximum voltage 55 V 55 V 40 V 55 V 55 V 55 V 40 V -
Configuration SINGLE SINGLE SINGLE SINGLE SINGLE SINGLE SINGLE -
Minimum DC current gain (hFE) 15 15 25 15 25 25 25 -
JEDEC-95 code TO-204AA TO-204AA TO-204AA TO-204AA TO-204AA TO-204AA TO-204AA -
JESD-30 code O-MBFM-P2 O-MBFM-P2 O-MBFM-P2 O-MBFM-P2 O-MBFM-P2 O-MBFM-P2 O-MBFM-P2 -
JESD-609 code e0 e0 e0 e0 e0 e0 e0 -
Number of components 1 1 1 1 1 1 1 -
Number of terminals 2 2 2 2 2 2 2 -
Maximum operating temperature 200 °C 200 °C 200 °C 200 °C 200 °C 200 °C 200 °C -
Package body material METAL METAL METAL METAL METAL METAL METAL -
Package shape ROUND ROUND ROUND ROUND ROUND ROUND ROUND -
Package form FLANGE MOUNT FLANGE MOUNT FLANGE MOUNT FLANGE MOUNT FLANGE MOUNT FLANGE MOUNT FLANGE MOUNT -
Peak Reflow Temperature (Celsius) NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED -
Polarity/channel type NPN NPN NPN NPN NPN NPN NPN -
Certification status Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified -
Guideline MIL-19500/208 MIL-19500/208 MIL-19500/208 MIL-19500/208 MIL-19500/208 MIL-19500/208 MIL-19500/208 -
surface mount NO NO NO NO NO NO NO -
Terminal surface TIN LEAD Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) TIN LEAD TIN LEAD TIN LEAD TIN LEAD -
Terminal form PIN/PEG PIN/PEG PIN/PEG PIN/PEG PIN/PEG PIN/PEG PIN/PEG -
Terminal location BOTTOM BOTTOM BOTTOM BOTTOM BOTTOM BOTTOM BOTTOM -
Maximum time at peak reflow temperature NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED -
Transistor component materials SILICON SILICON SILICON SILICON SILICON SILICON SILICON -
Base Number Matches 1 1 1 1 1 - - -
