B0310-ALB

Description
SMPS Transformer, 60W, ROHS COMPLIANT
CategoryPower management    transformer
File Size143KB,3 Pages
ManufacturerCOILCRAFT
Websitehttp://www.coilcraft.com/
Environmental Compliance
Download Datasheet Parametric View All

B0310-ALB Overview

SMPS Transformer, 60W, ROHS COMPLIANT

B0310-ALB Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerCOILCRAFT
package instructionROHS COMPLIANT
Reach Compliance Codecompliant
ECCN codeEAR99
Other featuresTURNS RATIO: 2:1
high8.64 mm
Maximum input voltage75 V
Minimum input voltage36 V
JESD-609 codee3
length33.53 mm
Installation featuresSURFACE MOUNT
Number of primary windings1
Number of secondary windings1
Maximum operating temperature85 °C
Minimum operating temperature-40 °C
Output voltage 112 V
method of packingTAPE & REEL
physical sizeL33.53XB22.1XH8.64 (mm)
rated power60 W
Primary inductance1300 µH
surface mountYES
Terminal surfaceMatte Tin (Sn) - with Nickel (Ni) barrier
Transformer typeSMPS TRANSFORMER
width22.1 mm

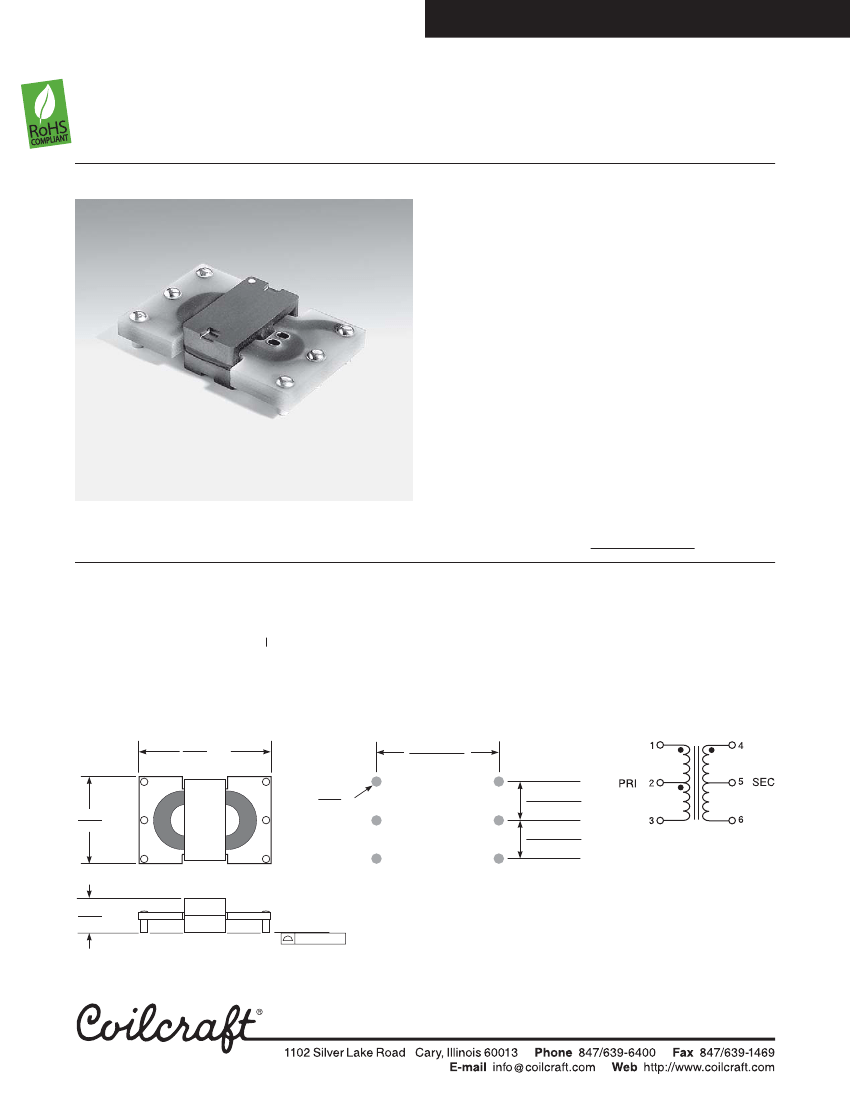

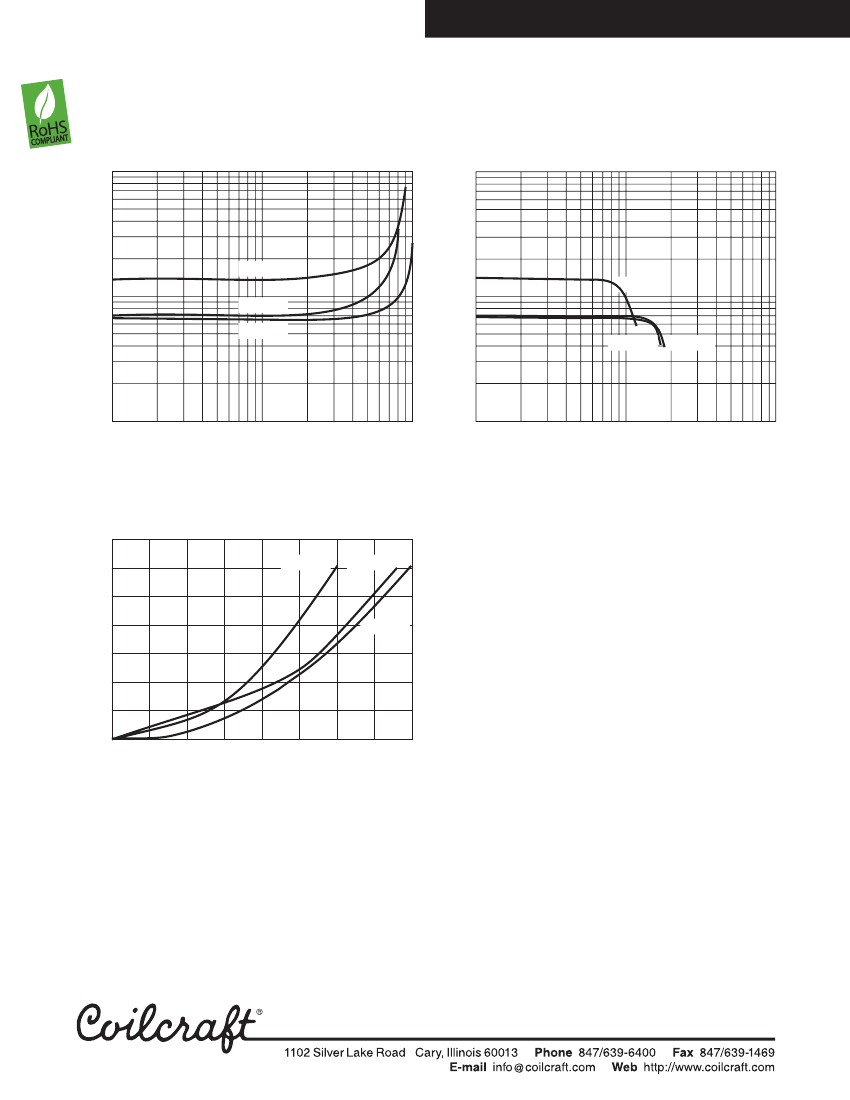

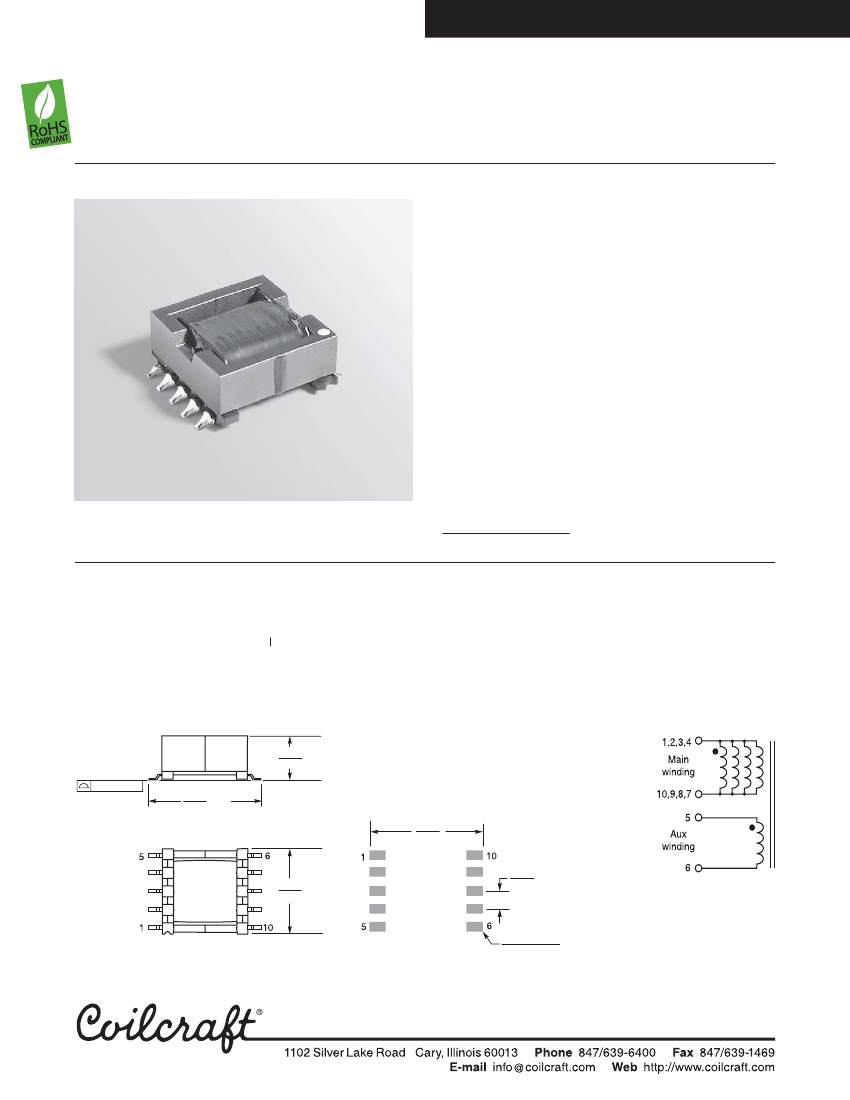

Document 305
Planar Transformers
For National Semiconductor
LM5030 Controller IC
Less than 10 mm high, Coilcraft’s planar transformers are
ideal for use in high-current telecom power supply appli-
cations that require high efficiency in a low-profile package.
These transformers are designed specifically to perform
with the National Semiconductor LM5030 Push-Pull Cur-
rent Mode PWM Controller. They provide three different
output ratings to suit a variety of applications All offer
1500 Vrms primary to secondary isolation.
Coilcraft’s A9785-B, A0153-A and B0414-A are output
chokes and include an extra winding for auxiliary voltage
supply. Our MSS6132-103 functions as the input filter
choke in the same circuit. Refer to separate data sheets
for additional information on these parts.
Request free evaluation samples by contacting Coilcraft
or visiting
www.coilcraft.com.
Output
Part
power
number
1
(W)
A9784-BL_
33
A0152-AL_
35
B0310-AL_
60
Input
voltage
range (V)
36 – 75
36 – 75
36 – 75
Output
voltage (V)
3.3
5.0
12.0
Output
Primary
Leakage
current
2
inductance
3
inductance
(A rms) min (mH)
max (µH)
10.0
1.30
3.50
7.0
1.30
2.50
5.0
1.30
2.50
DCR max
pri
0.850
0.850
0.850
(Ohms)
sec
0.016
0.018
0.060
Turns
ratio
pri : sec
6
:
1
4
:
1
2
:
1
1. When ordering, please specify
packaging
code:
B0310-ALD
Packaging: D
= 13″ machine ready reel. EIA-481 embossed plastic
tape (250 parts per full reel).
B
= Less than full reel. In tape, but not machine ready.
To have a leader and trailer added ($25 charge),
use code letter D instead.
1.320 max
33,53
3
0.870 max
2
22,10
1
4
0.105
‡
0,267
5
2. 15°C temperature rise typical at output current.
3. Inductance measured between pins 1 and 3 at 250 kHz, 0.1 Vrms,
0 Adc.
4. Operating temperature range: –40°C to +85°C.
5. Electrical specifications at 25°C.
1.115 ±0.010
28,32 ±0,25
Recommended
Land Pattern
0.334 ±0.010
8,48 ±0,25
0.334 ±0.010
8,48 ±0,25
6
0.340 max
8,64
0.004 / 0,10
Weight:
Terminations:
Tape and reel:
9.5 – 10.9 g
Matte tin over nickel over brass
250/13″ reel 56 mm tape
Specifications subject to change without notice.
Please check our website for latest information.
Document 305
Revised 09/30/05
© Coilcraft, Inc. 2007
