BC107-QR datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> The transistor> BC107-QR

BC107-QR: Description100mA, 45V, NPN, Si, SMALL SIGNAL TRANSISTOR, TO-18, HERMETIC SEALED, METAL, TO-18, 3 PIN; CategoryDiscrete semiconductor The transistor; File Size228KB，3 Pages; ManufacturerSEMELAB

Download Datasheet Parametric Compare View All

BC107-QR Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	BC107-QR	-	-	View	Buy Now

BC107-QR Overview

100mA, 45V, NPN, Si, SMALL SIGNAL TRANSISTOR, TO-18, HERMETIC SEALED, METAL, TO-18, 3 PIN

BC107-QR Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	SEMELAB
Parts packaging code	BCY
package instruction	CYLINDRICAL, O-MBCY-W3
Contacts	3
Reach Compliance Code	compliant
ECCN code	EAR99
Maximum collector current (IC)	0.1 A
Collector-emitter maximum voltage	45 V
Configuration	SINGLE
Minimum DC current gain (hFE)	110
JEDEC-95 code	TO-18
JESD-30 code	O-MBCY-W3
Number of components	1
Number of terminals	3
Package body material	METAL
Package shape	ROUND
Package form	CYLINDRICAL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Polarity/channel type	NPN
Certification status	Not Qualified
surface mount	NO
Terminal form	WIRE
Terminal location	BOTTOM
Maximum time at peak reflow temperature	NOT SPECIFIED
Transistor component materials	SILICON
Nominal transition frequency (fT)	150 MHz

Preview

Download Datasheet

View All

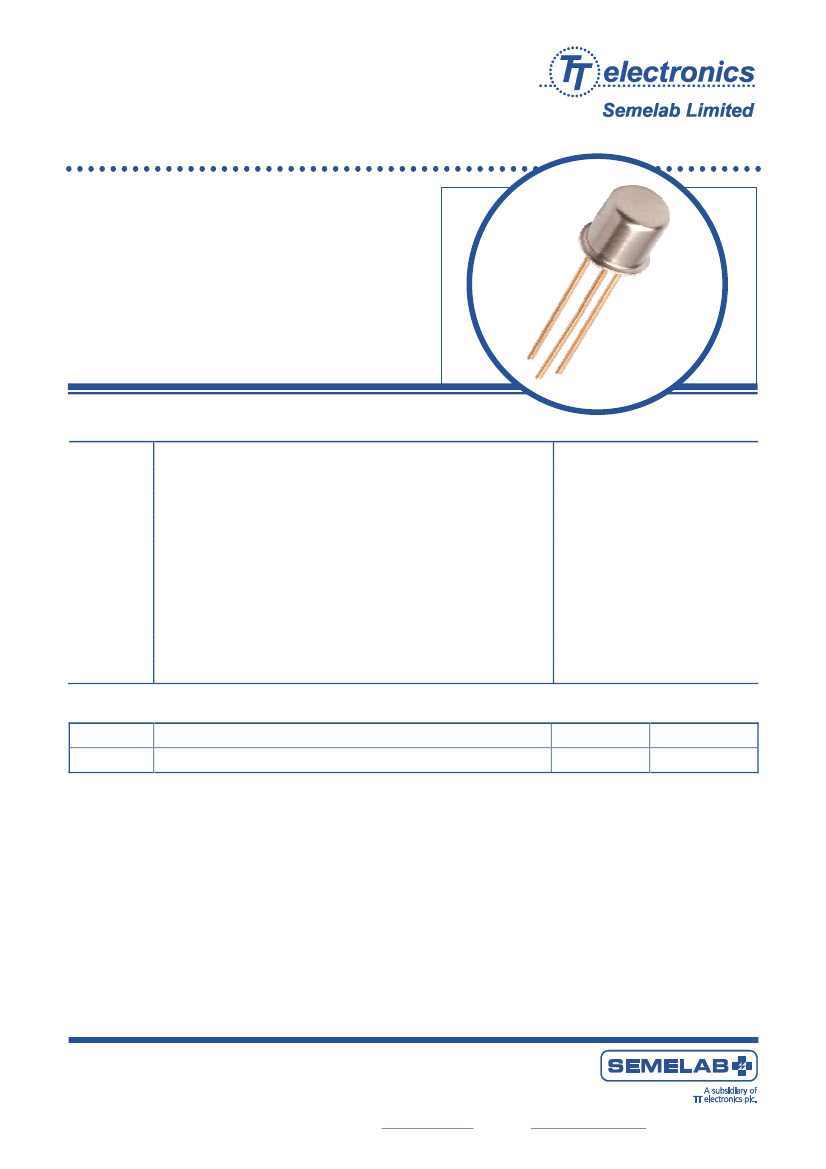

GENERAL PURPOSE NPN

SMALL SIGNAL TRANSISTOR

BC107

•

Hermetic TO-18 Metal package.

Designed For Low Noise General Purpose Amplifiers,

Driver Stages and Signal Processing Applications

Screening Options Available

ABSOLUTE MAXIMUM RATINGS

(TA = 25°C unless otherwise stated)

VCBO

VCES

VCEO

VEBO

ICM

Tstg

Collector – Base Voltage

Collector – Emitter Voltage

Emitter – Base Voltage

Continuous Collector Current

Peak Collector Current

TA = 25°C

Total Power Dissipation at

Derate Above 25°C

Junction Temperature Range

Storage Temperature Range

50V

45V

100mA

200mA

300mW

2mW/°C

-65 to +175°C

THERMAL PROPERTIES

Symbols

θJA

Parameters

Thermal Resistance, Junction To Ambient

Max.

500

Units

°C/W

Semelab Limited reserves the right to change test conditions, parameter limits and package dimensions without notice.

Information furnished by Semelab is believed to be both accurate and reliable at the time of going to press. However

Semelab assumes no responsibility for any errors or omissions discovered in its use. Semelab encourages customers to

verify that datasheets are current before placing orders.

Semelab Limited

Coventry Road, Lutterworth, Leicestershire, LE17 4JB

Telephone +44 (0) 1455 556565

Fax +44 (0) 1455 552612

Email:

sales@semelab-tt.com

Document Number 9601

Issue 1

Page 1 of 3

Website:

http://www.semelab-tt.com
