Rev.6.0
HIGH WITHSTAND-VOLTAGE VOLTAGE REGULATOR
WITH RESET FUNCTION
S-87X Series
The S-87X is a series of low-power high withstand-voltage regulators
with a reset function, which integrates high-precision voltage detection
and voltage regulation circuits on a single chip. The S-87X Series has
higher withstand-voltage characteristic and higher accuracy of detection
voltage and output voltage, ±2.4% respectively. The S-87X Series has
also lineups for lithium-ion battery packs.
T
Features
· Accuracy of output voltage: ±2.4%
2.6V to 5.8V (0.1V step)
· Accuracy of detection voltage: ±2.4%
(For the S-87XXXXF Series, the release voltage ±1.1%)
2.1V to 11.3V (0.1V step)
· Low I/O voltage difference:
0.15 V typ. at IOUT=30 mA, VOUT=5.0 V
0.45 V typ. at IOUT=30 mA, VOUT=3.0 V
•
Low current consumption: Operation: 8µA max.
Power off : 3.5µA max. (Available for the S-87XXXXC/E/G Series)
•
Wide operating voltage range: 24 V max.
•
Wide operating temperature range:
-40°C to +85°C
•
•
•
Built-in delay circuit or power off circuit
Small package: SOT-89-5
Built-in short-circuit protection
T
Applications
· Constant voltage power supply or reset circuit of battery-powered equipment, VTR, camera, communications equipment and
others.
· Lithium-ion secondary battery pack
T
Pin Assignment
T
Pin Description
Table 1
Top view
5
4
1 : V
OUT
2 : V
SS
3 : C
D
(V
PF
, SENSE)
4 : V
OR
5 : V
IN
Pin
No.
1
2
Name
V
OUT
V
SS
C
D
Description
Voltage output pin of voltage regulator
Ground
Connection pin of external capacitor for delay of
voltage detector
Input pin of power off circuit
3
1
2
3
V
PF
V
OR
V
IN
SENSE Voltage monitoring pin of voltage detector
4
5
Output pin of voltage detector (Nch opendrain
output)
Positive power-supply
Figure 1 Pin Assignment
Seiko Instruments Inc.
HIGH WITHSTAND-VOLTAGE VOLTAGE REGULATOR WITH RESET FUNCTION
S-87X Series
Rev.6.0
T

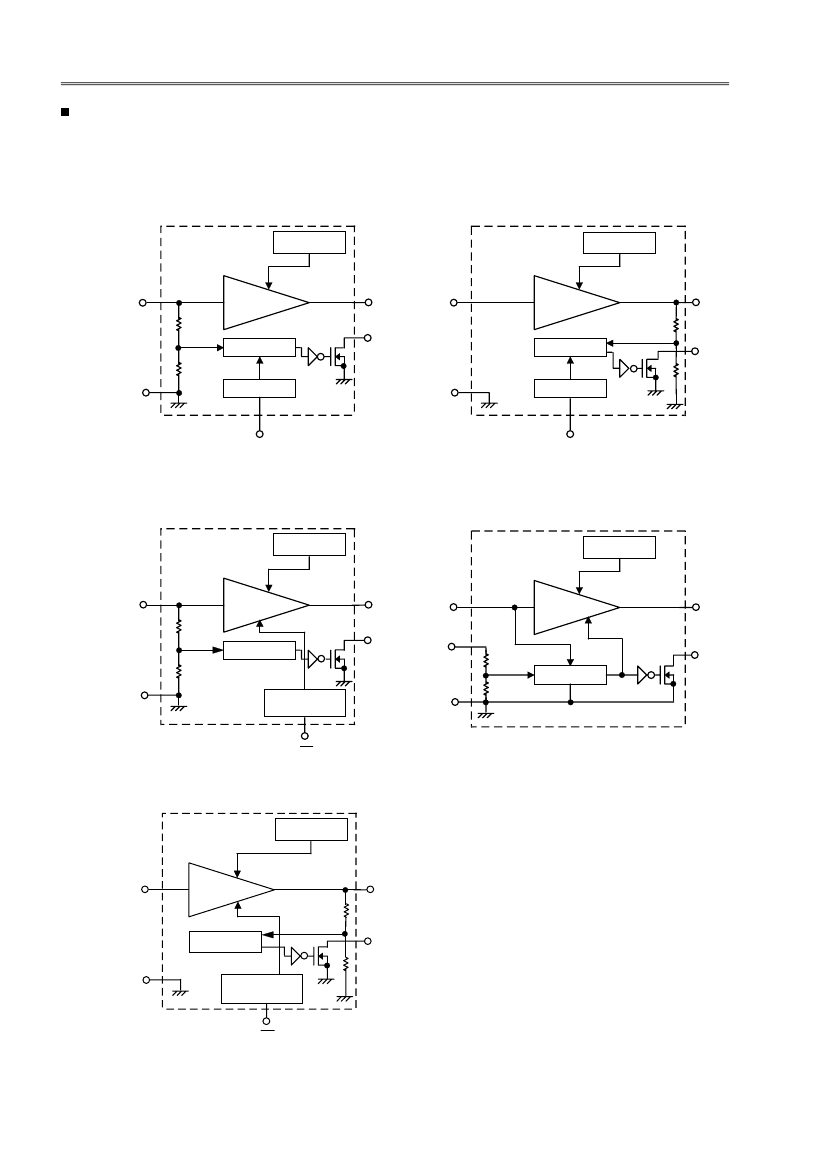

Block Diagram
1. Product Name
1) Built-in Delay Circuit, V
IN
Detection
(S-87XXXXA/F Series)
Short-circuit
protection
2)
Built-in Delay Circuit, V
OUT
Detection
(S-87XXXXB Series)
Short-circuit
protection
V
IN
Voltage
Regulator
V
OUT
V
IN
Voltage
Regulator
V
OUT
Voltage
detection
V
OR
Voltage
detection
V
OR
Delay circuit
V
SS
V
SS
Delay circuit
C
D
C
D
3) Built-in power off Circuit (for regulator)
V
IN
Detection (S-87XXXXC Series)
4)
Built-in Power ON/OFF (for regulator)
SENSE Detection (S-87XXXXE Series)
Short-circuit
protection
Short-circuit
protection
V
IN
Voltage
Regulator
V
OUT
V
IN
Voltage
Regulator
Power on/off
V
OUT
Voltage
detection
V
OR
SENSE
Voltage
detection
V
OR
V
SS
Power on/off
circuit
V
SS
V
PF
5) Built-in power off Circuit (for regulator)
V
OUT
Detection (S-87XXXXG Series)
Short-circuit
protection
V
IN
Voltage
Regulator
V
OUT
Voltage
detection
V
OR
V
SS
Power on/off
circuit
V
PF
Figure 2 Block Diagram
2
Seiko Instruments Inc.
HIGH WITHSTAND-VOLTAGE VOLTAGE REGULATOR WITH RESET FUNCTION
Rev.6.0
S-87X Series
T
Selection Guide
1. Series Selection
Table 2
Series name
Voltage detector
(VD)
S-87XXXXA
S-87XXXXB
S-87XXXXC
S-87XXXXE
S-87XXXXF
S-87XXXXG
2. Product Name
Example:
Detects V
IN
Detects V
OUT
Detects V
IN
Detects SENSE
Detects V
IN
Detects V
OUT
Detection
voltage accuracy
(%)
±2.4
±2.4
±2.4
±2.4
--
±2.4
Release voltage
accuracy
(%)
--
--
--
--
±1.1
--
Built-in
delay circuit
Yes
Yes
No
No
Yes
No
Power off function
VR
No
No
Yes
Yes
No
Yes
VD
No
No
No
No
No
No
S-875045BUP-AAA-T2
Taping
Abbreviation (product marking)
Function
Detection voltage of voltage detector x 10
Output voltage of voltage regulator x 10
3. Product List
Table 3
VR output
voltage
5.6V
5.2V
5.2V
5.2V
5.0V
5.0V
5.0V
5.0V
5.0V
5.0V
5.0V
5.0V
3.3V
3.3V
3.0V
3.0V
3.0V
3.0V
3.0V
3.0V
3.0V
VR output
voltage
5.0V
5.0V
3.3V
3.0V
3.0V
VD detection
voltage
3.5V
9.4V
7.1V
5.5V
11.0V
7.7V
6.1V
4.5V
4.3V
4.1V
3.9V
3.7V
6.1V
2.5V
6.9V
5.9V
2.5V
2.4V
2.3V
2.2V
2.1V
VD detection
voltage
7.7V
6.1V
3.0V
8.2V
6.2V
S-875077EUP-AJF-T2
S-875061EUP-AJH-T2
S-873330EUP-APB-T2
S-873082EUP-AMC-T2
S-873062EUP-AMB-T2
--
--
--
S-875045AUP-AAA-T2
S-875043AUP-AAB-T2
S-875041AUP-AAC-T2
S-875039AUP-AAD-T2
S-875037AUP-AAE-T2
--
--
--
--
S-873025AUP-ADA-T2
S-873024AUP-ADB-T2
S-873023AUP-ADC-T2
S-873022AUP-ADD-T2
S-873021AUP-ADE-T2
S-87XXXXE Series
--
--
--
S-875045BUP-ABA-T2
S-875043BUP-ABB-T2
S-875041BUP-ABC-T2
S-875039BUP-ABD-T2
S-875037BUP-ABE-T2
--
S-873325BUP-ALA-T2
--
--
S-873025BUP-AEA-T2
S-873024BUP-AEB-T2
S-873023BUP-AEC-T2
S-873022BUP-AED-T2
S-873021BUP-AEE-T2
--
--
--
S-875635BUP-AGA-T2
--
S-875294CUP-AHC-T2
S-875271CUP-AHA-T2
S-875255CUP-AHB-T2
S-8750B0CUP-ACG-T2
S-875077CUP-ACF-T2
S-875061CUP-ACH-T2
S-875045CUP-ACA-T2
S-875043CUP-ACB-T2
S-875041CUP-ACC-T2
S-875039CUP-ACD-T2
S-875037CUP-ACE-T2
S-873361CUP-AOH-T2
--
S-873069CUP-AFF-T2
S-873059CUP-AFG-T2
S-873025CUP-AFA-T2
S-873024CUP-AFB-T2
S-873023CUP-AFC-T2
S-873022CUP-AFD-T2
S-873021CUP-AFE-T2
S-875037GUP-ANE-T2
S-87XXXXA Series
S-87XXXXB Series
S-87XXXXC Series
S-87XXXXG Series
Seiko Instruments Inc.
3
HIGH WITHSTAND-VOLTAGE VOLTAGE REGULATOR WITH RESET FUNCTION
S-87X Series
VR output
voltage
VD detection
voltage
S-87XXXXE Series
S-87XXXXF Series
S-875087FUP-AKA-T2
Rev.6.0
VR output
voltage
5.0V
VD detection
voltage
8.7V
Note
In the S-87XXXXB/S-87XXXXG Series, When the output voltage of the voltage regulator is close to the detection
voltage of the voltage detector, the transient response of the voltage regulator may cause false detection. Please take
transient response into account when deciding voltages.
T
Absolute Maximum Ratings
Table 4
Parameter
Input voltage *
Output voltage
Output voltage of voltage
detector
Power dissipation
Operating temperature
Storage temperature
Symbol
V
IN,
V
PF
V
OUT
V
OR
P
D
T
opr
T
stg
Ratings
26
V
IN
+0.3 to V
SS
-0.3
V
SS
-0.3 to 26
500
-40 to +85
-40 to +125
Unit
V
V
V
mW
°C
°C
* Even pulse (msec) noise exceeding the above input voltage (26 V) may
damage the IC. Observe the rated input voltage (26 V).
T
Electrical Characteristics
1. S-8750XXA/B Series
Table 5
(Unless otherwise specified: Ta=25°C)
Parameter
Symbol
Conditions
Min.
Voltage Regulator
Output voltage
I/O voltage difference
Line regulation
Load regulation
Input voltage
Temp.coefficient of
V
OUT
Operating voltage
Delay time
*1
Standard
Typ.
5.00
0.15
15
15
--
±0.38
Max.
5.12
0.40
50
50
24
±1.52
Unit
Test
cir.
V
OUT
V
dif
∆V
OUT1
∆V
OUT2
V
IN
∆V
OUT
∆Ta
V
SEN
t
pd
∆-V
DET
∆Ta
V
IN
=7 V, I
OUT
=30 mA
I
OUT
=30 mA
V
IN
=6 to 24 V
I
OUT
=30 mA
V
IN
=7 V
I
OUT
=50
µA
to 40 mA
V
IN
=7 V, I
OUT
=30 mA,
Ta=-40°C to +85°C
Voltage Detector
4.88
--
--
--
--
--
V
V
mV
mV
V
mV/°C
1
1
1
1
1
1
1.3
C
D
=4.7 nF
Ta=-40°C to +85°C
S-875045A/B
S-875043A/B
15
--
4.392
4.196
4.001
3.806
3.611
V
IN
=1.3 V
V
IN
=2.4 V
V
IN
=3.6 V
0.25
1.50
3.00
--
-V
DET
×0.01
-V
DET
×0.03
--
--
27
±0.5
4.50
4.30
4.10
3.90
3.70
0.60
2.60
4.50
--
--
--
24
41
±2.0
4.608
4.404
4.199
3.994
3.789
--
--
--
0.1
-V
DET
×0.025
-V
DET
×0.08
8
V
ms
mV/°C
V
V
V
V
V
mA
mA
mA
µA
V
V
2
3
2
2
2
2
2
2
4
4
4
4
2
2
Temp. characteristic
of -V
DET
Detection voltage
-V
DET
S-875041A/B
S-875039A/B
S-875037A/B
Nch
Sink current
Leakage current
Hysteresis width
I
DOUT
I
LEAK
V
HYS
V
DS
=0.5 V
Nch
V
DS
=24 V, V
IN
=10 V
S-875045A/B
S-875043A/B, 41A/B,
39A/B, 37A/B
Input Current
Current consumption
*1
*2
*2
I
SS
V
IN
=7 V, Unloaded
3
mA
5
tpd (ms)=(3.18 min.,5.74 typ., 8.73 max.)×CD (nF)
Excluding the charging current of CD
4
Seiko Instruments Inc.
HIGH WITHSTAND-VOLTAGE VOLTAGE REGULATOR WITH RESET FUNCTION
Rev.6.0
S-87X Series
2. S-8730XXA/B Series
Table 6
(Unless otherwise specified: Ta=25°C)
Parameter
Symbol
Conditions
Min.
Voltage Regulator
Output voltage
I/O voltage difference
Line regulation
Load regulation
Input voltage
Temp.coefficient of
V
OUT
Operating voltage
Delay time
Temp. characteristic
of -V
DET
*1
Standard
Typ.
3.000
0.45
15
15
--
±0.23
Max.
3.072
0.70
50
50
24
±0.92
Unit
Test
cir.
V
OUT
V
dif
∆V
OUT1
∆V
OUT2
V
IN
∆V
OUT
∆Ta
V
SEN
t
pd
∆-V
DET
∆Ta
V
IN
=5 V, I
OUT
=30 mA
I
OUT
=30 mA
V
IN
=4 to 24 V
I
OUT
=30 mA
V
IN
=5 V
I
OUT
=50
µA
to 40 mA
V
IN
=5 V, I
OUT
=30 mA,
Ta=-40°C to +85°C
Voltage Detector
2.928
--
--
--
--
--
V
V
mV
mV
V
mV/°C
1
1
1
1
1
1
1.3
C
D
=4.7 nF
Ta=-40°C to +85°C
S-873025A/B
S-873024A/B
15
--
2.440
2.342
2.244
2.147
2.049
V
IN
=1.3 V
V
IN
=2.4 V
*3
--
27
±0.3
2.500
2.400
2.300
2.200
2.100
0.60
2.60
--
--
24
41
±1.2
2.560
2.458
2.356
2.253
2.151
--
--
0.1
-V
DET
×0.08
8
V
ms
mV/°C
V
V
V
V
V
mA
mA
µA
V
2
3
2
2
2
2
2
2
Detection voltage
-V
DET
S-873023A/B
S-873022A/B
S-873021A/B
Sink current
Leakage current
Hysteresis width
I
DOUT
I
LEAK
V
HYS
Nch
V
DS
=0.5 V
0.25
1.50
--
-V
DET
×0.03
4
2
Nch
V
DS
=24 V, V
IN
=10 V
Input Current
Current consumption
*1
*2
*3
*2
I
SS
V
IN
=5 V, Unloaded
--
3
µA
5
tpd (ms)=(3.18 min.,5.74 typ., 8.73 max.)×CD (nF)
Excluding the charging current of CD
S-873025A/B only
Seiko Instruments Inc.
5
京公网安备 11010802033920号
EEWORLD
