.050" Straight and Right Angle, Through-Hole, Boardmount
P50 Series

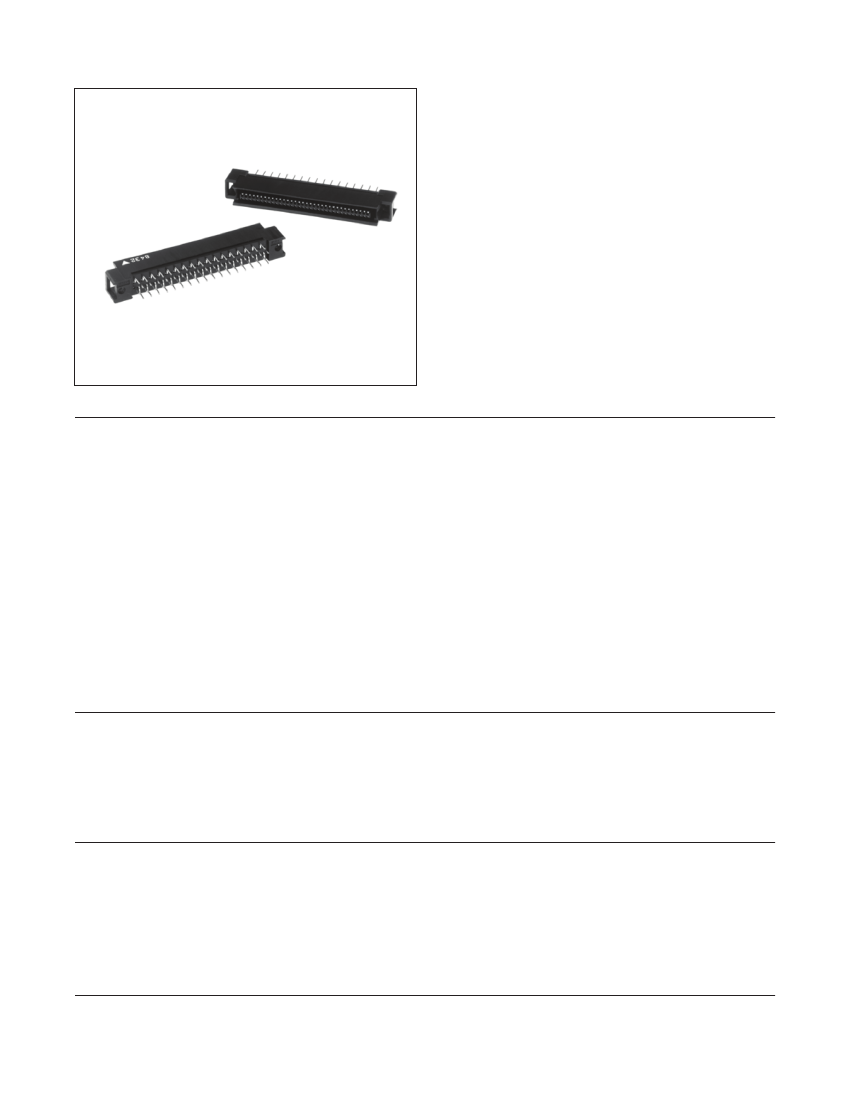

• P50 Plug offers straight and right angle through-hole
options
• Right angle P50 Plug comes with and without
retention clips
• Latch/eject mechanism maintains a secure
connection
• Mates to the P50 wiremount socket
• RoHS Compliant. See the Regulatory Information
Appendix (RIA) in the "RoHS Compliance" section
of www.3Mconnector.com for compliance
information (RIA E1 and C1 apply)
Date Modified: February 4, 2010
TS-1162-B
Sheet 1 of 3
Physical
Insulator:
Material: Glass Filled Nylon
Flammability: UL 94V-0
Color: Black
Contact Material: Phosphor Bronze
Plating:
Underplating: Nickel
Wiping Area: 10 µ" [ 0.25 µm ] Gold
Solder Tails: Gold Flash
Retaining Clips: Tin-Copper
Mating Compatibility:
TS-2047
Electrical
Current Rating:
0.5 A
Insulation Resistance:
> 1 × 10
9
Ω
at 500 V
DC
Withstanding Voltage:
650 V
AC
for 1 minute
Environmental
Temperature Rating:
-55ºC to +85ºC
Process Rating:
260ºC Wave Solder Compatible
UL File No.: E68080
3
Electronic Solutions Division
Interconnect Solutions
http://www.3Mconnector.com
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™
Pak 50 I/O Plug
.050" Straight and Right Angle, Through-Hole, Boardmount

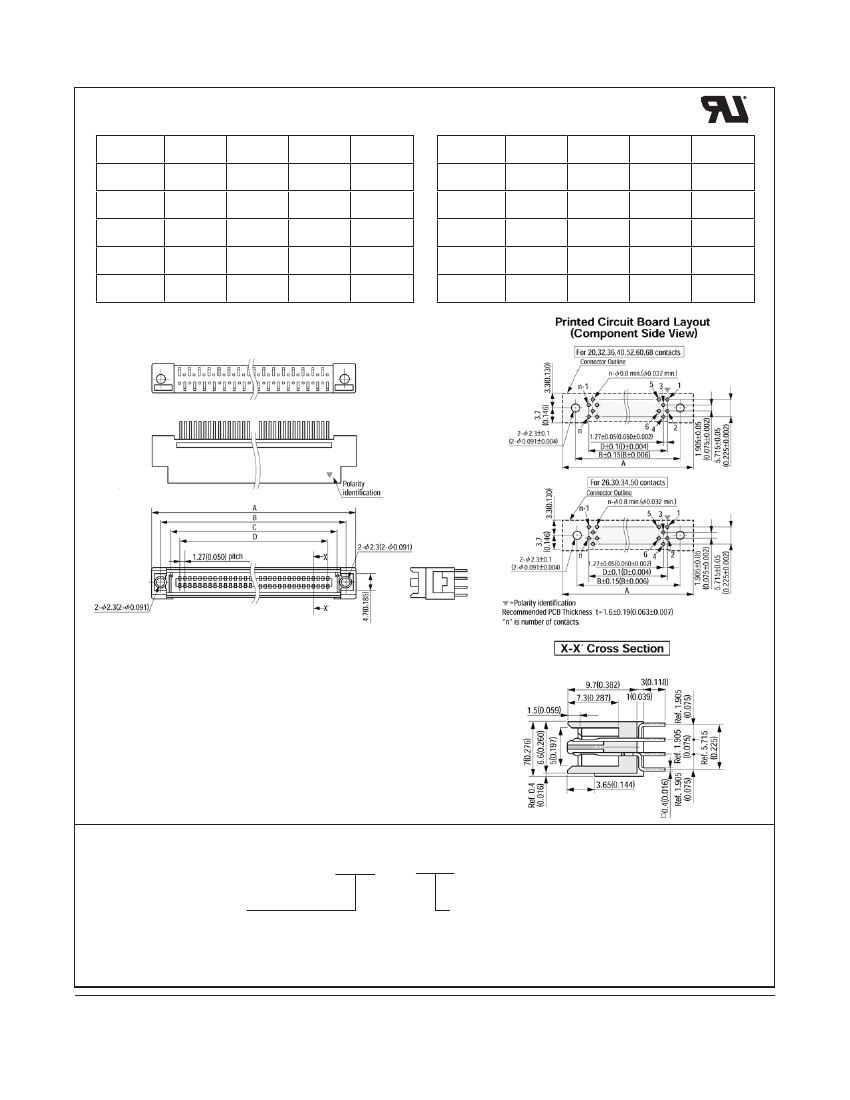

Product Table / Dimensions for Straight and Right Angle Plug
Contact
Quantity
20
26
30
32
34
A
25.43
[1.001]
29.24
[1.151]
31.78
[1.251]
33.05
[1.301]
34.32
[1.351]
B
20.32
[0.800]
24.13
[0.950]
26.67
[1.050]
27.94
[1.100]
29.21
[1.150]
C
15.83
[0.623]
19.64
[0.773]
22.18
[0.873]
23.45
[0.923]
24.72
[0.973]
D
11.43
[0.450]
15.24
[0.600]
17.78
[0.700]
19.05
[0.750]
20.32
[0.800]
Contact
Quantity
40
50
52
60
68
A
38.13
[1.501]
44.48
[1.751]
45.75
[1.801]
50.83
[2.001]
55.91
[2.201]
B
33.02
[1.300]
39.37
[1.550]
40.64
[1.600]
45.72
[1.800]
50.80
[2.000]
C
28.53
[1.123]
34.88
[1.373]
36.15
[1.423]
41.23
[1.623]
46.31
[1.823]
D
24.13
[0.950]
30.48
[1.200]
31.75
[1.250]
36.83
[1.450]
41.91
[1.650]
P50 Series
Straight Plug
Ordering Information
P50 - XXXP1 - XXX - EA
S1 = Straight tails, without Retention Clips
SR1 = Right Angle tails, without Retention Clips
RR1 = Right Angle tails, with Retention Clips
TS-1162-B
Sheet 2 of 3
Contact Quantity:
See Table
3
Electronic Solutions Division
Interconnect Solutions
http://www.3Mconnector.com
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™
Pak 50 I/O Plug
.050" Straight and Right Angle, Through-Hole, Boardmount

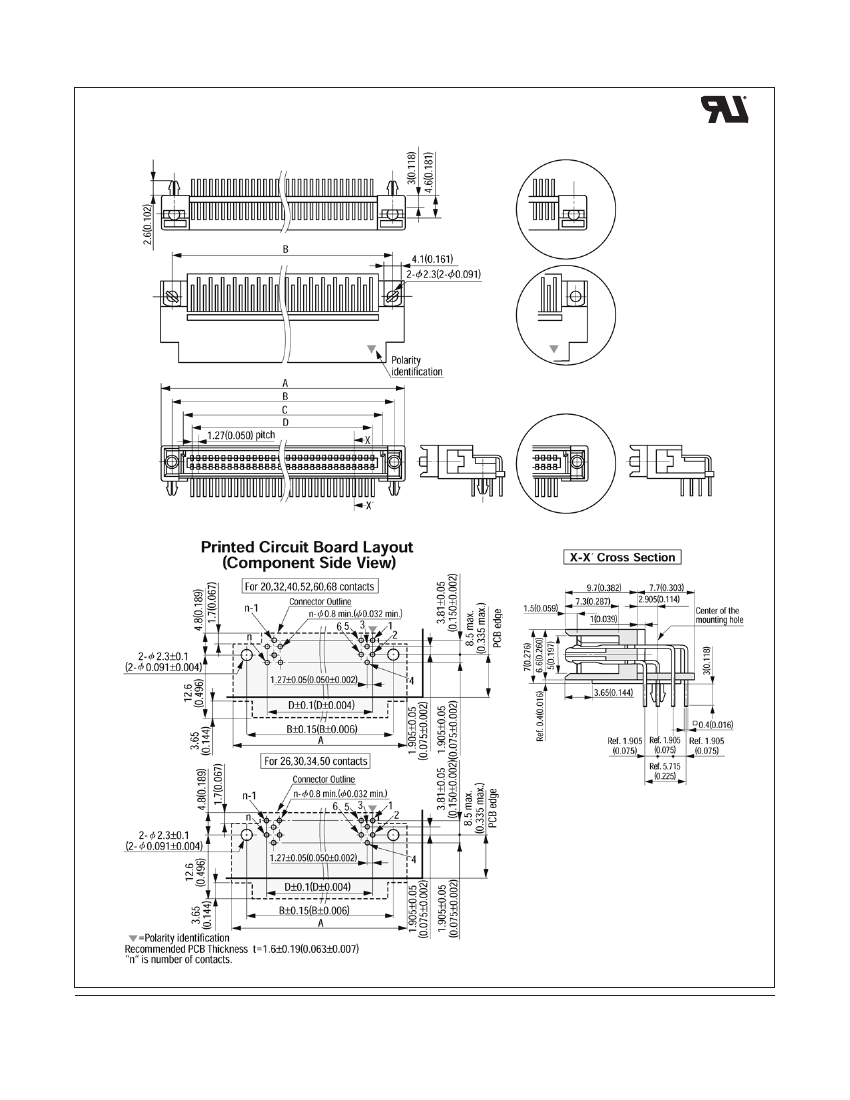

Right Angle Plug with Retention Clips
Right Angle Plug without Retention Clips
P50 Series
TS-1162-B
Sheet 3 of 3
3
Electronic Solutions Division
Interconnect Solutions
http://www.3Mconnector.com
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
Important Notice
All statements, technical information, and recommendations related to 3M’s products are based on information believed to be reliable, but the accuracy or completeness
is not guaranteed. Before using this product, you must evaluate it and determine if it is suitable for your intended application. You assume all risks and liability associated
with such use. Any statements related to the product which are not contained in 3M’s current publications, or any contrary statements contained on your purchase order
shall have no force or effect unless expressly agreed upon, in writing, by an authorized officer of 3M.
Warranty; Limited Remedy; Limited Liability.
This product will be free from defects in material and manufacture for a period of one (1) year from the time of purchase.
3M MAKES NO OTHER WARRANTIES
INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.
If this product is defective within the
warranty period stated above, your exclusive remedy shall be, at 3M’s option, to replace or repair the 3M product or refund the purchase price of the 3M product.
Except
where prohibited by law, 3M will not be liable for any indirect, special, incidental or consequential loss or damage arising from this 3M product, regardless of
