AAA5FPBAU datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> AAA5FPBAU

AAA5FPBAU: DescriptionAudio/RCA Connector, 5 Pole(s), Solid Lead Terminal,; CategoryThe connector The connector; File Size96KB，1 Pages; ManufacturerSwitchcraft

Download Datasheet Parametric View All

AAA5FPBAU Overview

Audio/RCA Connector, 5 Pole(s), Solid Lead Terminal,

AAA5FPBAU Parametric

Parameter Name	Attribute value
Maker	Switchcraft
Reach Compliance Code	compliant
Other features	POLARIZED
Connector type	AUDIO/RCA CONNECTOR
Contact completed and terminated	GOLD
Contact resistance	50 mΩ
DIN compliance	NO
Dielectric withstand voltage	1400VAC V
IEC compliance	NO
maximum insertion force	44 N
JESD-609 code	e4
MIL compliance	NO
Installation type	CABLE
Number of connectors	ONE
Number of poles	5
Number of ports	1
Options	GENERAL PURPOSE
Rated current (signal)	7.5 A
Shell material	ZINC
Termination type	SOLID LEAD

Preview

Download Datasheet

View All

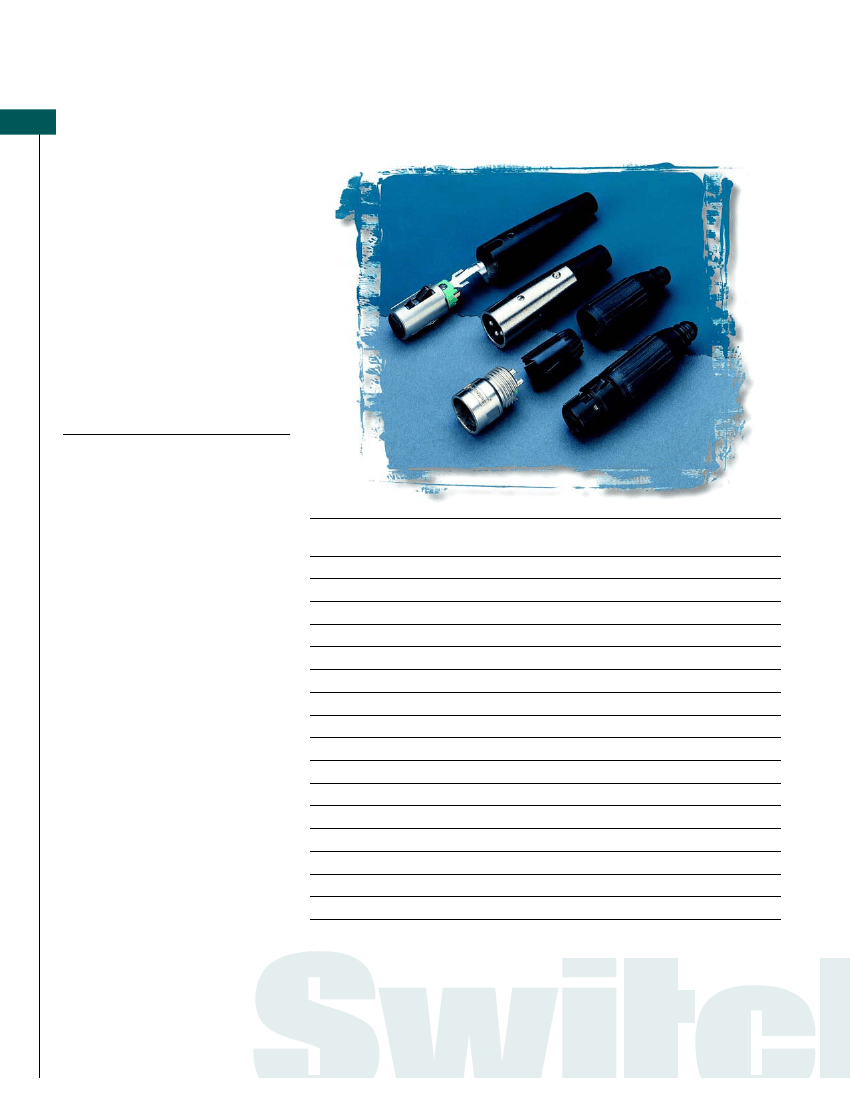

CONNECTORS

Q-G

Audio Connector Series

A, AA, AAA Cord Style Series

Switchcraft offers a wide range of

cord style XLR connectors.

The A Series features a dual pres-

sure plate strain relief mechanism to

securely fasten the connector to the

cable. The A Series is also available

with FAS-DISCONNECT detent.

The AA Series features a 1-piece

strain relief mechanism that clamps

onto the outer jacket of the cable.

The AAA Series features a twist-

on handle with a built-in strain relief

mechanism and a pre-loaded insert.

The new R Series offers the same

strain relief system as the AAA Series.

Specifications

Electrical

Contact Resistance: 50 milliohm

maximum, per pole

Current Rating @ 125VAC:

3 pole - 15A, 4 pole -10A,

5 & 6 pole - 7.5A, 7 pole - 5A

Insulation Resistance: 1,000 MΩ,

minimum

Dielectric Withstanding Voltage:

1,000 V (rms)

Capacitance:

≤3

pF between pins

and

≤6

pF between pins and

shell, maximum

Mechanical

Insertion/Withdrawal Forces:

10 lbs. maximum, 8 lbs. nominal / 7

lbs. maximum, 5 lbs. nominal

Material

Shell: Die-Cast zinc with nickel

finish or black chrome

Handle: Die cast with nickel finish

or black chrome. Also black ther-

moplastic handle available

O Ring: TPR (Thermoplastic rubber).

Insert Insulation: Molded thermoplastic

Socket Contacts: Silver plated copper

alloy tarnish resistant; bifurcated on 3

and 4 contact types. Gold is available.

Pin Contacts: Silver plated copper alloy.

Resists tarnishing, and provides

excellent electrical conductivity.

Gold is available.

Latch lock: High strength die cast zinc

Multi-finger cable clamp and rubber

gasket: TPR (Thermoplastic plastic

& rubber)

Flex Relief: TPR (Thermoplastic rubber)

A*M

AA*FB

AAA*MP

AAA*FPBAU

Ordering Information

Part Number

A*F, A*M

A*FB, A*MB

A*FBAU, A*MBAU

A*FL, A*ML

AA*F, AA*M

AA*FB, AA*MB

AA*FBAU, AA*MBAU

AA*FL, AA*ML

AAA*F, AAA*M

AAA*FB, AAA*MB

Pins/

Style Finish Contacts

Cord

Nickel

Black

Nickel

Black

Nickel

Black

Nickel

Black

Nickel

Silver

Gold

Silver

Gold

Silver

Gold

Silver

Gold

Silver

Notes

Standard Cable Clamp

Standard cable clamp, large flex relief

One piece cable clamp

One piece cable clamp, large flex relief

Twist-on metal handle

Twist-on metal handle, large flex relief

Twist-on plastic handle

Twist-on plastic handle, large flex relief

AAA*FBAU, AAA*MBAU Cord

AAA*FL, AAA*ML

AAA*FP, AAA*MP

AAA*FPB, AAA*MPB

Cord

AAA*FPBAU, AAA*MPBAUCord

AAA*FPL, AAA*MPL

Cord

* Available 3 - 7 pins or contacts

See Page 49 for Mechanical Drawings
