DAC377B-18 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> converter> DAC377B-18

DAC377B-18: DescriptionD/A Converter, 1 Func, Parallel, 8 Bits Input Loading, 20us Settling Time, CDIP28, DOUBLE WIDTH, HERMETIC SEALED, DIP-28; CategoryAnalog mixed-signal IC converter; File Size381KB，4 Pages; ManufacturerSIPEX; Websitehttp://www.sipex.com/

Download Datasheet Parametric Compare View All

DAC377B-18 Overview

D/A Converter, 1 Func, Parallel, 8 Bits Input Loading, 20us Settling Time, CDIP28, DOUBLE WIDTH, HERMETIC SEALED, DIP-28

DAC377B-18 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	SIPEX
package instruction	DOUBLE WIDTH, HERMETIC SEALED, DIP-28
Reach Compliance Code	unknown
Maximum analog output voltage	10 V
Minimum analog output voltage	-10 V
Converter type	D/A CONVERTER
Enter bit code	BINARY, OFFSET BINARY
Input format	PARALLEL, 8 BITS
JESD-30 code	R-CDIP-T28
JESD-609 code	e0
Maximum linear error (EL)	0.0015%
Nominal negative supply voltage	-15 V
Number of digits	18
Number of functions	1
Number of terminals	28
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP
Encapsulate equivalent code	DIP28,.6
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	+-15 V
Certification status	Not Qualified
Filter level	38535Q/M;38534H;883B
Maximum seat height	5.207 mm
Nominal settling time (tstl)	20 µs
Maximum slew rate	25 mA
Nominal supply voltage	15 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	15.24 mm

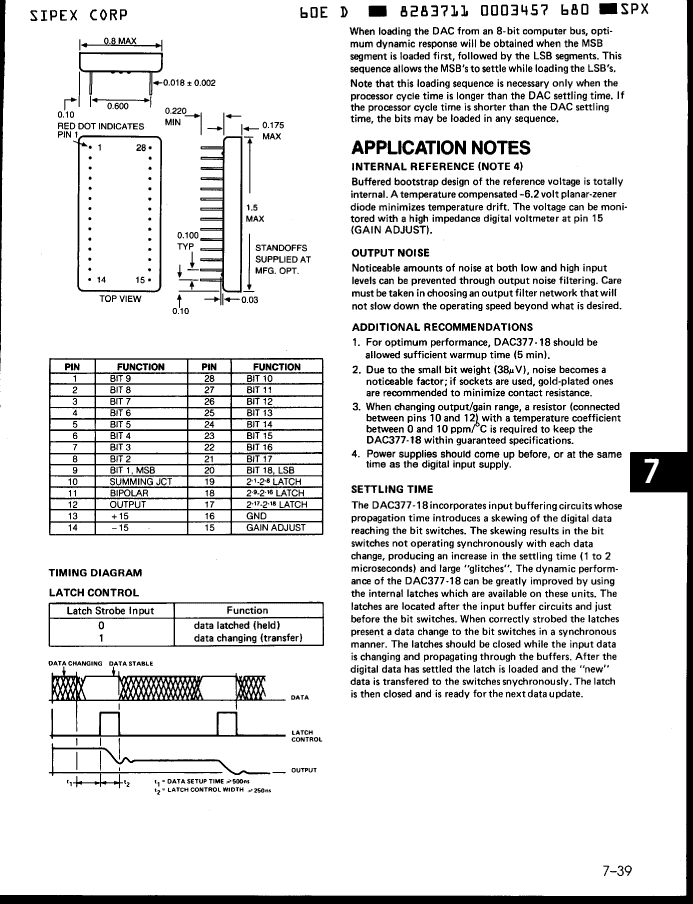

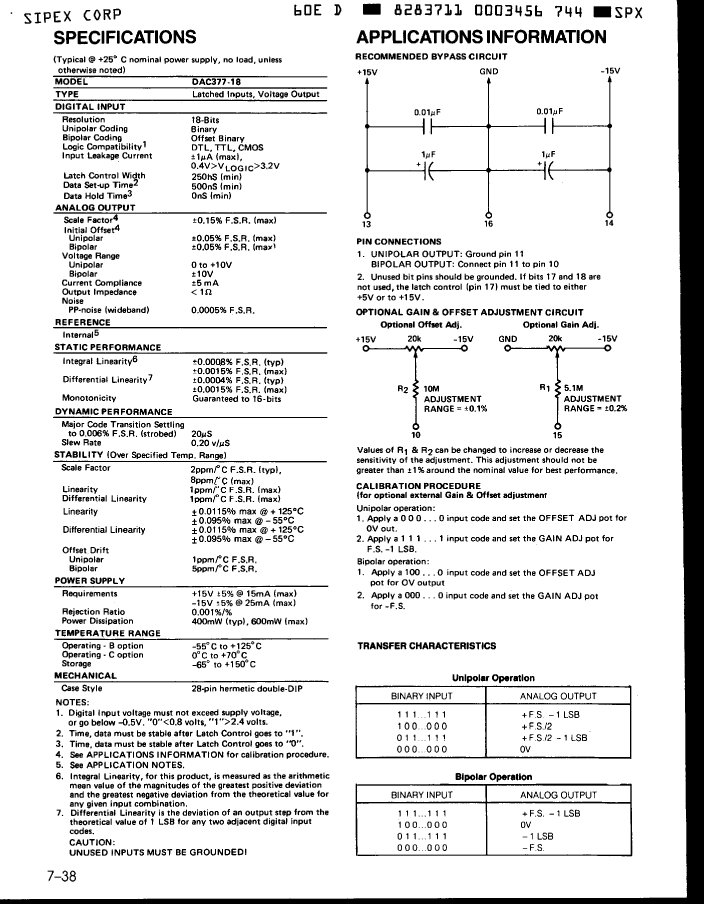

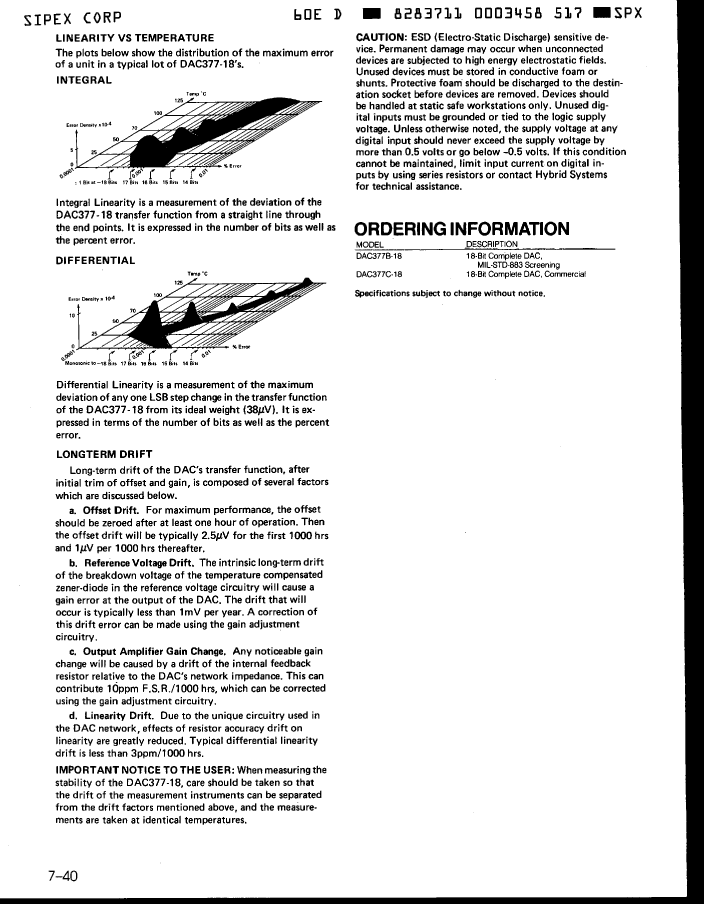

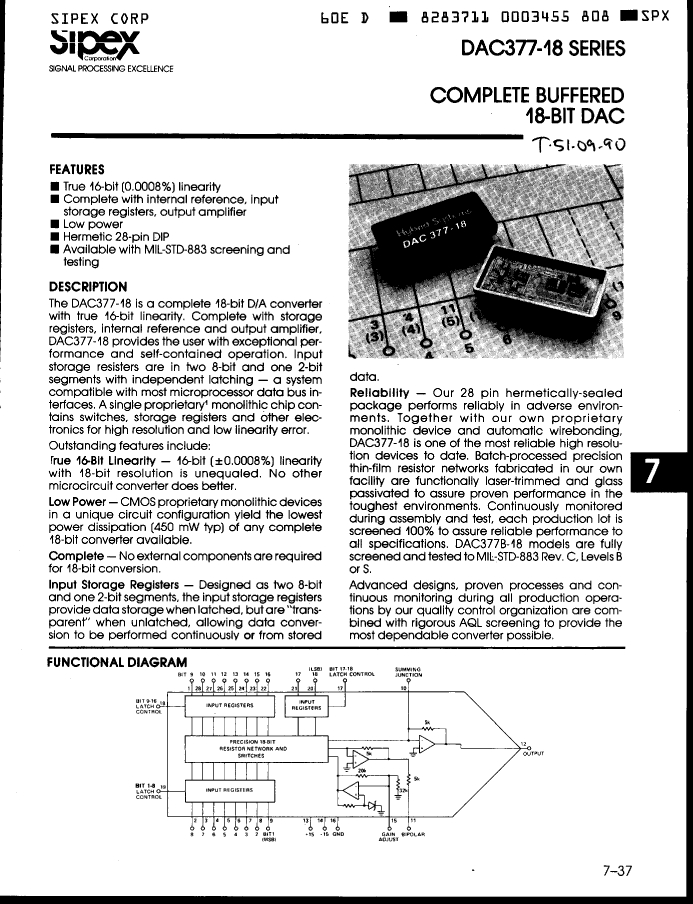

Preview

Download Datasheet

View All

DAC377B-18 Related Products

	DAC377B-18	DAC377C-18
Description	D/A Converter, 1 Func, Parallel, 8 Bits Input Loading, 20us Settling Time, CDIP28, DOUBLE WIDTH, HERMETIC SEALED, DIP-28	D/A Converter, 1 Func, Parallel, 8 Bits Input Loading, 20us Settling Time, CDIP28, DOUBLE WIDTH, HERMETIC SEALED, DIP-28
Is it Rohs certified?	incompatible	incompatible
Maker	SIPEX	SIPEX
package instruction	DOUBLE WIDTH, HERMETIC SEALED, DIP-28	DOUBLE WIDTH, HERMETIC SEALED, DIP-28
Reach Compliance Code	unknown	unknown
Maximum analog output voltage	10 V	10 V
Minimum analog output voltage	-10 V	-10 V
Converter type	D/A CONVERTER	D/A CONVERTER
Enter bit code	BINARY, OFFSET BINARY	BINARY, OFFSET BINARY
Input format	PARALLEL, 8 BITS	PARALLEL, 8 BITS
JESD-30 code	R-CDIP-T28	R-CDIP-T28
JESD-609 code	e0	e0
Maximum linear error (EL)	0.0015%	0.0015%
Nominal negative supply voltage	-15 V	-15 V
Number of digits	18	18
Number of functions	1	1
Number of terminals	28	28
Maximum operating temperature	125 °C	70 °C
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP	DIP
Encapsulate equivalent code	DIP28,.6	DIP28,.6
Package shape	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED
power supply	+-15 V	+-15 V
Certification status	Not Qualified	Not Qualified
Maximum seat height	5.207 mm	5.207 mm
Nominal settling time (tstl)	20 µs	20 µs
Maximum slew rate	25 mA	25 mA
Nominal supply voltage	15 V	15 V
surface mount	NO	NO
technology	CMOS	CMOS
Temperature level	MILITARY	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED
width	15.24 mm	15.24 mm
