CA3030AE datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Amplifier circuit> CA3030AE

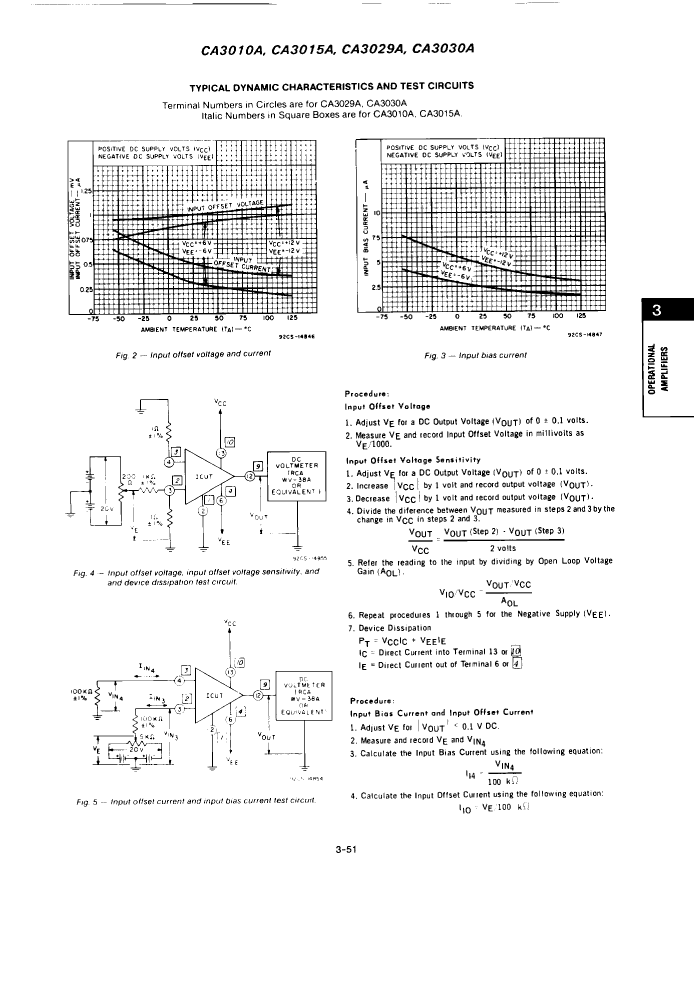

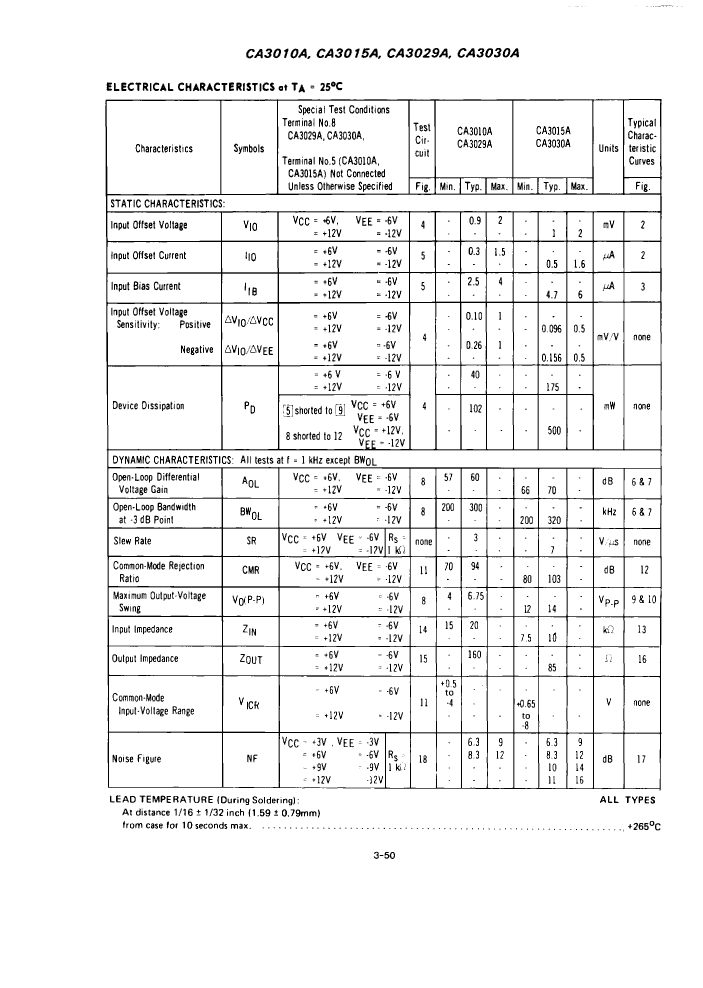

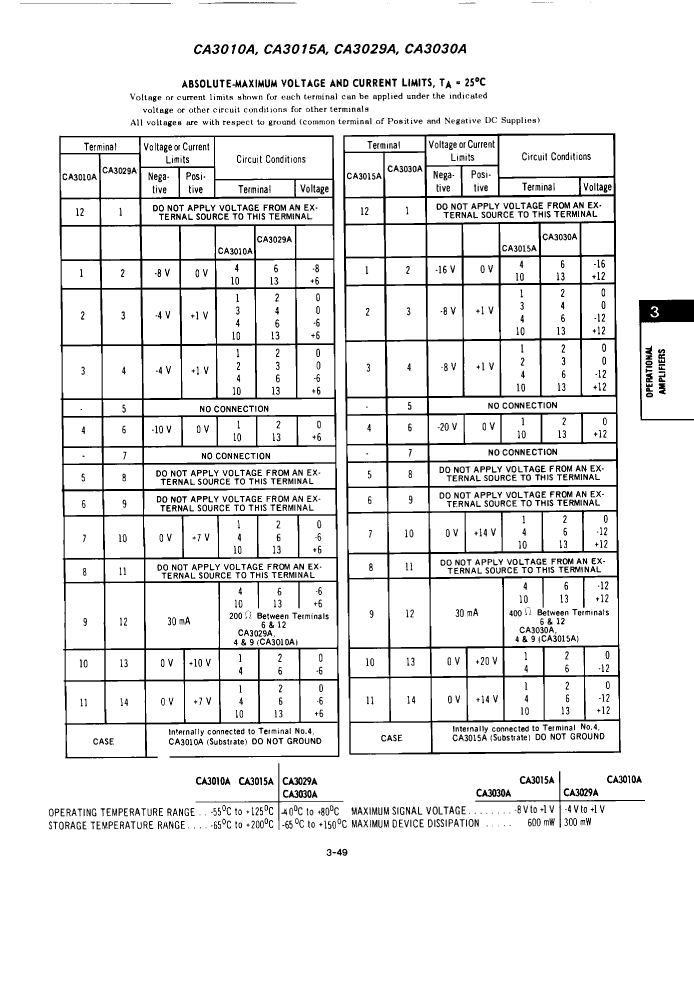

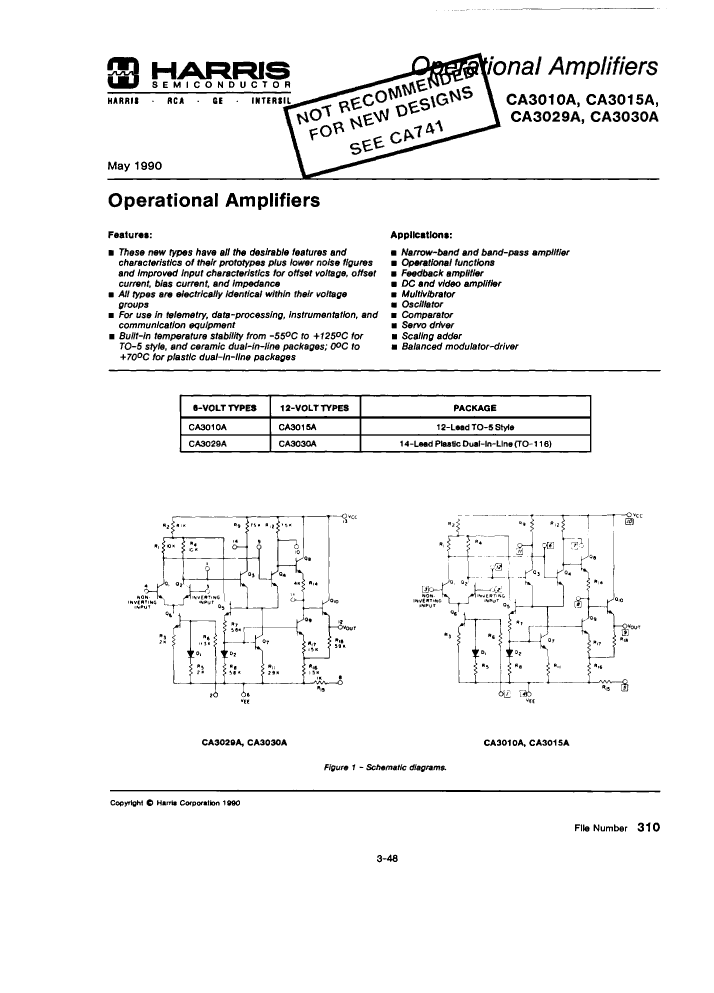

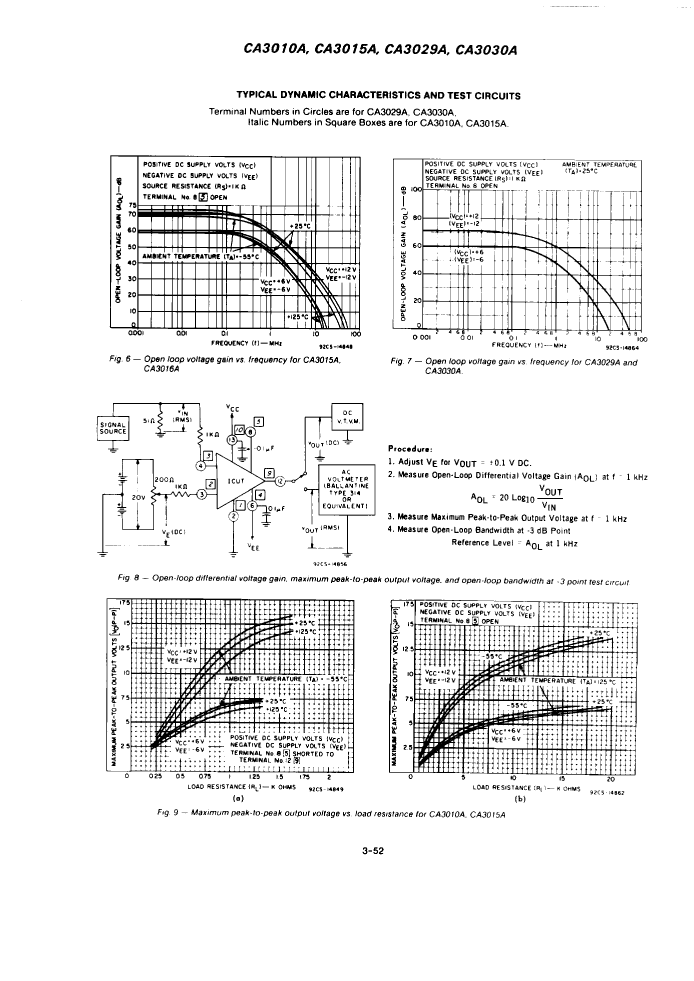

Preview

CA3030AE: DescriptionOP-AMP, 2000uV OFFSET-MAX, PDIP14; CategoryAnalog mixed-signal IC Amplifier circuit; File Size296KB，7 Pages; ManufacturerRenesas Electronics Corporation; Websitehttps://www.renesas.com/

Download Datasheet Parametric Compare View All

CA3030AE Overview

OP-AMP, 2000uV OFFSET-MAX, PDIP14

CA3030AE Parametric

Parameter Name	Attribute value
Maker	Renesas Electronics Corporation
Parts packaging code	DIP
package instruction	,
Contacts	14
Reach Compliance Code	unknown
ECCN code	EAR99
Amplifier type	OPERATIONAL AMPLIFIER
Maximum average bias current (IIB)	6 µA
Minimum Common Mode Rejection Ratio	80 dB
Nominal Common Mode Rejection Ratio	103 dB
Maximum input offset voltage	2000 µV
JESD-30 code	R-PDIP-T14
Negative supply voltage upper limit	-20 V
Nominal Negative Supply Voltage (Vsup)	-12 V
Number of functions	1
Number of terminals	14
Maximum operating temperature	80 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
Supply voltage upper limit	20 V
Nominal supply voltage (Vsup)	12 V
surface mount	NO
technology	BIPOLAR
Temperature level	OTHER
Terminal form	THROUGH-HOLE
Terminal location	DUAL
Minimum voltage gain	1995.3

Preview

Download Datasheet

View All

CA3030AE Related Products

	CA3030AE	CA3029AE	CA3010AT	CA3015AT
Description	OP-AMP, 2000uV OFFSET-MAX, PDIP14	OP-AMP, 2000uV OFFSET-MAX, PDIP14	OP-AMP, 2000uV OFFSET-MAX, MBCY8	OP-AMP, 2000uV OFFSET-MAX, MBCY8
Maker	Renesas Electronics Corporation	Renesas Electronics Corporation	Renesas Electronics Corporation	Renesas Electronics Corporation
Parts packaging code	DIP	DIP	BCY	BCY
Contacts	14	14	8	8
Reach Compliance Code	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99
Amplifier type	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER
Maximum average bias current (IIB)	6 µA	4 µA	4 µA	6 µA
Minimum Common Mode Rejection Ratio	80 dB	70 dB	70 dB	80 dB
Nominal Common Mode Rejection Ratio	103 dB	94 dB	94 dB	103 dB
Maximum input offset voltage	2000 µV	2000 µV	2000 µV	2000 µV
JESD-30 code	R-PDIP-T14	R-PDIP-T14	O-MBCY-W8	O-MBCY-W8
Negative supply voltage upper limit	-20 V	-10 V	-10 V	-20 V
Nominal Negative Supply Voltage (Vsup)	-12 V	-6 V	-6 V	-12 V
Number of functions	1	1	1	1
Number of terminals	14	14	8	8
Maximum operating temperature	80 °C	80 °C	125 °C	125 °C
Minimum operating temperature	-40 °C	-40 °C	-55 °C	-55 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	METAL	METAL
Package shape	RECTANGULAR	RECTANGULAR	ROUND	ROUND
Package form	IN-LINE	IN-LINE	CYLINDRICAL	CYLINDRICAL
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Supply voltage upper limit	20 V	10 V	10 V	20 V
Nominal supply voltage (Vsup)	12 V	6 V	6 V	12 V
surface mount	NO	NO	NO	NO
technology	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR
Temperature level	OTHER	OTHER	MILITARY	MILITARY
Terminal form	THROUGH-HOLE	THROUGH-HOLE	WIRE	WIRE
Terminal location	DUAL	DUAL	BOTTOM	BOTTOM
Minimum voltage gain	1995.3	707.9	707.9	1995.3
