MT28F800B3SG-12TVET datasheet, PDF

Datasheet> All Categories > storage> storage> MT28F800B3SG-12TVET

MT28F800B3SG-12TVET: DescriptionFlash, 1MX8, 120ns, PDSO44, 0.600 INCH, PLASTIC, SOP-44; Categorystorage storage; File Size912KB，35 Pages; ManufacturerMicron Technology; Websitehttp://www.mdtic.com.tw/

Download Datasheet Parametric Compare View All

MT28F800B3SG-12TVET Overview

Flash, 1MX8, 120ns, PDSO44, 0.600 INCH, PLASTIC, SOP-44

MT28F800B3SG-12TVET Parametric

Parameter Name	Attribute value
Parts packaging code	SOIC
package instruction	0.600 INCH, PLASTIC, SOP-44
Contacts	44
Reach Compliance Code	unknow
ECCN code	EAR99
Maximum access time	120 ns
Other features	TOP BOOT BLOCK
Spare memory width	16
startup block	TOP
JESD-30 code	R-PDSO-G44
length	28.195 mm
memory density	8388608 bi
Memory IC Type	FLASH
memory width	8
Number of functions	1
Number of terminals	44
word count	1048576 words
character code	1000000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
organize	1MX8
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Parallel/Serial	PARALLEL
Programming voltage	3 V
Certification status	Not Qualified
Maximum seat height	2.7 mm
Maximum supply voltage (Vsup)	3.6 V
Minimum supply voltage (Vsup)	2.7 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
type	NOR TYPE
width	12.6 mm
Base Number Matches	1

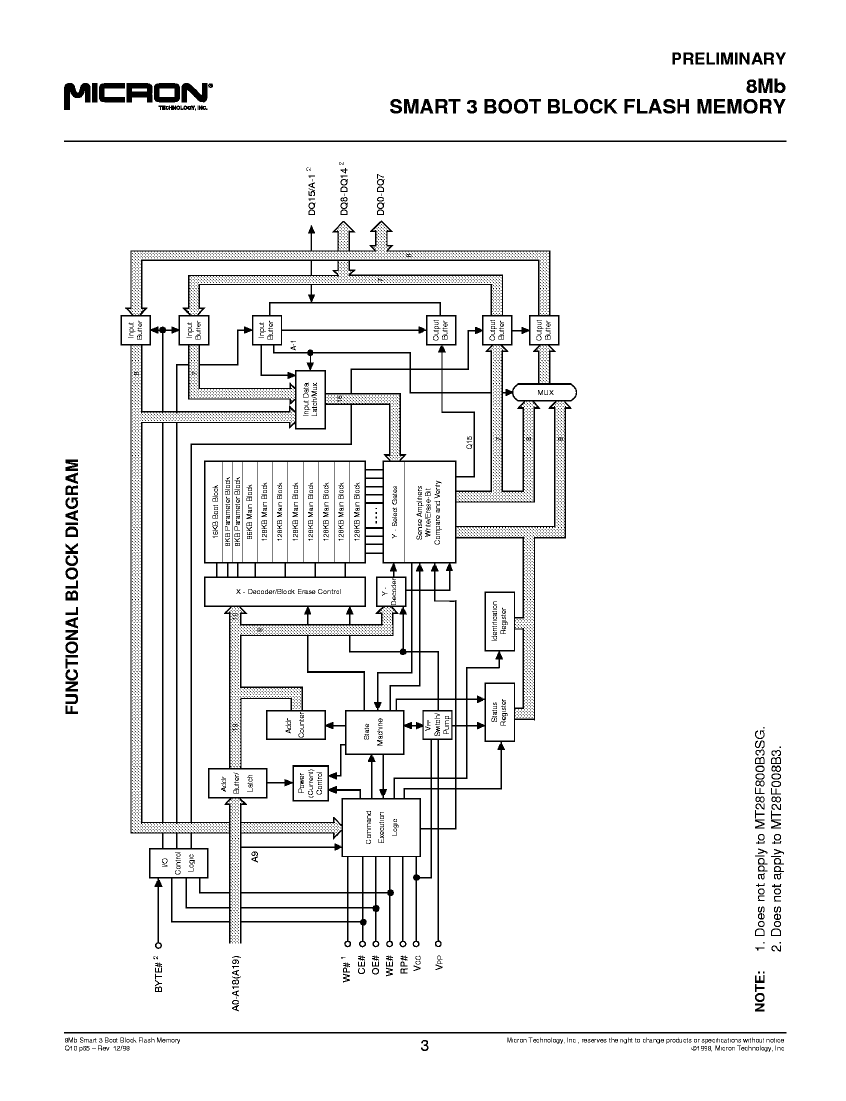

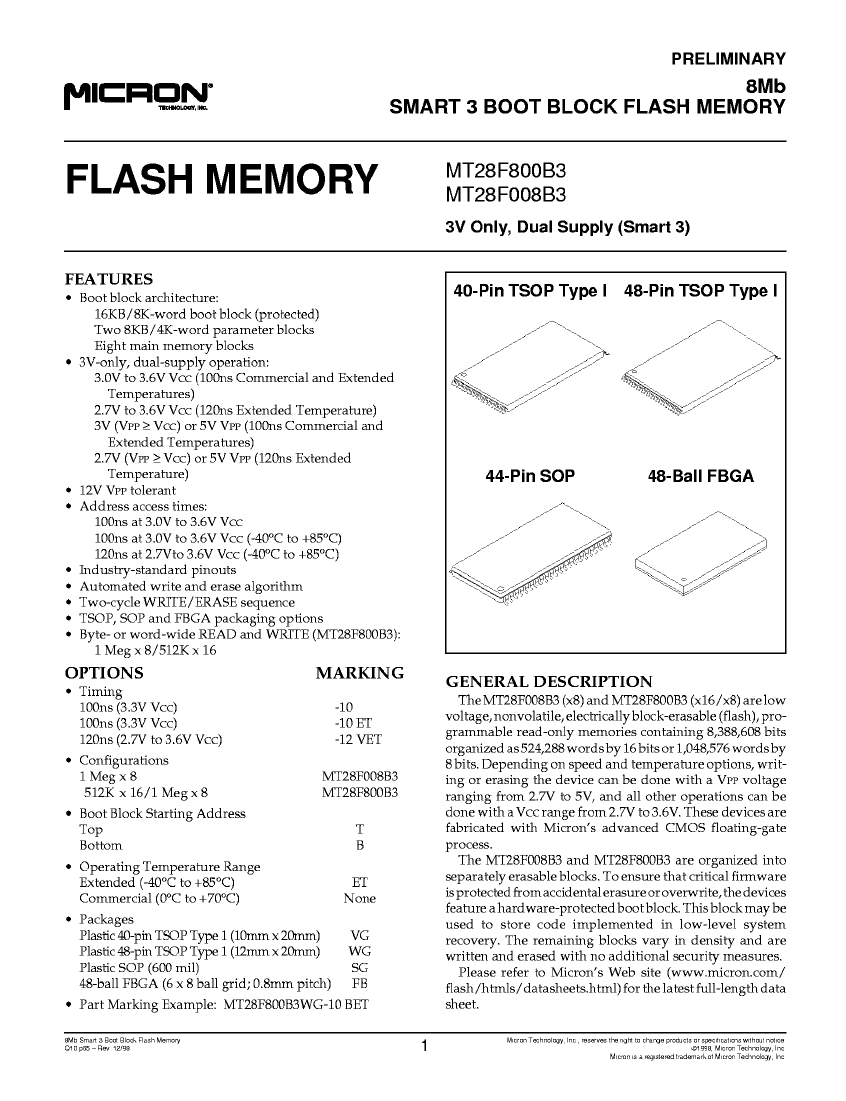

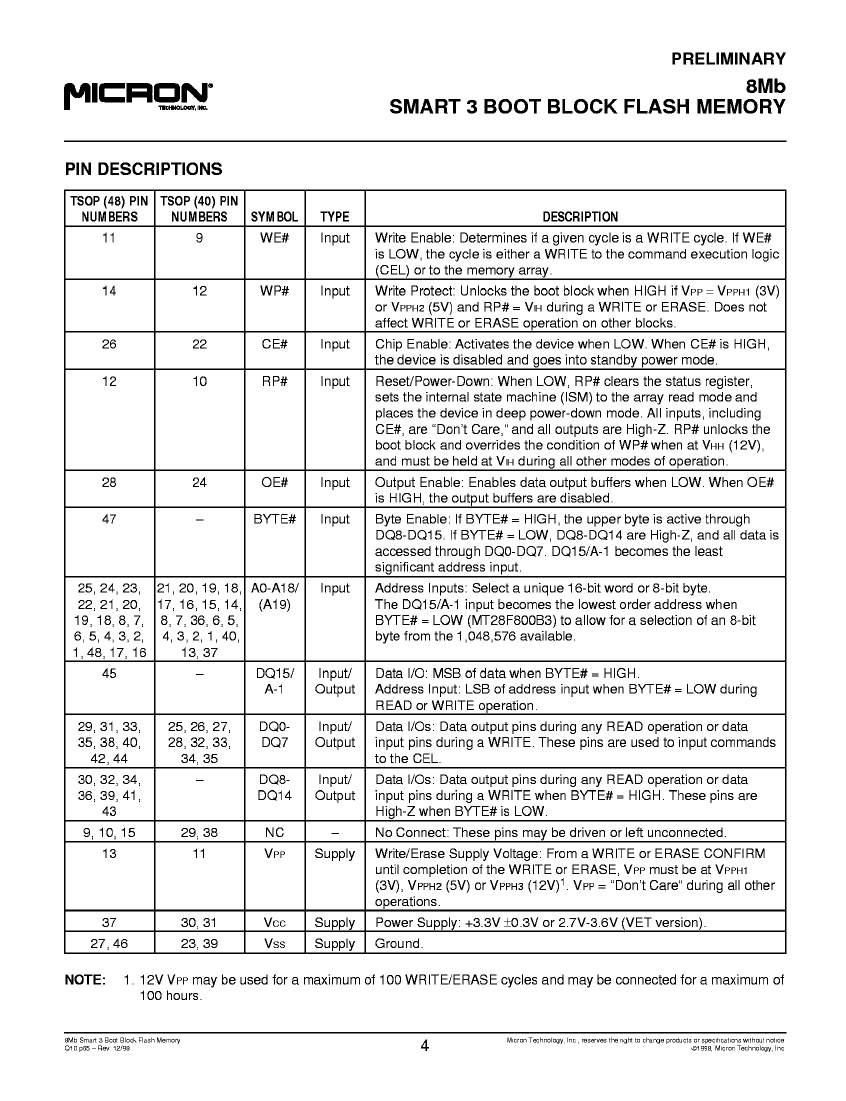

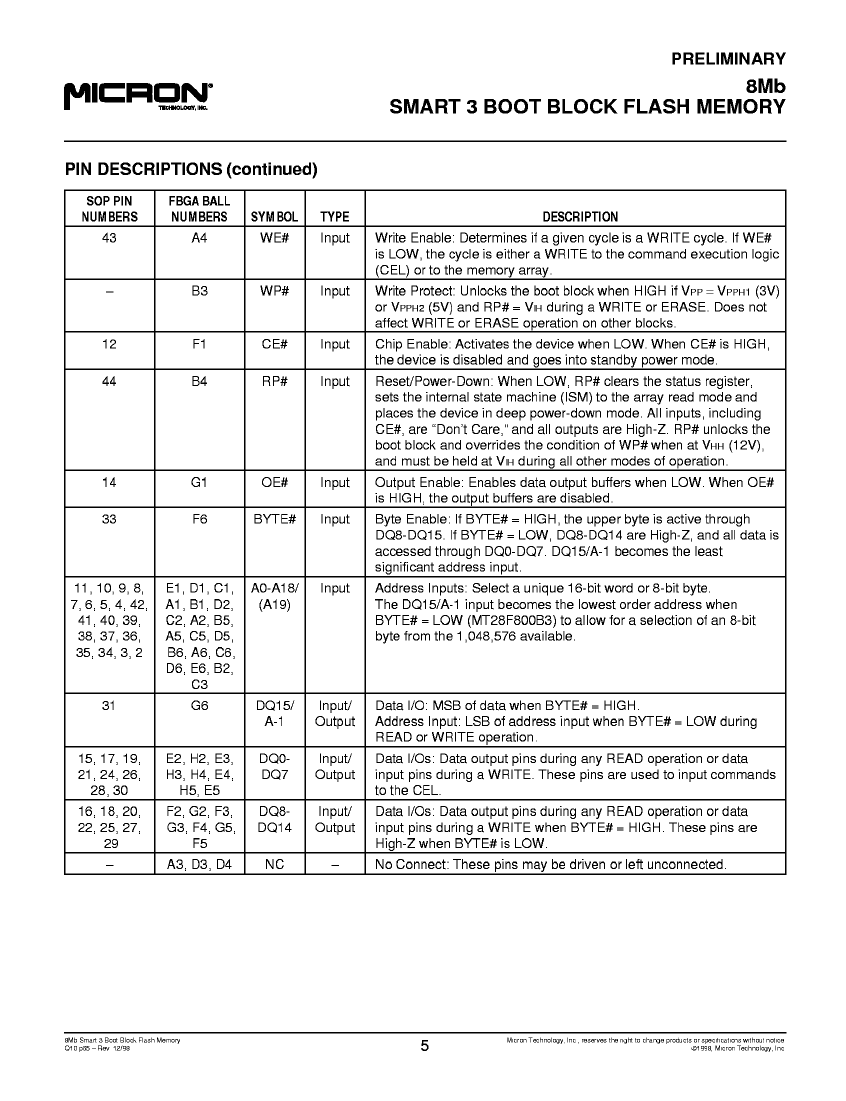

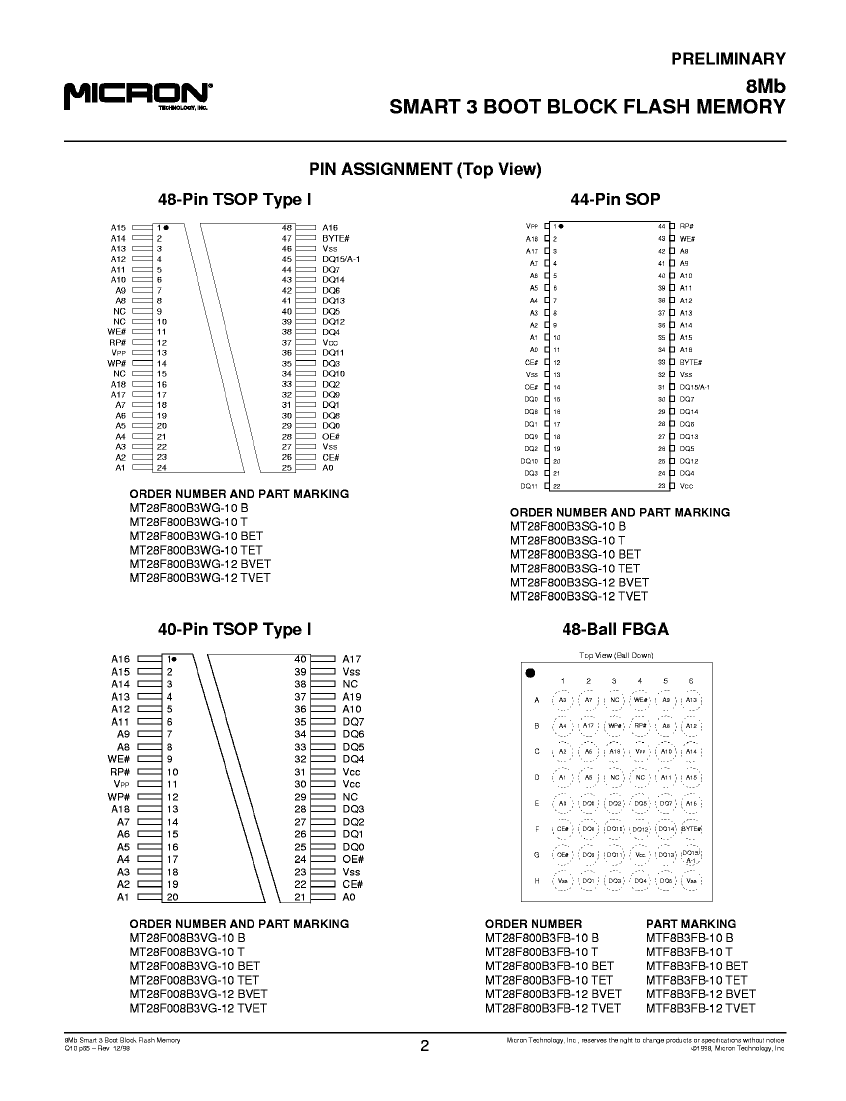

Preview

Download Datasheet

View All

MT28F800B3SG-12TVET Related Products

	MT28F800B3SG-12TVET	MT28F008B3VG-12BVET	MT28F008B3VG-12TVET	MT28F800B3SG-12BVET	MT28F800B3WG-12BVET	MT28F800B3WG-12TVET	MT28F800B3FB-12BVET	MT28F800B3FB-12TVET
Description	Flash, 1MX8, 120ns, PDSO44, 0.600 INCH, PLASTIC, SOP-44	Flash, 1MX8, 120ns, PDSO40, 10 X 20 MM, PLASTIC, TSOP1-40	Flash, 1MX8, 120ns, PDSO40, 10 X 20 MM, PLASTIC, TSOP1-40	Flash, 1MX8, 120ns, PDSO44, 0.600 INCH, PLASTIC, SOP-44	Flash, 1MX8, 120ns, PDSO48, 12 X 20 MM, PLASTIC, TSOP1-48	Flash, 1MX8, 120ns, PDSO48, 12 X 20 MM, PLASTIC, TSOP1-48	Flash, 1MX8, 120ns, PBGA48, 0.80 MM PITCH, FBGA-48	Flash, 1MX8, 120ns, PBGA48, 0.80 MM PITCH, FBGA-48
Parts packaging code	SOIC	TSOP1	TSOP1	SOIC	TSOP1	TSOP1	BGA	BGA
package instruction	0.600 INCH, PLASTIC, SOP-44	10 X 20 MM, PLASTIC, TSOP1-40	10 X 20 MM, PLASTIC, TSOP1-40	0.600 INCH, PLASTIC, SOP-44	12 X 20 MM, PLASTIC, TSOP1-48	12 X 20 MM, PLASTIC, TSOP1-48	0.80 MM PITCH, FBGA-48	0.80 MM PITCH, FBGA-48
Contacts	44	40	40	44	48	48	48	48
Reach Compliance Code	unknow	unknow	unknow	unknow	unknow	unknow	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Maximum access time	120 ns	120 ns	120 ns	120 ns	120 ns	120 ns	120 ns	120 ns
Other features	TOP BOOT BLOCK	BOTTOM BOOT BLOCK	TOP BOOT BLOCK	BOTTOM BOOT BLOCK	BOTTOM BOOT BLOCK	TOP BOOT BLOCK	BOTTOM BOOT BLOCK	TOP BOOT BLOCK
Spare memory width	16	16	16	16	16	16	16	16
startup block	TOP	BOTTOM	TOP	BOTTOM	BOTTOM	TOP	BOTTOM	TOP
JESD-30 code	R-PDSO-G44	R-PDSO-G40	R-PDSO-G40	R-PDSO-G44	R-PDSO-G48	R-PDSO-G48	R-PBGA-B48	R-PBGA-B48
memory density	8388608 bi	8388608 bi	8388608 bi	8388608 bi	8388608 bi	8388608 bi	8388608 bit	8388608 bit
Memory IC Type	FLASH	FLASH	FLASH	FLASH	FLASH	FLASH	FLASH	FLASH
memory width	8	8	8	8	8	8	8	8
Number of functions	1	1	1	1	1	1	1	1
Number of terminals	44	40	40	44	48	48	48	48
word count	1048576 words	1048576 words	1048576 words	1048576 words	1048576 words	1048576 words	1048576 words	1048576 words
character code	1000000	1000000	1000000	1000000	1000000	1000000	1000000	1000000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
organize	1MX8	1MX8	1MX8	1MX8	1MX8	1MX8	1MX8	1MX8
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	TSOP1	TSOP1	SOP	TSOP1	TSOP1	LFBGA	LFBGA
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE, THIN PROFILE	GRID ARRAY, LOW PROFILE, FINE PITCH	GRID ARRAY, LOW PROFILE, FINE PITCH
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL
Programming voltage	3 V	3 V	3 V	3 V	3 V	3 V	3 V	3 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	2.7 mm	1.2 mm	1.2 mm	2.7 mm	1.2 mm	1.2 mm	1.4 mm	1.4 mm
Maximum supply voltage (Vsup)	3.6 V	3.6 V	3.6 V	3.6 V	3.6 V	3.6 V	3.6 V	3.6 V
Minimum supply voltage (Vsup)	2.7 V	2.7 V	2.7 V	2.7 V	2.7 V	2.7 V	2.7 V	2.7 V
surface mount	YES	YES	YES	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	BALL	BALL
Terminal pitch	1.27 mm	0.5 mm	0.5 mm	1.27 mm	0.5 mm	0.5 mm	0.8 mm	0.8 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	BOTTOM	BOTTOM
type	NOR TYPE	NOR TYPE	NOR TYPE	NOR TYPE	NOR TYPE	NOR TYPE	NOR TYPE	NOR TYPE
length	28.195 mm	18.4 mm	18.4 mm	28.195 mm	18.4 mm	18.4 mm	-	-
width	12.6 mm	10 mm	10 mm	12.6 mm	12 mm	12 mm	-	-
Base Number Matches	1	1	1	1	1	1	-	-
JESD-609 code	-	e3	e3	-	e3	e3	e1	e1
Terminal surface	-	MATTE TIN	MATTE TIN	-	MATTE TIN	MATTE TIN	TIN SILVER COPPER	TIN SILVER COPPER
