Datasheet> All Categories > Power/power management> The power supply circuit> BQ2204ASN

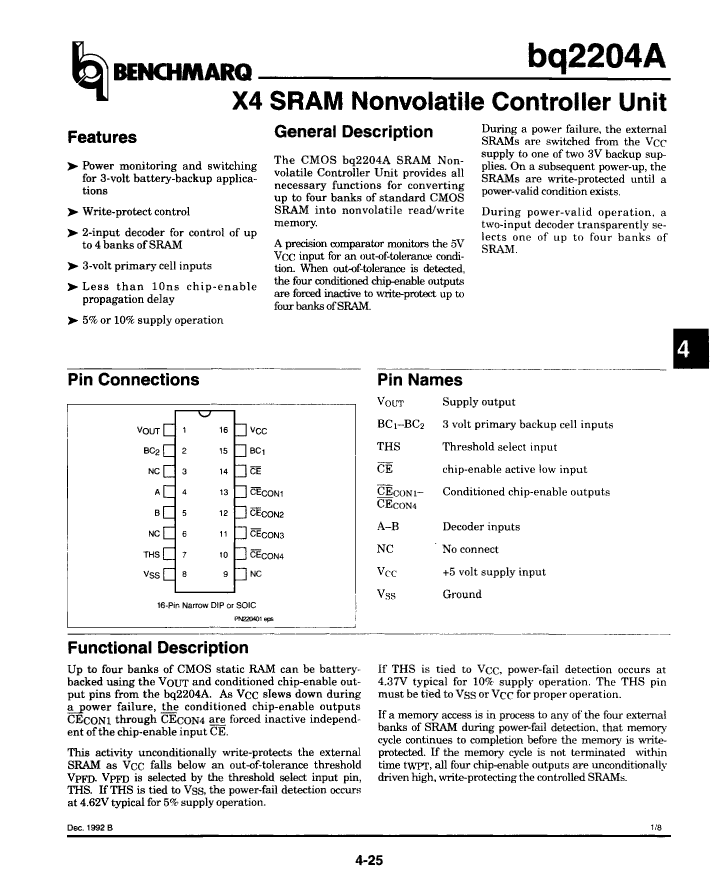

Preview

BQ2204ASN: DescriptionPower Supply Support Circuit, CMOS, PDSO16,; CategoryPower/power management The power supply circuit; File Size224KB，8 Pages; ManufacturerBenchmarq Microelectronics Inc

Download Datasheet Parametric Compare View All

BQ2204ASN Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	BQ2204ASN	-	-	View	Buy Now

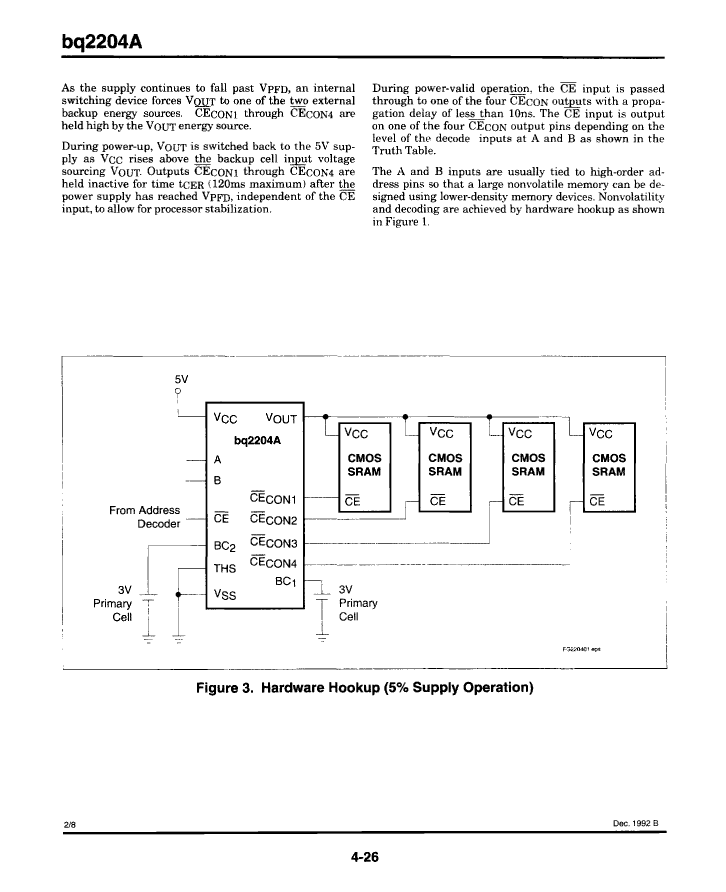

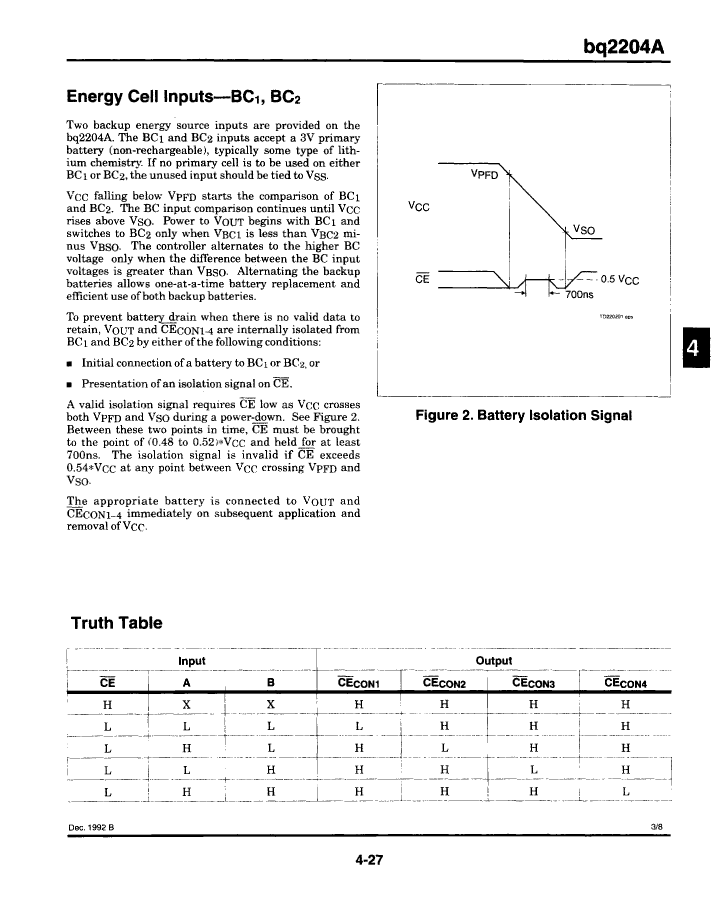

BQ2204ASN Overview

Power Supply Support Circuit, CMOS, PDSO16,

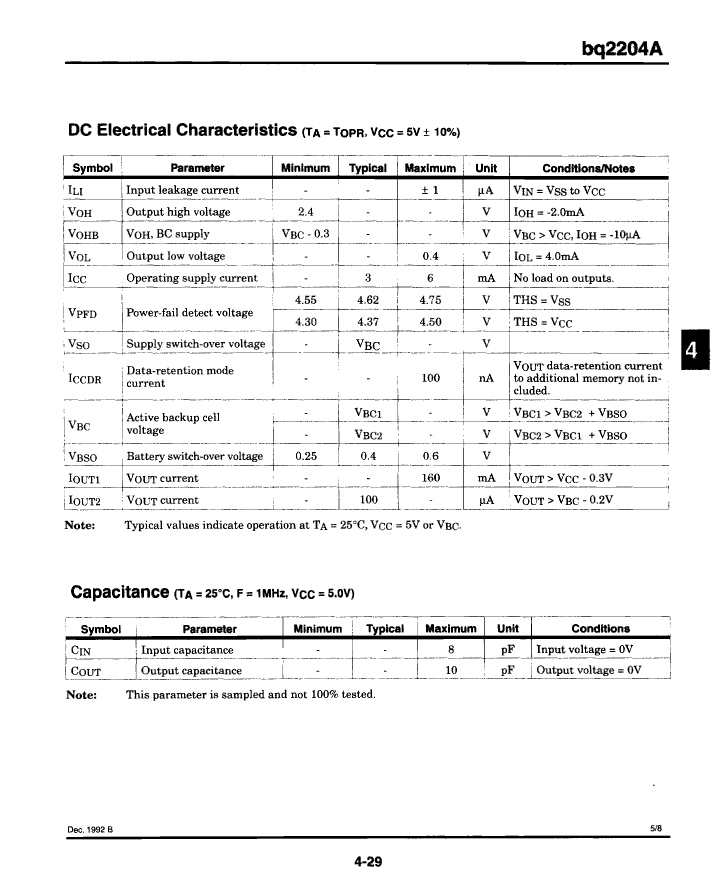

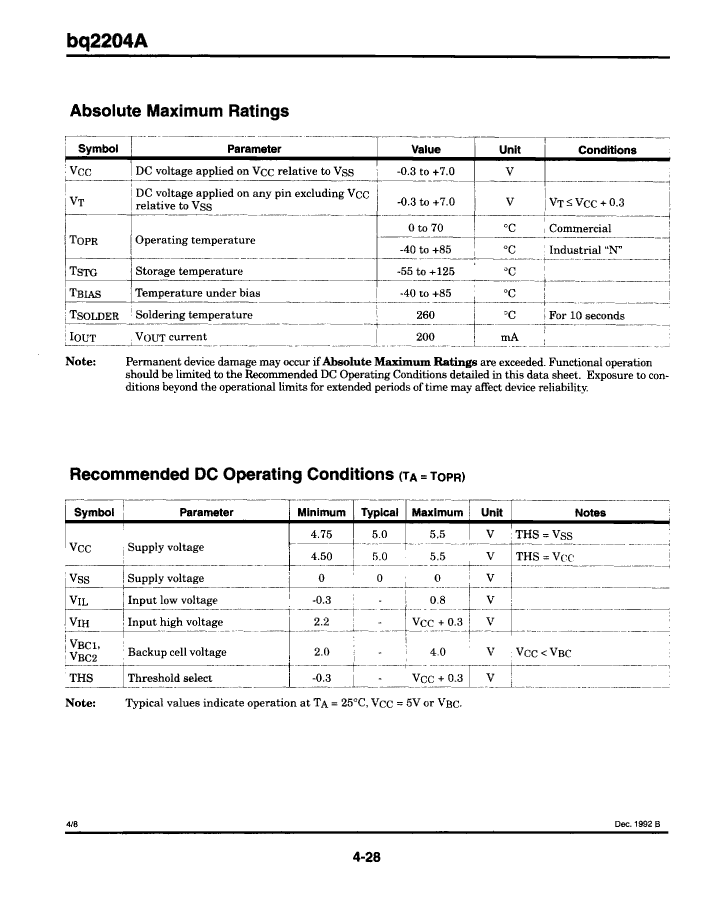

BQ2204ASN Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Benchmarq Microelectronics Inc
Reach Compliance Code	unknown
Analog Integrated Circuits - Other Types	POWER SUPPLY SUPPORT CIRCUIT
JESD-30 code	R-PDSO-G16
JESD-609 code	e0
Number of functions	1
Number of terminals	16
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	SOP16,.25
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Certification status	Not Qualified
Maximum supply current (Isup)	6 mA
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED

Preview

Download Datasheet

View All

BQ2204ASN Related Products

	BQ2204ASN	BQ2204APNN	BQ2204APN	BQ2204ASNN
Description	Power Supply Support Circuit, CMOS, PDSO16,	Power Supply Support Circuit, CMOS, PDIP16,	Power Supply Support Circuit, CMOS, PDIP16,	Power Supply Support Circuit, CMOS, PDSO16,
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	unknown	unknown	unknown	unknown
Analog Integrated Circuits - Other Types	POWER SUPPLY SUPPORT CIRCUIT	POWER SUPPLY SUPPORT CIRCUIT	POWER SUPPLY SUPPORT CIRCUIT	POWER SUPPLY SUPPORT CIRCUIT
JESD-30 code	R-PDSO-G16	R-PDIP-T16	R-PDIP-T16	R-PDSO-G16
JESD-609 code	e0	e0	e0	e0
Number of functions	1	1	1	1
Number of terminals	16	16	16	16
Maximum operating temperature	70 °C	85 °C	70 °C	85 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	DIP	DIP	SOP
Encapsulate equivalent code	SOP16,.25	DIP16,.3	DIP16,.3	SOP16,.25
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	IN-LINE	IN-LINE	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
power supply	5 V	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum supply current (Isup)	6 mA	6 mA	6 mA	6 mA
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V
surface mount	YES	NO	NO	YES
technology	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	INDUSTRIAL	COMMERCIAL	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	THROUGH-HOLE	THROUGH-HOLE	GULL WING
Terminal pitch	1.27 mm	2.54 mm	2.54 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Maker	Benchmarq Microelectronics Inc	-	Benchmarq Microelectronics Inc	Benchmarq Microelectronics Inc
