729-FREQ2-AM0: DescriptionLVPECL Output Clock Oscillator, 170MHz Min, 280MHz Max, ROHS COMPLIANT PACKAGE-6; CategoryPassive components oscillator; File Size200KB，2 Pages; ManufacturerFOX [Fox Electronics]; Environmental Compliance

Download Datasheet Parametric View All

729-FREQ2-AM0 Overview

LVPECL Output Clock Oscillator, 170MHz Min, 280MHz Max, ROHS COMPLIANT PACKAGE-6

729-FREQ2-AM0 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	FOX [Fox Electronics]
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	COMPLEMENTARY OUTPUT; ENABLE/DISABLE FUNCTION; TAPE AND REEL
maximum descent time	1 ns
Frequency Adjustment - Mechanical	NO
frequency stability	100%
Installation features	SURFACE MOUNT
Maximum operating frequency	280 MHz
Minimum operating frequency	170 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Oscillator type	LVPECL
Output load	50 OHM
physical size	7.5mm x 5.0mm x 1.5mm
longest rise time	1 ns
Maximum supply voltage	2.625 V
Minimum supply voltage	2.375 V
Nominal supply voltage	2.5 V
surface mount	YES
maximum symmetry	60/40 %

Preview

Download Datasheet

View All

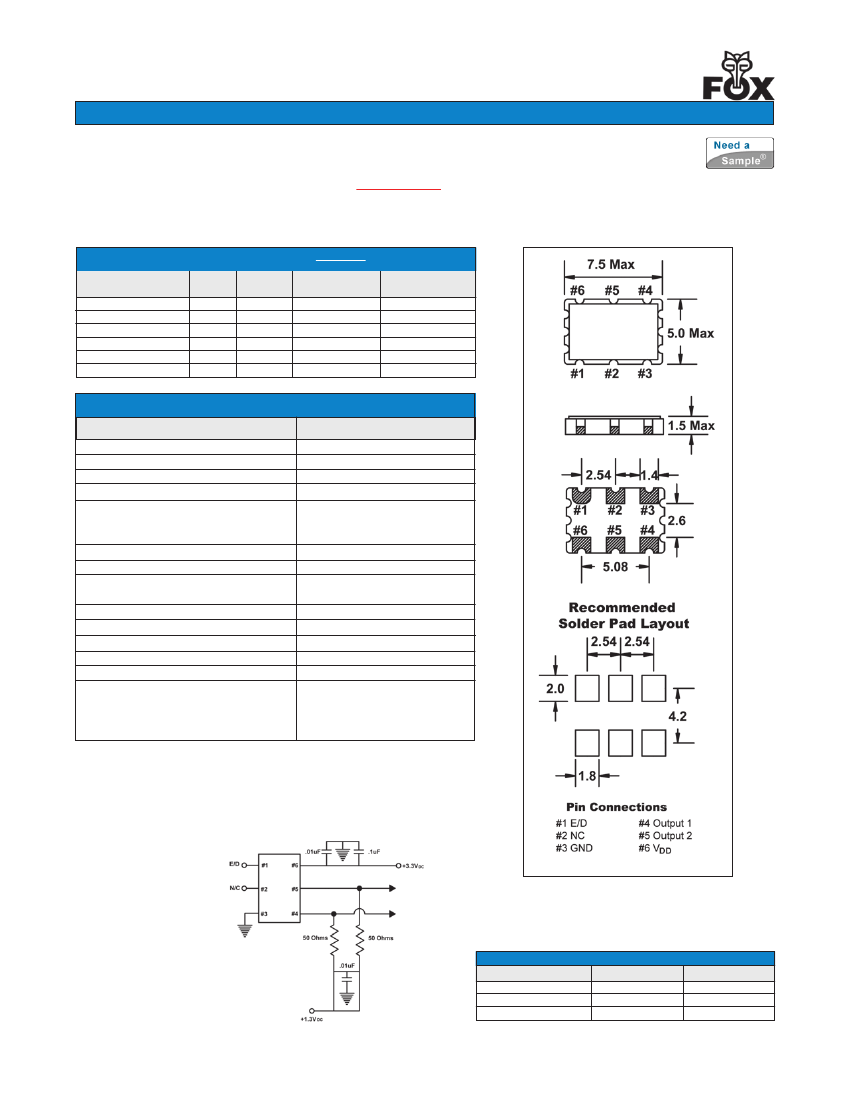

lVE-PEcl 7x5mm 2.5V Oscillator

F4620 sERiEs

Page 1 of 2

RoHs compliant / Pb Free

XpressO

Equivalent

FXO-PC72

Rev. 3/24/2009

http://www.foxonline.com/need_a_sample.htm

FEAtuREs

•

2.5V Operation

•

LV-PECL Output

Complementary Outputs

Standby Function

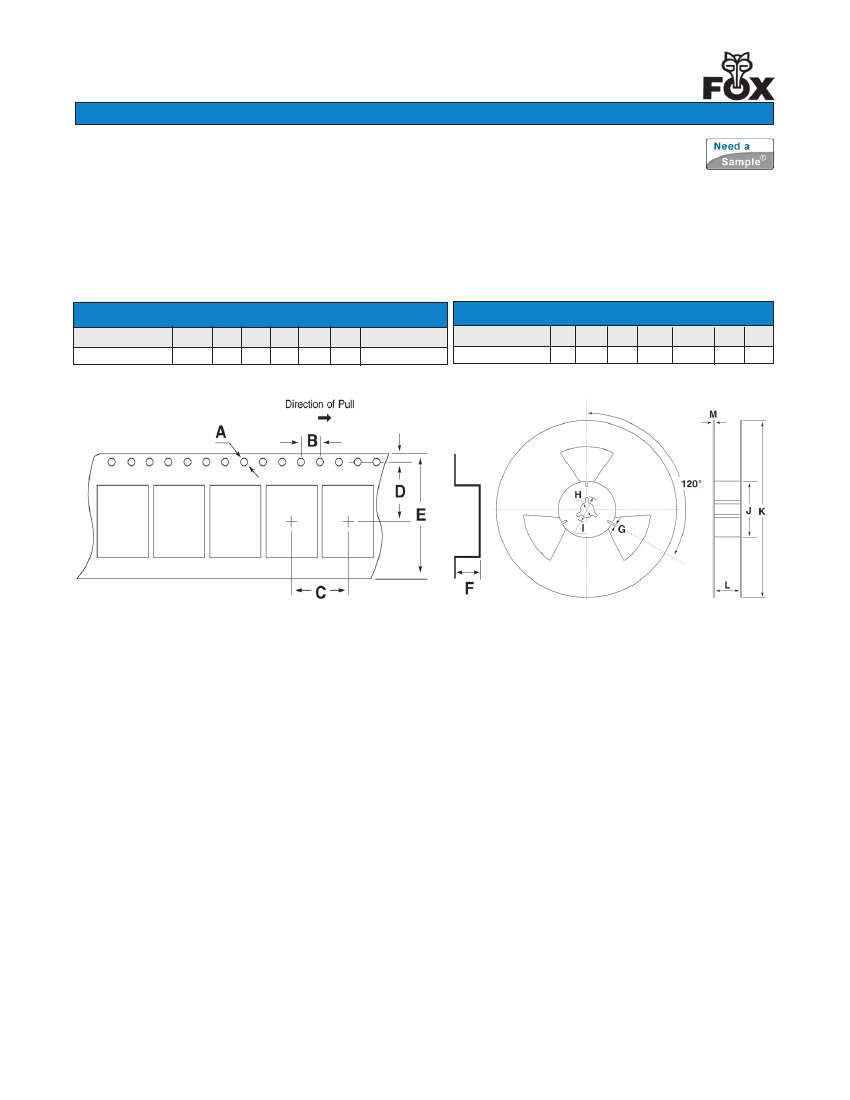

Tape and Reel

(2,000 pcs. STD)

Why XpressO?

Lower Cost, Faster Delivery, Low Jitter!

• PARt nuMbER sElEctiOn

Learn More - Internet Required

Part Number

359-Frequency-xxxxx

729-Frequency-xxxxx

360-Frequency-xxxxx

730-Frequency-xxxxx

720-Frequency-xxxxx

731-Frequency-xxxxx

Model

Number

F4620

F4620R

F4625

F4625R

F4626

F4626R

Operating

Frequency

Stability

Temperature (ºC)

-10 ~ +70

±100PPM

-40 ~ +85

±100PPM

-10 ~ +70

±50PPM

-40 ~ +85

±50PPM

-10 ~ +70

±25PPM*

-40 ~ +85

±25PPM*

Frequency

Range (MHz)

40.000 ~ 280.000

40.000 ~ 170.000

• ElEctRicAl cHARActERistics

PARAMETERS

Frequency Range (F

)

Storage Temperature Range (T

stg

)

Supply Voltage

)

Input Current

)

Output Symmetry (50% Vp-p Level)

40.000 MHz ~ 170.000 MHz

170.000* Mhz ~ 280.000 MHz

Rise Time (T

) (20% ~ 80% Vp-p)

Fall Time (T

)(80% ~ 20% Vp-p)

Output Voltage

)

Standby Current

Output Load

Start-up Time

)

Output Disable Time

Output Enable Time

Jitter

12kHz ~ 20MHz

RMS Period

Cycle-to-Cycle

MAX

(unless otherwise noted)

40.000 ~ 280.000 MHz

-55ºC ~ +125ºC

2.5V ± 5%

88mA

45% ~ 55%

40% ~ 60%

1nS

1.195V

1.415 V Min

30µA

See Recommended Circuit

10mS

200nS

10mS

0.3pS Typ.

2.5pS Typ.

20pS Typ.

Inclusive of 25ºC tolerance, operating temperature range, input voltage change, load change, aging,

shock, and vibration. (*Excludes shock and vibration)

An internal pullup resistor from pin 1 to pin 6 allows active output if pin 1 is left open.

Note: A 0.01µF bypass capacitor should be placed between

(Pin 6) and GND (Pin 3) to

minimize power supply line noise.

Drawing is for reference to critical specifications defined by size measurements.

Certain non-critical visual attributes, such as side castellations, reference pin shape, etc. may vary.

All specifications subject to change without notice.

All dimensions are in millimeters.

• EnAblE / DisAblE FunctiOn

OUTPUT (Pin 4)

(Pin 1)

ACTIVE

OPEN

'1' Level V

≥

70% V

ACTIVE

'0' Level V

≤

30% V

High Z

OUTPUT (Pin 5)

ACTIVE

High Z

FOXElectronics

5570 Enterprise Parkway Fort Myers, Florida 33905 USA +1.239.693.0099 FAX +1.239.693.1554

http://www.foxonline.com

EMEA

Tel/Fax: +44 .1767.312632 |

Asia

Hong Kong Tel: +852.2854.4285 Fax +852.2854.4282

Japan

Tel: +81.3.3374/2079 Fax: +81.3.3374.5221
