PCN10, 12, 13 Series (Product Compliant to DIN Standard: through hole,Wrapping Type)

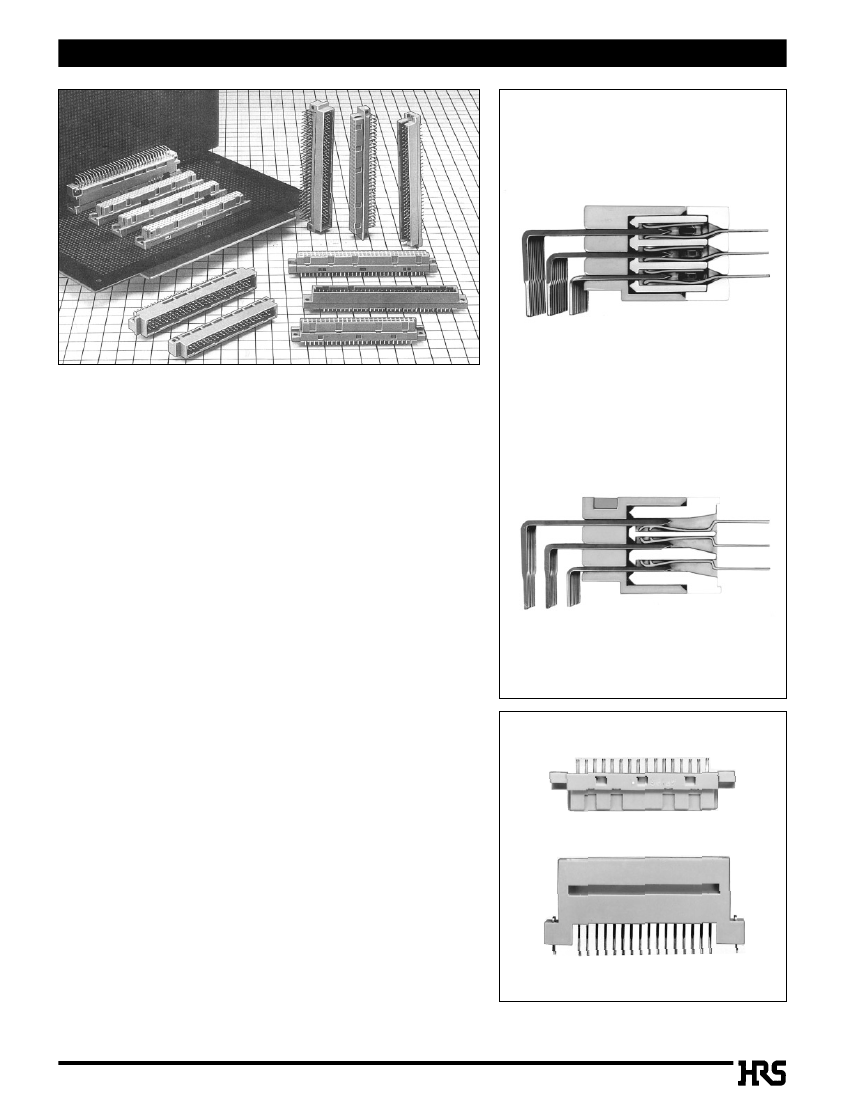

PCN10 and 12 series are constructed with high reliable double-
sided two point contacts.
PCN13 series pursues after cost performance, and constructed
with single sided two point contacts.
4. Broad applications
DIN standard types of B, C, R, and Q are available. The flux tight
product is available. The easy lock pin type to prefix the board is
available.
5. Stacking height variation
PCN10H series contains 25, 30, 35, 40 and 45mm stacking
height.
Stacking Connector
6. Circuit protection function available
PCN10MC series utilizes a sequence structure for circuit
protection function.
7. Cable connector
ID connector for ribbon cable is available.
The connector is prepared for crimping connection for AWC#26
to
30 cables.
sApplication
Control equipment, exchange, measuring instruments etc.
A29
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.
sProduct
Specifications
Rating
Current rating: 2A
Voltage rating: 300V AC
Operating Temperature Range:
-55 to
+85ç
(Note 1)
Storage Temperature Range:
-10 to
+60ç
(Note 2)
Operating Humidity Range: 85%
max
Storage Humidity Range: 40
to
70%
(Note 2)
Item
1.Insulation Resistance 10
6
M
ohms
Specification
100V DC
Condition
1000V AC (insulation displacement, crimping type: 650V AC) /1 minute.
0.1A
Frequency: 10 to 55 Hz, single amplitude of 0.75 mm, 2 hours in each of the 3 directions.
96 hours at temperature of 40ç and humidity of 90% to 95%
No deformation of components affecting performance. Manual soldering: 300ç for 3 seconds
Note 1: Includes temperature rise caused by current flow.
Note 2: The term "storage" refers to products stored for long period of time prior to mounting and use. Operating Temperature Range and
Humidity range covers non conducting condition of installed connectors in storage, shipment or during transportation.
sMaterial
Parts
Insulator
Contact
Pin header
Receptacle
Material
PBT
Brass
Copper alloy
Finish
Gray
Contact area: Gold plated
Remainer: Tin-lead plated
Remarks
UL94V-0
---------------
---------------
sOrdering
Information
qPCN
10 Series
PCN10
1
A –
*
P – 2.54 DS
2
3
4
5
6
3
Number of contacts: 2-row : 16, 20, 24, 32, 44, 50, 64, 90, 100
3-row : 48, 96, 144
4-row : 128
: P
:
Pin header
: S
:
Receptacle
: 2.54mm
1
2
Series Name
Blank
A
B
C :
D :
EA :
H :
HA :
HB :
HC :
HD :
MC :
: PCN10
mold type (as listed below)
}
4
Connector type
Flux prevention type (DSA only)
Rack installation type
With Board prefixed lock pin
Stacking height 35mm type
Stacking height 30mm type
Stacking height 25mm type
Stacking height 45mm type
Stacking height 40mm type
Circuit Protection function type
5
Contact pitch
6
Contact type
DS
DSA
WA
WB
R
C
: Right angle through hole type
: Straight through hole type
: Wrapping type (0.5tx0.7W)
: Wrapping type (0.5tx0.5W)
: Insulation displacement type
: Crimping type
*
*
A30
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.
qPCN
12 Series (Plug)
PCN12
1
q
Series name
w
No symbol
A
A -
*
P - 2.54 DS
2
3
4
5
6
e
Number of contacts : 2-row: 10, 16, 20, 24, 28, 32, 44,
: PCN12
: DIN standard type C (96 Contacts)
:
Original type
50, 64, 90, 100
3-row: 96
P
: Plug
: 2.54mm
: DS: Right angle through hole type
t
Contact pitch
y
Contact type
E-EA
: With board prefixed lock pin type
r
qPCN
12E-*S-2.54 DSA(Socket)
PCN12
1
q
Series name
w
No symbol
E
E -
*
S - 2.54 DSA
2
3
r
4
5
6
: PCN12
: Standard type
S
: Socket
: 2.54mm
: DSA: Straight through hole type
t
Contact pitch
: With board prefixed lock pin type
y
Contact type
64, 90, 100
3-row: 96
e
Number of contacts : 2-row: 10, 16, 20, 28, 32, 44, 50,
qPCN
13E-*S-2.54 DSA (Socket)
PCN13
1
q
Series name : PCN13
w
No symbol
E
E -
*
S - 2.54 DSA
2
3
r
4
5
6
S : Socket
: 2.54mm
: DS: Right angle through hole type
: DSA: Straight through hole type
: Standard type
: With board prefixed easy pin type
64, 90, 100
3-row: 48, 96
t
Contact pitch
y
Contact style
e
Number of contacts : 2-row: 10, 16, 20, 30, 32, 44, 50,
*PCN13
series are only socket type.
PCN10 and 12 series are mating connectors.
A31
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.
BDIN
Connector Mating Condition
DIN connectors of Hirose should be used under conditions as illustrated below.
A32
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.
BContact
numbers
According to the inter-combination with DIN standard type C (type B) and type R (type Q), the contact numbers
and row numbers represent contact No. (No.1 to 32) and row No. (a, b, c).

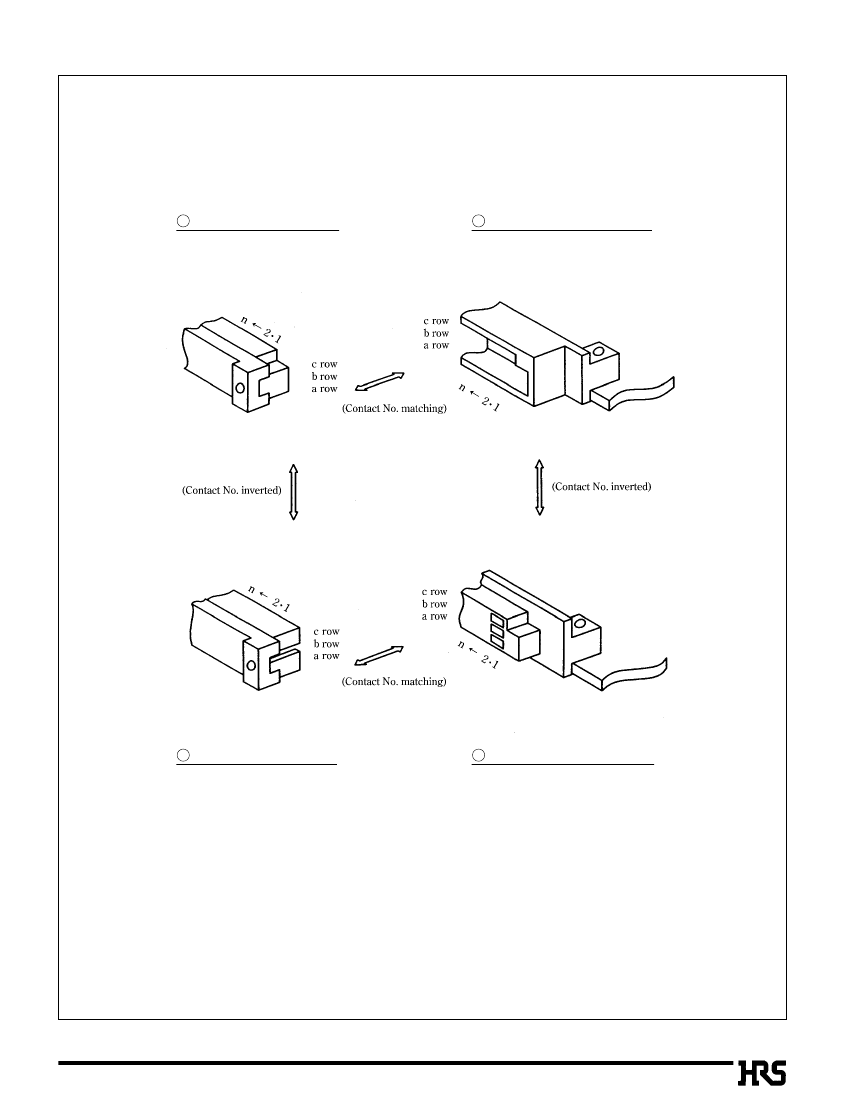

qDIN
standard type C and type R represent the 3-row 96 contacts type, including 32 contacts in single-row.
qDIN
standard type B and type Q represent the 2-row 64 contacts type, including 32 contacts in single-row.
1
Receptacle straight type
Type C (Type B)
2
Pin header right angle type
Type C (Type B)
3
Pin header straight type
Type R (Type Q)
4
Receptacle right angle type
Type R (Type Q)
Note: The DIN connector is basically standardized in combination with straight and right angle types. As shown
above in illustrationss;
The contact numbers is matched in combination with (1)-(2) and (3)-(4), while the contact numbers are
