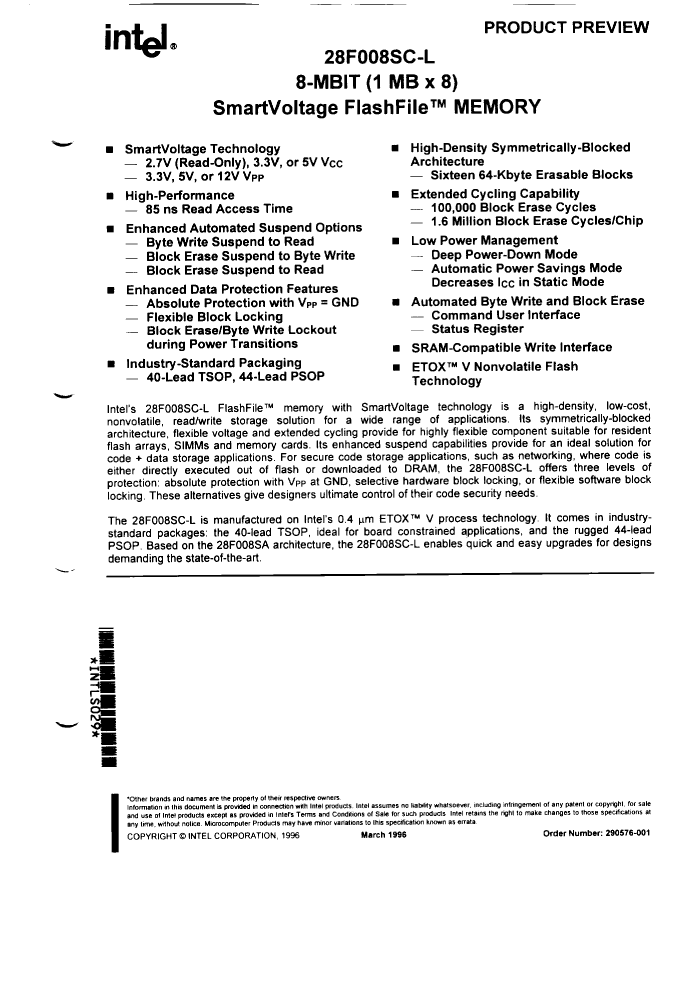

PA28F008SC-L150 datasheet, PDF

PA28F008SC-L150: DescriptionFlash, 1MX8, 90ns, PDSO44, 0.525 X 1.110 INCH, PLASTIC, SOP-44; Categorystorage storage; File Size1MB，44 Pages; ManufacturerIntel; Websitehttp://www.intel.com/

Download Datasheet Parametric Compare View All

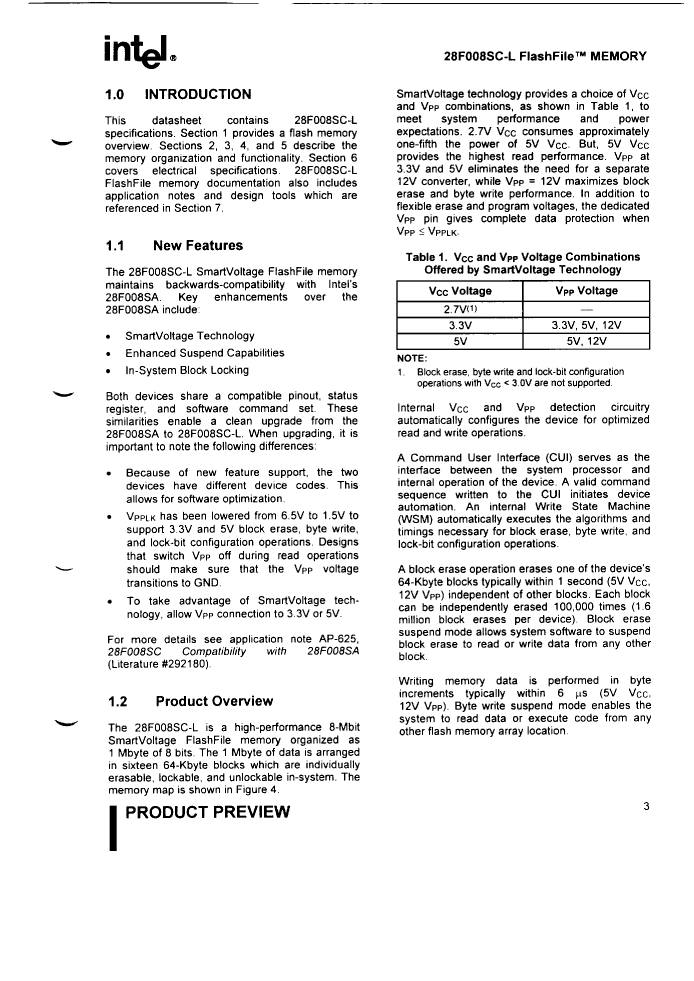

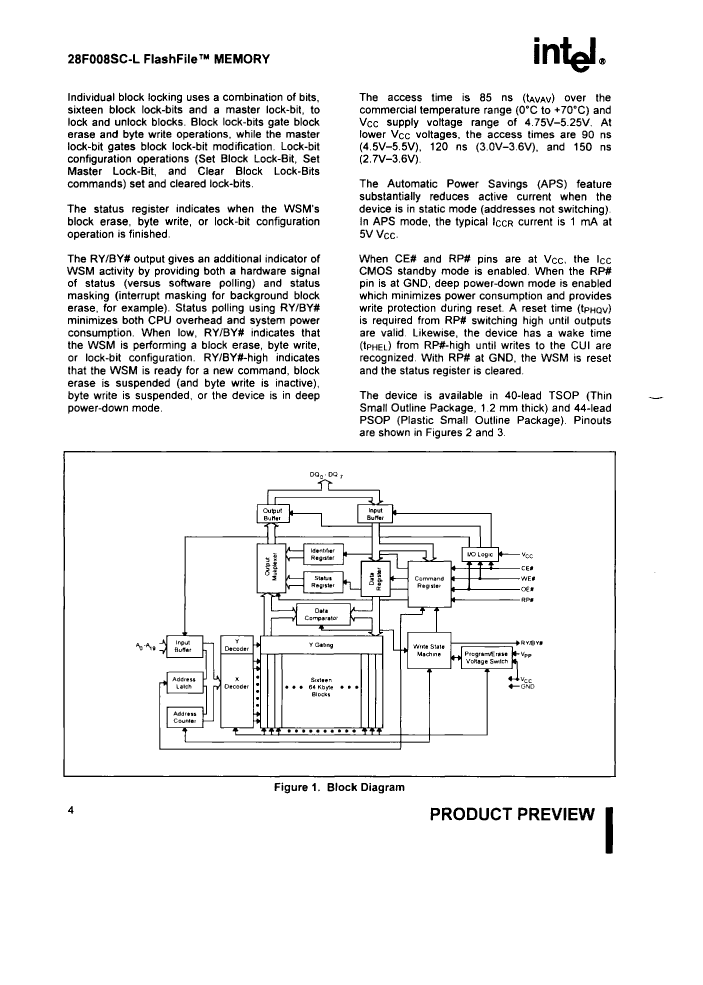

PA28F008SC-L150 Overview

Flash, 1MX8, 90ns, PDSO44, 0.525 X 1.110 INCH, PLASTIC, SOP-44

Parameter Name	Attribute value
Parts packaging code	SOIC
package instruction	0.525 X 1.110 INCH, PLASTIC, SOP-44
Contacts	44
Reach Compliance Code	unknow
ECCN code	EAR99
Maximum access time	90 ns
Other features	USER-SELECTABLE 5V OR 12V VPP
JESD-30 code	R-PDSO-G44
length	28.2 mm
memory density	8388608 bi
Memory IC Type	FLASH
memory width	8
Number of functions	1

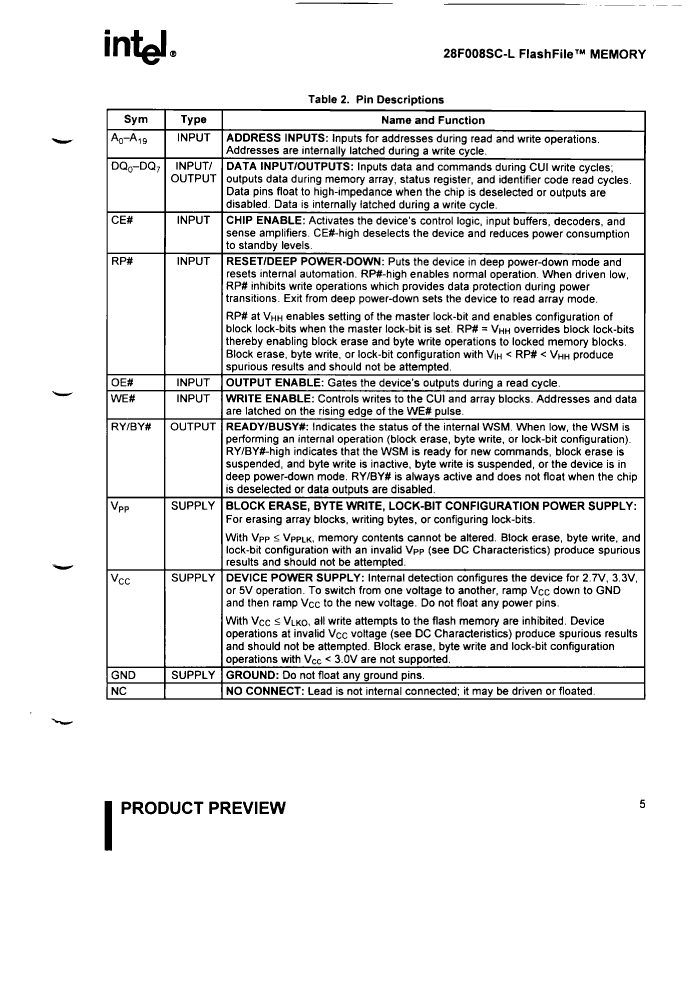

Number of terminals	44
word count	1048576 words
character code	1000000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	1MX8
Output characteristics	3-STATE
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Parallel/Serial	PARALLEL
Programming voltage	3 V
Certification status	Not Qualified
Maximum seat height	2.95 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	2.7 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	NMOS
Temperature level	COMMERCIAL
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
type	NOR TYPE
width	13.3 mm
Base Number Matches	1

	PA28F008SC-L150	E28F008SC-L150
Description	Flash, 1MX8, 90ns, PDSO44, 0.525 X 1.110 INCH, PLASTIC, SOP-44	Flash, 1MX8, 90ns, PDSO40, 10 X 20 MM, TSOP-40
Parts packaging code	SOIC	TSOP
package instruction	0.525 X 1.110 INCH, PLASTIC, SOP-44	10 X 20 MM, TSOP-40
Contacts	44	40
Reach Compliance Code	unknow	unknow
ECCN code	EAR99	EAR99
Maximum access time	90 ns	90 ns
Other features	USER-SELECTABLE 5V OR 12V VPP	USER-SELECTABLE 5V OR 12V VPP
JESD-30 code	R-PDSO-G44	R-PDSO-G40
length	28.2 mm	18.4 mm
memory density	8388608 bi	8388608 bi
Memory IC Type	FLASH	FLASH
memory width	8	8
Number of functions	1	1
Number of terminals	44	40
word count	1048576 words	1048576 words
character code	1000000	1000000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	70 °C	70 °C
organize	1MX8	1MX8
Output characteristics	3-STATE	3-STATE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	TSOP1
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE, THIN PROFILE
Parallel/Serial	PARALLEL	PARALLEL
Programming voltage	3 V	3 V
Certification status	Not Qualified	Not Qualified
Maximum seat height	2.95 mm	1.2 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V
Minimum supply voltage (Vsup)	2.7 V	2.7 V
Nominal supply voltage (Vsup)	5 V	5 V
surface mount	YES	YES
technology	NMOS	NMOS
Temperature level	COMMERCIAL	COMMERCIAL
Terminal form	GULL WING	GULL WING
Terminal pitch	1.27 mm	0.5 mm
Terminal location	DUAL	DUAL
type	NOR TYPE	NOR TYPE
width	13.3 mm	10 mm
Base Number Matches	1	1
